| Overall Size Parameters |
| Operating weight |
8600 KG |
Wheel base |
2280 mm |
| Overall dimension (L×W×H) |
6050 × 2484 × 3453 mm |
Wheel tread |
1785 mm |
| Ground clearance |
|
Backhoe bucket capacity |
0.3 m³ |
| Load bucket capacity |
|
Backhoe digging force |
49.8 KN |
| Load breakout force |
|
Backhoe swing angle |
180° |
| Load lifting capacity |
|
Bucket unloading height |
4084 / 4720 mm |
| Bucket unloading height |
|
Max. digging depth |
4303 / 5246 mm |
| Bucket unloading distance |
|
Max. traction force |
76 KN |
| Digging depth |
|
Model (1) |
YCA105Z-T20 |

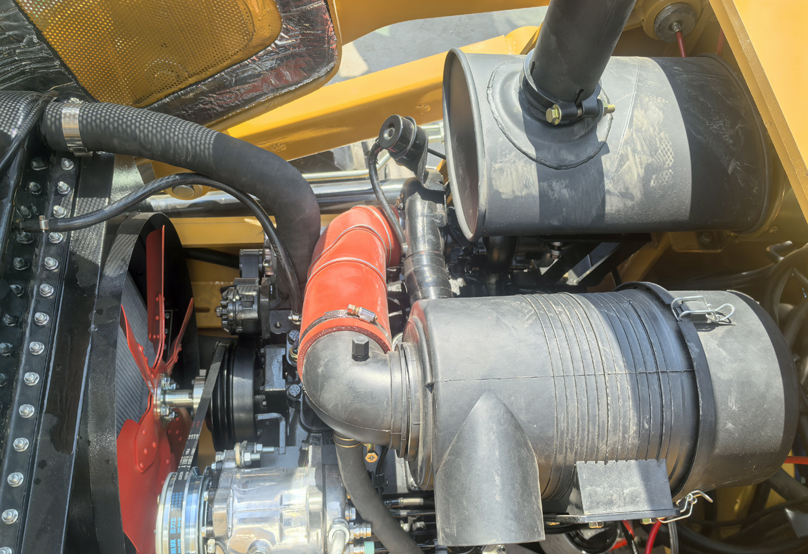

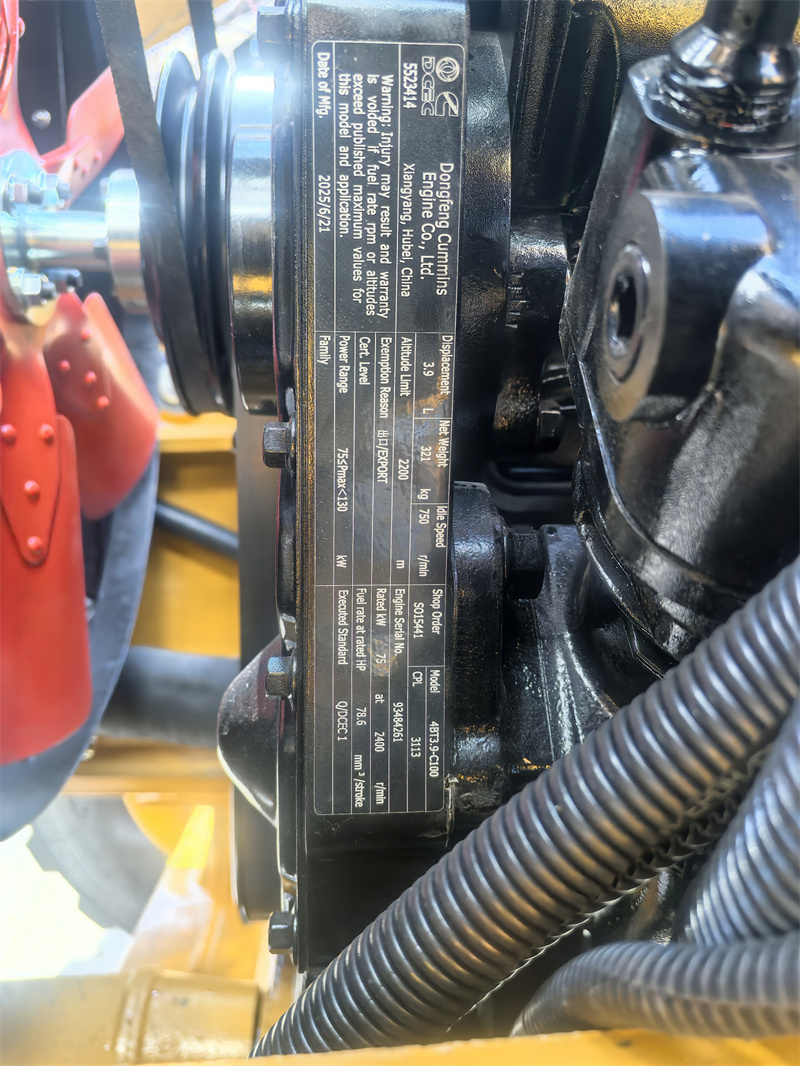

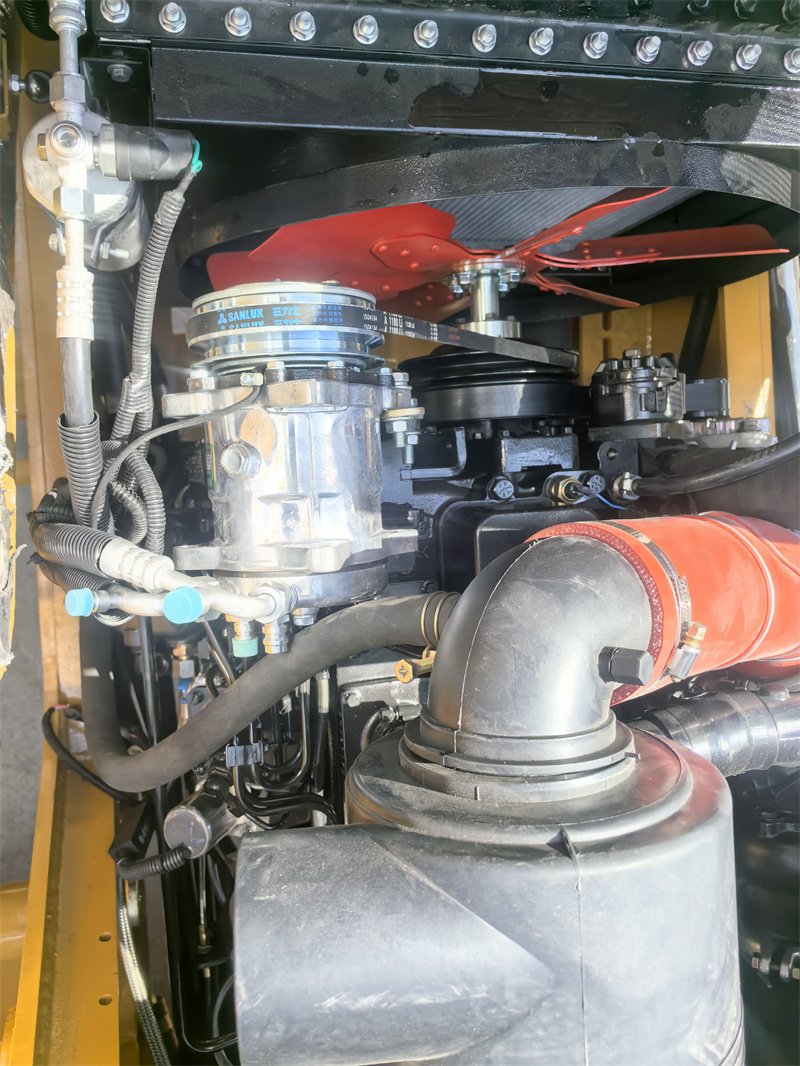

| Engine Specifications |
| Model |

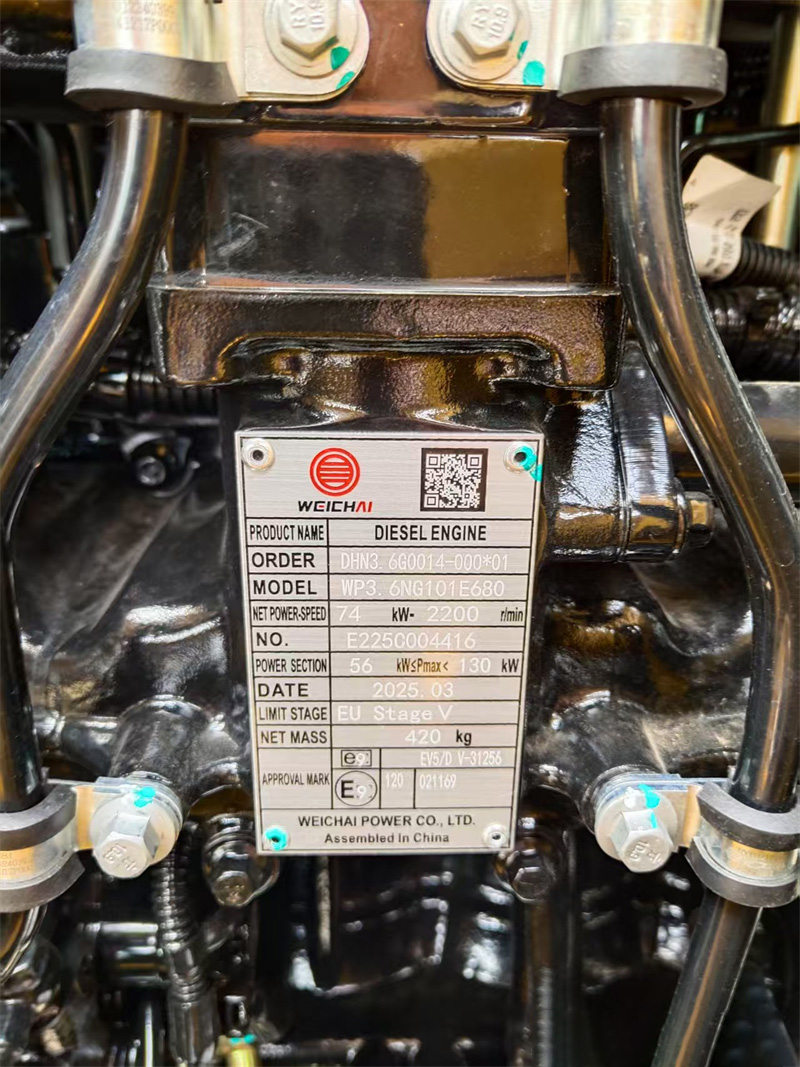

WP3.6NG101E680 |
Model (2) |
WP4G95E221 |
| Manufacturer |
Weichai-Euro V |
Model (3) |
YCA110Z-T23 |
| Turbocharge |
Turbocharged |
Manufacturer |
Yuchai-China II |
| Engine type |
Inline direct injection water cooled |
Turbocharge |
Turbocharged |
| Displacement (Engine 1) |
4.8 L |
Displacement (Engine 2) |
4.5 L |
| No. of cylinders |
4 |
No. of cylinders |
4 |
| Cylinder diameter (Engine 1) |
108 mm |
Cylinder diameter (Engine 2) |
105 mm |
| Trip (Engine 1) |
132 mm |
Trip (Engine 2) |
130 mm |
| Rated engine speed |
2200 rpm |
Rated engine speed |
2200 rpm |
| Rated power (Engine 1) |
74 KW |
Rated power (Engine 2) |
74 KW |
| Rated power (Engine 1 alt) |
82 KW |
Rated power (Engine 2 alt) |
82 KW |
| Maximum torque (Engine 1) |
400 N.m |
Maximum torque (Engine 2) |
380 N.m |
| Maximum torque (Engine 1 alt) |
425 N.m |
|
|
| Maximum torque speed (Engine 1) |
1400-1700 rpm |
Maximum torque speed (Engine 2) |
1400-1600 rpm |
| Steering System |
| Type |
Hydraulic steering |
Steering angle |
±41° |
| Steering gear model |
BZZ-250 |
Min. turning radius |
6581 mm |
| Pump displacement |
63 ml/r |
|
|
| Pump model |
SGP2063 |
|
|
| Drive Axle & Transmission |
| Drive axle model |
26.22-1920 / 28.43M-1654 |
Gearbox type |
Countershaft Powershift |
| Rated front axle load |
|
Model |
TLB1-4WD |
| Rated rear axle load |
|
Gears |
4F, 4R (4 forward, 4 reverse) |
|
|
Hydraulic torque converter |
|
|
|
Cooling mode |
Oil-cooling pressure circulation |
| Tyres & Brake System |
| Front/Rear model |
14-17.5 / 19.5L-24 |
Traveling brake |
Wet internal self-regulating self-balance type |
| Front tyre pressure |
0.4 MPa |
Parking brake |
Manual brake |
| Rear tyre pressure |
0.35 MPa |
Max. travel speed |
39 Km/h |
| System Pressure |
| Loading hydraulic system |
20 MPa |
Excavation hydraulic system |
20 MPa |
| Steering hydraulic system |
14 MPa |
|
|
