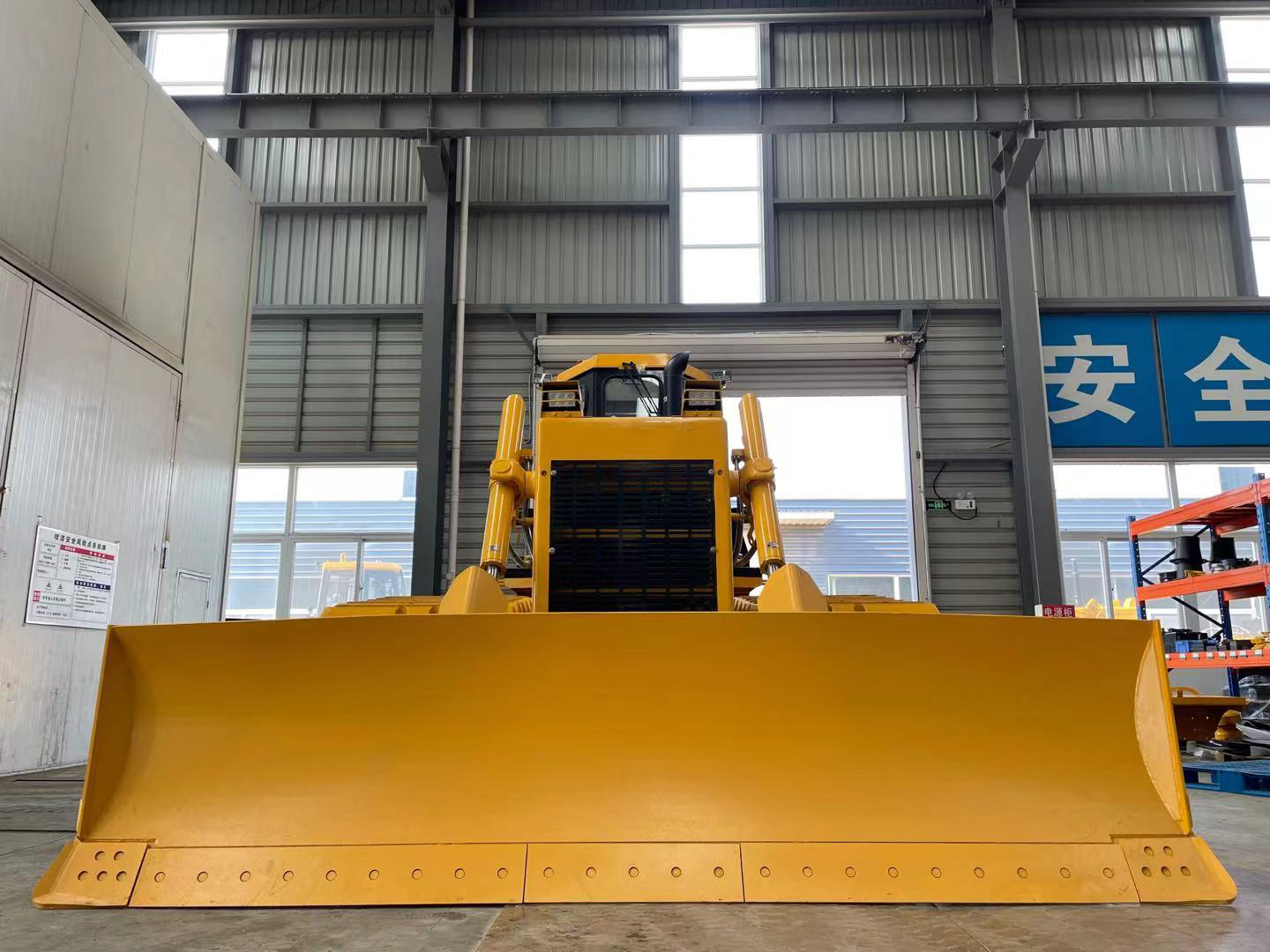

Equipped with WEICHAI WP10 electric control engine, the transmission and chassis system are made by ourselves, with high efficiency and long service life. The main frame with full box structure has high bearing impact load and bending and torsion resistance, ensuring the whole life cycle of the main frame. Standard straight shovel, with strong cutting force, three-tooth scarifier can be used for loosening soil layers such as sticky soil and hardened frozen soil, with high efficiency and super penetration. It is suitable for pushing, excavating, backfilling earthwork and other bulk materials on roads, railways, mines and airports.
Equipped with a WP10 electronically controlled engine, it meets national non-road machinery emission standards (Stage IV). The engine provides strong power, is highly efficient and energy-saving, and has low maintenance costs.
The torque reserve ratio is large, with a rated power of 131 kW.
The engine features a radial sealing intake system, effectively extending its service life.
The transmission system is perfectly matched to the engine curve, providing a wider efficient zone and higher transmission efficiency.
ShanBo's self-manufactured transmission system has been proven in the market, offering stable performance and reliable quality.
The hexagonal cabin features a spacious interior and an expansive view, with the option to configure FOPS/ROPS as needed, ensuring safety and reliability.
The electronically controlled hand and foot throttle allow for more precise and comfortable operation.
Equipped with an intelligent display control terminal and climate control (heating and cooling), it offers a more enriching and user-friendly driving experience, allowing you to stay informed about system status conveniently and intelligently.

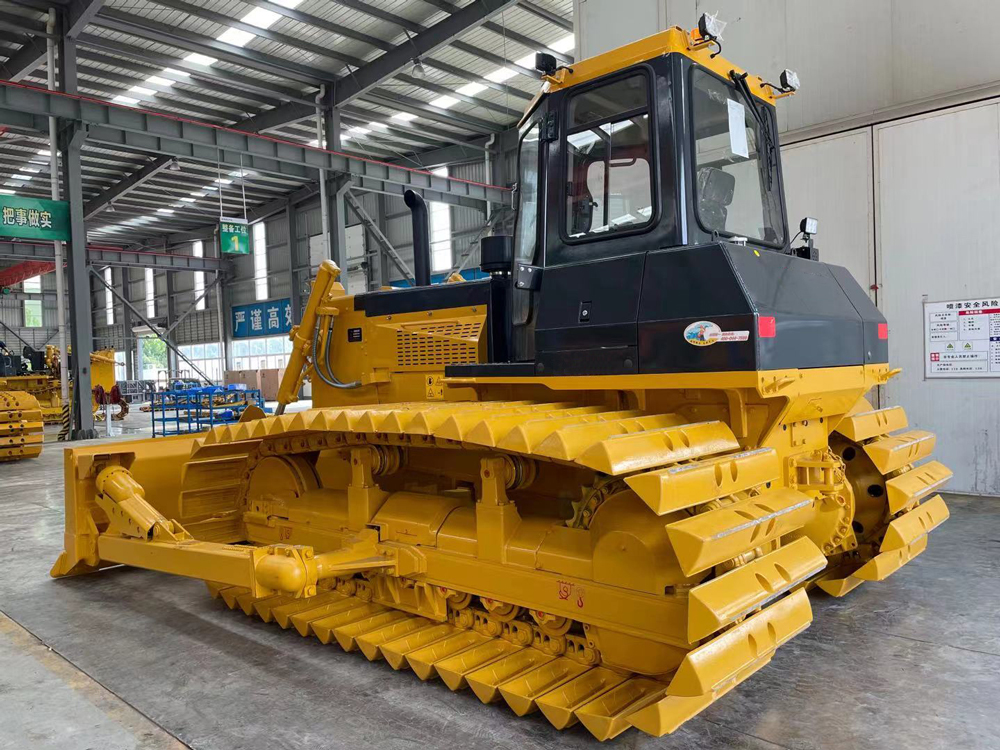

The stable and reliable ShanBo chassis system is suitable for various harsh working conditions.
The product has a long grounding length, high ground clearance, stable driving, and good passability.

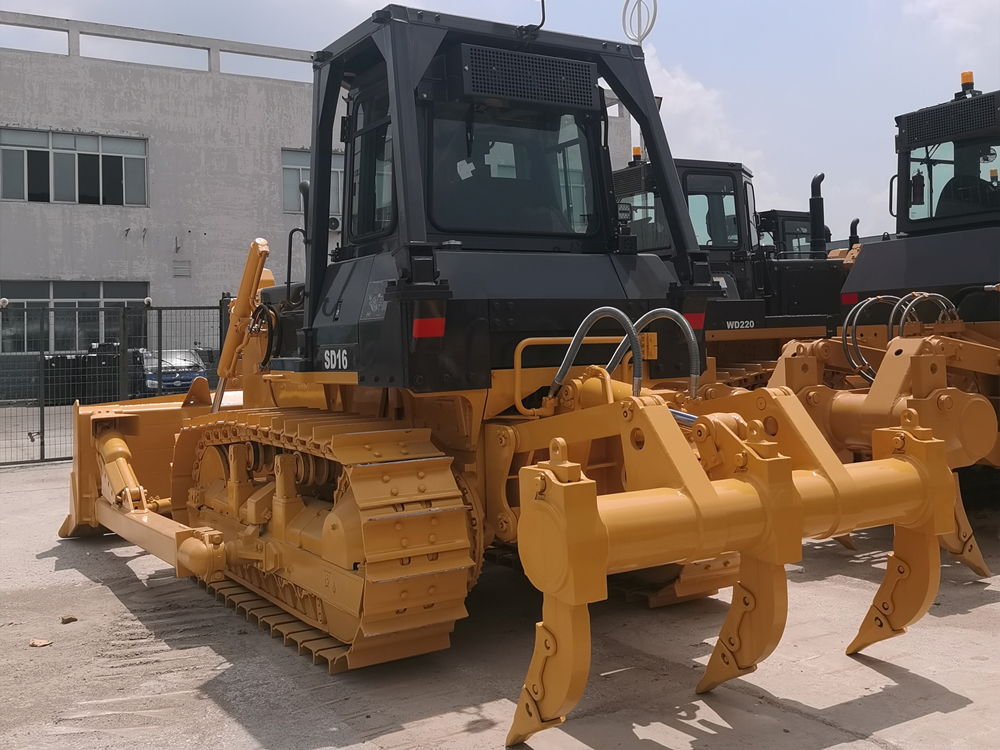

Depending on specific working conditions, it can be equipped with straight blades, U blades, angled blades, coal push blades, rock blades, sanitation blades, soil loosening attachments, towing frames, and more, enhancing adaptability for various tasks. It comes standard with LED work lights, improving nighttime visibility and ensuring safer and more reliable operations.
The structural components inherit the excellent quality of ShanBo's mature products.
The electrical harness is protected by corrugated tubing with dividers, providing a high level of protection.
The openable large-space side covers make maintenance and servicing more convenient.
The fuel filter and air filter are designed on the same side, allowing for a one-stop maintenance experience.
Lubrication points for key components, such as the fan shaft and balance beam, are easily accessible, making maintenance more convenient.
| SD16 Standard Edition Bulldozers | |
|---|---|
| Performance Parameter | |
| Workmanship (kg) | 17000 |
| Minimum turning radius (mm) | 4466 |
| Grounding specific pressure (kPa) | 58 |
| Engine | |
| Engine model | WP10 |
| Rated power/speed (kW/rpm) | 131 / 1850 |
| Overall Dimension | |
| Dimensions of the machine (mm) | 5140 × 3455 × 3024 |
| Walking Performance | |
| Speed of advance (km/h) | F1: 0–3.29 / F2: 0–5.82 / F3: 0–9.63 |
| Backward speed (km/h) | R1: 0–4.28 / R2: 0–7.59 / R3: 0–12.53 |
| Ground clearance (mm) | 400 |
| Chassis System | |
| Track center (mm) | 1880 |
| Track shoe width (mm) | 510 |
| Grounding length (mm) | 2635 |
| Number of track shoes (single side) | 37 |
| Fuel System | |
| Chain track pitch (mm) | 203 |
| Number of rollers (one side) | 2 upper / 6 lower |
| Fuel tank capacity (L) | 315 |
| Working hydraulic oil tank (L) | 112 |
| Blade Parameter | |
| Blade type | Angle / Straight / U-shaped shovel |
| Blade width (mm) | 4011 / 3455 / 3556 |
| Blade height (mm) | 1040 / 1149 / 1120 |
| Blade lifting height (mm) | 1005 |
| Shovel depth (mm) | 540 |
| Type of scarifier | Three-foot scarifier |
| Lifting height of scarifier (mm) | 570 |
| Vehicle Type | |
| Stranded vehicle type | — |
Specially developed according to the operation characteristics of special projects in power plants and ports, the standard 610mm crawler belt, super-large capacity coal shovel, high-strength box structure and high-performance materials ensure the super-high operation efficiency and excellent durability of the shovel. It is suitable for the construction of loose materials such as power plants and ports.
| SD16C Coal Edition Bulldozers | |
|---|---|
| Performance Parameter | |
| Workmanship (kg) | 17500 |
| Minimum turning radius (mm) | 4466 |
| Grounding specific pressure (kPa) | 55 |
| Engine | |
| Engine model | WP10 |
| Rated power/speed (kW/rpm) | 131 / 1850 |
| Overall Dimension | |
| Dimensions of the machine (mm) | 5427 × 3900 × 3032 |
| Walking Performance | |
| Speed of advance (km/h) | Same as SD16 |
| Backward speed (km/h) | Same as SD16 |
| Ground clearance (mm) | 400 |
| Chassis System | |
| Track center (mm) | 1880 |
| Track shoe width (mm) | 510 |
| Grounding length (mm) | 2635 |
| Number of track shoes (single side) | 37 |
| Fuel System | |
| Chain track pitch (mm) | 203 |
| Number of rollers (one side) | 2 upper / 6 lower |
| Fuel tank capacity (L) | 315 |
| Working hydraulic oil tank (L) | 112 |
| Blade Parameter | |
| Blade type | Coal shovel |
| Blade width (mm) | 4150 |
| Blade height (mm) | 960 |
| Blade lifting height (mm) | 1095 |
| Shovel depth (mm) | 540 |
| Vehicle Type | |
| Stranded vehicle type | — |
| SD16B Extended Edition Bulldozers | |
|---|---|
| Performance Parameter | |
| Workmanship (kg) | 17100 |
| Minimum turning radius (mm) | 4466 |
| Grounding specific pressure (kPa) | — |
| Engine | |
| Engine model | WP10 |
| Rated power/speed (kW/rpm) | 131 / 1850 |
| Overall Dimension | |
| Dimensions of the machine (mm) | 5241 × 3455 × 3025 |
| Walking Performance | |
| Speed of advance (km/h) | F1: 0–3.29 / F2: 0–5.82 / F3: 0–9.82 |
| Backward speed (km/h) | R1: 0–4.28 / R2: 0–7.59 / R3: 0–12.53 |
| Ground clearance (mm) | 400 |
| Chassis System | |
| Track center (mm) | 1880 |
| Track shoe width (mm) | 510 |
| Grounding length (mm) | 2635 |
| Number of track shoes (single side) | — |
| Fuel System | |
| Chain track pitch (mm) | — |
| Number of rollers (one side) | 2 upper / 6 lower |
| Fuel tank capacity (L) | 315 |
| Working hydraulic oil tank (L) | 112 |
| Blade Parameter | |
| Blade type | Angle / Straight / U-shaped shovel |
| Blade width (mm) | 4011 / 3455 / 3556 |
| Blade height (mm) | 1040 / 1149 / 1120 |
| Blade lifting height (mm) | 1005 |
| Shovel depth (mm) | 540 |
| Type of scarifier | Three-tooth scarifier |
| Lifting height of scarifier (mm) | 570 |
| Vehicle Type | |
| Stranded vehicle type | — |

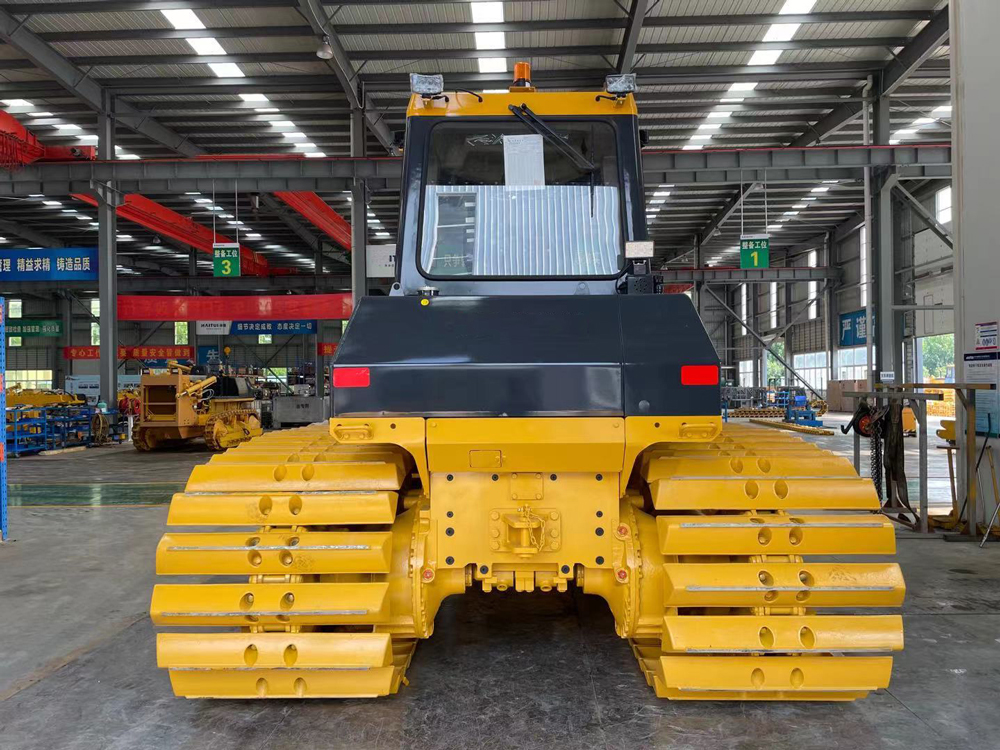

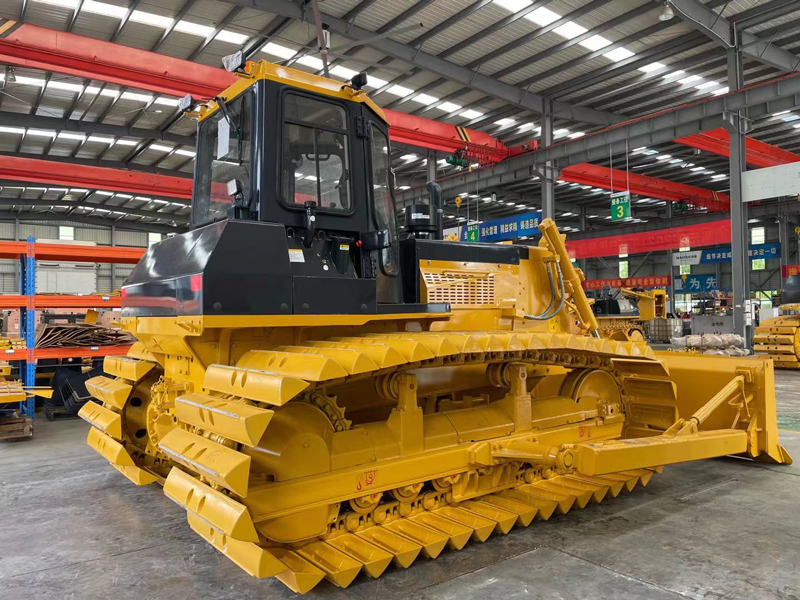

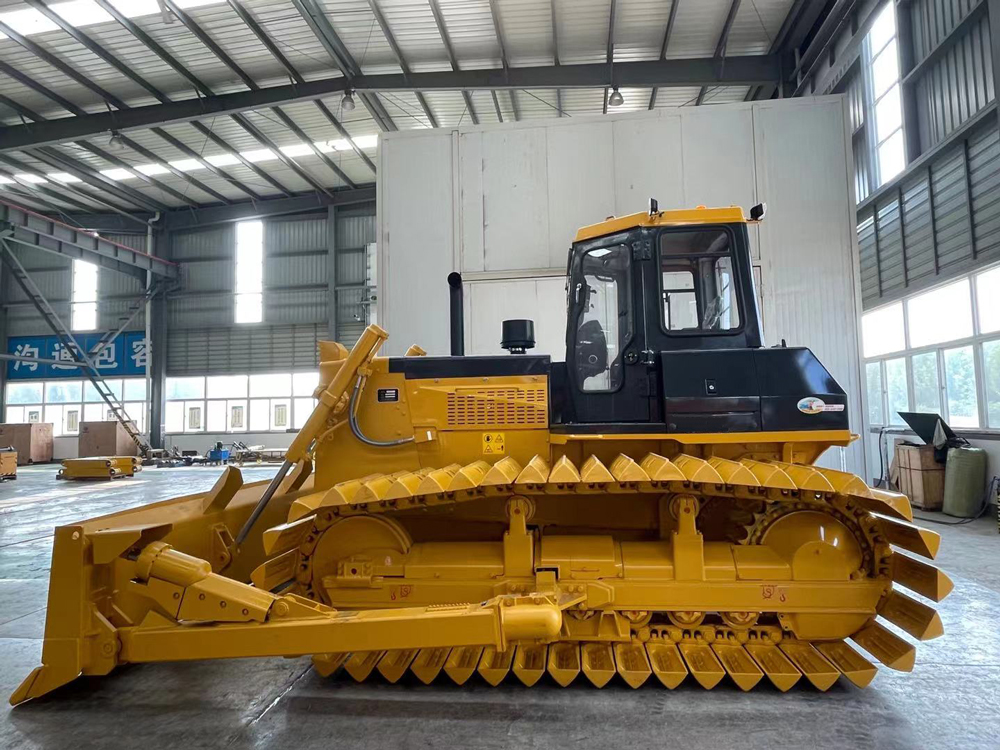

According to the working conditions of marshland and wetland, it is specially developed, adopting 0.025Mpa ultra-lowgroundingspecific pressure chassis system, special ship-type ribbed track shoes for Shanbo, equipped with Weichai WP10electriccontrolengine, and self-made transmission and chassis system for Shanbo, with high efficiency and long service life. It issuitablefortheconstruction of soft soil, wetland, marshland and river management.
| SD16L Ultra-Wetland Edition Dozers | |
|---|---|
| Performance Parameter | |
| Workmanship (kg) | 16900 |
| Minimum turning radius (mm) | 4466 |
| Grounding specific pressure (kPa) | 22 |
| Engine | |
| Engine model | WP10 |
| Rated power/speed (kW/rpm) | 131 / 1850 |
| Overall Dimension | |
| Dimensions of the machine (mm) | 5262 × 4150 × 3074 |
| Walking Performance | |
| Speed of advance (km/h) | F1: 0–3.29 / F2: 0–5.82 / F3: 0–9.82 |
| Backward speed (km/h) | R1: 0–4.28 / R2: 0–7.59 / R3: 0–12.53 |
| Ground clearance (mm) | 400 |
| Chassis System | |
| Track center (mm) | 1880 |
| Track shoe width (mm) | 960 |
| Grounding length (mm) | 2635 |
| Number of track shoes (single side) | 41 |
| Fuel System | |
| Chain track pitch (mm) | — |
| Number of rollers (one side) | 2 upper / 6 lower |
| Fuel tank capacity (L) | 315 |
| Working hydraulic oil tank (L) | 112 |
| Blade Parameter | |
| Blade type | Straight shovel |
| Blade width (mm) | 4150 |
| Blade height (mm) | 1245 |
| Blade lifting height (mm) | 985 |
| Shovel depth (mm) | 482 |
| Vehicle Type | |
| Stranded vehicle type | — |
According to the working condition characteristics of domestic urban environmental sanitation treatment plants, aspecial researchand development is made, which adopts 0.025Mpa ultra-low grounding specific pressure chassis system, special ship-typeribbedtrack shoes of Shanbo, and is equipped with 8.3 m environmental sanitation shovel and mud scraping devicetoefficientlyhandlethe operation tasks of environmental sanitation plants. Weichai WP10 electric control engine is adopted, andthetransmissionandchassis system are self-made by Shanbo, with high efficiency and long service life. It is suitable for landfill, leveling, semi-compaction, accumulation and other operations of garbage dump, and can also be used for traction operationof garbageirontrough and treatment tank station
| SD16R Sanitation Edition bulldozer | |
|---|---|
| Performance Parameter | |
| Workmanship (kg) | 19000 |
| Minimum turning radius (mm) | — |
| Grounding specific pressure (kPa) | 47 |
| Engine | |
| Engine model | WP10 |
| Rated power/speed (kW/rpm) | 131 / 1850 |
| Overall Dimension | |
| Dimensions of the machine (mm) | 5140 × 3800 × 3320 |
| Walking Performance | |
| Speed of advance (km/h) | F1: 0–3.29 / F2: 0–5.82 / F3: 0–9.82 |
| Backward speed (km/h) | R1: 0–4.28 / R2: 0–7.59 / R3: 0–12.53 |
| Ground clearance (mm) | 400 |
| Chassis System | |
| Track center (mm) | 1880 |
| Track shoe width (mm) | 510 |
| Grounding length (mm) | 2635 |
| Number of track shoes (single side) | — |
| Fuel System | |
| Chain track pitch (mm) | 203 |
| Number of rollers (one side) | 2 upper / 6 lower |
| Fuel tank capacity (L) | 315 |
| Working hydraulic oil tank (L) | 112 |
| Blade Parameter | |
| Blade type | Sanitation shovel |
| Blade width (mm) | 3800 |
| Blade height (mm) | 1040 |
| Blade lifting height (mm) | 1005 |
| Shovel depth (mm) | 490 |
| Vehicle Type | |
| Stranded vehicle type | — |
According to the working conditions and environmental characteristics of desert areas, it is specially developed, and the standard is Saikelon pre-filtration and exhaust gas injection to improve the air filtration effect and prevent the engine from early grinding; The cooling system is optimized and the inlet air heating is increased, so that the environmental adaptability is stronger; The chassis system is strengthened in design, with 810 desert crawler as standard, which has a longer service life. Micro-supercharged driving room, sunshade and condenser rear-mounted high-performance air conditioner make driving more comfortable. Suitable for desert areas, high temperature, high dust and other harsh working conditions.
| SD16D Desert Edition Bulldozers | |
|---|---|
| Performance Parameter | |
| Workmanship (kg) | 17500 |
| Minimum turning radius (mm) | 4466 |
| Grounding specific pressure (kPa) | — |
| Engine | |
| Engine model | WP10 |
| Rated power/speed (kW/rpm) | 131 / 1850 |
| Overall Dimension | |
| Dimensions of the machine (mm) | 5427 × 3900 × 3032 |
| Walking Performance | |
| Speed of advance (km/h) | F1: 0–3.29 / F2: 0–5.82 / F3: 0–9.82 |
| Backward speed (km/h) | R1: 0–4.28 / R2: 0–7.59 / R3: 0–12.53 |
| Ground clearance (mm) | 400 |
| Chassis System | |
| Track center (mm) | 1880 |
| Track shoe width (mm) | 510 |
| Grounding length (mm) | 2635 |
| Number of track shoes (single side) | 37 |
| Fuel System | |
| Chain track pitch (mm) | 203 |
| Number of rollers (one side) | 2 upper / 6 lower |
| Fuel tank capacity (L) | 315 |
| Working hydraulic oil tank (L) | 112 |
| Blade Parameter | |
| Blade type | Desert blade |
| Blade width (mm) | 4000 |
| Blade height (mm) | 960 |
| Blade lifting height (mm) | 1095 |
| Shovel depth (mm) | 540 |
| Vehicle Type | |
| Stranded vehicle type | — |
