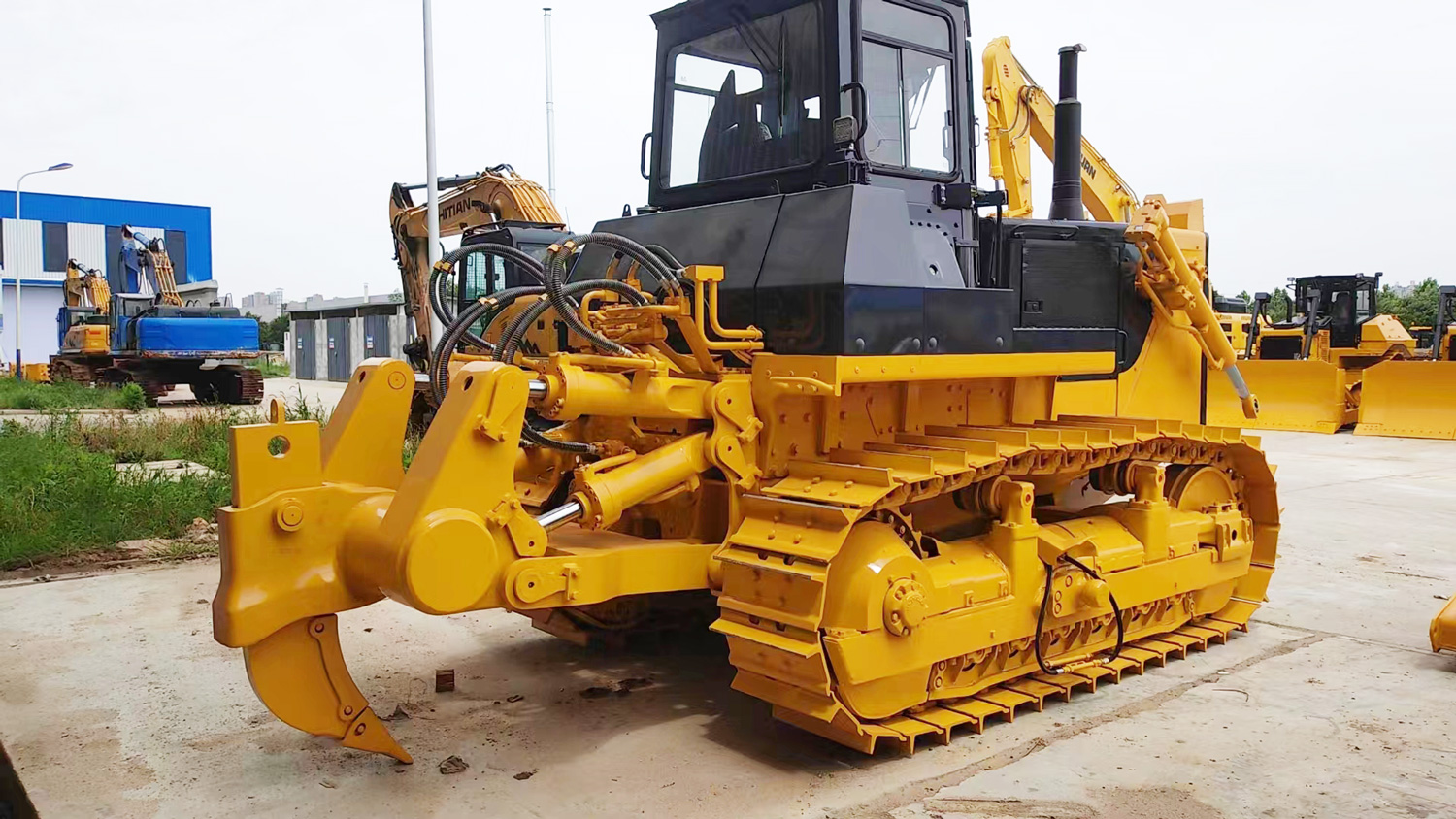

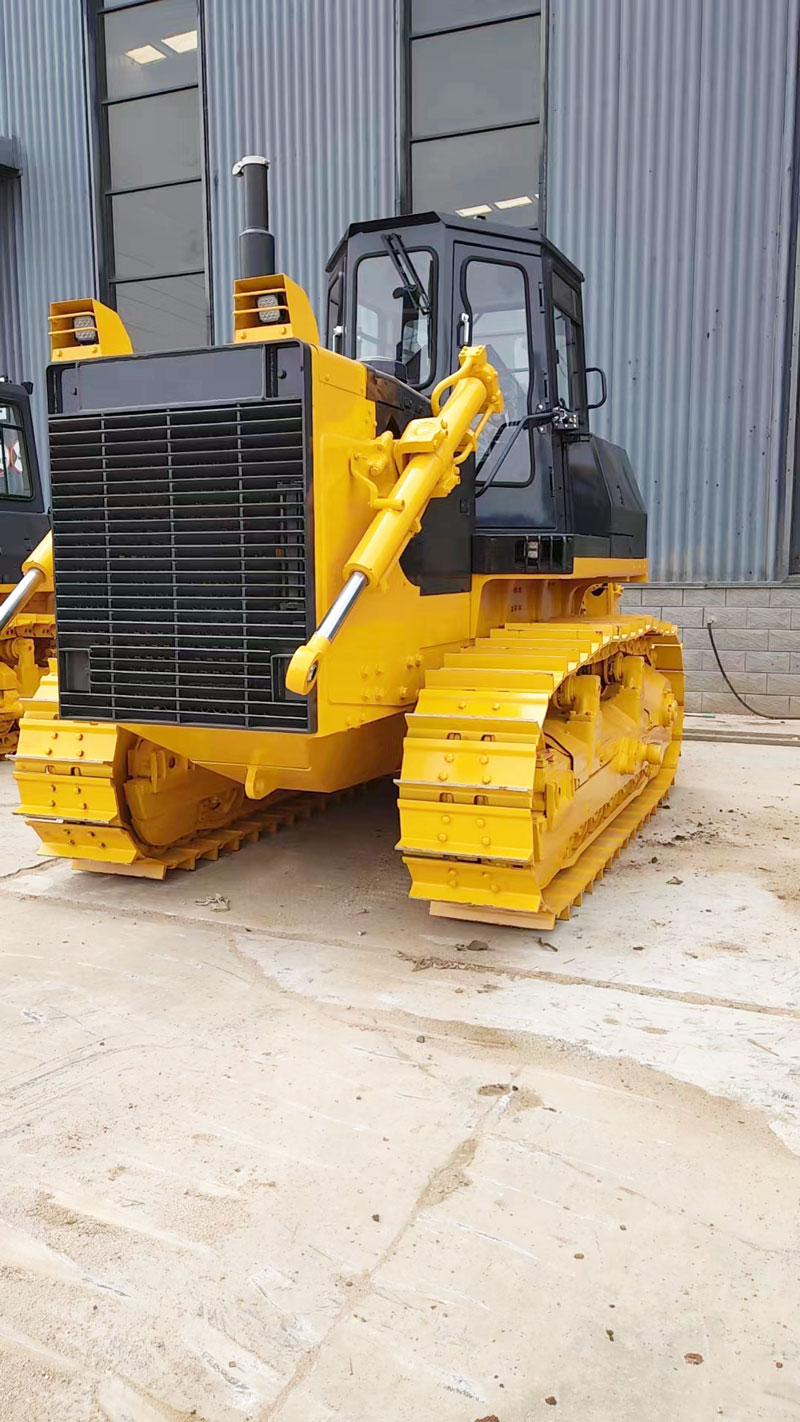

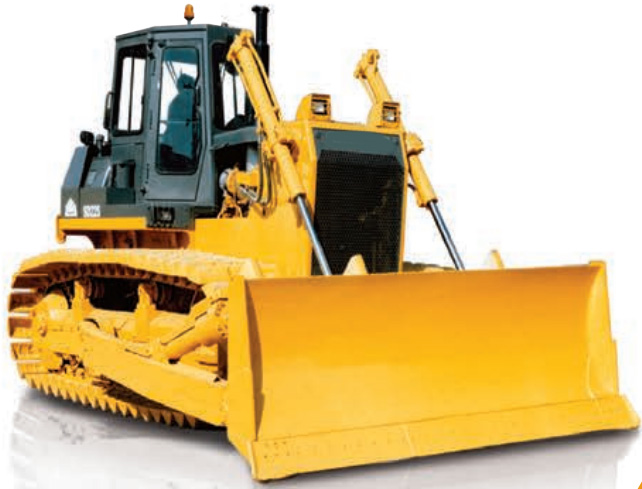

* SD26 series bulldozer adopts ShanBo’s patented technologies, including central lubrication, central pressure measurement, and automatic track tensioning technologies, and won the sole national golden quality award in China’s bulldozer industry. With multiple working devices and cabs, this product can meet the operation demands for diversified working conditions and is an ideal high-efficiency machine for earthmoving operations and bulk material handling.
* WEICHAI WP12G280E304 engine features strong power and high efficiency and energy-saving.
* The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission efficiency.
* The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating.
* It can realize the automatic diagnosis and whole-process monitoring of the malfunctions. The integrally injection molded instrument panel integrates the A/C, electric devices, and instruments, featuring beautiful appearance and high grade
* The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame.
* The semi-rigid suspension traveling system increases the ground area of tracks and improves the traction force of vehicle.
* The ergonomically designed driver seat and armrests can be adjusted easily in vertical and longitudinal directions. The gearshift, steering, and accelerator controls are arranged on the left side with the adoption of flexible shaft structure. The working device controls are arranged on the right side with adoption of servo control system to achieve lighter and more flexible operations and relieve the operating fatigue.
* The standard straight tilting blade features powerful cutting force to handle diversified severe working environments and the large single-shank ripper of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine.
| SD26 Bulldozers — Technical Parameters | |
|---|---|
| Performance Parameters | |
| Operating weight (kg) | 23450 |
| Max theoretical traction force (kN) | 460 |
| Ground pressure (kPa) | 66 |
| Engine | |
| Engine model | WEICHAI WP12G280E304 |
| Emission | China-III |
| Rated speed (rpm) | 1900 |
| Gross power (kW/hp) | 206 kW (277 hp) |
| Net power (kW/hp) | 194 kW (260 hp) |
| Bore × stroke (mm) | 126 × 155 |
| Displacement (L) | 11.596 |
| Max torque (Nm/rpm) | 1250 Nm @ 1200–1300 rpm |
| Cooling system | Mechanical fan |
| Overall Dimensions | |
| Length (without ROPS) | — |
| Ground clearance (mm) | 405 |
| Machine length (without draw bar) | 5462 |
| Machine length (with draw bar) | 5459 |
| Max lifting height (blade, mm) | 1210 |
| Max digging depth (blade, mm) | 540 |
| Blade width (mm) | 3725 |
| Blade height (mm) | 1315 |
| Track shoe width (mm) | 560 / 610 / 660 |
| Width from track shoe to shoe (mm) | 2560 |
| Walking Performance | |
| Forward speed (km/h) | F1: 3.8 / F2: 6.9 / F3: 11.8 |
| Backward speed (km/h) | R1: 3.8 / R2: 6.9 / R3: 11.8 |
| Chassis System | |
| Track gauge (mm) | 2000 |
| Grounding length (mm) | 2872 |
| Ground area (cm²) | 28727 |
| Track shoes (pcs/side) | 38 |
| Carrier rollers | 2 |
| Track rollers | 6 |
| Pitch (mm) | 206 |
| Fuel Tank Capacity | |
| Fuel tank (L) | 450 |
| Engine oil (L) | 24 |
| Hydraulic oil tank (L) | 110 |
| Transmission (L) | 112 |
| Final drive (L) | 82 (each side) |
| Working Device | |
| Blade type | SD: Straight-tilt |
| Blade capacity | 4.6 m³ |

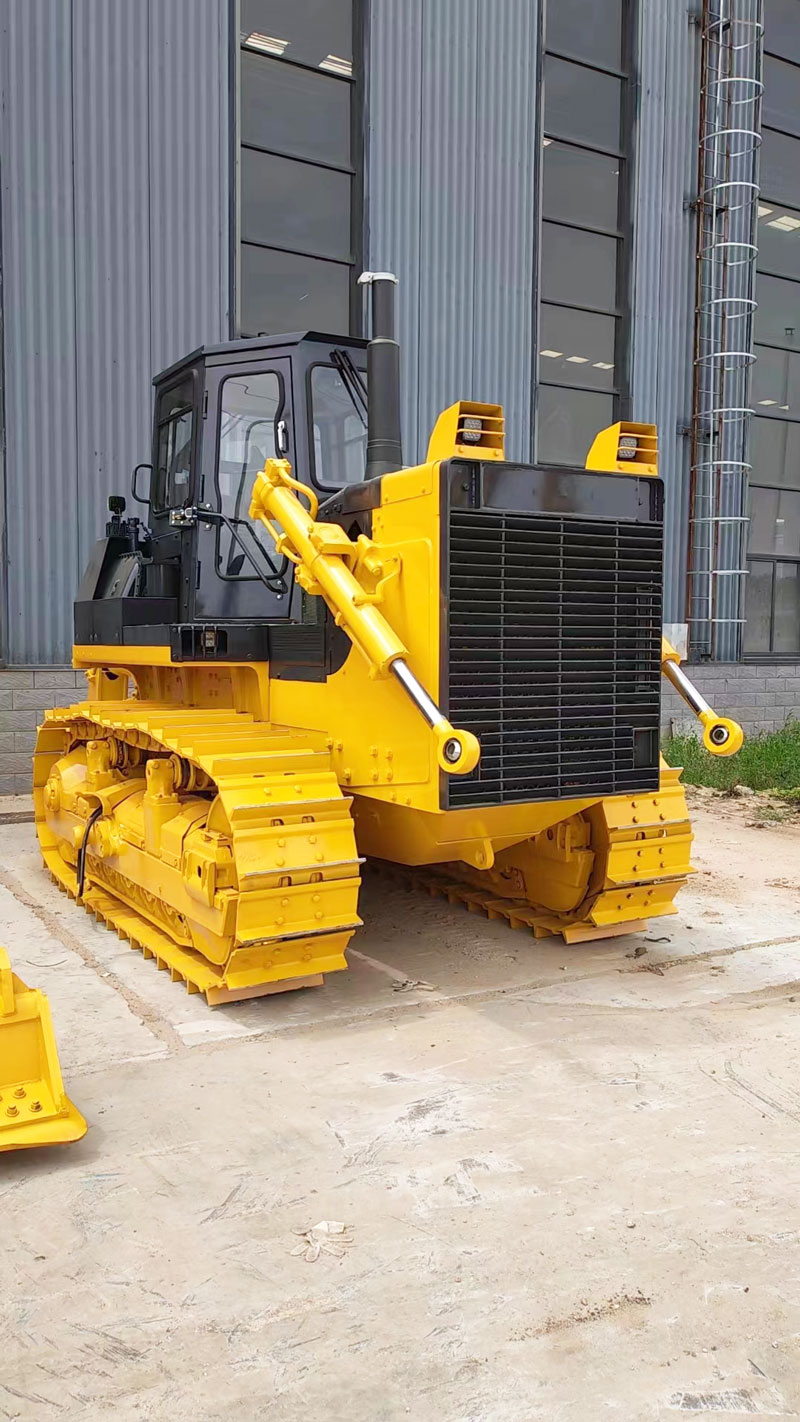

| Ripper | |
| Type | Three-shank |
| Weight (kg) | 2600 |
| Max ripping depth (mm) | 666 |
| Max lifting height (mm) | 555 |
| Ripper width (mm) | 2000 |
| Teeth distance (mm) | 930 |

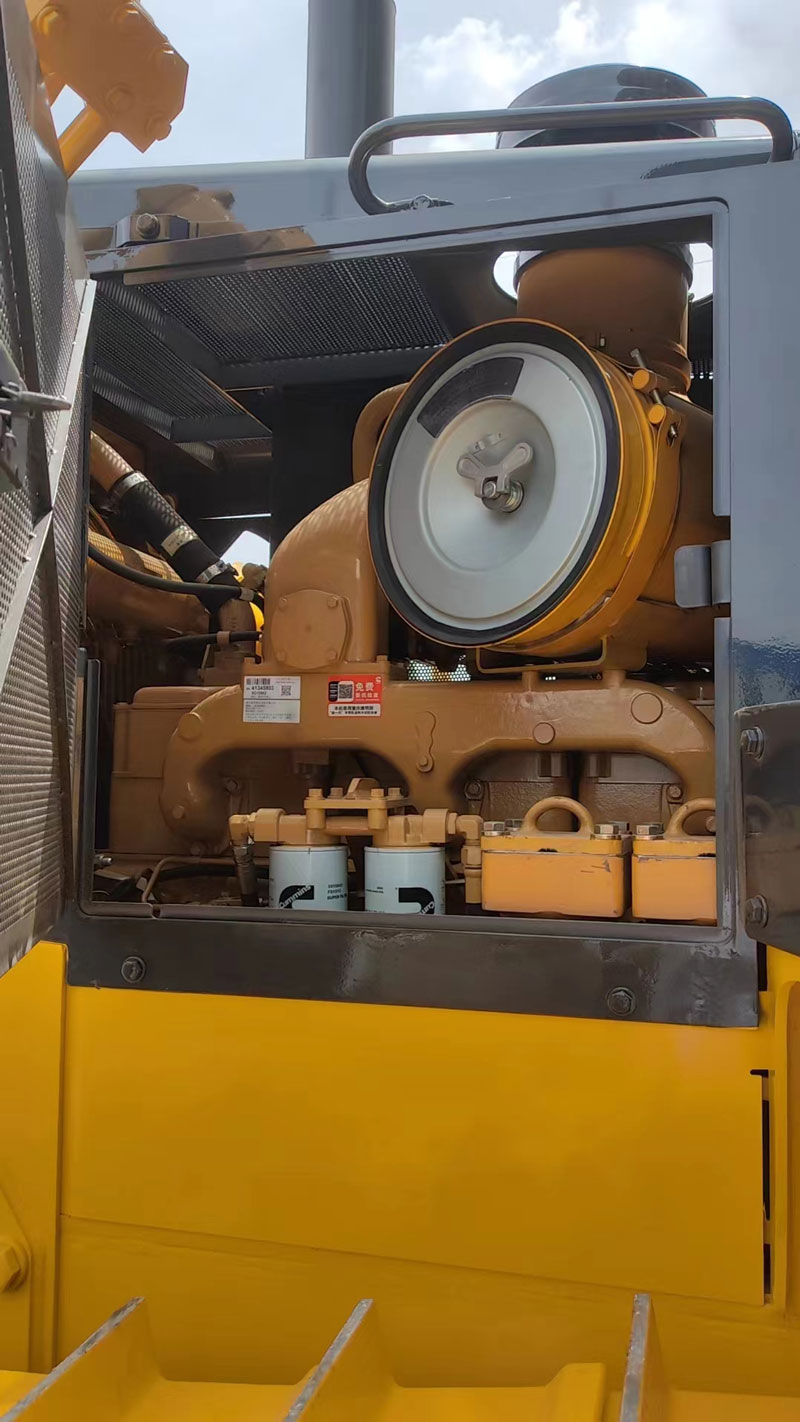

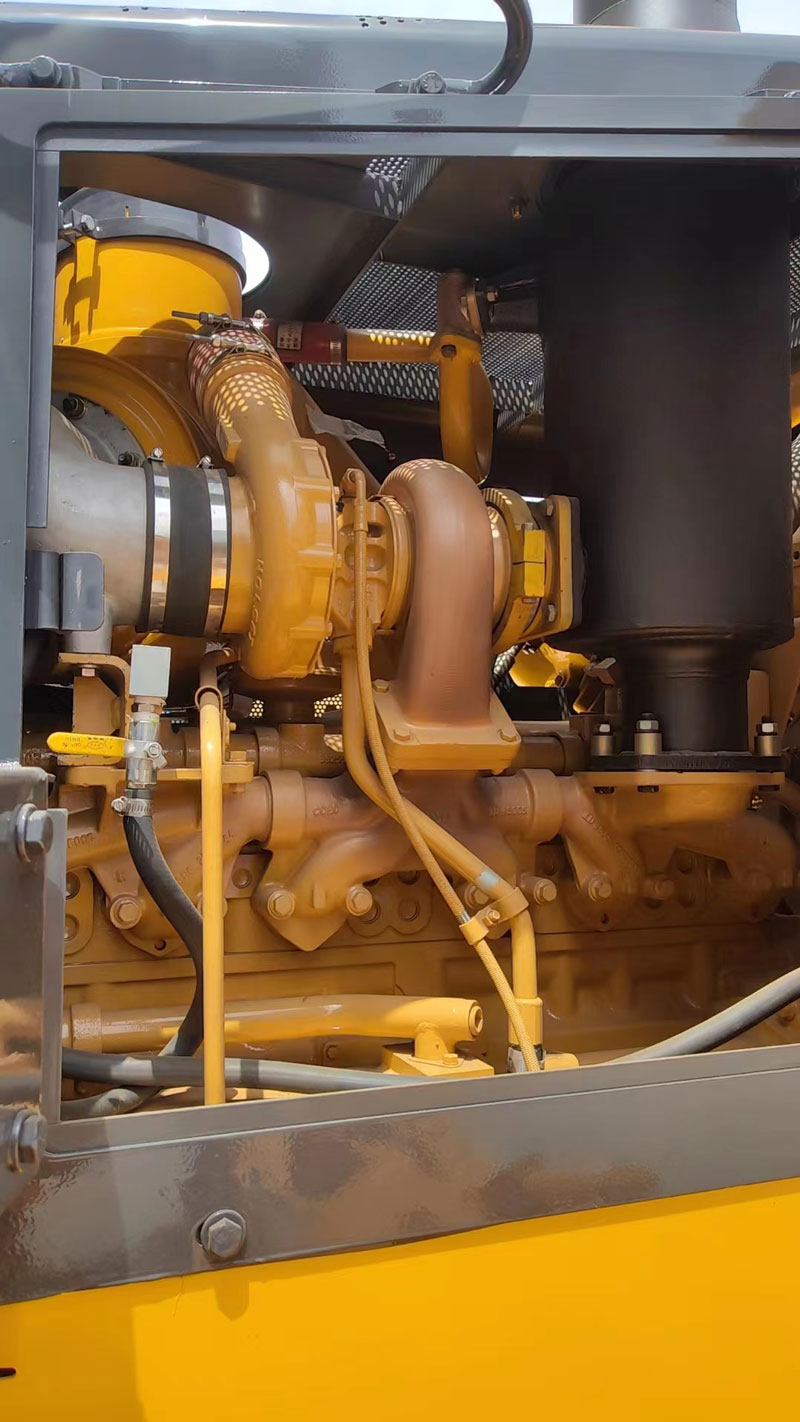

Weichai WP12G280E304 engines feature the high power, efficiency and energy saving.
The effective supercharger not only improves and widens the effective zones of engine, but also drops the fuel consumption by 12-21g/ kW. H.
The advanced lubrication system could enable the engine parts to work under the constant oil temperature, the low oil pressure and the varied flow, reducing the engine friction power and thus prolonging the engine service life.
The strength material and the newly-structured cylinder body and cylinder cover make the engine more reliable and energy-saving and then realize the sufficient combustion and the lower emission within the wide range of RPM and load.
The semi-rigid suspension and travel system with the track rollers always in touch with the track could enlarge the ground area of track and thus raise the bulldozer traction.
The strength king-pin tracks are developed specially for the poor working conditions, suitable for all complicated conditions because of its high reliability and the load-bearing capacity.
This system could guarantee the engine run normally and reliably under any load or hot condition, preventing against the engine overheating.

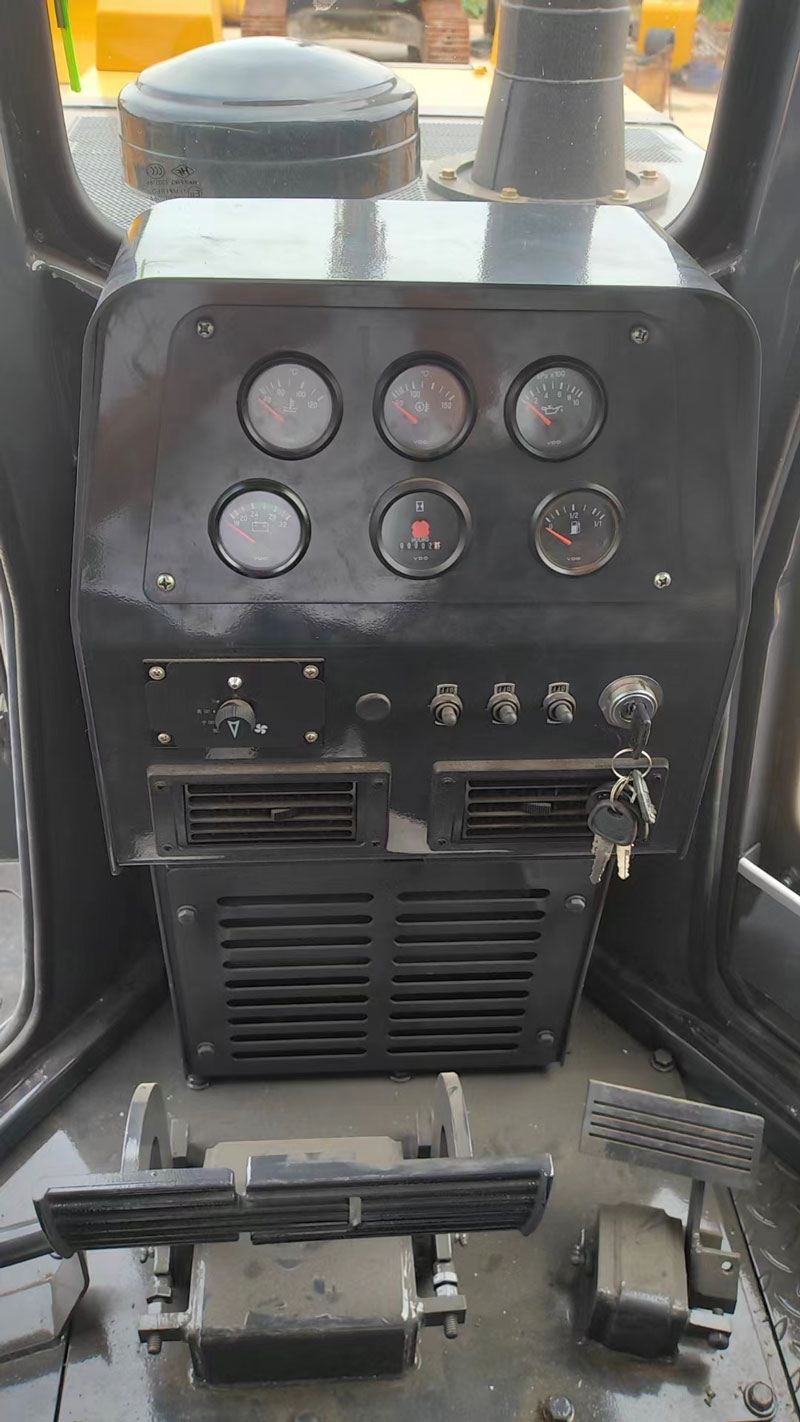

This system could realize the automatic diagnosis and the whole-course monitor. In addition, the injection instrument panel integrates the A/C, the electric equipments and the instruments, making more beautiful and upscale.
The cabs have not only the beautiful shapes but also the super-large internal room and the wide vision. In addition, the damping devices could absorb the vibration, providing the more safety and comfort to the operators.

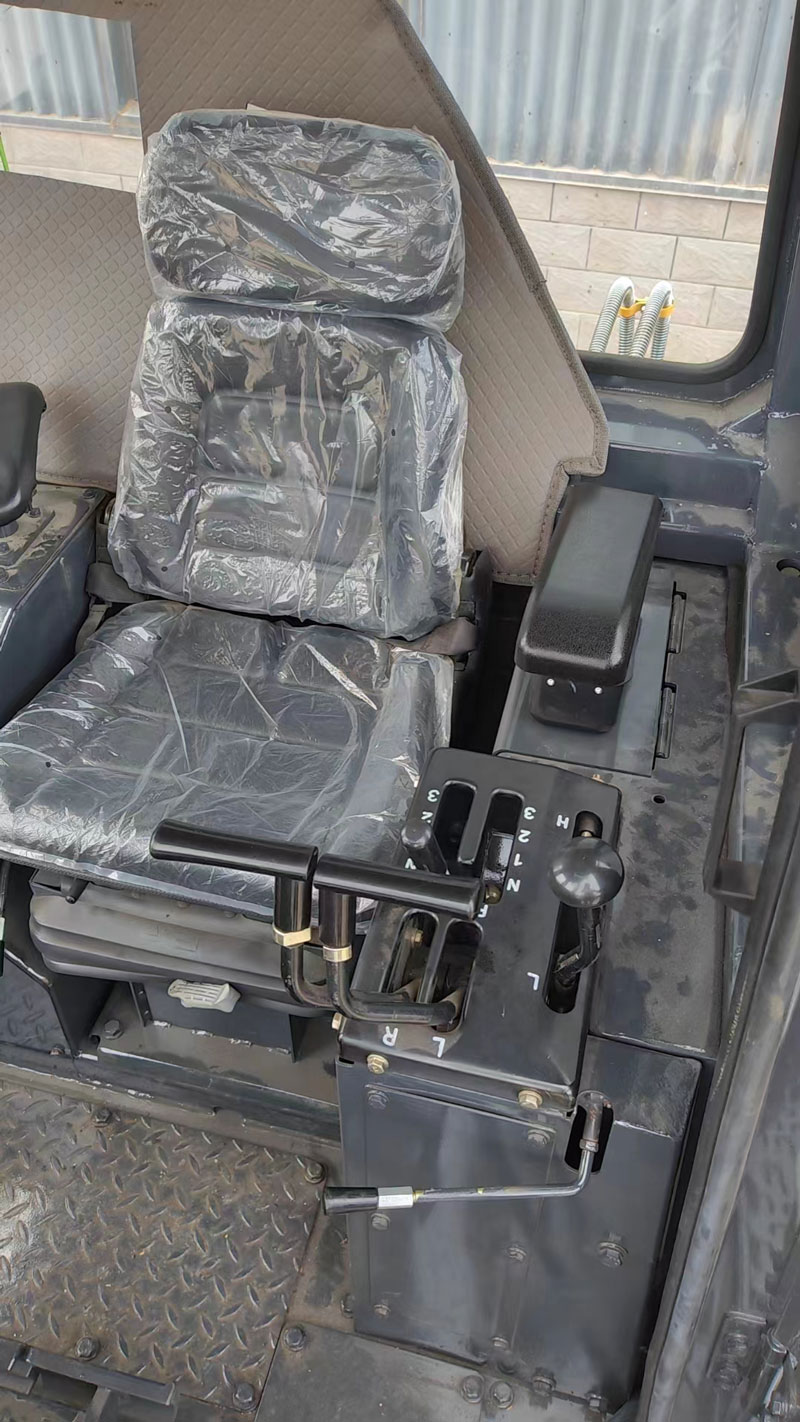

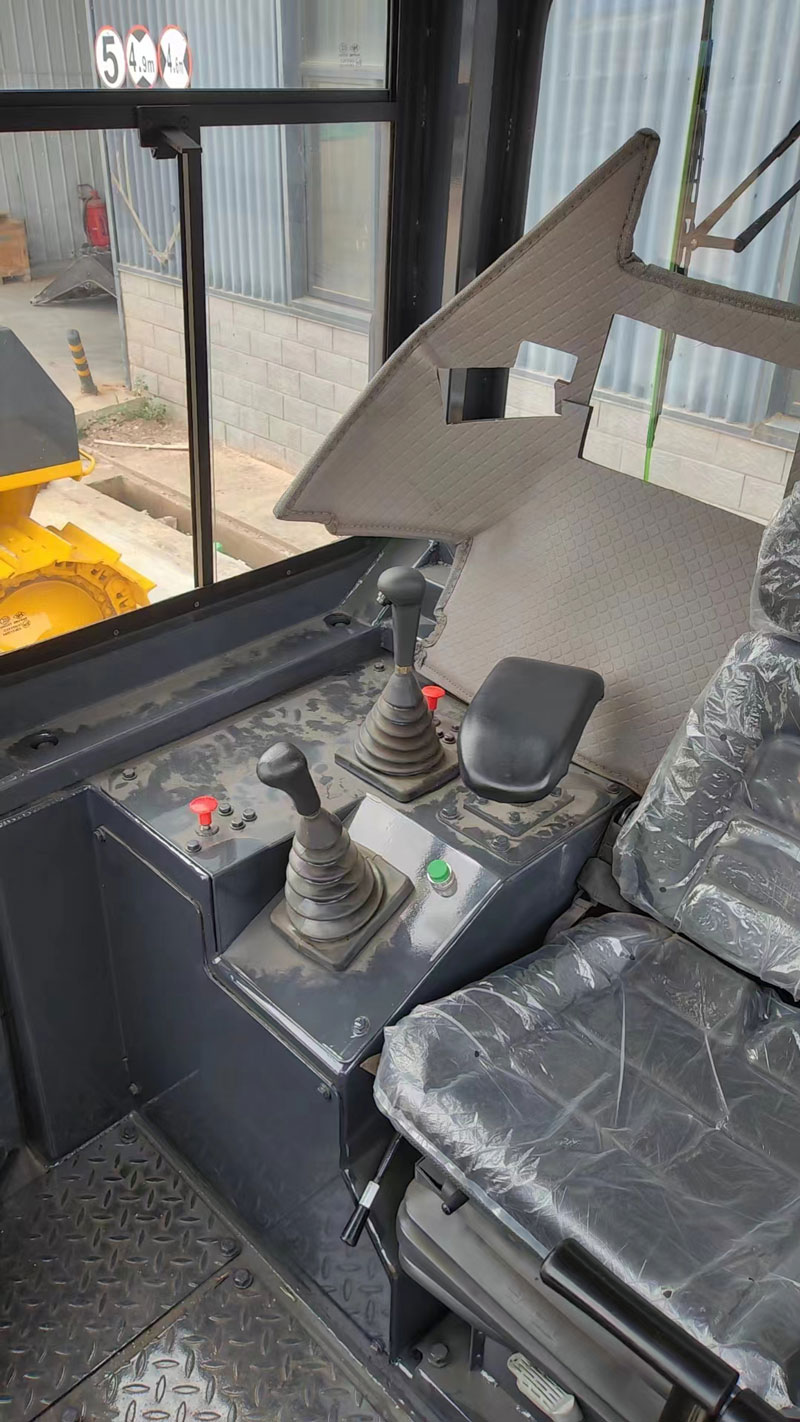

According to the man-machine engineering, the driver’s seat and handle could be easily adjusted upward, downward, forward and backward. In addition, the speed control, the steering wheel and the accelerator are on left side and adopt the cable type. The working equipment is on right side and adopts the servo-control system, realizing the flexible process and relieving the fatigue.
The main frame of box type adopts the quality material and the strength castings and enjoys the high impact load and torsion. In addition, the quality welding seam could ensure the main frame works in its life cycle.
The standard straight shovels have the excellent durability due to the high cutting force, high-strength structure and high-performance material and thus are available for all tough environments. In addition, the shovels of 4.6m3 high-capacity are suitable for all kinds of earthworks and the bulk materials. Besides, the angle shovels, U-shovels and semi U-shovels are available to users.
penetration angle is used to loosen the soil layers such as the clay and the frozen soil and to peel off the solid surface such as the gravels and the hardened salt mine. The work efficiency and the super penetration are guaranteed with the strength beam, the frame and the tempered tooth bar and tip.
The safe warning lamp, the reversing alarm, the horn,the excellent brake and the distinctive painting could effectively protect the periphery personnel and enhance the safety in all-weather operations. In addition, the seatbelt, the handles and the safe signs give the security protection to the operators.
The side guard could effectively protect the engine and the radiator from being blocked and damaged due to the foreign particles, making the entire machine more beautiful.
The standard antifreeze could raise the boiling point and lower the freezing point, effectively preventing against the scales depositing on the engine and the radiator, beneficial to the engine cooling and the protection.
In addition, the sport bars for litters and others are optional and could protect the operators in emergency
The eye-catching signs say accurately when to maintain the machine. In addition, this battery is maintenance-free. In addition, the open-type hood could have the inside parts exposed as much as possible, easily realizing the inspection and the maintenance.
This maintenance cost is much lower than others due to the reliability and thus the long Mean Time Between Failures (MTBF).
ShanBo perfect service network, as well as timely, thoughtful and warmhearted service, could give your assurance to use this machine, satisfying the expectancy for ShanBo products.

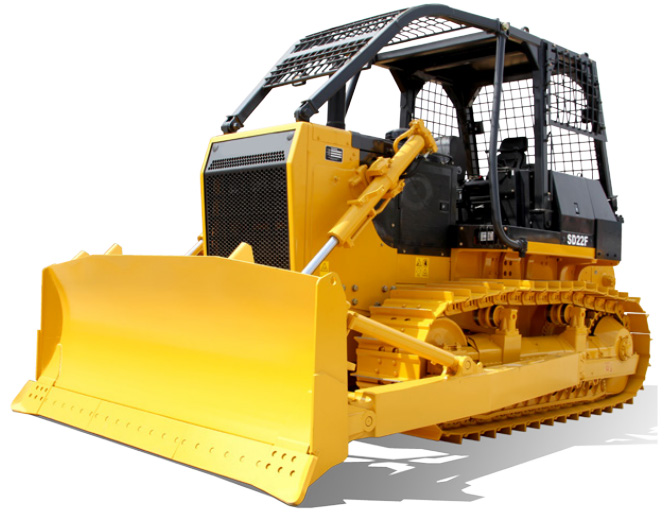

SD26F forest logging type bulldozers are designed specially for the forest working conditions, featuring the advanced technologies, high reliability, low consumption,and convenient maintenance. Furthermore, the antirolling cab for logging is provided.
The anti-rolling cab and its shed special for logging,610mm wide track and mechanical winch (optional) have the good trafficability and the self-help performance,suitable for lumbering, collecting and dragging of lumbers in rainforest and tree farm.
| SD26F — Technical Parameters | |
|---|---|
| Performance Parameters | |
| Operating weight (kg) | 24700 |
| Ground pressure (kPa) | 64 |
| Engine | |
| Engine model | WEICHAI WP12G280E304 |
| Rated power | 206 kW @ 1900 rpm |
| Dimensions | |
| Machine height (mm) | 3402 |
| Track shoe width (mm) | 610 / 660 |
| Width from track shoe to track shoe | 2610 mm |
| Walking Performance | |
| Forward speed | F1: 3.9 / F2: 7.1 / F3: 11.8 |
| Reverse speed | R1: 3.9 / R2: 7.1 / R3: 11.8 |
| Chassis | |
| Track gauge | 2000 |
| Grounding length (mm) | 3473 |
| Ground area (cm²) | 34732 |
| Track shoes | 39 |
| Track rollers | 7 |
| Fuel System | |
| Fuel tank (L) | 450 |
| Blade | |
| Blade type | Straight-tilt / Angle / Semi-U / U |
| Blade capacity | 4.6 / 3.4 / 6.4 / 7.5 m³ |
| Ripper | |
| Type | Three-shank |
| SD26E — Technical Parameters | |
|---|---|
| Performance Parameters | |
| Operating weight (kg) | 24600 |
| Ground pressure (kPa) | 35.2 |
| Engine | |
| Engine model | WEICHAI WP12G280E304 |
| Rated speed | 1900 rpm |
| Dimensions | |
| Machine length (mm) | 5712 |
| Machine length w/ draw bar (mm) | 5745 |
| Blade width (mm) | 3800 |
| Blade height (mm) | 1374 |
| Walking Performance | |
| Forward speed | F1: 3.9 / F2: 7.1 / F3: 11.8 |
| Chassis | |
| Track shoe width (mm) | 560 / 610 / 660 |
| Track gauge (mm) | 2000 |
| Fuel | |
| Fuel tank (L) | 450 |
| Blade | |
| Type | Straight-tilt blade |
| Capacity | 5.2 m³ |
SD26S wetland bulldozers are designed specially for wetland working conditions, featuring the advanced technologies, high reliability, low fuel consumption and convenient maintenance.
The ground specific pressure is greatly lowered by using the extended trolley and the 910mm wide wetland track, featuring the excellent desert trafficability.
| SD26S — Technical Parameters | |
|---|---|
| Performance Parameters | |
| Operating weight (kg) | 25700 |
| Ground pressure (kPa) | 32 |
| Engine | |
| Engine | WEICHAI WP12G280E304 |
| Dimensions | |
| Machine length | 6257 mm |
| Machine length w/ draw bar | 6290 mm |
| Blade width | 4365 mm |
| Blade height | 1248 mm |
| Track shoe width | 910 mm (wetland) |
| Track gauge | 2000 mm |
| Track shoe width total | 3160 mm |
| Walking | |
| Forward speed | 3.1 / 5.8 / 10.9 |
| Chassis | |
| Grounding length | 3480 mm |
| Track shoes | 45 |
| Blade | |
| Type | Straight-tilt |
| Capacity | 5.2 m³ |
| Ripper | |
| Type | Single-shank |
| Max ripping depth | 695 mm |
| Lifting height | 515 mm |
SD26D desert bulldozers are designed specially for desert working conditions, featuring the advanced technologies, high reliability, low fuel consumption and convenient maintenance.
The ground specific pressure is greatly lowered by using the extended trolley, featuring the excellent desert trafficability.
The high-capacity radiator and the engine intake pre-filter are mounted, able to be suitable for hot and windy features in desert and semi-desert areas

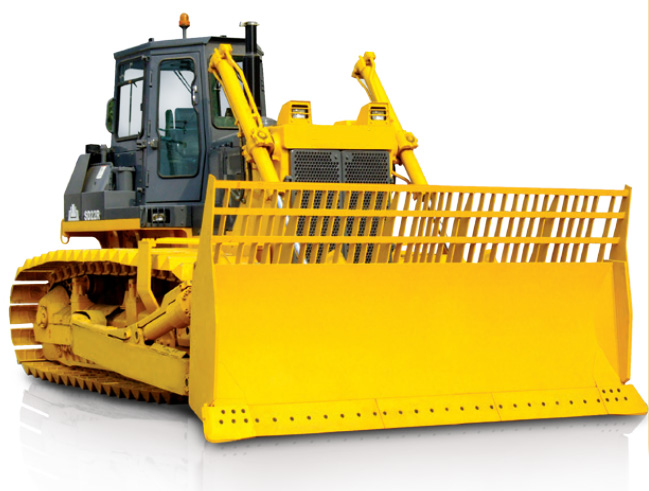

SD26R sanitation bulldozer adopts the wetland bulldozer chassis, greatly reducing the ground specific pressure and improving the trafficability. This bulldozer is really suitable for filling or compacting of household garbage.
High warning lamp, reversing alarm, camera, LED and other special devices are mounted, enhancing the field safety.
The large-capacity garbage shovel and the scraper are provided, greatly improving the working efficiency.
SD26W rock bulldozers are designed specially for rock-working conditions, featuring the advanced technologies, high reliability, low fuel consumption and convenient maintenance.
They are equipped with the strength rock shovels.
SD26S wetland bulldozers are designed specially for wetland working conditions, featuring the advanced technologies, high reliability, low fuel consumption and convenient maintenance.
The ground specific pressure is greatly lowered by using the extended trolley and the 910mm wide wetland track, featuring the excellent desert trafficability.
