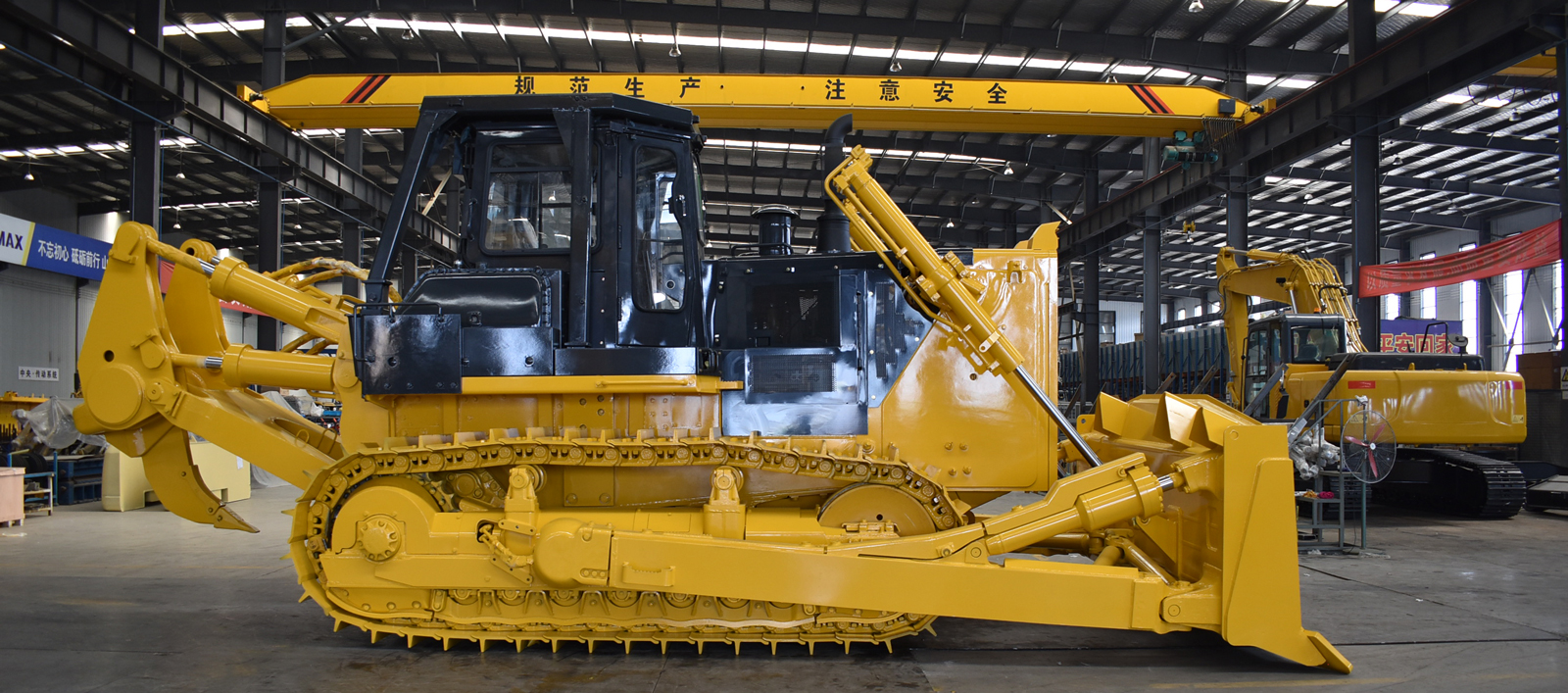

SD32 bulldozer is an upgraded product developed and designed according to the market situation
Its technology and reliability have reached the leading level in China. The chassis of the whole machine has been tested by domestic and foreign markets for nearly 30 years, with excellent quality and stable and reliable performance. It is mainly suitable for water conservancy and hydropower, metallurgical mines, road traffic, ports and docks, oil and coal, forest logging, and is an indispensable mechanical equipment for national defense projects, urban and rural roads and other construction and water conservancy construction.
Equipped with WP12/QSNT-C345 electronic control engine, which meets the emission requirements of the national non-road machinery country III, with strong power, high efficiency and energy saving, and low maintenance cost;
The torque reserve coefficient is large, and the rated power reaches 257kW;
Adopt radial seal air intake system to effectively improve the service life of the engine.

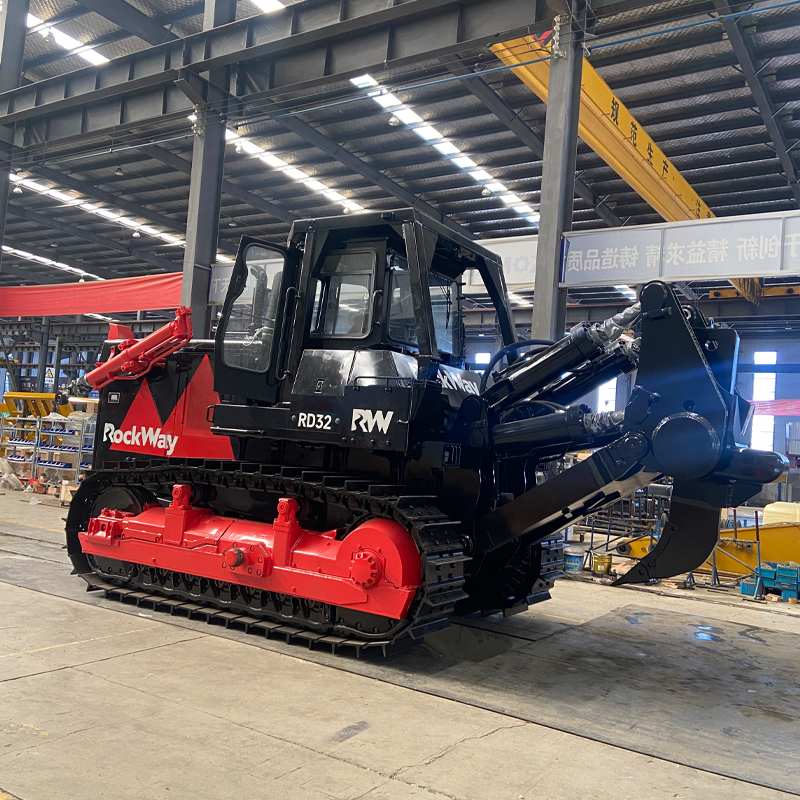

The transmission system is perfectly matched with the engine curve, with wider high-efficiency area and higher transmission efficiency;
Shanplatinum transmission system has been tested for a long time in the market, with stable performance and reliable quality.

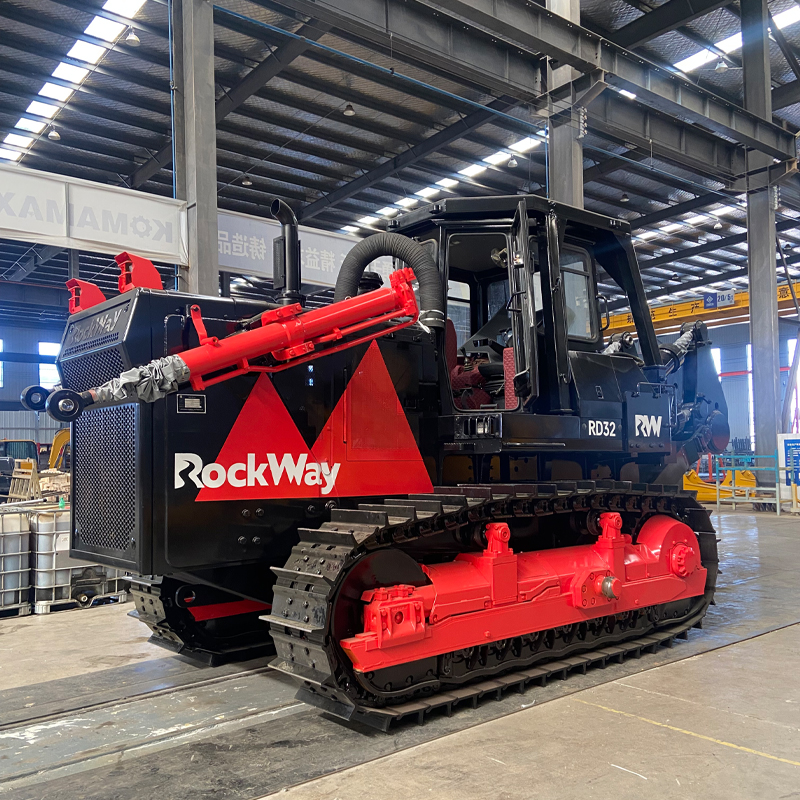

Hexahedral cab, with large internal space and wide field of vision, can be equipped with FOPS/ ROPS as required, which is safe and reliable;
Electronically control the hand and foot throttles, making the operation more accurate and comfortable;
Equipped with intelligent display and control.

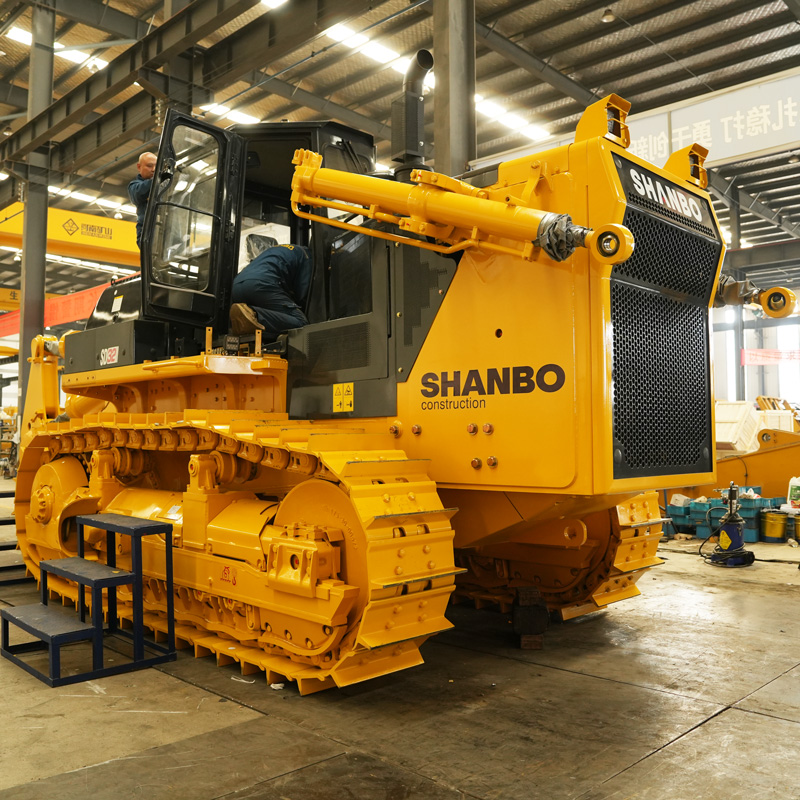

Stable and reliable Shanplatinum chassis system, suitable for all kinds of harsh working conditions;
The product has long grounding length, large ground clearance, smooth driving and good passability;

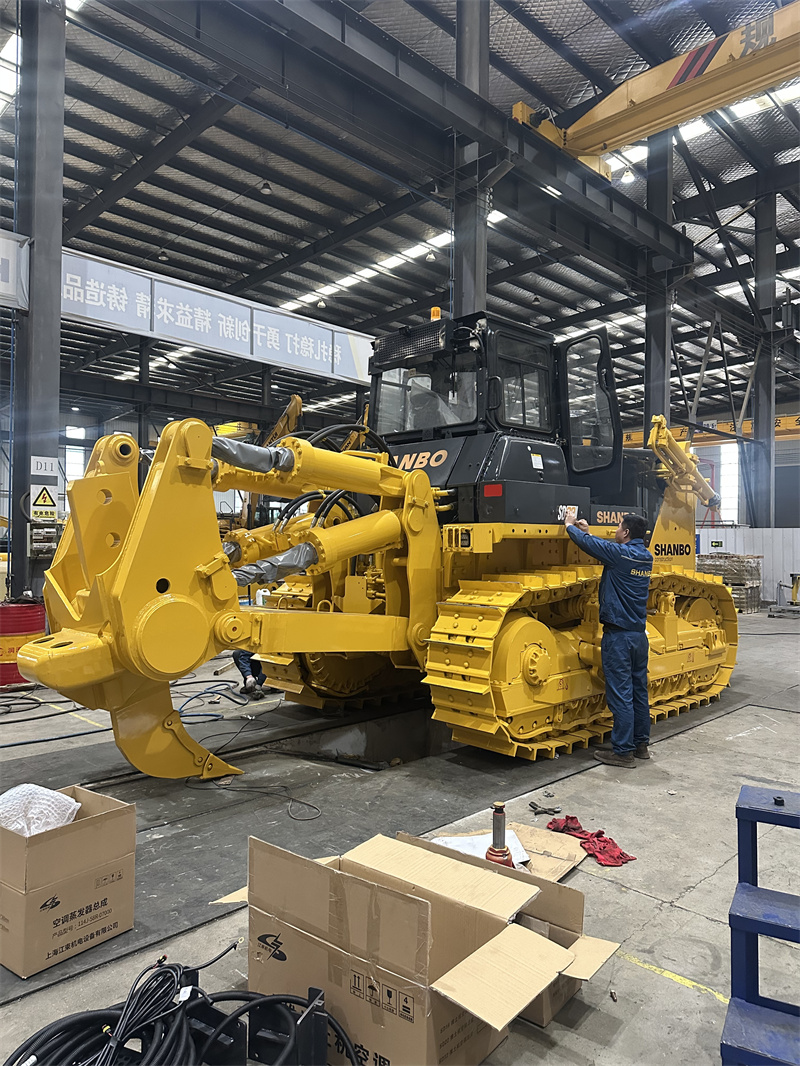

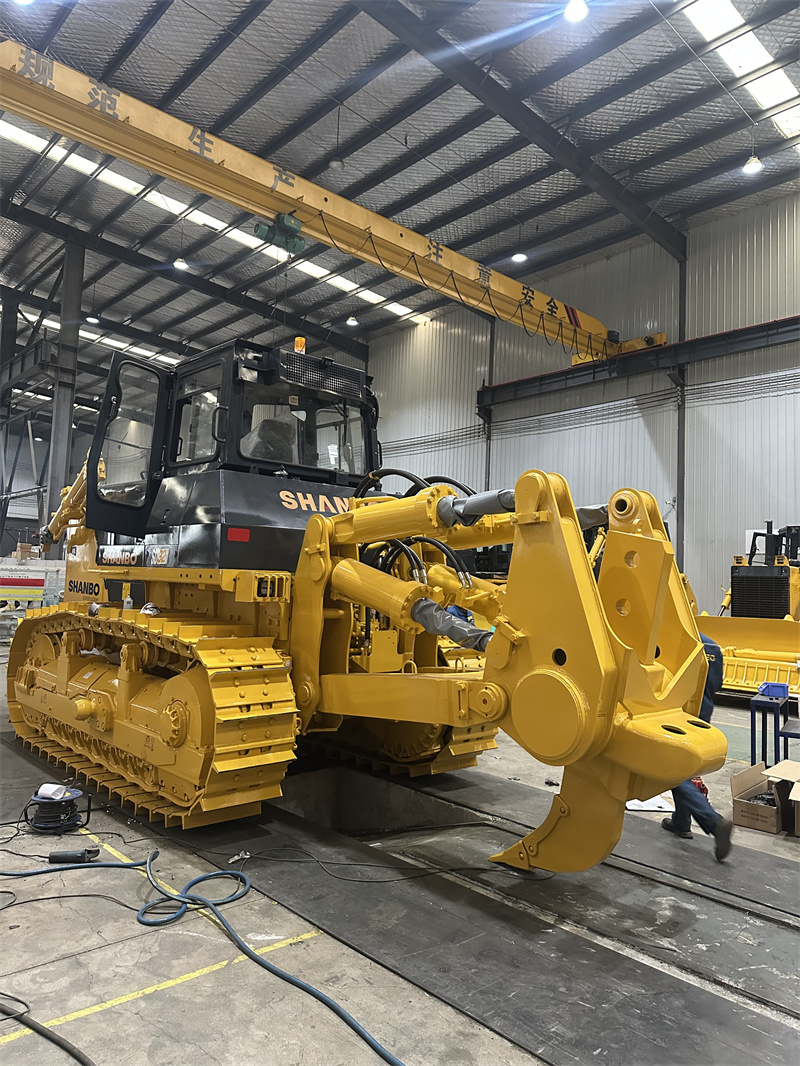

According to the specific working conditions, it can be equipped with a straight shovel, a semi-U shovel, a U shovel, a corner shovel, a coal shovel, a rock shovel,a sanitation shovel, a scarifier, a towing frame, etc., which has stronger working adaptability and comes standard with LED working lights.
The structural parts inherit the excellent quality of mature products of Shanplatinum;
The electrical wiring harness is protected by corrugated pipe, and the wire divider is used to divide the wires, so the protection level is high;

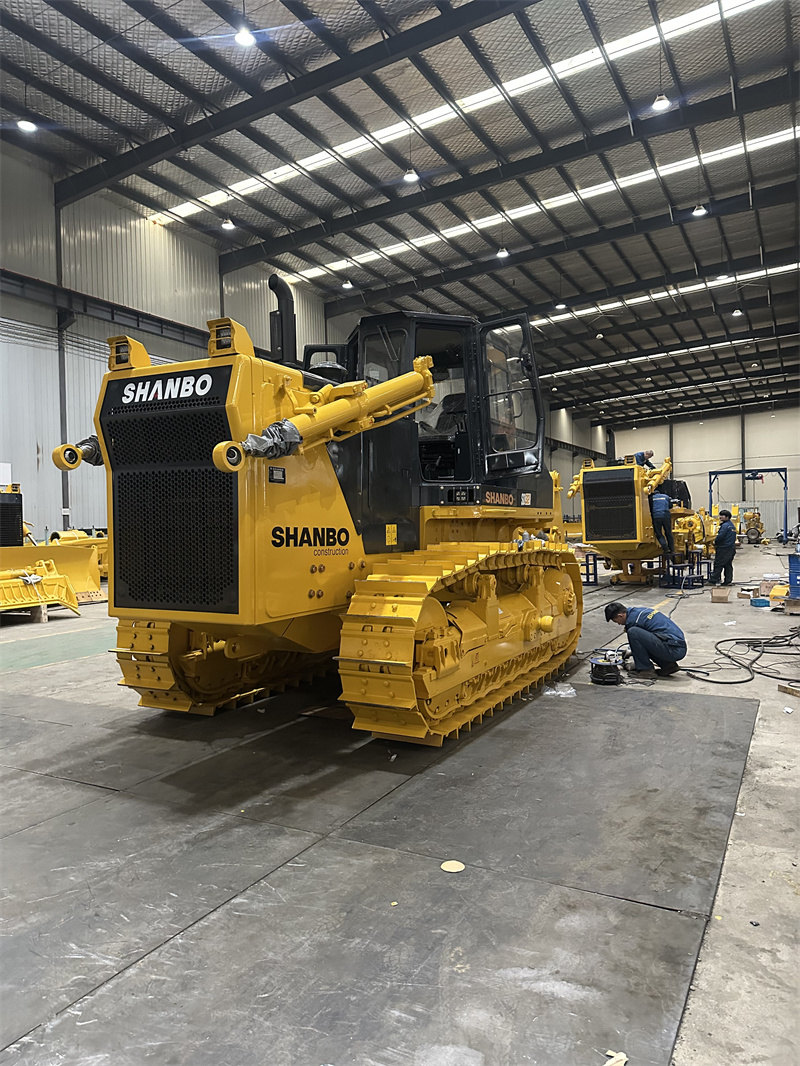

Open side shield for large space, which is more convenient for maintenance;
The lubrication and maintenance point of the whole machine is moved to the outside of the machine body, which makes the maintenance convenient and quick.

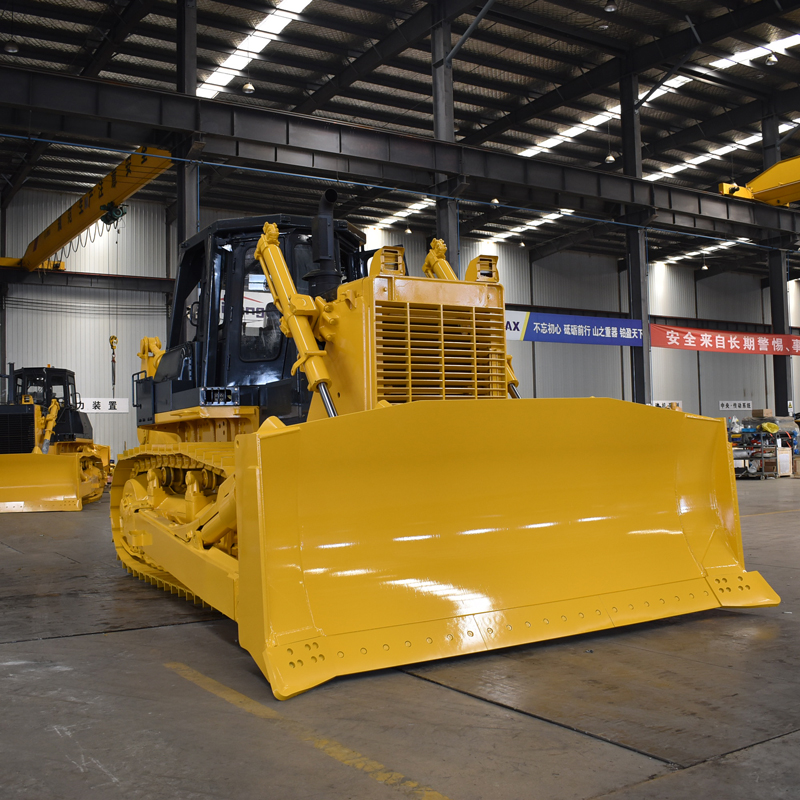

| SD32 Standard Version BUlldozers | |
|---|---|
| Performance parameter | |
| Workmanship (kg) | 40200 (with single-shank ripper and ROPS) |
| Minimum turning radius (mm) | 3800 |
| Grounding specific pressure (kPa) | 97.7 |
| Engine | |
| Engine model | WP12 / QSNT-C345 |
| Rated power/speed (kW/rpm) | 258/2000，257/2000 |
| Outline dimension | |
| Overall dimension (mm) | 8650 × 4130 × 3760 |
| Walking performance | |
| Speed of advance (km/h) | F1:0–3.6 / F2:0–6.6 / F3:0–11.5 |
| Backward speed (km/h) | R1:0–4.4 / R2:0–7.8 / R3:0–13.5 |
| Ground clearance (mm) | 500 |
| Chassis system | |
| Track center distance (mm) | 2140 |
| Track shoe width (mm) | 560/610/660/710 |
| Grounding length (mm) | 3150 |
| Number of track shoes (single side) | 41 |
| Contrast term | |
| Chain track pitch (mm) | 228.6 |
| Number of rollers (one side) | 2 |
| Number of support rollers (one side) | 7 |
| Fuel tank capacity | |
| Fuel tank (L) | 640 |
| Working hydraulic oil tank (L) | 97 |
| Working device | |
| Blade type | Straight / Angle / Semi-U |
| Blade width (mm) | 4130 / 5000 / 4130 |
| Blade height (mm) | 1590 / 1140 / 1710 |
| Blade lifting height (mm) | 1560 / 1703 / 1560 |
| Shovel depth (mm) | 560 / 630 / 560 |
| Type of scarifier | Single-tooth / Three-tooth |
| Loosening depth (mm) | Single 1250 / Three 842 |
| Lifting height of scarifier (mm) | Single 955 / Three 883 |
| Stranded vehicle type | - |

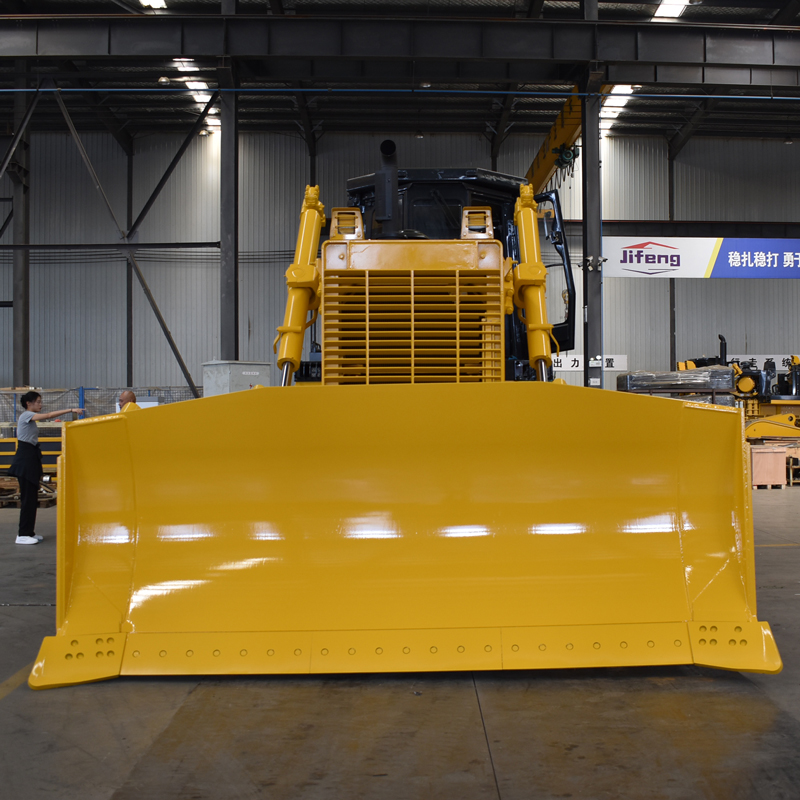

SD32C coal bulldozer is specially developed according to the operation characteristics of special projects in power plants and ports. It comes standard with 610mm crawler belt, super-large capacity coal scraper, high-strength box structure and high-performance materials, which ensures the super-high operation efficiency and excellent durability of the shovel. It is suitable for the construction of loose materials such as power plants and ports.
| SD32C Coal Edition Dozers | |
|---|---|
| Performance parameter | |
| Workmanship (kg) | 40500 (with single-shank ripper and ROPS) |
| Minimum turning radius (mm) | 3800 |
| Grounding specific pressure (kPa) | 98.4 |
| Engine | |
| Engine model | QSNT-C345 |
| Rated power/speed (kW/rpm) | 257/2000 |
| Outline dimension | |
| Overall dimension (mm) | 8650 × 4755 × 3760 |
| Walking performance | |
| Speed of advance (km/h) | F1:0–3.6 / F2:0–6.6 / F3:0–11.5 |
| Backward speed (km/h) | R1:0–4.4 / R2:0–7.8 / R3:0–13.5 |
| Ground clearance (mm) | 500 |
| Chassis system | |
| Track center distance (mm) | 2140 |
| Track shoe width (mm) | 560/610/660/710 |
| Grounding length (mm) | 3150 |
| Number of track shoes (single side) | 41 |
| Contrast term | |
| Chain track pitch (mm) | 228.6 |
| Number of rollers (one side) | 2 |
| Number of support rollers (one side) | 7 |
| Fuel tank capacity | |
| Fuel tank (L) | 640 |
| Working hydraulic oil tank (L) | 97 |
| Working device | |
| Blade type | Semi-U coal blade / U coal blade |
| Blade width (mm) | 4806 / 4520 |
| Blade height (mm) | 1710 / 1710 |
| Blade lifting height (mm) | 1560 |
| Shovel depth (mm) | 560 |
| Type of scarifier | Single-tooth / Three-tooth |
| Loosening depth (mm) | Single 1250 / Three 842 |
| Lifting height of scarifier (mm) | Single 955 / Three 883 |
| Stranded vehicle type | - |

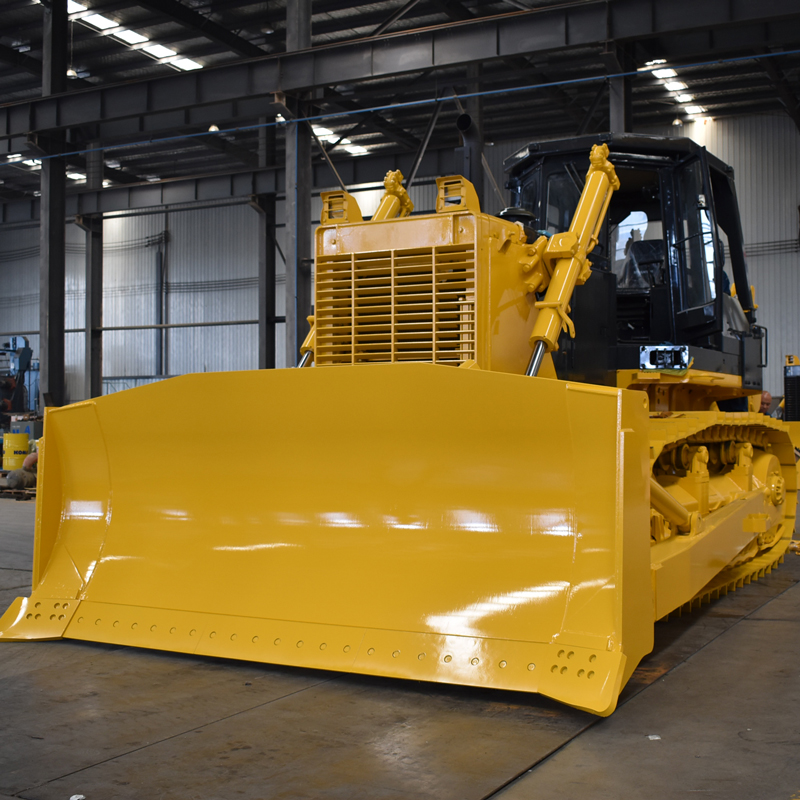

SD32W Rock Bulldozer is specially designed and developed according to the characteristics of rock working conditions. It has the characteristics of advanced technical performance, high reliability, low fuel consumption and convenient maintenance. Equipped with high- strength wear-resistant rock shovel and push rod, suitable for coarse sand, pebbles and weathered rocks and soil with stones
| SD32W Rock Edition Bulldozer | |
|---|---|
| Performance parameter | |
| Workmanship (kg) | 40900 (with single-shank ripper and ROPS) |
| Minimum turning radius (mm) | 3800 |
| Grounding specific pressure (kPa) | 99.4 |
| Engine | |
| Engine model | WP12 / QSNT–C345 |
| Rated power/speed (kW/rpm) | 258/2000，257/2000 |
| Outline dimension | |
| Overall dimension (mm) | 8650 × 4130 × 3760 |
| Walking performance | |
| Speed of advance (km/h) | F1:0–3.6 / F2:0–6.6 / F3:0–11.5 |
| Backward speed (km/h) | R1:0–4.4 / R2:0–7.8 / R3:0–13.5 |
| Ground clearance (mm) | 500 |
| Chassis system | |
| Track center distance (mm) | 2140 |
| Track shoe width (mm) | 560/610/660/710 |
| Grounding length (mm) | 3150 |
| Number of track shoes (single side) | 41 |
| Contrast term | |
| Chain track pitch (mm) | 228.6 |
| Number of rollers (one side) | 2 |
| Number of support rollers (one side) | 7 |
| Fuel tank capacity | |
| Fuel tank (L) | 640 |
| Working hydraulic oil tank (L) | 97 |
| Working device | |
| Blade type | Rock straight / Rock angle / Rock semi-U |
| Blade width (mm) | 4130 / 5000 / 4130 |
| Blade height (mm) | 1590 / 1140 / 1710 |
| Blade lifting height (mm) | 1560 / 1703 / 1560 |
| Shovel depth (mm) | 560 / 630 / 560 |
| Type of scarifier | Single-tooth / Three-tooth |
| Loosening depth (mm) | Single 1250 / Three 842 |
| Lifting height of scarifier (mm) | Single 955 / Three 883 |
| Stranded vehicle type | - |
SD32D desert bulldozer is developed to meet the needs of high dust working conditionssuchas desert working conditions. The air intake system adopts high-mounted air intake filter device and high-strength radiator to design sand prevention device. Standard 710mmsingletooth crawler reduces the vibration and wear of the whole machine, better meets the requirements of desert working conditions, and is mainly suitable for working conditionssuchas high dust and strong vibration in desert Gobi.
| SD32D Desert Edition Bulldozers | |
|---|---|
| Performance parameter | |
| Workmanship (kg) | 39500 (with single-shank ripper and ROPS) |
| Minimum turning radius (mm) | 3800 |
| Grounding specific pressure (kPa) | 96 |
| Engine | |
| Engine model | QSNT–C345 |
| Rated power/speed (kW/rpm) | 257/2000 |
| Outline dimension | |
| Overall dimension (mm) | 8650 × 4130 × 3760 |
| Walking performance | |
| Speed of advance (km/h) | F1:0–3.6 / F2:0–6.6 / F3:0–11.5 |
| Backward speed (km/h) | R1:0–4.4 / R2:0–7.8 / R3:0–13.5 |
| Ground clearance (mm) | 500 |
| Chassis system | |
| Track center distance (mm) | 2140 |
| Track shoe width (mm) | 560/610/660/710 |
| Grounding length (mm) | 3150 |
| Number of track shoes (single side) | 41 |
| Contrast term | |
| Chain track pitch (mm) | 228.6 |
| Number of rollers (one side) | 2 |
| Number of support rollers (one side) | 7 |
| Fuel tank capacity | |
| Fuel tank (L) | 640 |
| Working hydraulic oil tank (L) | 97 |
| Working device | |
| Blade type | Straight / Angle / Semi-U |
| Blade width (mm) | 4130 / 5000 / 4130 |
| Blade height (mm) | 1590 / 1140 / 1710 |
| Blade lifting height (mm) | 1560 / 1703 / 1560 |
| Shovel depth (mm) | 560 / 630 / 560 |
| Type of scarifier | Single-tooth / Three-tooth |
| Loosening depth (mm) | Single 1250 / Three 842 |
| Lifting height of scarifier (mm) | Single 955 / Three 883 |
| Stranded vehicle type | - |
SD32R Environmental Protection Bulldozer is developed according to the operation needsof domestic urban environmental protection treatment plants. It is designed with large-capacityenvironmental protection shovel, mud scraper, anti-winding idler, trolley full guard plate, split front fence and anti-fly and mosquito air pre-filter, etc., to better meet the requirements of environmental protection conditions. Mainly suitable for landfill, leveling, semi-compaction, accumulation and other operations of garbage dumps; It can also be used for tractionof garbage iron trough and treatment tank station.
| SD32R Sanitation Edition Dozers | |
|---|---|
| Performance parameter | |
| Workmanship (kg) | 37100 (Debris-clearing device and ROPS) |
| Minimum turning radius (mm) | 3800 |
| Grounding specific pressure (kPa) | 90.2 |
| Engine | |
| Engine model | QSNT–C345 |
| Rated power/speed (kW/rpm) | 257/2000 |
| Outline dimension | |
| Overall dimension (mm) | 8650 × 4332 × 3760 |
| Walking performance | |
| Speed of advance (km/h) | F1:0–3.6 / F2:0–6.6 / F3:0–11.5 |
| Backward speed (km/h) | R1:0–4.4 / R2:0–7.8 / R3:0–13.5 |
| Ground clearance (mm) | 500 |
| Chassis system | |
| Track center distance (mm) | 2140 |
| Track shoe width (mm) | 560/610/660/710 |
| Grounding length (mm) | 3150 |
| Number of track shoes (single side) | 41 |
| Contrast term | |
| Chain track pitch (mm) | 228.6 |
| Number of rollers (one side) | 2 |
| Number of support rollers (one side) | 7 |
| Fuel tank capacity | |
| Fuel tank (L) | 640 |
| Working hydraulic oil tank (L) | 97 |
| Working device | |
| Blade type | Sanitation blade |
| Blade width (mm) | 4502 |
| Blade height (mm) | 2314 |
| Blade lifting height (mm) | 1560 |
| Shovel depth (mm) | 560 |
| Type of scarifier | - |
| Loosening depth (mm) | - |
| Lifting height of scarifier (mm) | - |
| Stranded vehicle type | - |
