| General | ||
|---|---|---|

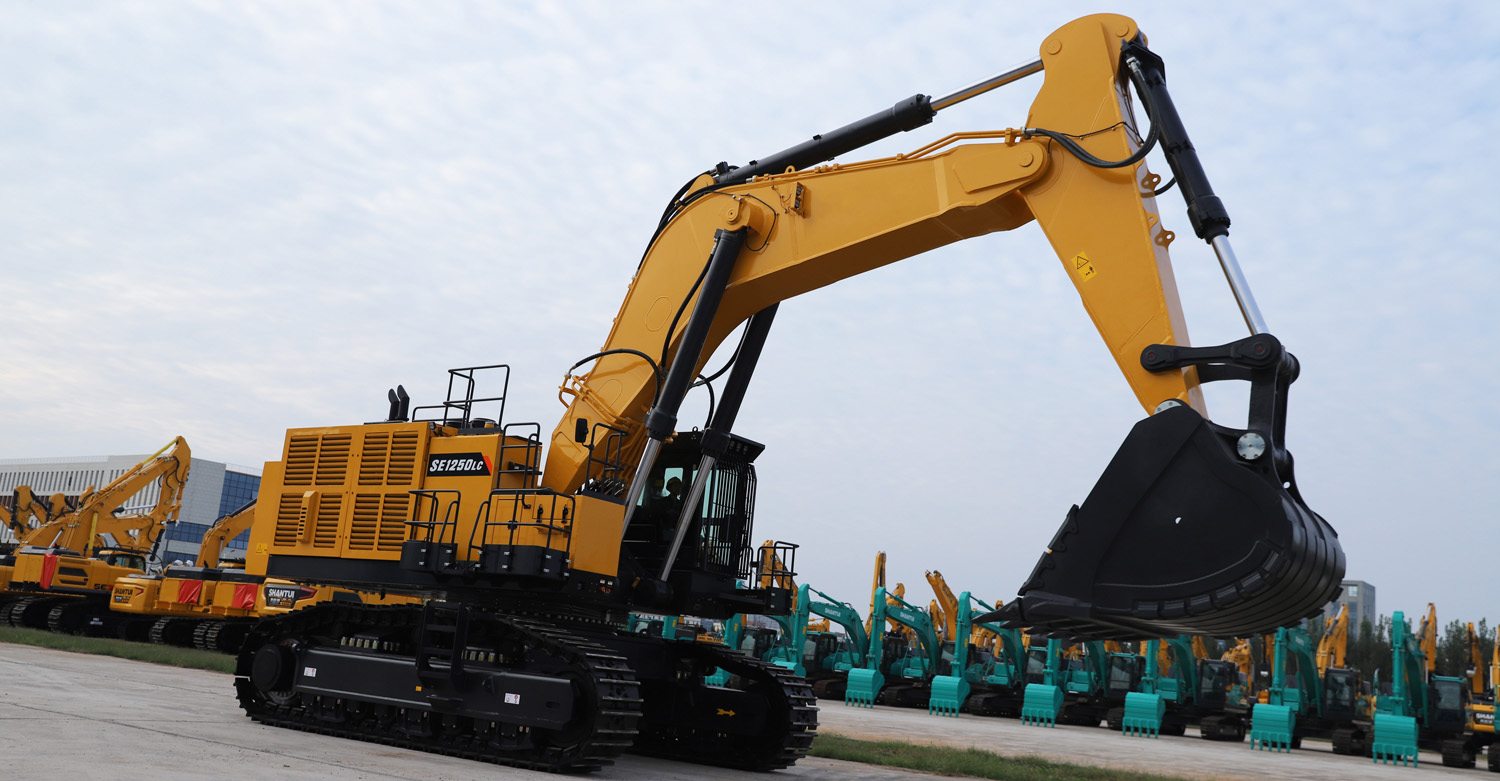

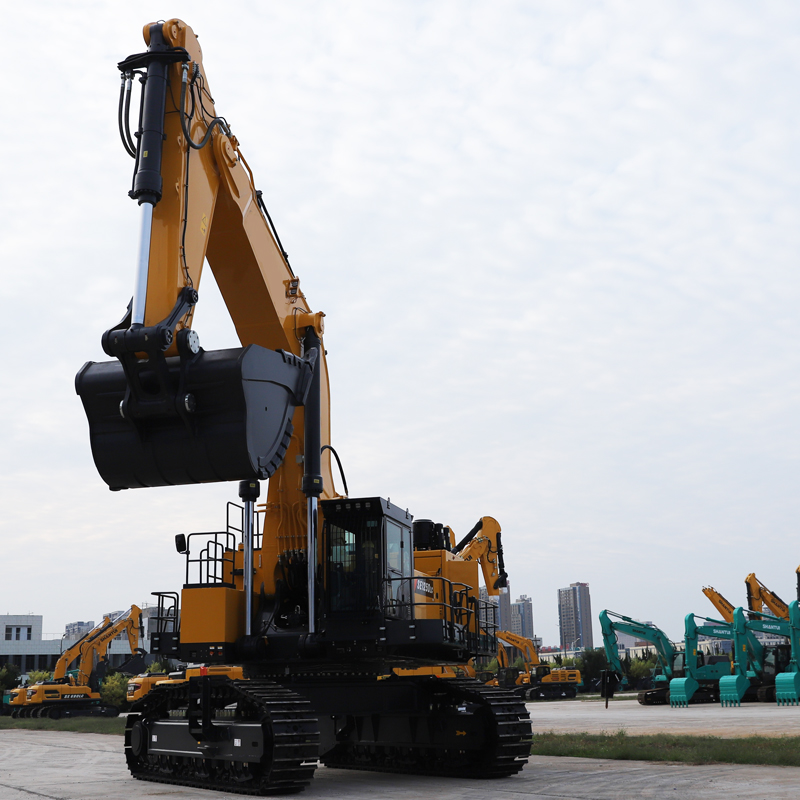

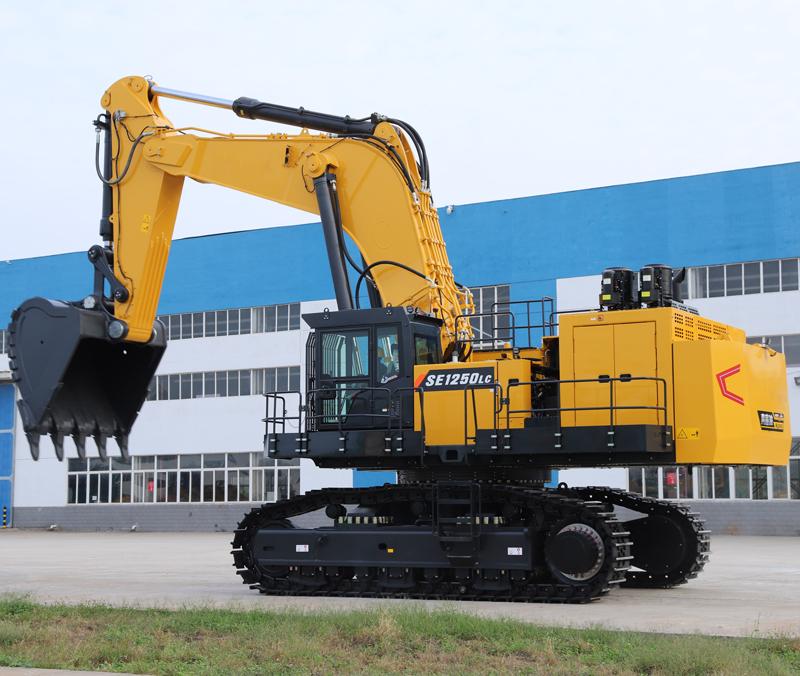

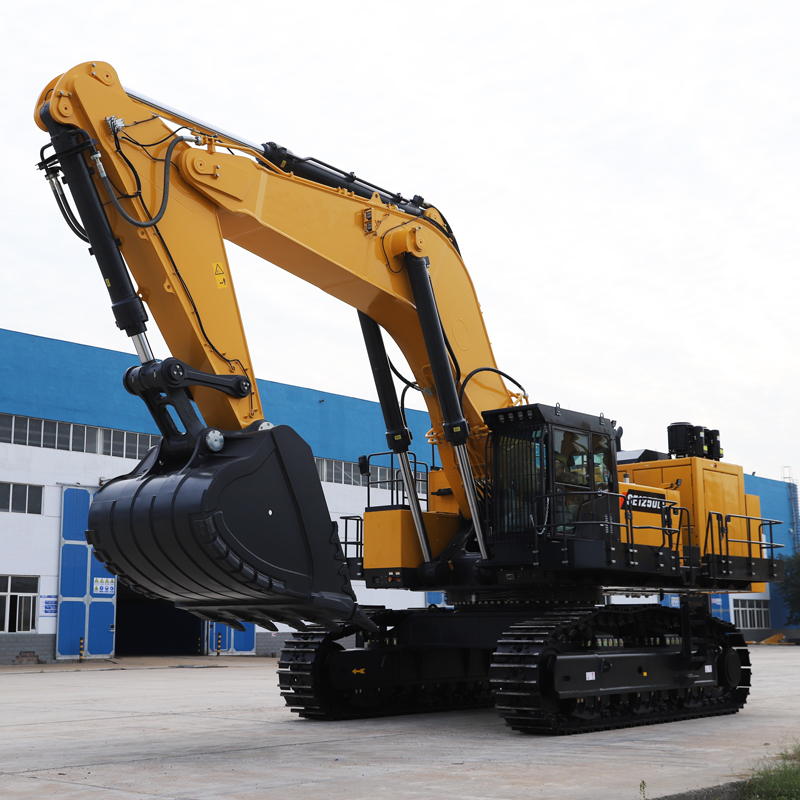

| project | SH1250LC | |
| operating weight | 120000 kg | |
| rated power | 680/1800 kW/rpm | |

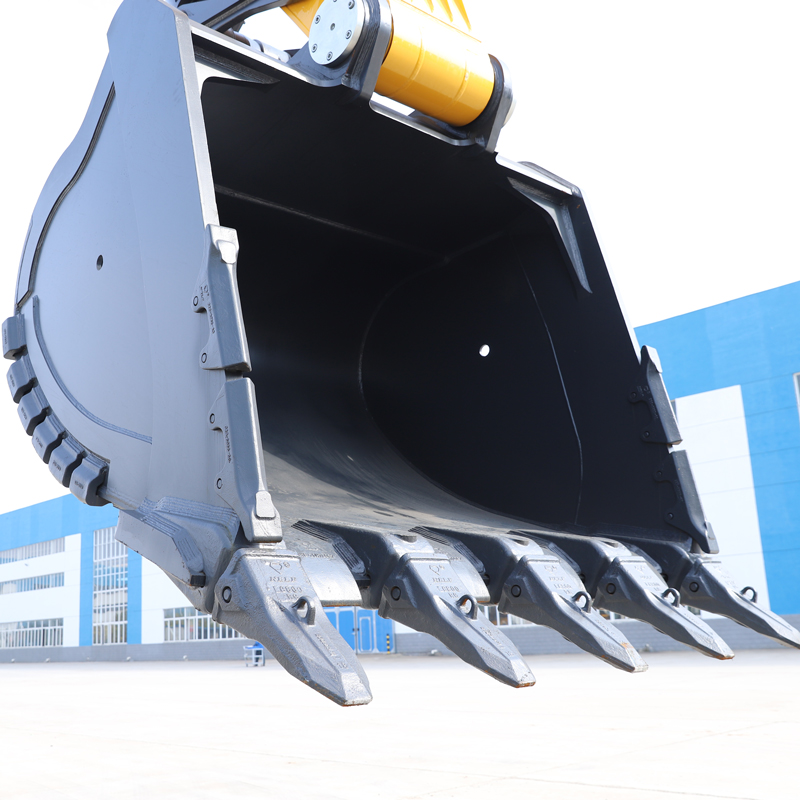

| bucket capacity | 7.5–10 m³ | |
| Engine & Power | ||
| Engine model | WEICHAI 8M33 | |
| displacement | 26.1 L | |
| rotation speed | 5.5 r/min | |
| Forces & Mobility | ||
| Bucket digging force | 610 kN | |
| Excavating force of boom | 532 kN | |
| ground pressure | 147 kPa | |
| walking speed | 2.4 / 3.5 km/h | |
| traction | 745 kN | |
| gradability | 70%（35°） | |
| Dimensions & Working Range | ||
| Chief of Staff | 14845 mm | |
| overall width | 5385 mm | |
| Total height (up to the top of the cab) | 4475 mm | |
| Ground clearance | 1070 mm | |
| Tail turning radius | 5100 mm | |
| gauge | 3900 mm | |
| track width | 4600 mm | |
| Standard track shoe width | 700 mm | |
| Maximum excavation height | 12480 mm | |
| Maximum Dumping Height | 8065 mm | |
| Maximum Digging Depth | 8165 mm | |
| Maximum digging radius | 13875 mm | |
