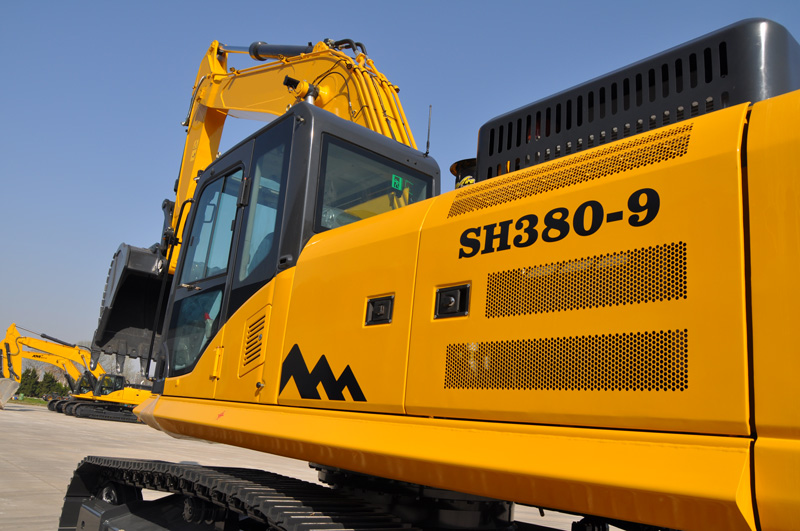

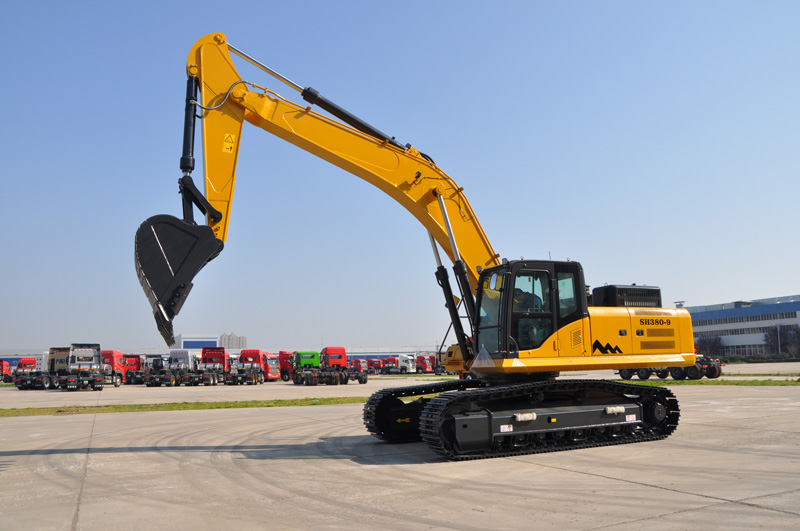

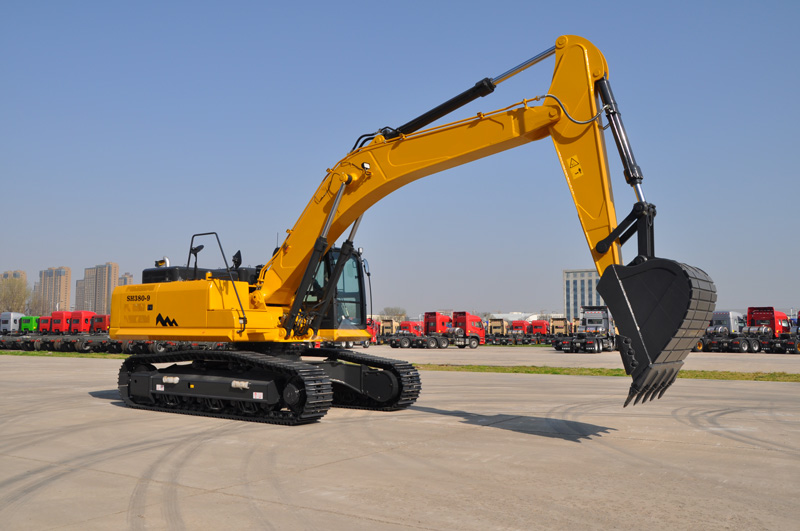

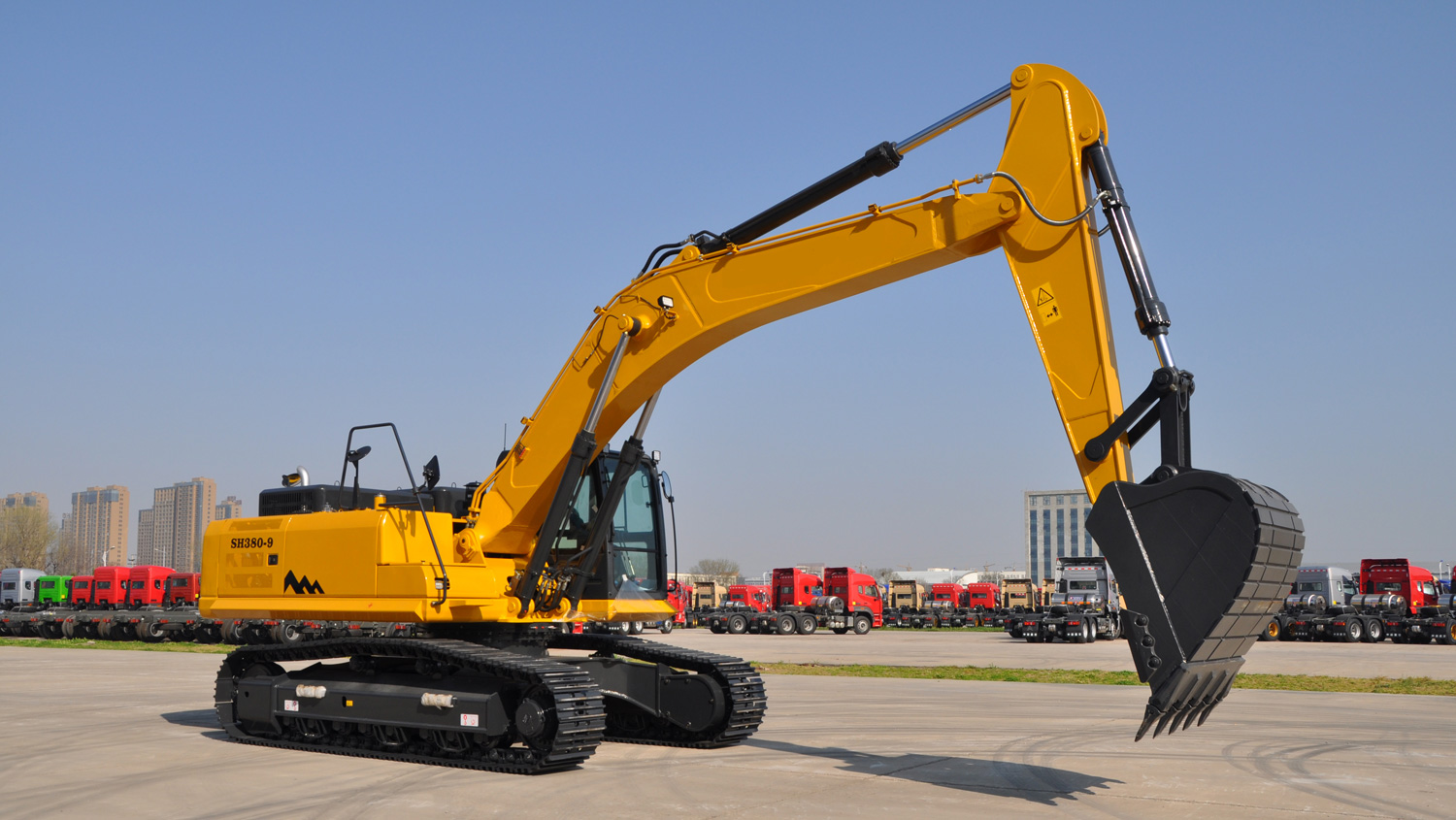

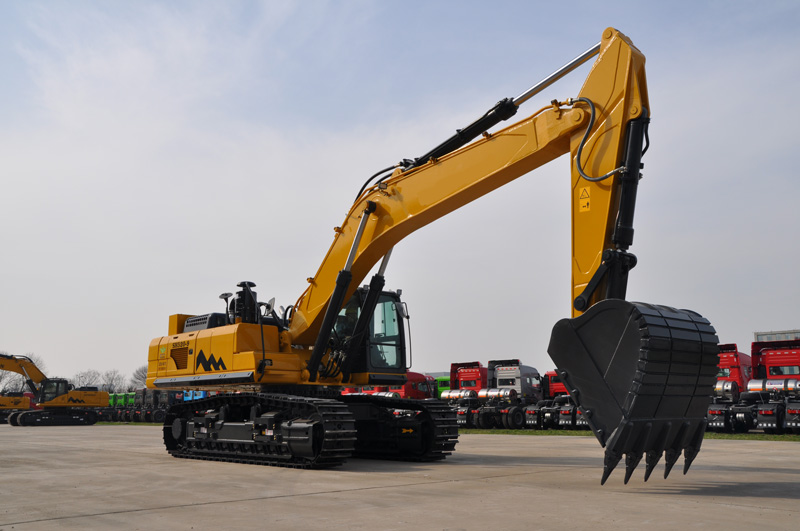

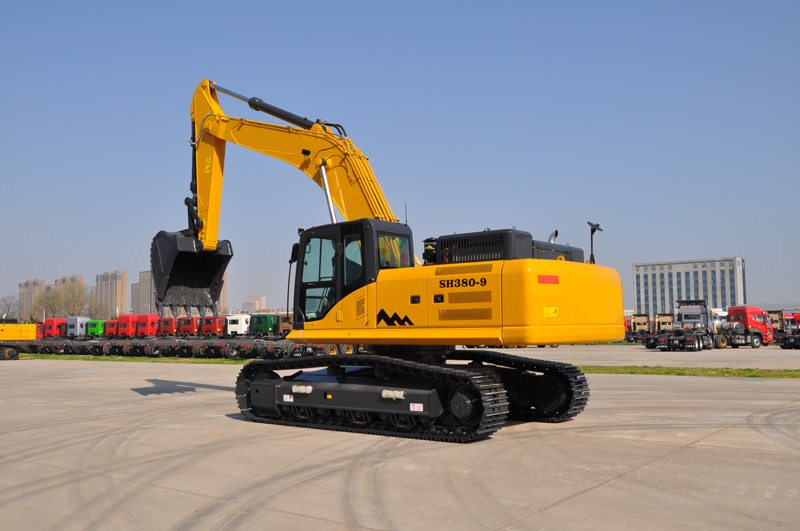

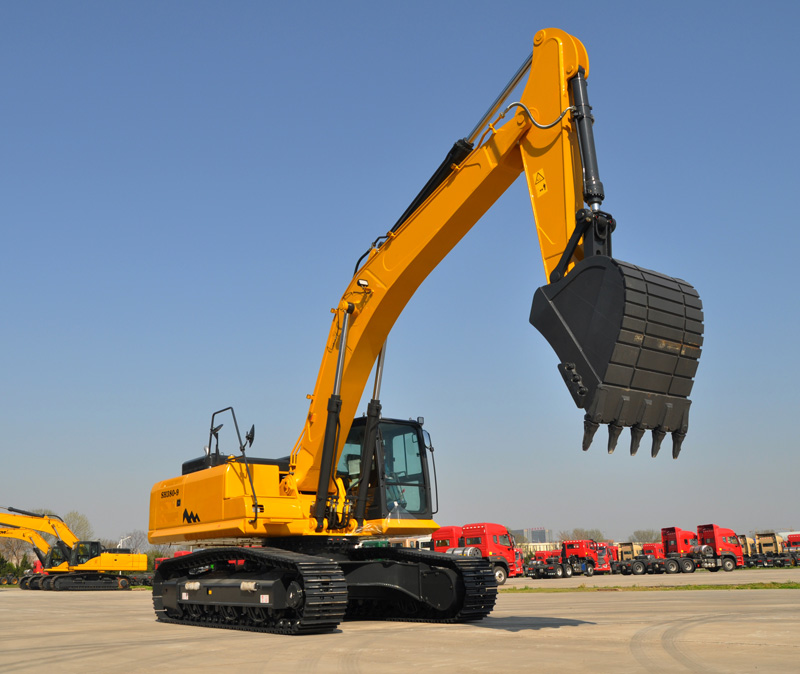

The SH380 crawler excavator is a 37-ton hydraulic excavator powered by a Cummins 6LTAA8.9 engine. Featuring high digging force, large bucket capacity up to 1.82 m³, and a high-efficiency hydraulic system, it is ideal for heavy-duty construction, mining, and earthmoving applications.
| Item | Value |
|---|---|
| Stick Type | |
| Overall Length (mm) | 11161 |
| Ground Length (During Transportation) (mm) | 5872 |
| Total Height (to Top of Boom) (mm) | 3347 |
| Total Width (mm) | 3200 |
| Total Height (to Top of Cab) (mm) | 3293 |
| Counterweight Ground Clearance (mm) | 1312 |
| Minimum Ground Clearance (mm) | 565 |
| Tail Swing Radius (mm) | 3438 |
| Tread (mm) | 4080 |
| Track Length (mm) | 5044 |
| Track Gauge (mm) | 2600 |
| Track Width Overall (mm) | 3200 |
| Track Shoe Width (mm) | 600 |
| Hood Height (mm) | 2421 |
| Turntable Height (mm) | 3195.3 |
| Distance from Slewing Center to Rear End (mm) | 3438 |

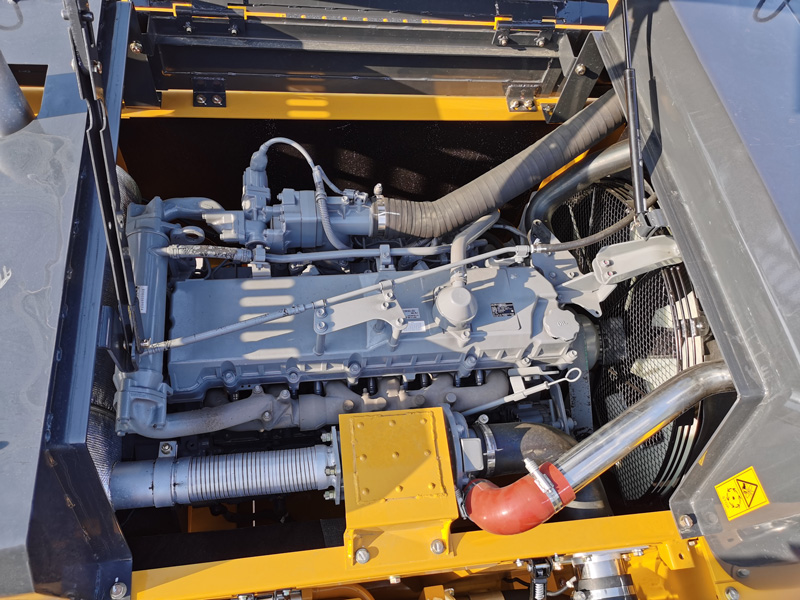

| Engine | |
| Model | Cummins 6LTAA8.9-325 |
| Configuration | 6-cylinder, in-line, turbocharged & intercooled |
| Cylinders × Bore × Stroke (mm) | 6 × 115 × 125 |
| Displacement (L) | 7.79 |
| Power Rating (kW/rpm) | 242 / 2000 |

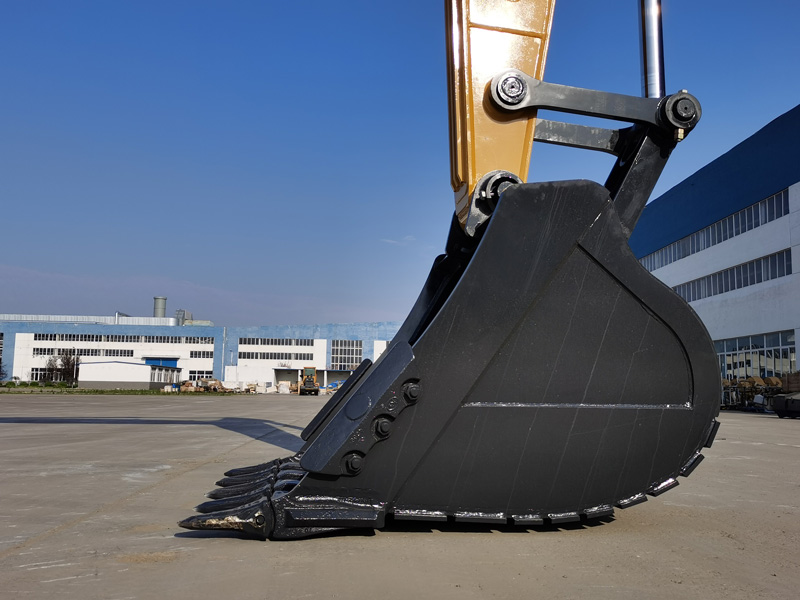

| Bucket | |
| Bucket Capacity (m³) | 1.62 – 1.82 |
| Bucket Width (mm) | 1571 |
| Digging Force | |
| Bucket Digging Force (kN) | 230 |
| Stick Digging Force (kN) | 190 |

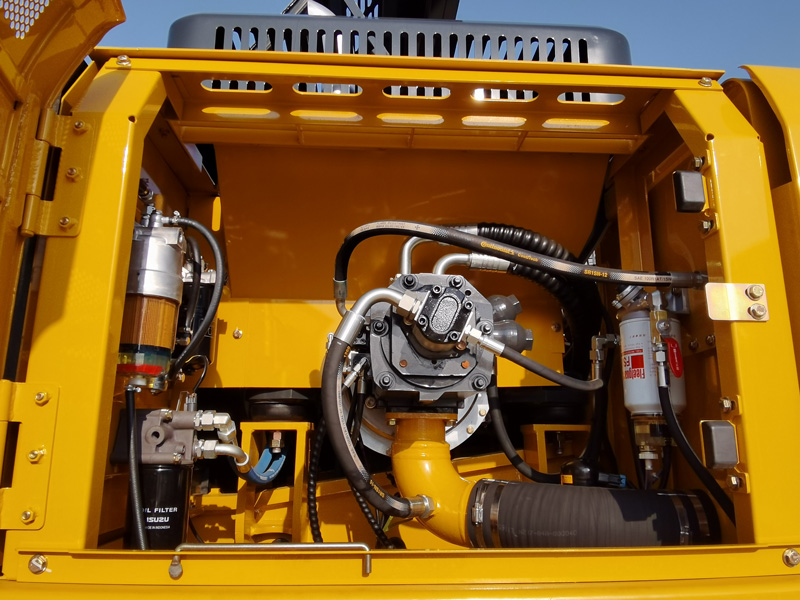

| Hydraulic System | |
| Pump Type | 2 variable piston pumps + 1 gear pump |
| Max Working Flow (L/min) | 2 × 330 |
| Travel Circuit Pressure (MPa) | 36 |
| Swing Circuit Pressure (MPa) | 25.5 |
| System Pressure (MPa) | 36 |

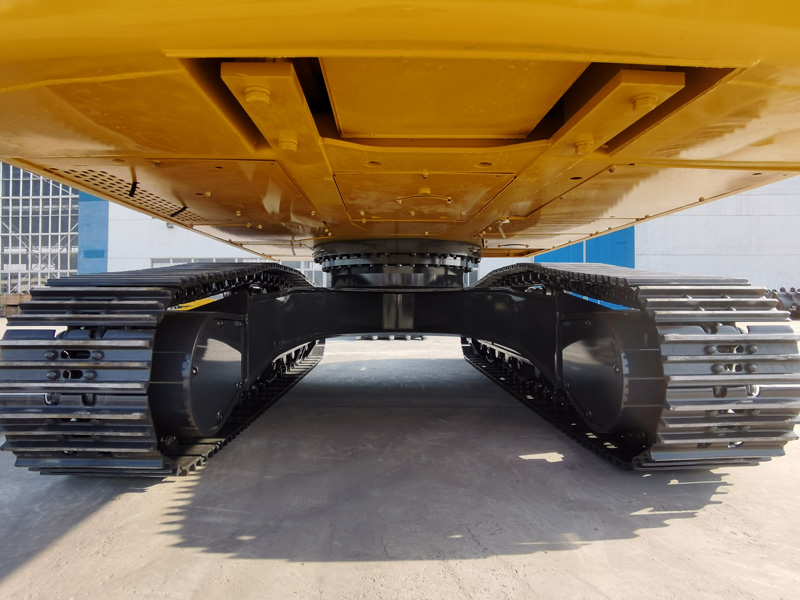

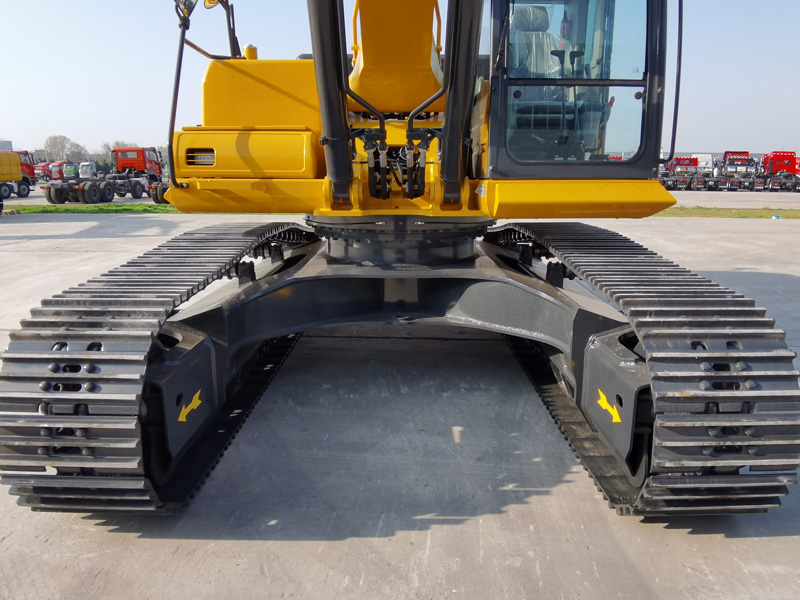

| Travel System | |
| Travel Motor | Axial variable plunger motor |
| Number of Track Plates | 2 × 49 |
| Travel Speed (km/h) | 5.0 / 3.0 |
| Drawbar Pull (kN) | 280 |
| Gradeability | 70% (35°) |

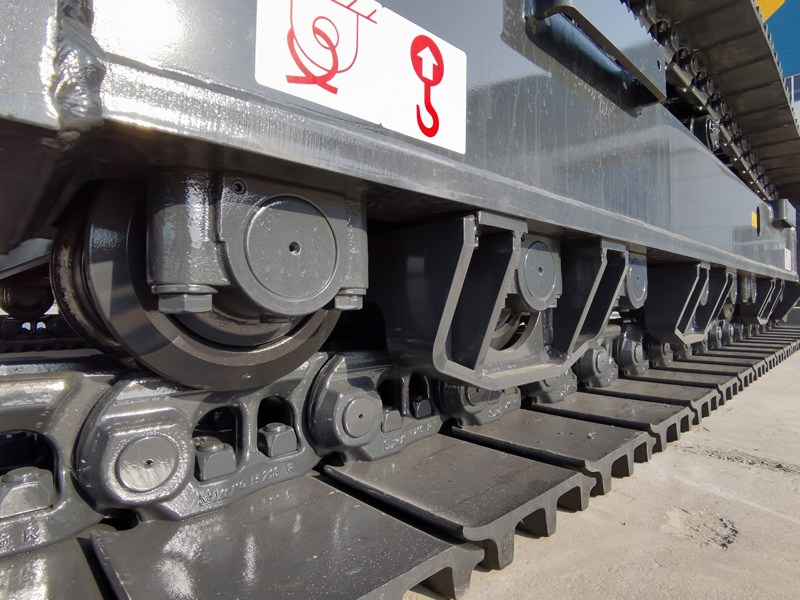

| Number of Carrier Rollers | 2 × 8 |
| Number of Idlers | 2 × 2 |
| Operating Weight & Ground Pressure | |
| Operating Weight (kg) | 37000 |
| Ground Pressure (kPa) | 62 |
| Slewing System | |
| Slewing Speed (r/min) | 9.7 |
| Braking Type | Pressure release, mechanical braking |
| Oil Capacity | |
| Fuel Tank Capacity (L) | 580 |
| Cooling System Capacity (L) | 32.5 |
| Engine Oil Capacity (L) | 33 |
| Hydraulic Oil Tank / System Capacity (L) | 380 / 450 |
| Boom Type | |
| Max Digging Height (mm) | 10134 |
| Max Dumping Height (mm) | 7182 |
| Max Digging Depth (mm) | 7240 |
| Max Vertical Digging Depth (mm) | 7170.5 |
| Max Digging Reach (mm) | 11051 |
| Max Digging Reach on Ground (mm) | 10839 |
| Minimum Slewing Radius of Working Equipment (mm) | 4332 |
