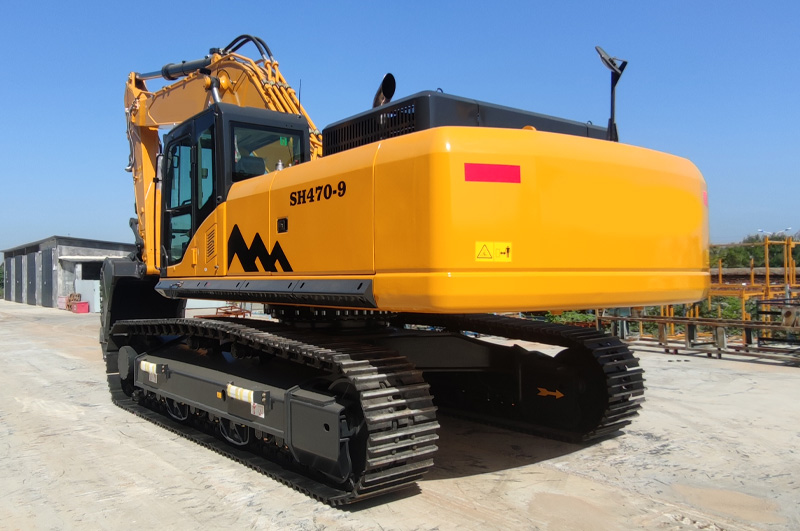

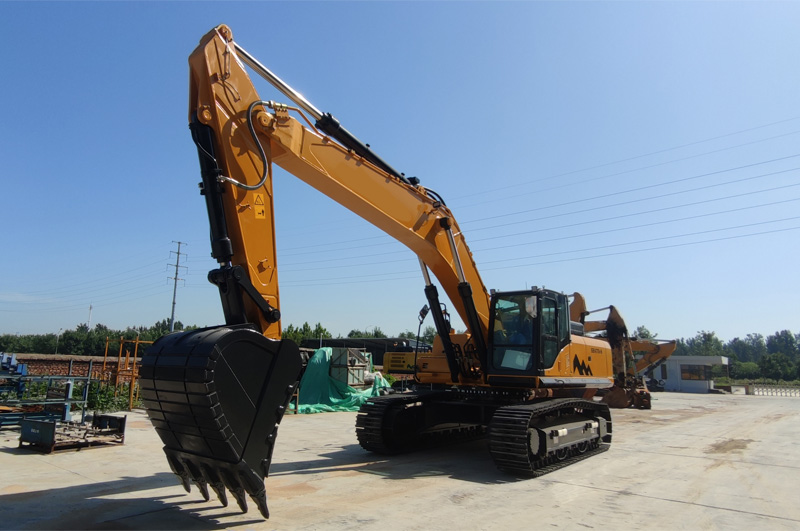

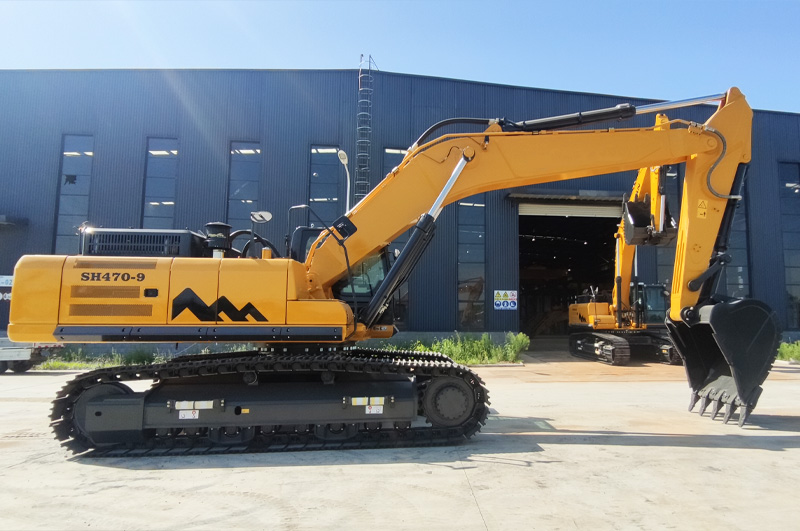

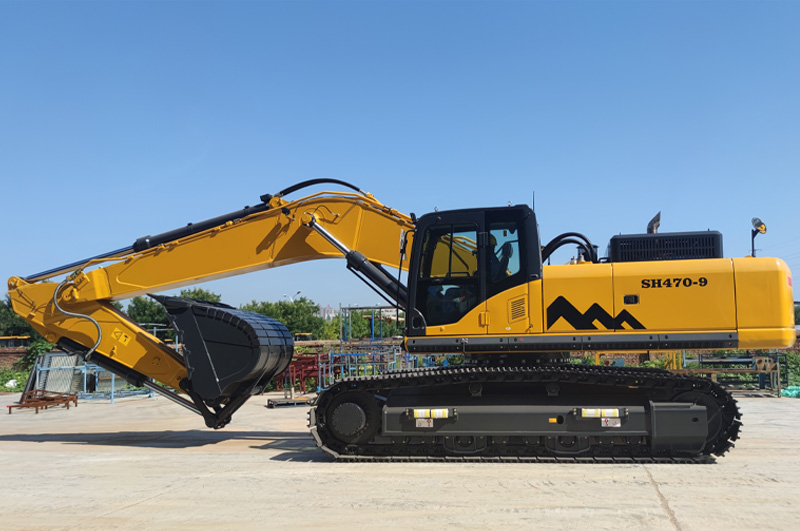

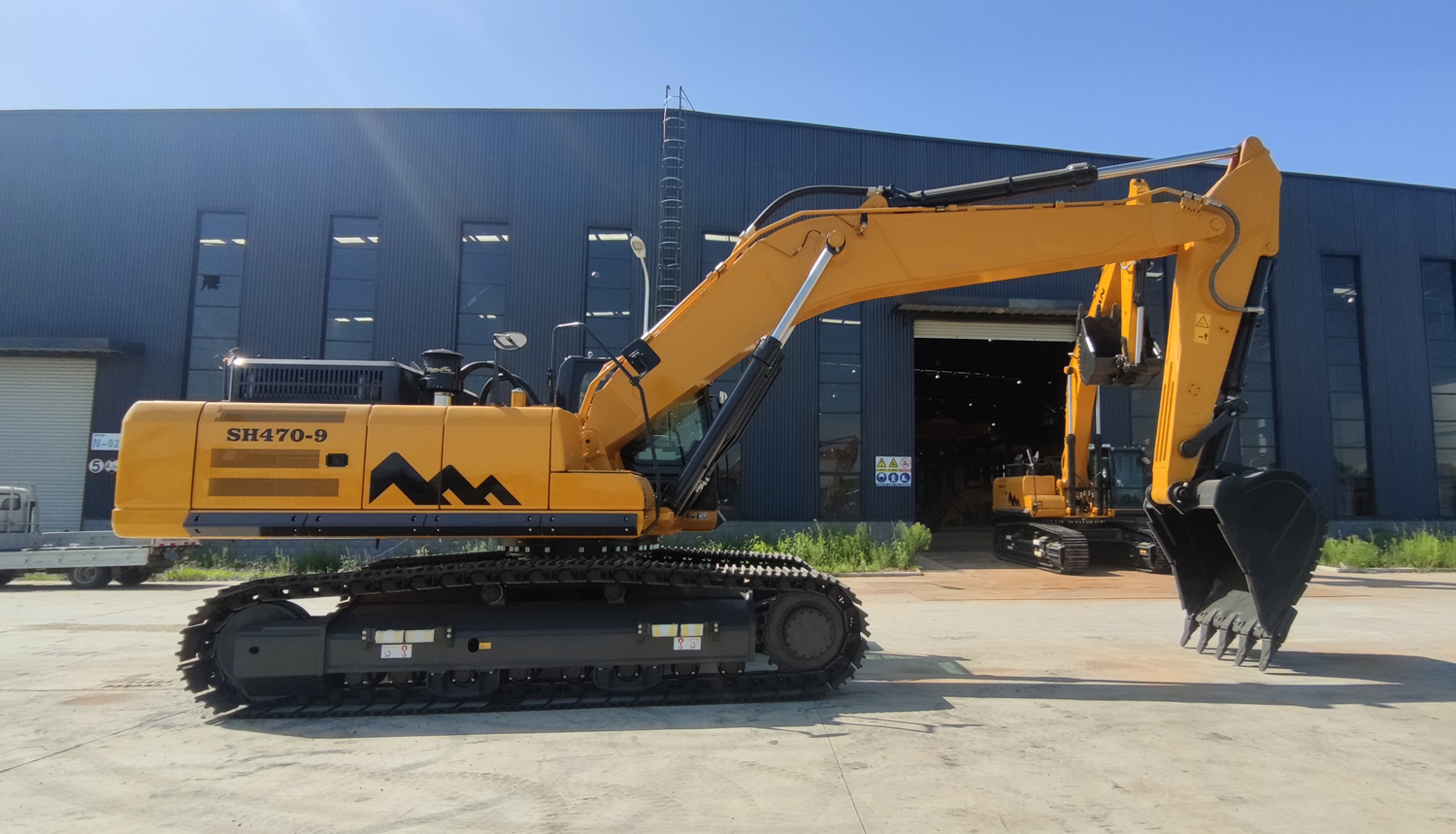

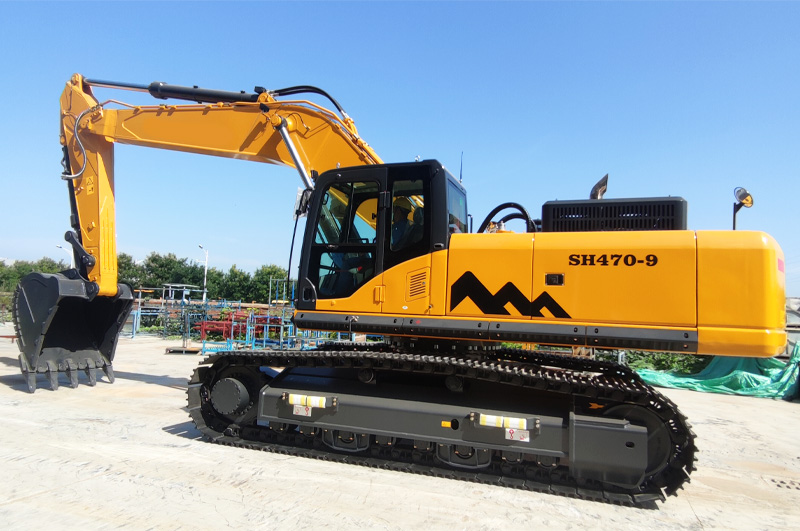

The SH470 is a heavy-duty crawler excavator designed for high-load operations. Powered by a Cummins QSM11 engine and featuring a Linde load-sensing hydraulic system, it offers strong digging performance, optimized fuel efficiency, and reliable operation in demanding construction, mining, and large-scale earthmoving projects.
| Item | Value |
|---|---|
| Stick Type | |
| Overall length (mm) | 12090 |
| Ground length (during transportation)(mm) | 6735 |
| Total height (to top of boom)(mm) | 3590 |
| Total width (mm) | 3490 |
| Total height (to the top of cab)(mm) | 3276 |
| Counterweight ground clearance (mm) | 1321 |
| Minimum ground clearance (mm) | 557 |
| Tail swing radius (mm) | 3655 |
| Tread (mm) | 4290 |
| Track length (mm) | 5335 |
| Gauge (mm) | 2760 |
| Track width (mm) | 3360 |
| Track shoe width (mm) | 600 |
| Hood height (mm) | 2815 |
| Turntable width (mm) | 3195 |
| Distance from swing center to rear end (mm) | 3655 |

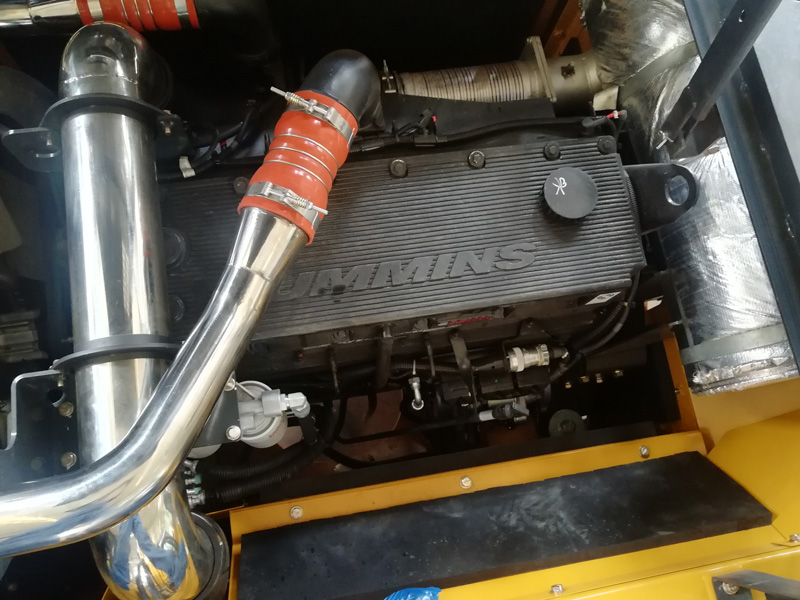

| Engine | |
| Model | Cummins QSM11 |
| Type | 6-cylinder, in-line, turbocharged, intercooled |
| Cylinders × Bore × Stroke (mm) | 6×125×150 |
| Displacement (L) | 11 |
| Rated power (kW/rpm) | 250/2000 |
| Bucket | |
| Bucket capacity (m³) | 2.0 – 2.2 |
| Bucket width (mm) | 1350 – 1530 |
| Digging Force | |
| Bucket digging force (kN) | 290 |
| Stick digging force (kN) | 236 |

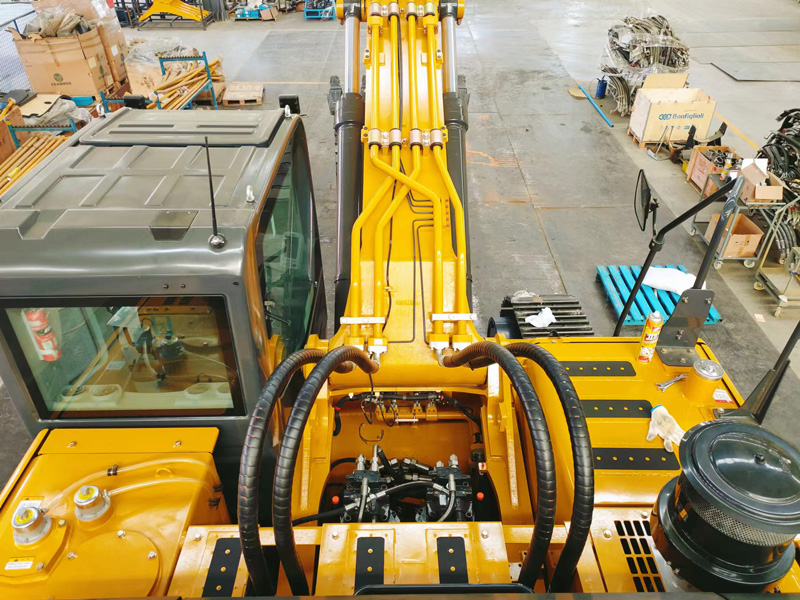

| Hydraulic System | |

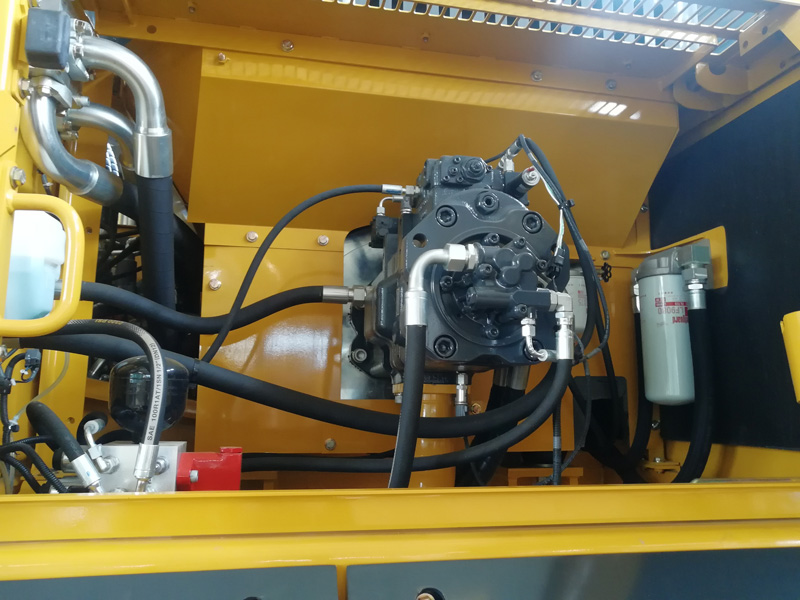

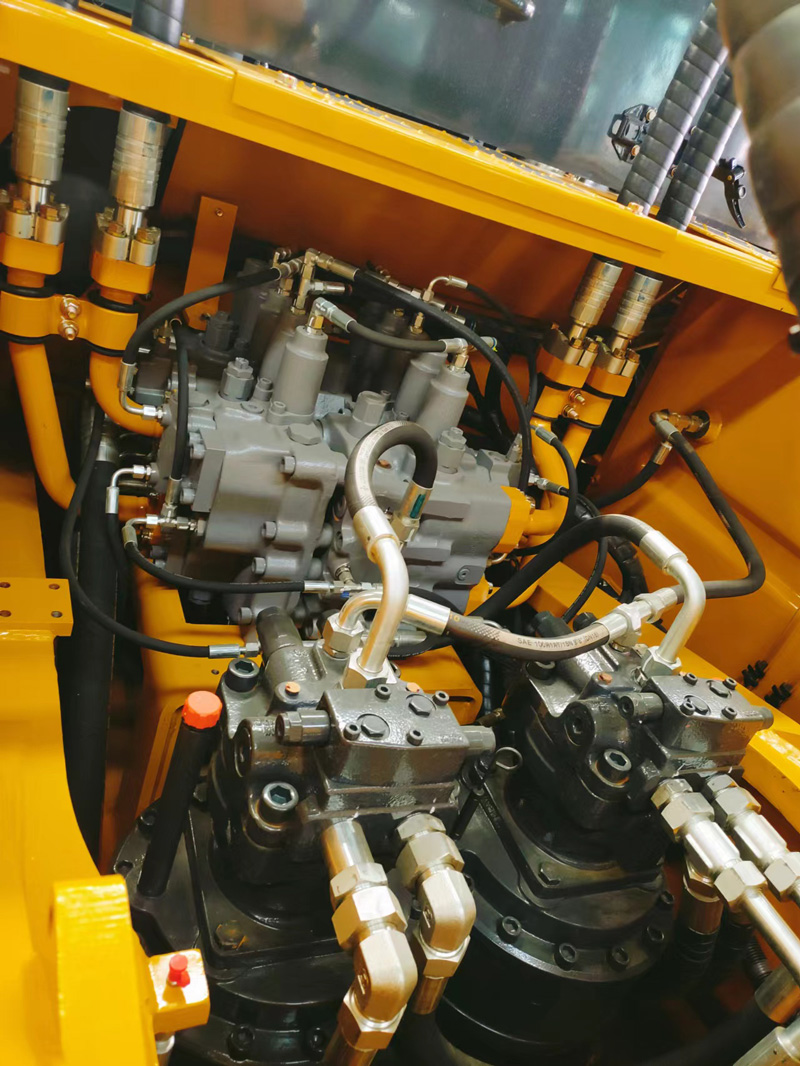

| Pump type | 2 variable piston pumps + 1 gear pump |
| Max working flow (L/min) | 2×360 + 27 |
| Travel circuit pressure (MPa) | 31.4 |
| Swing circuit pressure (MPa) | 28.4 |
| Control circuit pressure (MPa) | 3.9 |
| Walking System | |
| Walking motor | Axial variable piston motor |
| Track shoe quantity | 2×49 |
| Travel speed (km/h) | 3.2 / 5.3 |
| Drawbar pull (kN) | 330 |
| Gradeability | 70% (35°) |
| Number of carrier rollers | 2×8 |
| Number of idlers | 2×2 |
| Operating Weight & Ground Pressure | |
| Operating weight (kg) | 44900 |
| Ground pressure (kPa) | 80.2 |
| Slewing System | |
| Swing speed (r/min) | 9.3 |
| Braking type | Pressure release, mechanical braking |
| Oil Capacity | |
| Fuel tank capacity (L) | 650 |

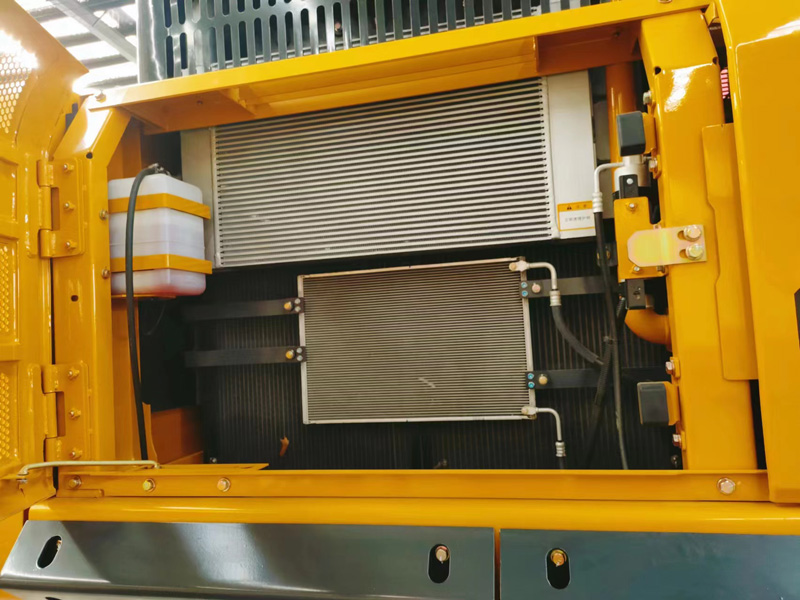

| Cooling system capacity (L) | 26 |
| Engine oil capacity (L) | 37.8 |
| Hydraulic oil tank/system (L) | 350 / 406 |

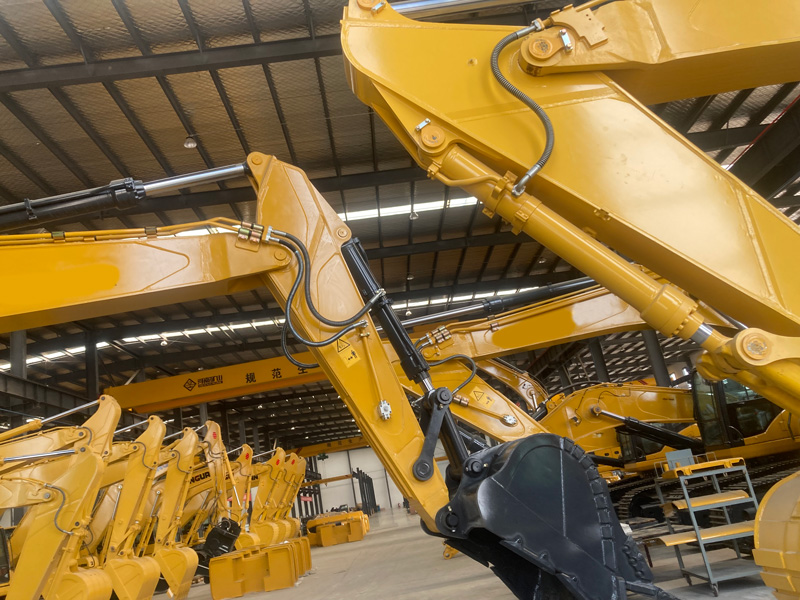

| Boom Type | |
| Max digging height (mm) | 10924 |
| Max dump height (mm) | 7615 |
| Max digging depth (mm) | 7800 |
| Max vertical digging depth (mm) | 7066 |
| Max digging radius (mm) | 12016 |
| Max digging distance at ground level (mm) | 11814 |
| Min swing radius of working device (mm) | 4825 |
