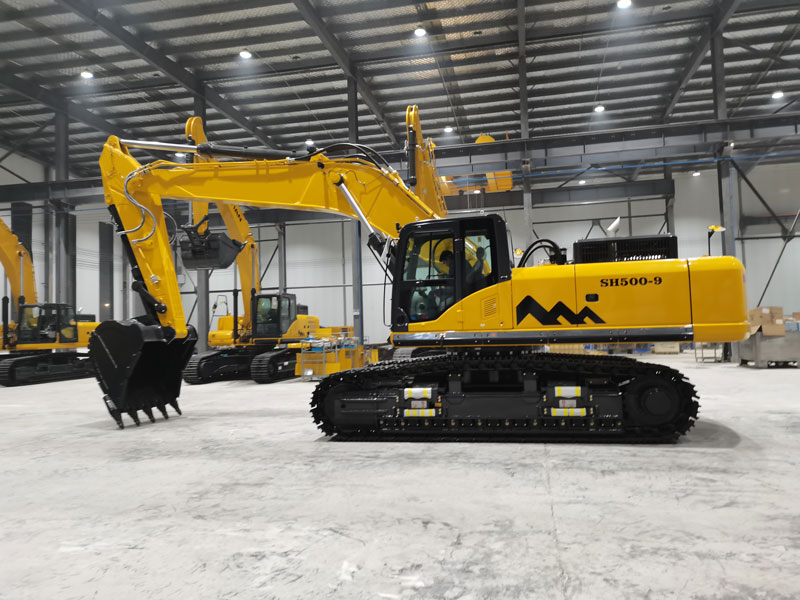

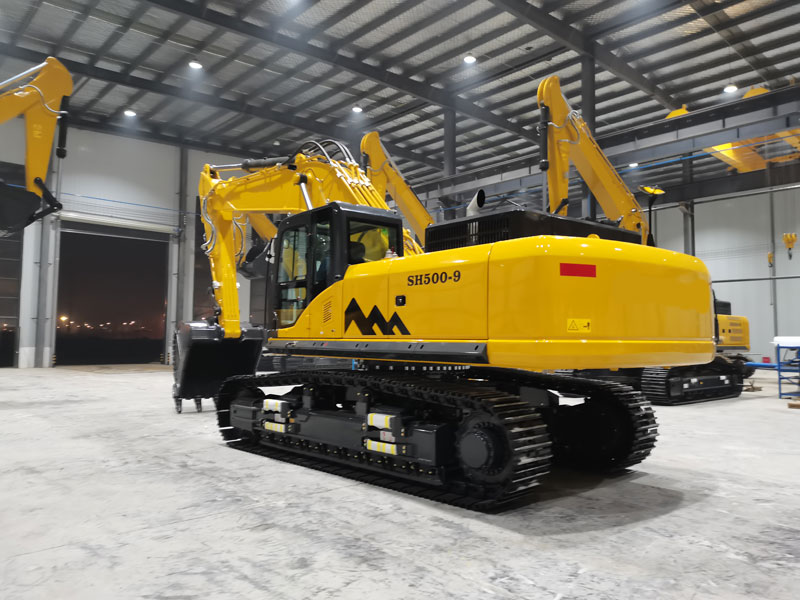

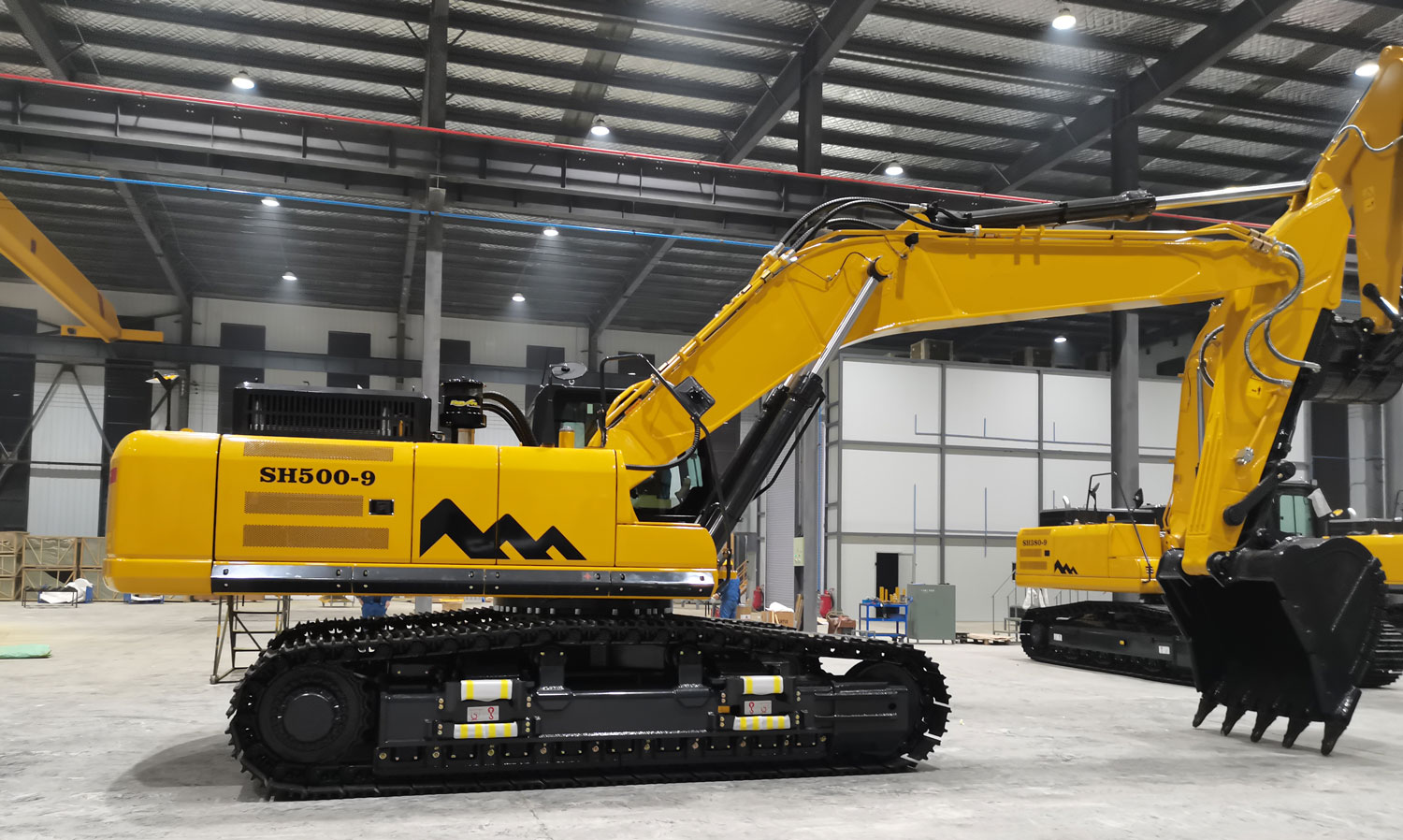

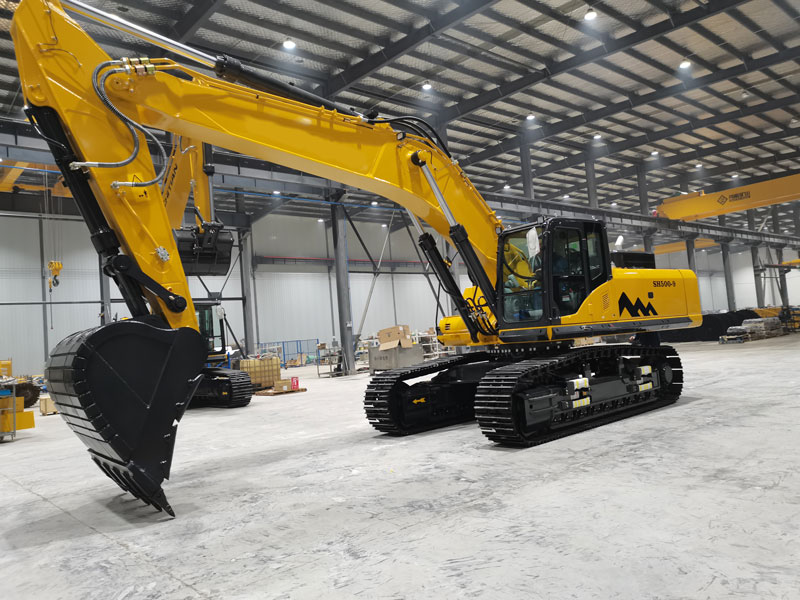

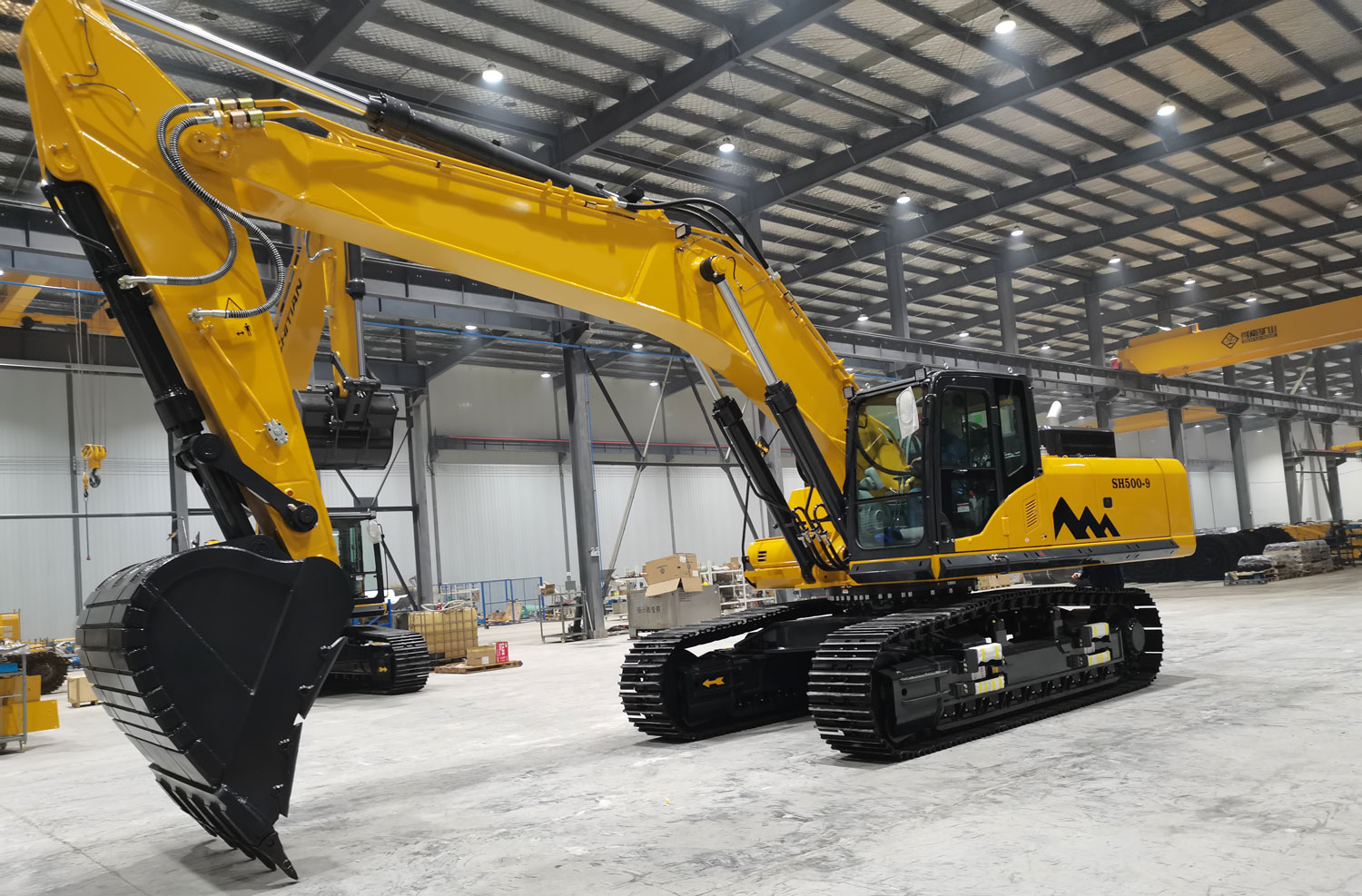

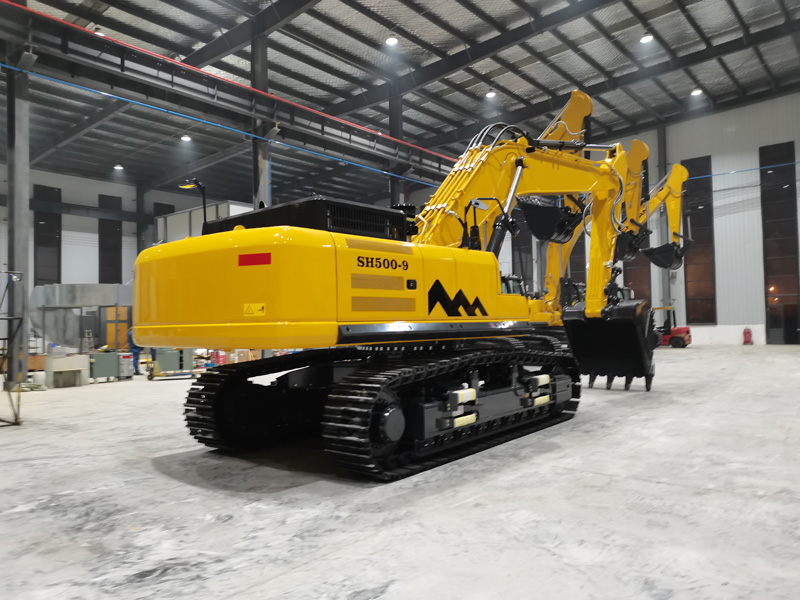

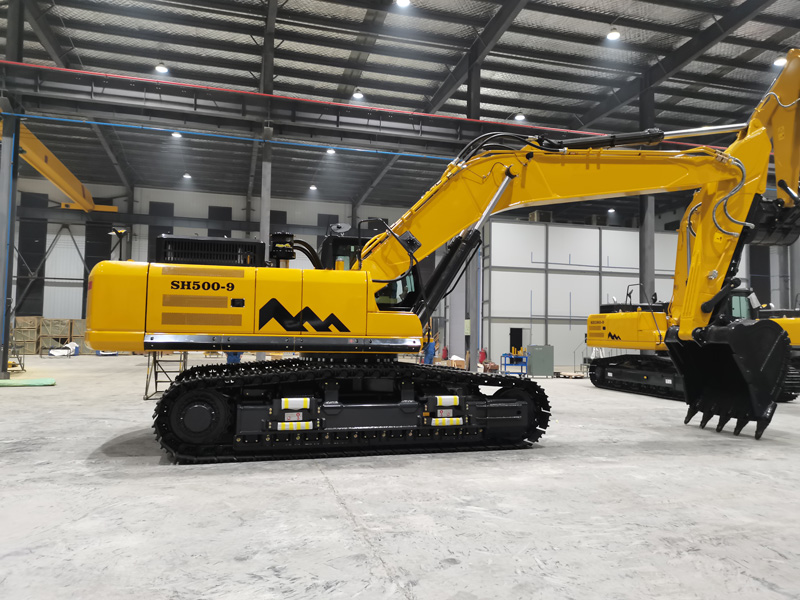

The SH500 excavator is equipped with a Linde hydraulic system, representing not only an external upgrade but also a significant enhancement of the machine’s internal functional capabilities. With its customized load-sensing system, hourly fuel consumption is further reduced, greatly improving both working efficiency and fuel economy. In corresponding applications, three working modes can be optimized for different tasks, achieving energy savings and higher productivity.
| Item | Value |
|---|---|
| Stick Type | |
| Overall length (mm) | 12090 |
| Ground length (during transportation) (mm) | 6735 |
| Total height (to boom top) (mm) | 3590 |
| Total width (mm) | 3490 |
| Total height (to cabin top) (mm) | 3276 |
| Counterweight ground clearance (mm) | 1321 |
| Minimum ground clearance (mm) | 557 |
| Tail swing radius (mm) | 3655 |
| Tread (mm) | 4290 |
| Track length (mm) | 5335 |
| Gauge (mm) | 2760 |
| Track width (mm) | 3360 |
| Track shoe width (mm) | 600 |
| Hood height (mm) | 2815 |
| Turntable width (mm) | 3195 |
| Distance from swing center to rear end (mm) | 3655 |

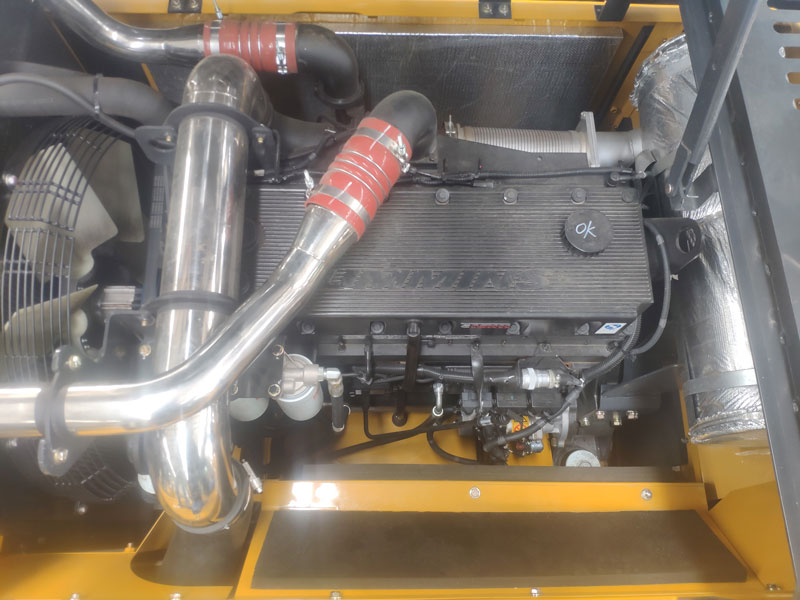

| Engine | |
| Model | Cummins QSM11 |
| Type | 6-cylinder, in-line, turbocharged, intercooled |
| Cylinders × Bore × Stroke (mm) | 6×125×150 |
| Displacement (L) | 11 |
| Rated power (kW/rpm) | 250 / 2000 |
| Bucket | |
| Bucket capacity (m³) | 2.0 – 2.2 |
| Bucket width (mm) | 1350 – 1530 |
| Digging Force | |
| Bucket digging force (kN) | 290 |
| Stick digging force (kN) | 236 |
| Hydraulic System | |

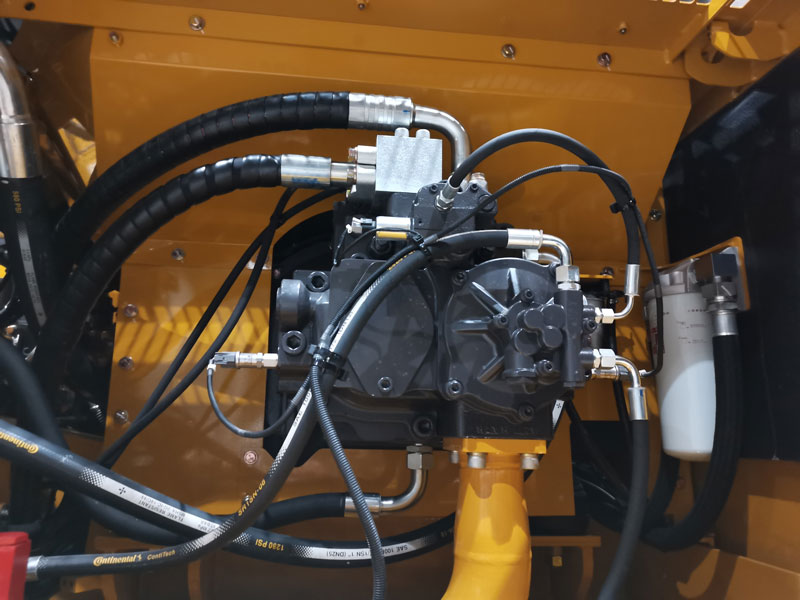

| Pump type | 2 variable piston pumps + 1 gear pump |
| Max working flow (L/min) | 2×360 + 27 |
| Travel circuit pressure (MPa) | 31.4 |
| Swing circuit pressure (MPa) | 28.4 |
| Control circuit pressure (MPa) | 3.9 |

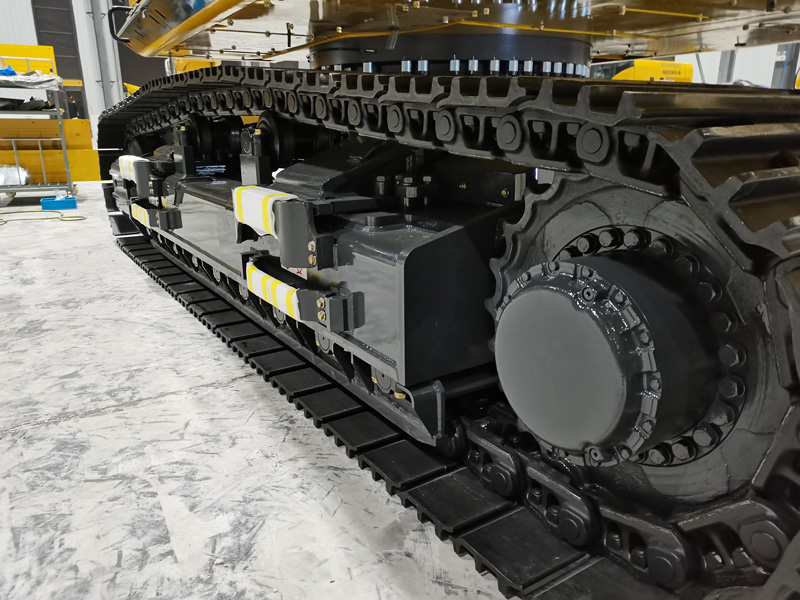

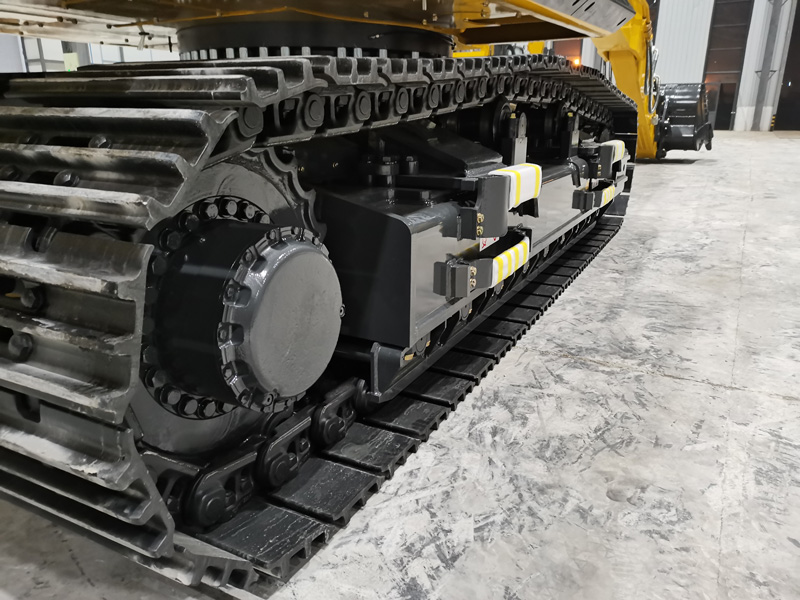

| Travel System | |
| Travel motor | Axial variable piston motor |
| Number of track plates | 2×49 |
| Travel speed (km/h) | 3.2 / 5.3 |
| Drawbar pull (kN) | 330 |
| Gradeability | 70% (35°) |
| Number of carrier rollers | 2×8 |
| Number of idlers | 2×2 |
| Operating Weight & Ground Pressure | |
| Operating weight (kg) | 44900 |
| Ground pressure (kPa) | 80.2 |

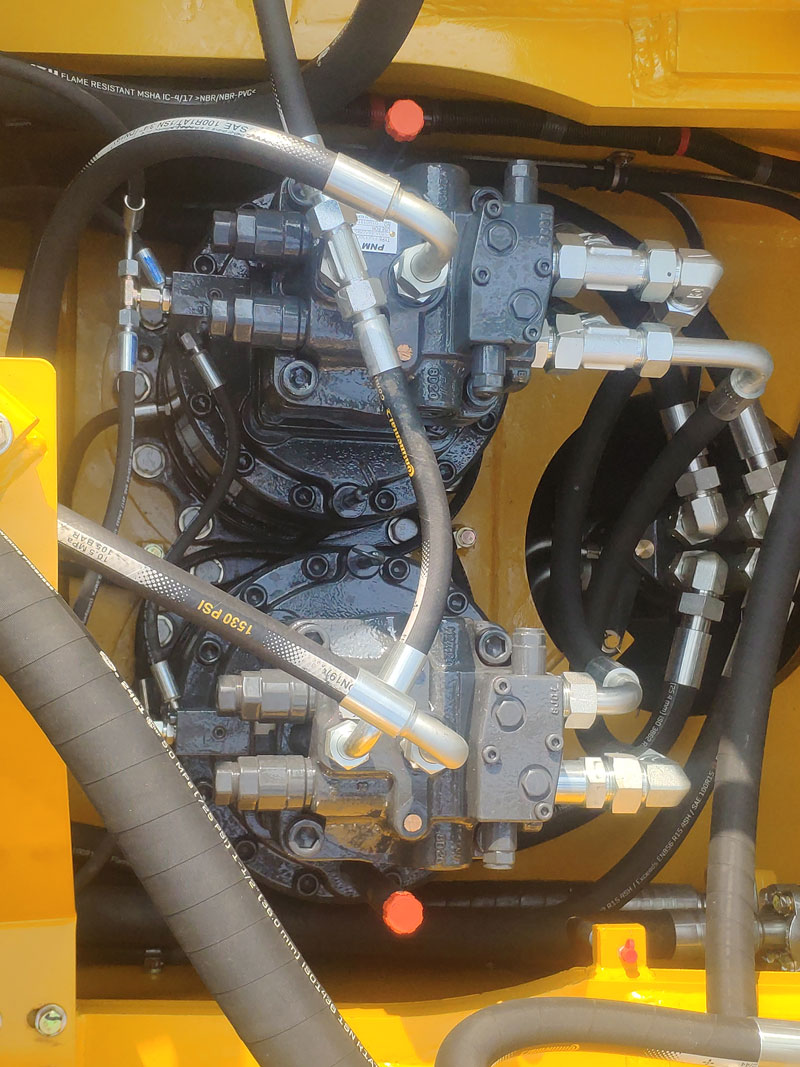

| Slewing System | |
| Swing speed (rpm) | 9.3 |
| Braking type | Pressure-release + mechanical brake |

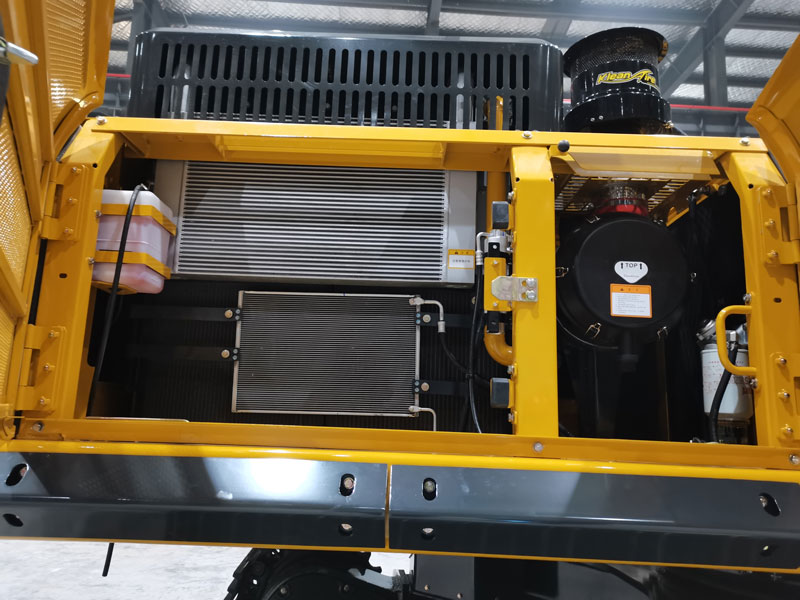

| Oil Capacity | |
| Fuel tank capacity (L) | 650 |
| Cooling system (L) | 26 |
| Engine oil capacity (L) | 37.8 |
| Hydraulic tank / system capacity (L) | 350 / 406 |
| Boom Type | |
| Max digging height (mm) | 10924 |
| Max dumping height (mm) | 7615 |
| Max digging depth (mm) | 7800 |
| Max vertical digging depth (mm) | 7066 |
| Max digging reach (mm) | 12016 |
| Max digging reach at ground (mm) | 11814 |
| Min working device swing radius (mm) | 4825 |
