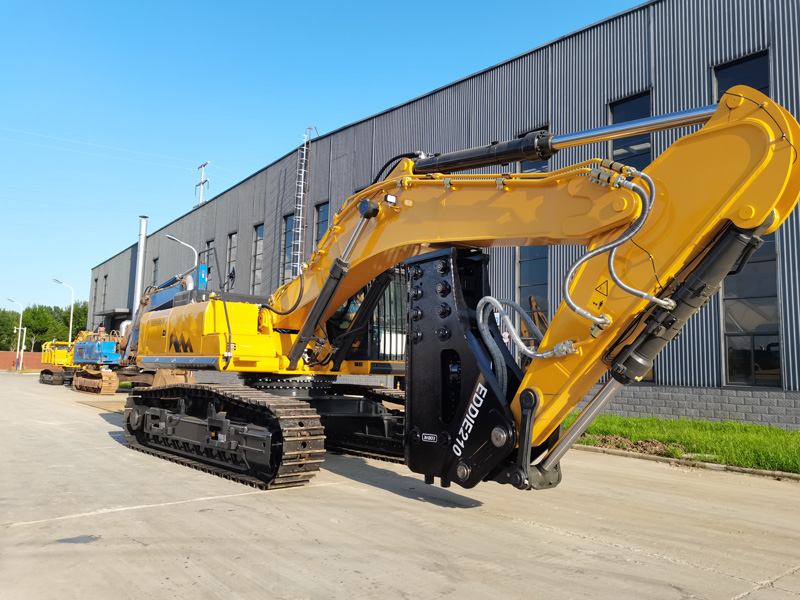

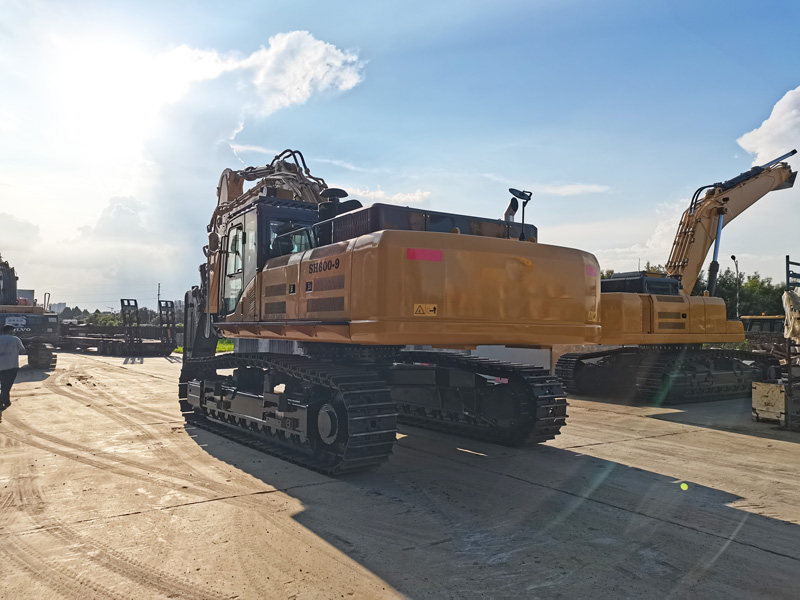

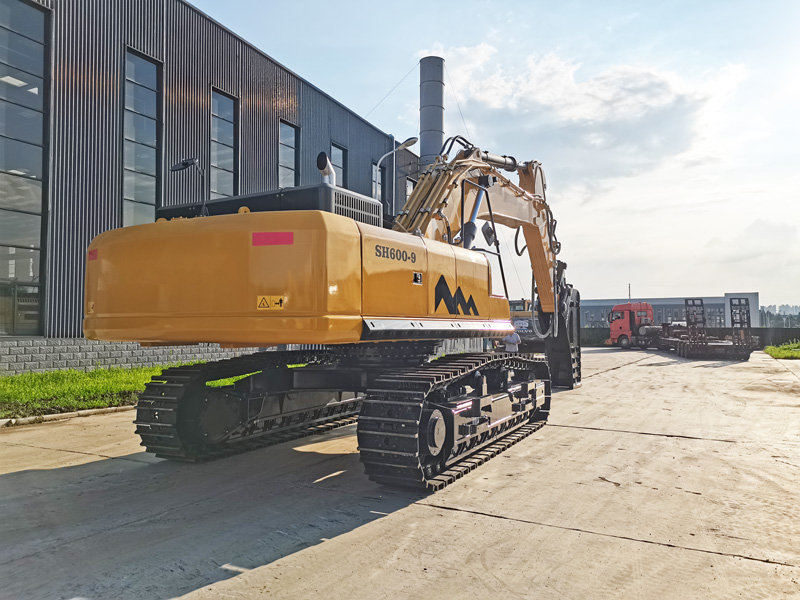

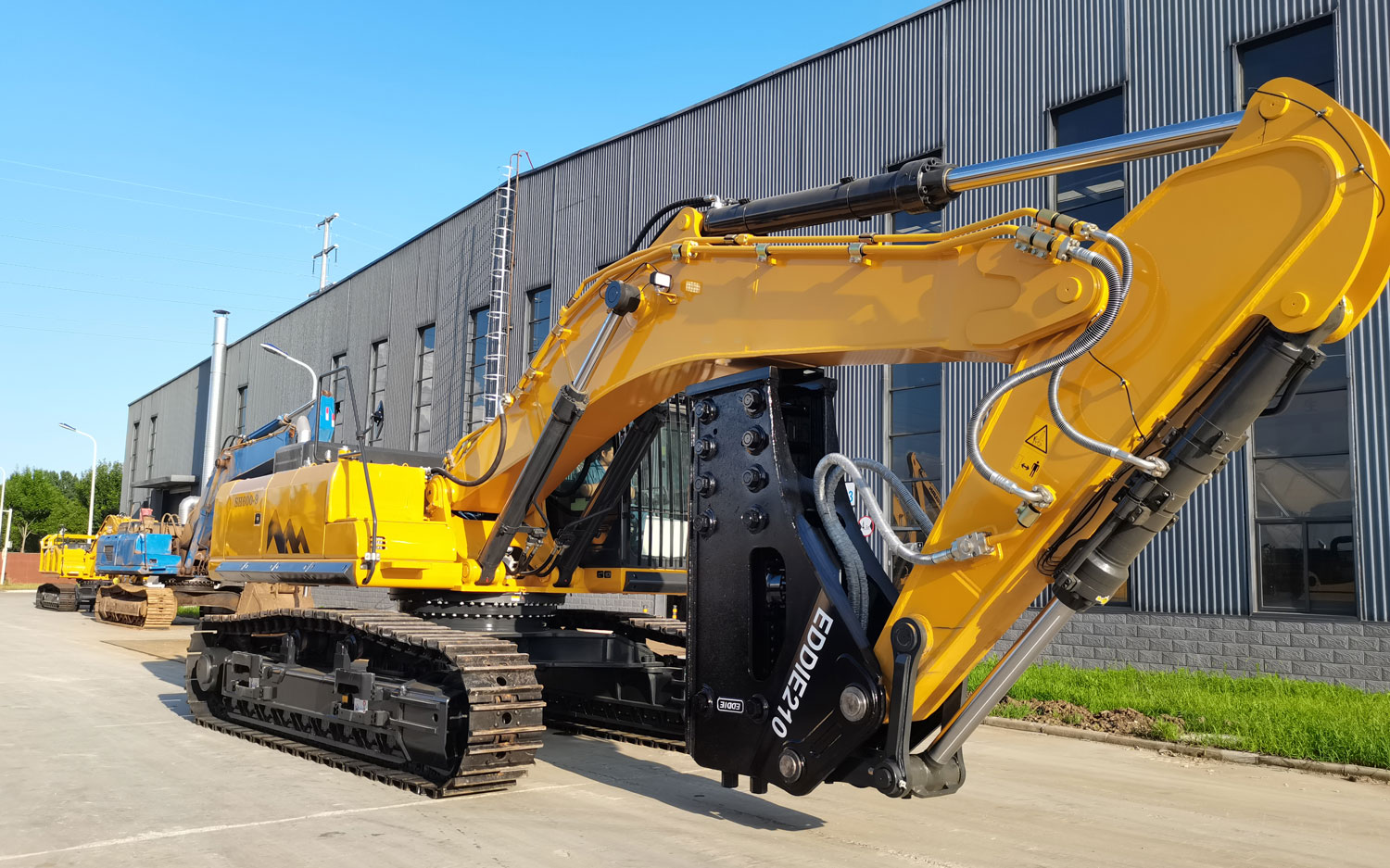

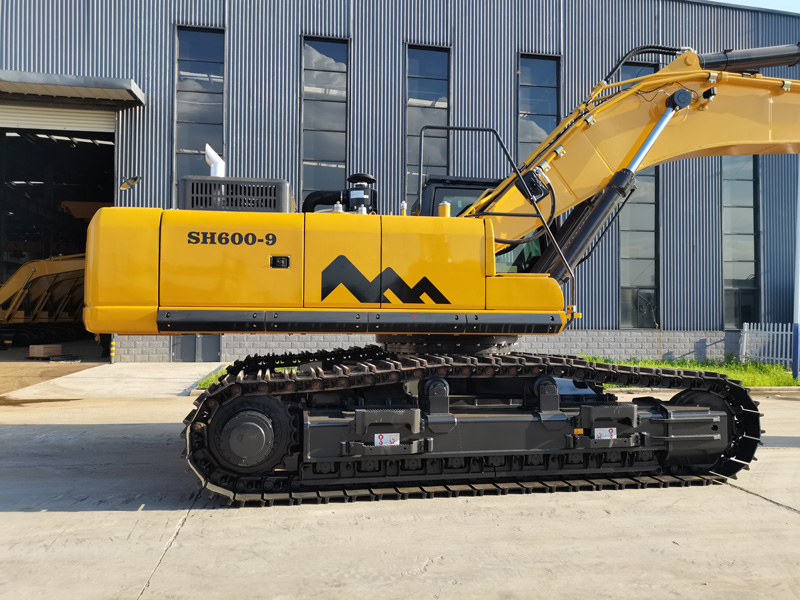

The SH600 is a 55–60 ton class heavy-duty crawler excavator engineered for mining, quarrying, and large-scale earthmoving, combining a Cummins high-power engine with an advanced Linde hydraulic system for maximum productivity and fuel efficiency.

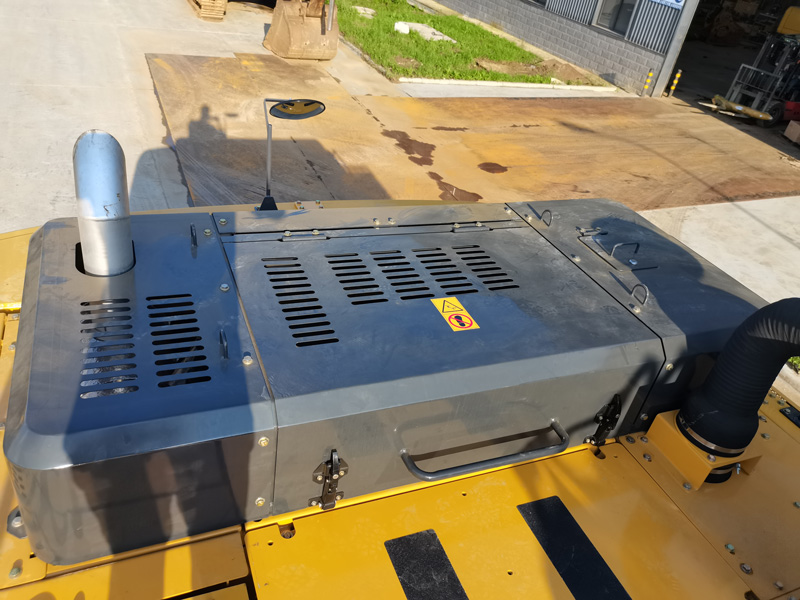

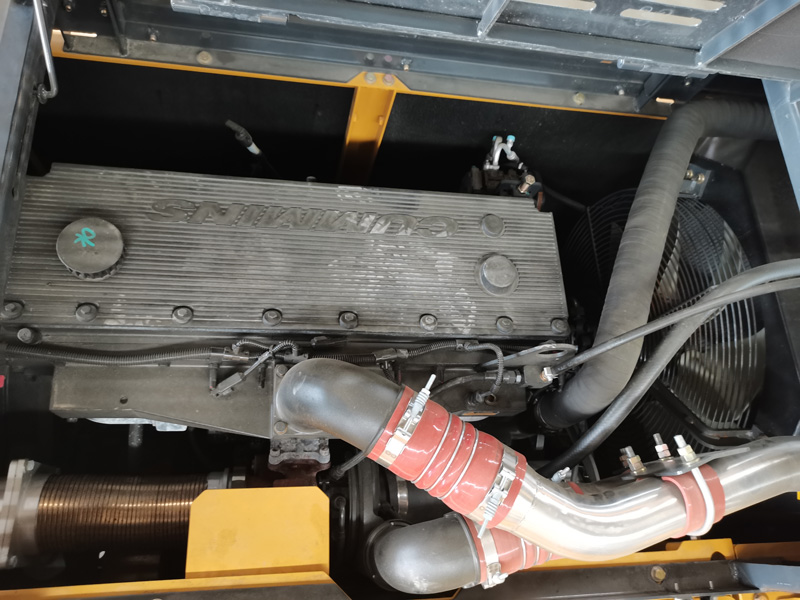

Equipped with a Cummins QSM11-C400 engine, the SH600 delivers strong low-speed torque and stable output at 298 kW, ensuring reliable performance in continuous high-load and harsh working conditions.
The large-capacity bucket design (2.5–3.5 m³) enables high-volume material handling, making the SH600 ideal for bulk excavation, quarry loading, and mining operations.
With a bucket digging force of 328 kN and an arm digging force of 271 kN, the SH600 offers outstanding penetration and breakout capability for hard soil and rock applications.

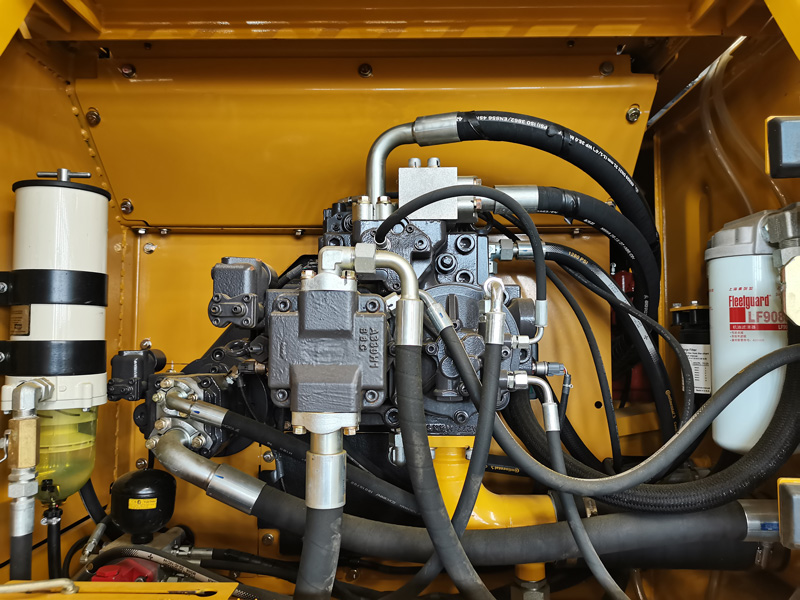

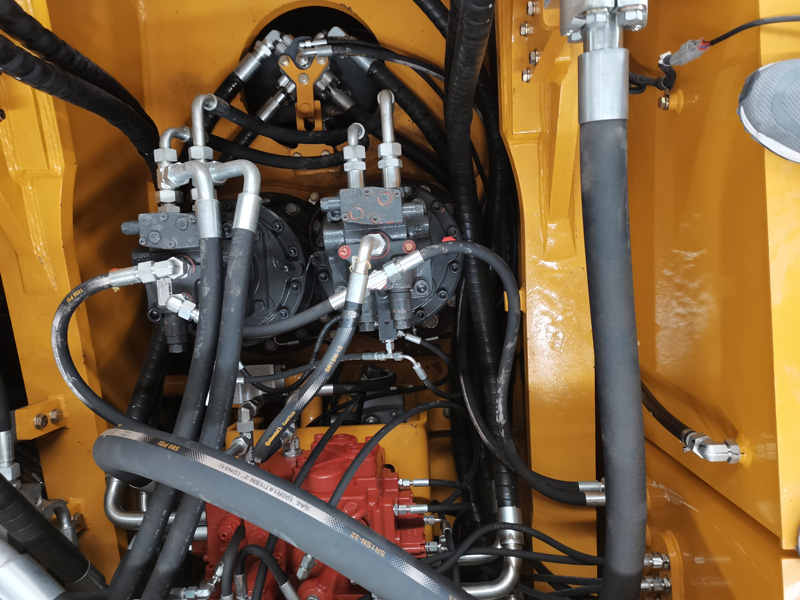

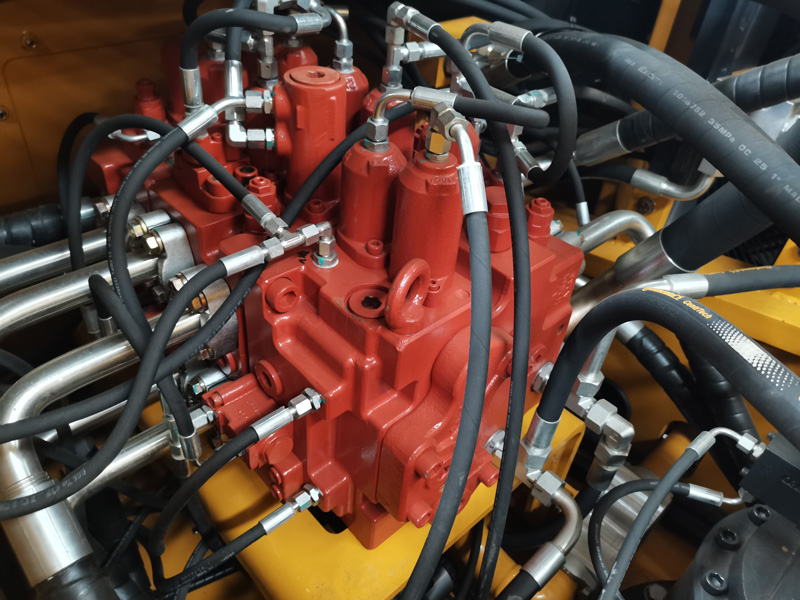

The high-flow hydraulic system provides fast response, smooth control, and excellent energy efficiency, ensuring precise operation and reduced fuel consumption during heavy-duty work cycles.

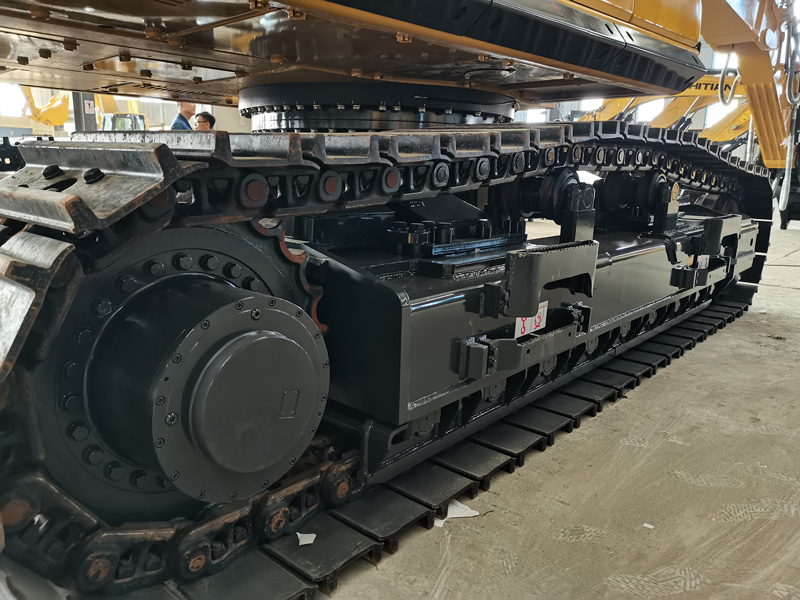

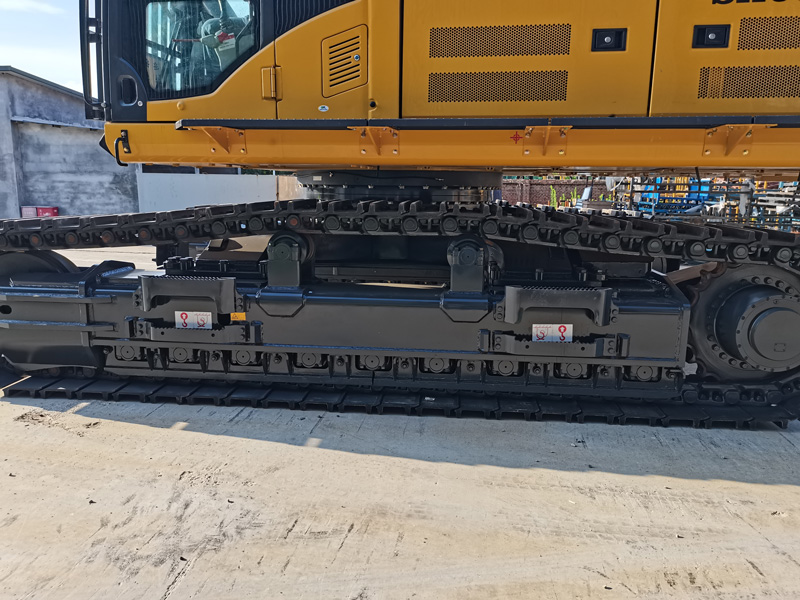

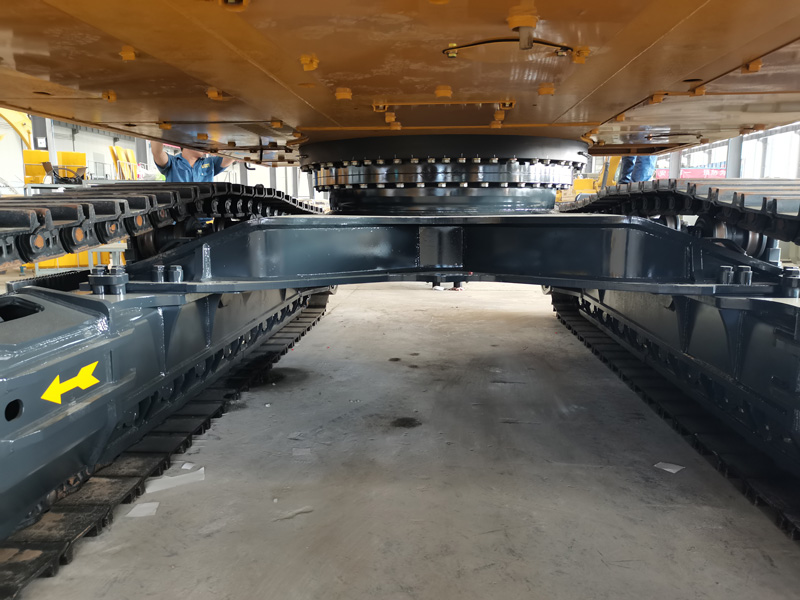

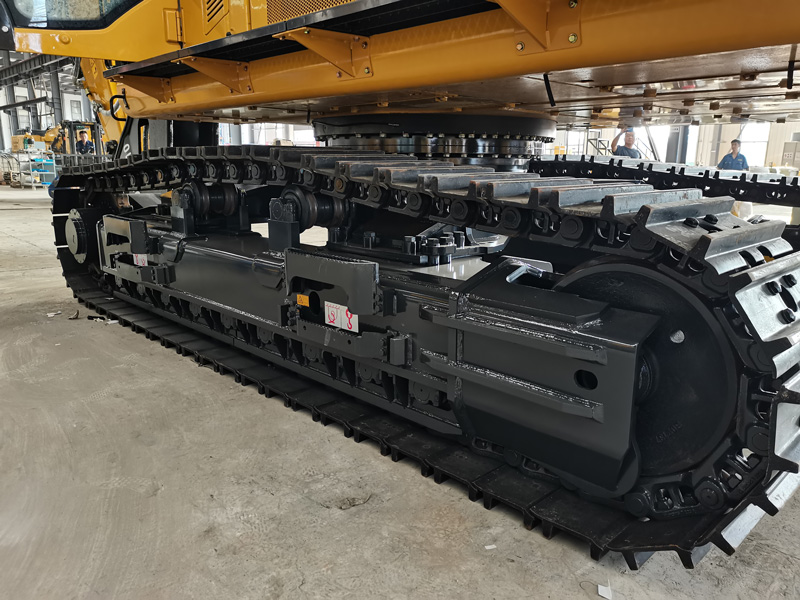

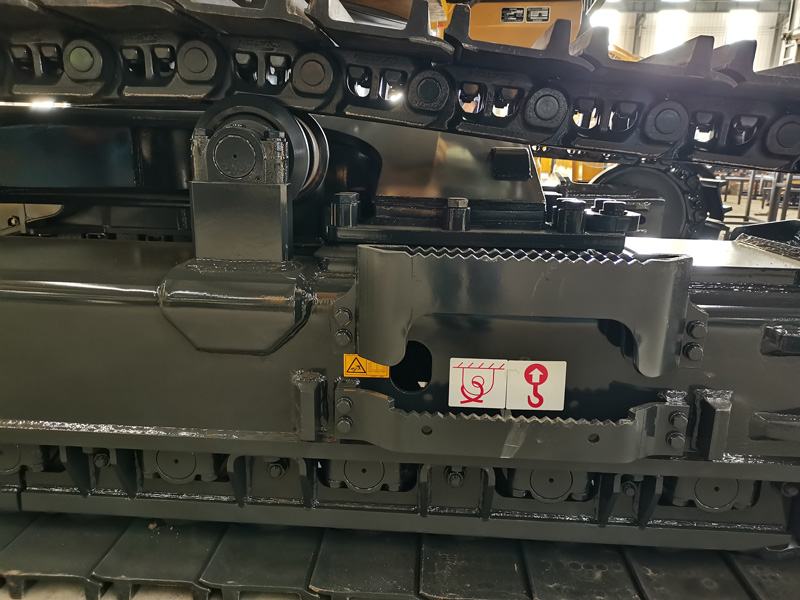

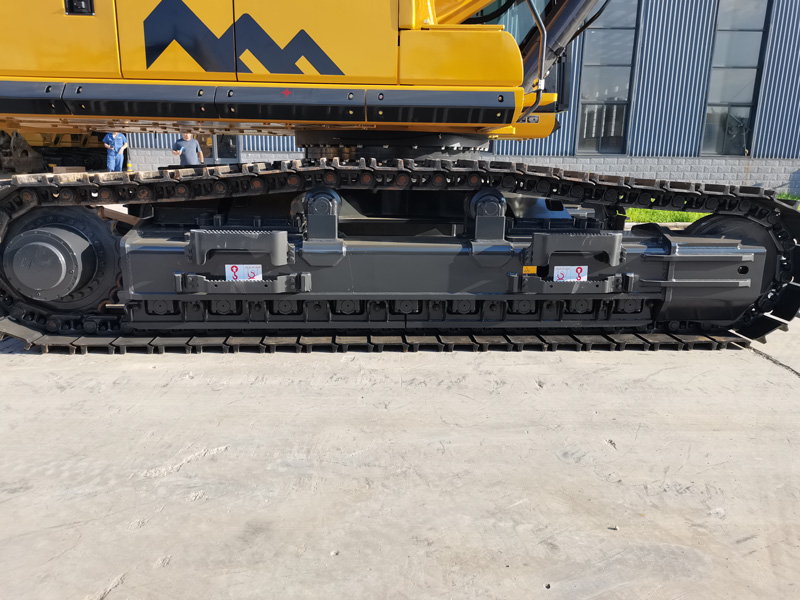

The reinforced walking system delivers strong tractive force, excellent climbing ability, and stable travel performance, allowing the SH600 to operate reliably on rough and uneven terrain.
With an operating weight of 55,900 kg and optimized ground pressure, the SH600 achieves superior stability while maintaining balanced ground contact for demanding job sites.
The slewing system ensures smooth rotation and reliable braking performance, providing precise machine positioning and enhanced safety during lifting and excavation operations.

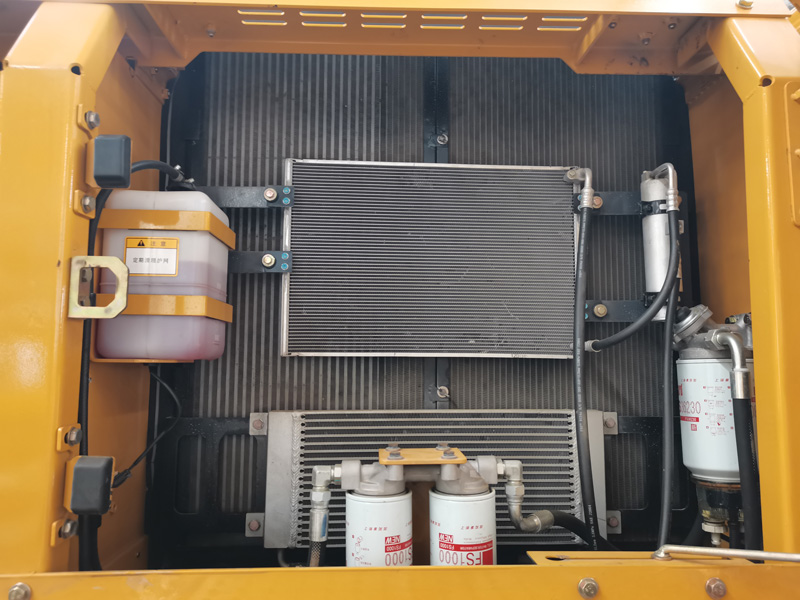

Large-capacity fuel, hydraulic, and cooling systems support long operating hours, reduced refueling frequency, and improved reliability in high-intensity working environments.

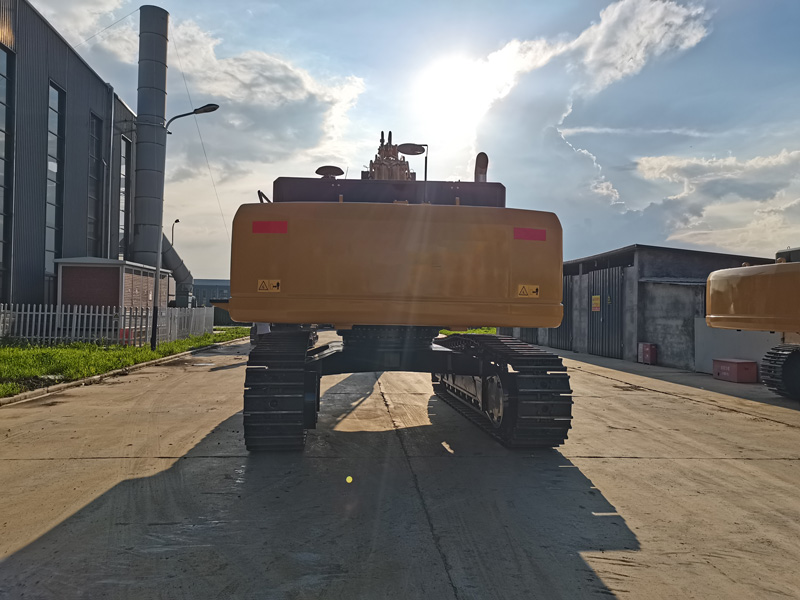

The optimized overall dimensions provide excellent machine stability, transportation convenience, and a balanced structure suitable for large-scale construction and mining projects.

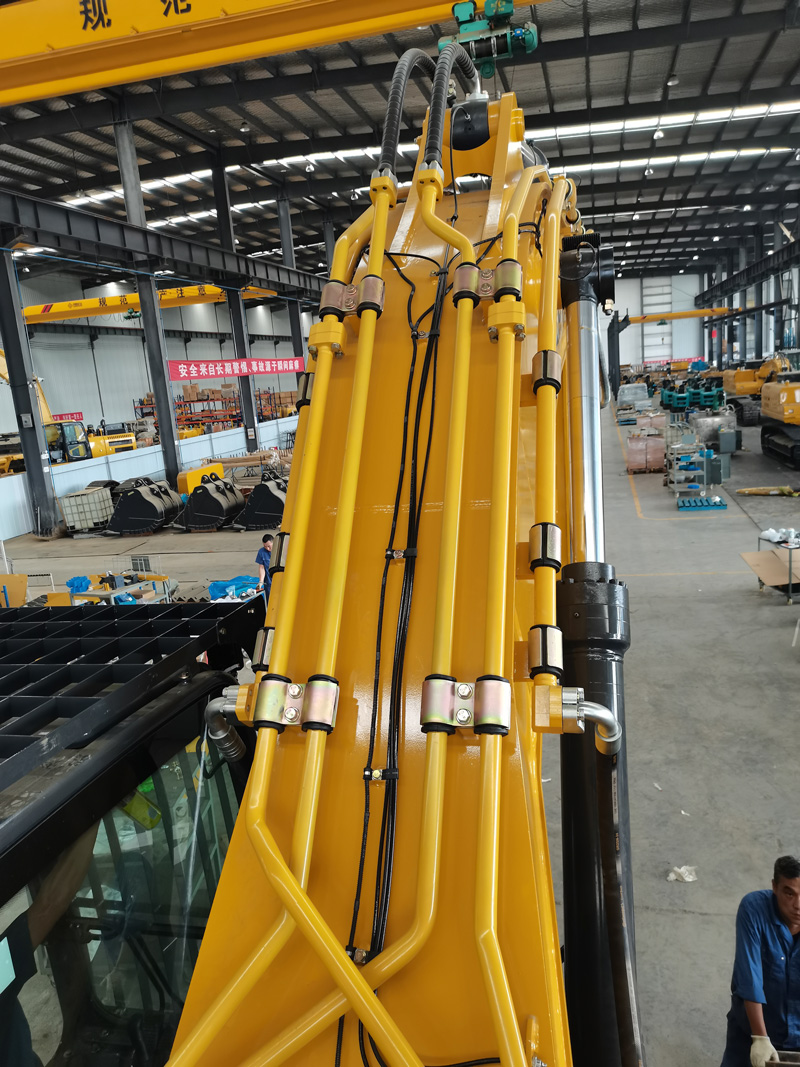

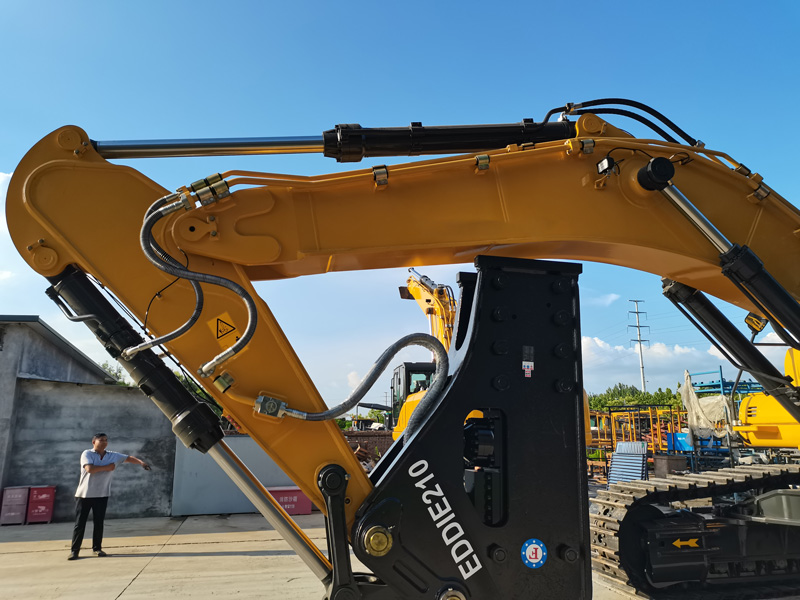

The robust boom and arm configuration delivers an extended working range, deep digging capability, and high dumping height, meeting the requirements of deep excavation and heavy material handling.
| Item | Value |
|---|---|
| Engine | |
| Model | Cummins QSM11-C400 |
| Form | 6-cylinder, in-line, turbocharged & intercooled |
| Cylinders × Bore × Stroke (mm) | 6 × 125 × 150 |
| Displacement (L) | 10.8 |
| Power Rating (kW/rpm) | 298/1800 |
| Bucket | |
| Bucket Capacity (m³) | 2.5 – 3.5 |
| Bucket Width (mm) | 1968 |
| Digging Force | |
| Bucket Digging Force (kN) | 328 |
| Arm Digging Force (kN) | 271 |
| Hydraulic System | |
| Pump Type | Negative flow |
| Max Working Flow (L/min) | 874 |
| Travel Circuit Pressure (MPa) | 34.3 |
| Swing Circuit Pressure (MPa) | 28.4 |
| Pilot System Pressure (MPa) | 4.9 |
| Walking System | |
| Travel Speed (km/h) | 3.55 / 6.1 |
| Tractive Force (kN) | 349 |
| Climbing Capacity | 70% (35°) |
| Number of Lower Rollers | 9 |
| Number of Carrier Rollers | 2 |
| Operating Weight & Ground Pressure | |
| Operating Weight (kg) | 55900 |
| Ground Pressure (kPa) | 85.3 |
| Slewing System | |
| Slewing Speed (r/min) | 10.4 |
| Braking Type | Disc spring compression |
| Oil Capacity | |
| Fuel Tank Capacity (L) | 630 |
| Coolant Capacity (L) | 39 |
| Engine Oil Quantity (L) | 38 |
| Hydraulic Oil Tank/System Capacity (L) | 490 / 610 |
| Dimensions | |
| Overall Length (mm) | 10252 |
| Ground Length (Transport) (mm) | 4414 |
| Total Height (to Boom Top) (mm) | 4308 |
| Total Width (mm) | 3718 / 4154 |
| Total Height (to Cab Top) (mm) | 3379 |
| Counterweight Ground Clearance (mm) | 1426 |
| Minimum Ground Clearance (mm) | 1382 |
| Tail Swing Radius (mm) | 3822 |
| Tread (mm) | 4414 |
| Track Length (mm) | 5487 |
| Gauge (mm) | 2392 / 2890 |
| Track Width (mm) | 600 |
| Track Shoe Width (mm) | 228 |
| Hood Height (mm) | 2984 |
| Turntable Height (mm) | 3165 / 3543 |
| Distance from Slewing Center to Rear End (mm) | 3774 |
| Boom Type | |
| Max Digging Height (mm) | 10252 |
| Max Dump Clearance (mm) | 7150 |
| Max Digging Depth (mm) | 7114 |
| Max Vertical Digging Depth (mm) | 4522 |
| Max Digging Distance (mm) | 11406 |
| Max Ground Digging Distance (mm) | 11176 |
| Minimum Working Device Swing Radius (mm) | 4840 |
