Large Excavator
整机重量
49600KG
铲斗容量
2.2-2.5m³
额定功率
250Kw

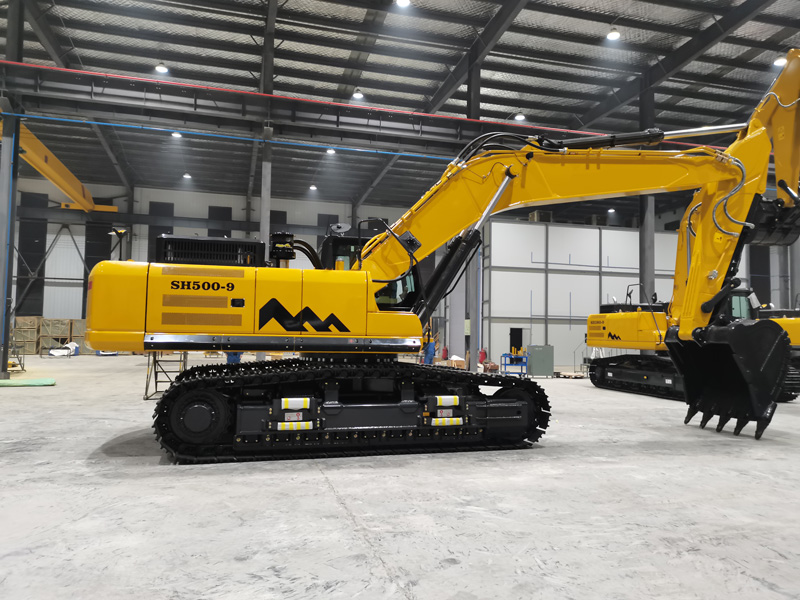

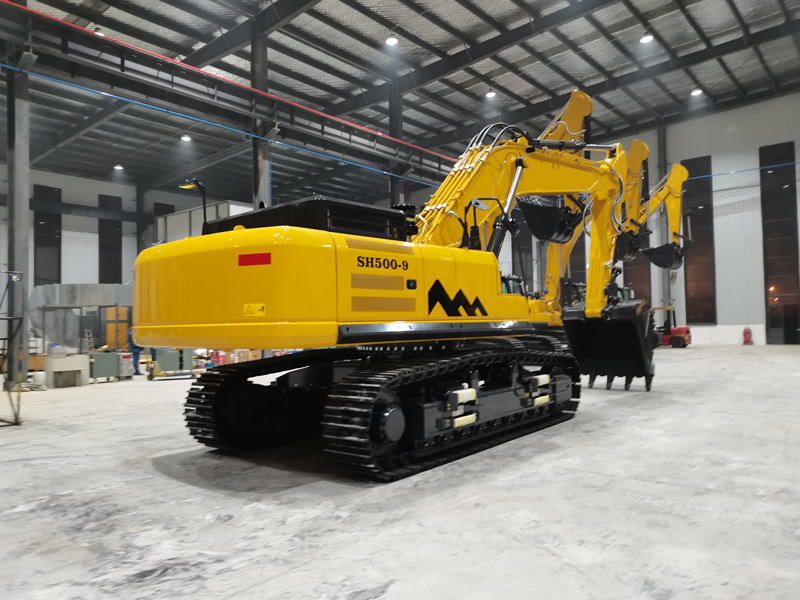

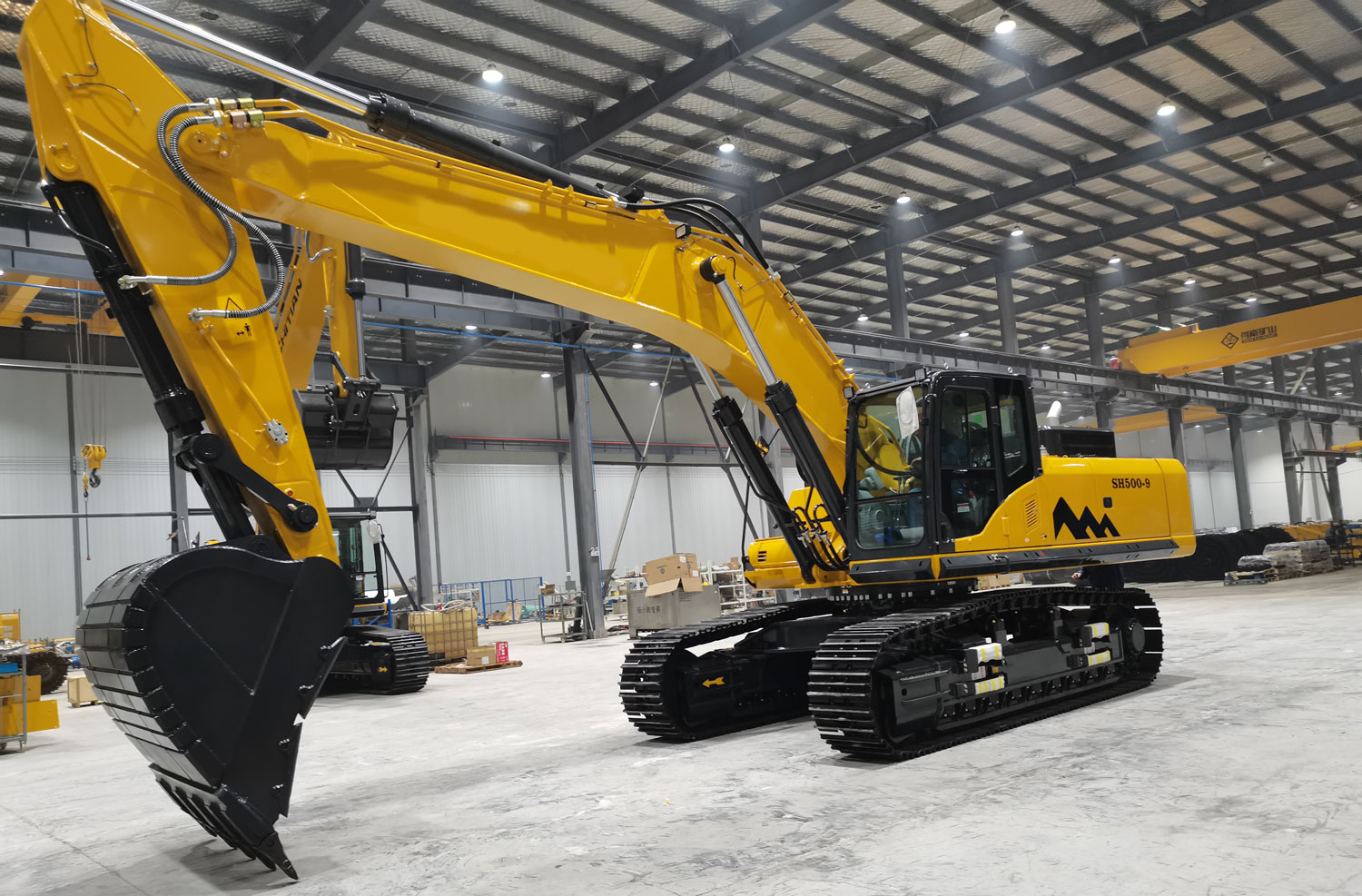

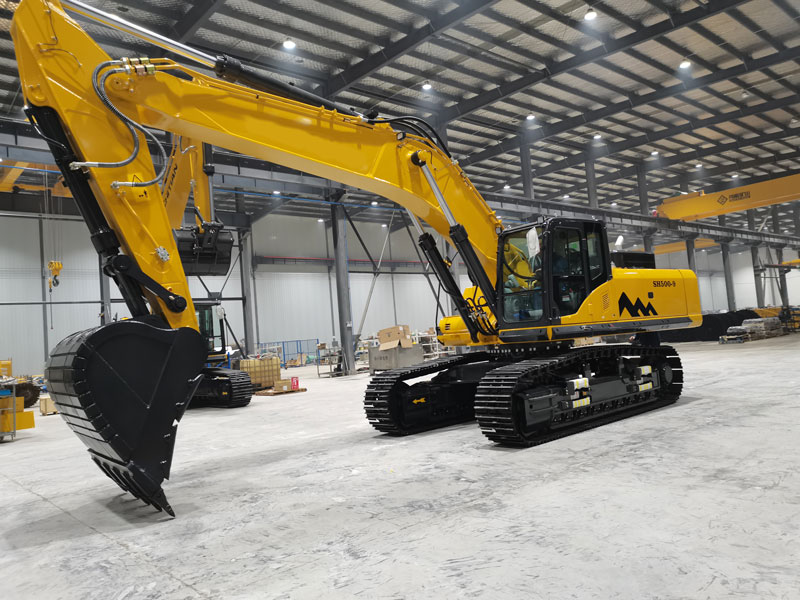

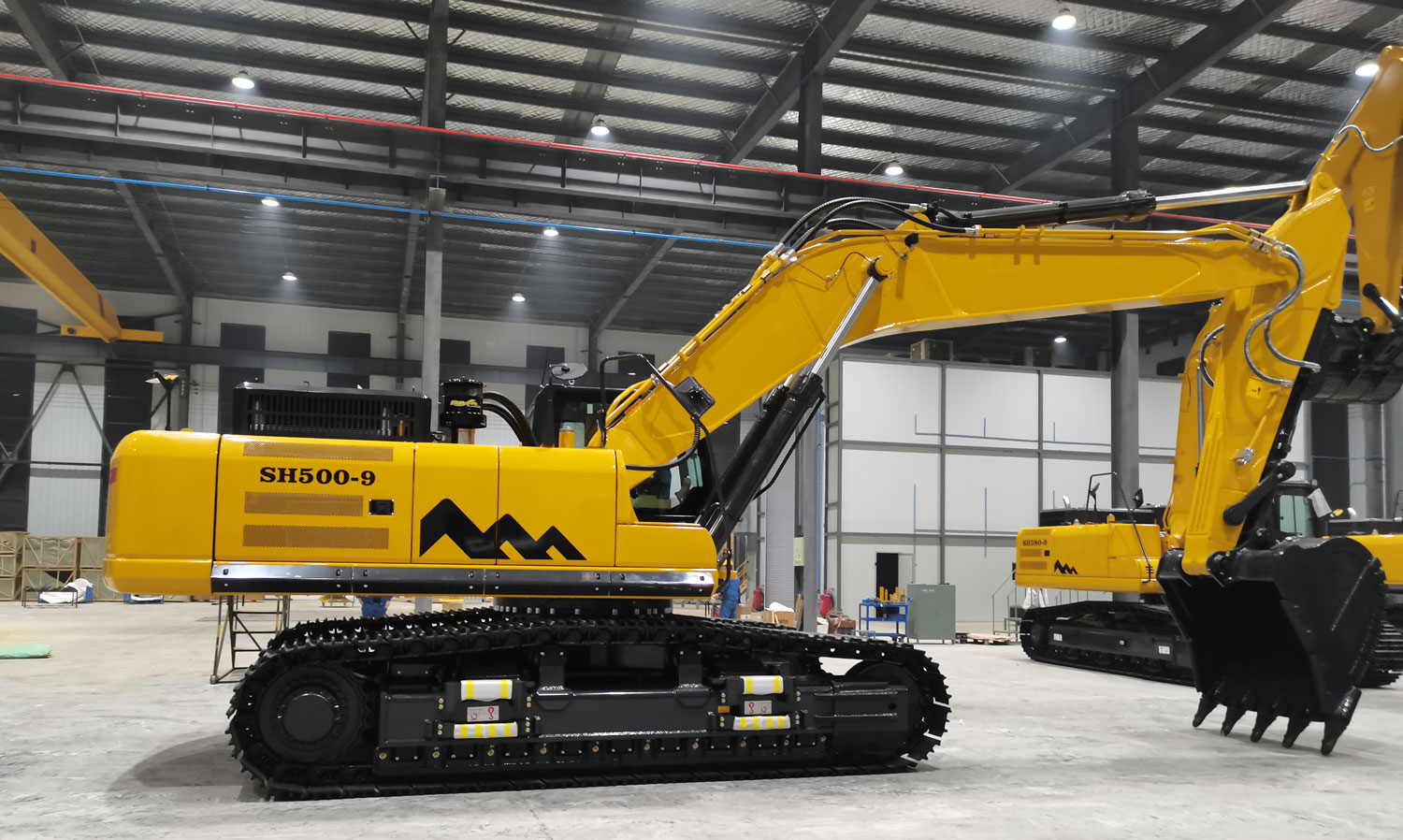

The SH500 is a premier 50-ton class hydraulic excavator designed to deliver peak performance in the most demanding industrial environments. Equipped with a high-end Linde hydraulic system, this machine represents a comprehensive upgrade in both power and precision, making it the definitive choice for large-scale mining and heavy infrastructure projects.
At its heart lies the Cummins QSM11 engine, delivering a massive 250kW of power. This 11-liter powerhouse is engineered for high-load durability, providing smooth torque output while maintaining excellent fuel economy. It ensures the SH500 can handle continuous high-intensity operations without compromise.
The SH500 features a customized Linde load-sensing system that perfectly synchronizes engine output with hydraulic demand. With a high flow rate of 2×380 L/min, this system significantly reduces energy loss and hourly fuel consumption while providing lightning-fast response times and fluid multi-function control.
Designed for maximum productivity, the SH500 boasts a massive bucket capacity of up to 2.5m³ and a bucket digging force of 290kN. This allows for larger payloads per cycle and the ability to cut through the toughest materials, significantly boosting the output of mining and large earth-moving sites.
To maximize versatility, the machine offers three distinct work modes. Operators can optimize the power output and hydraulic flow based on specific site conditions, achieving a perfect balance between high-speed production and energy conservation.

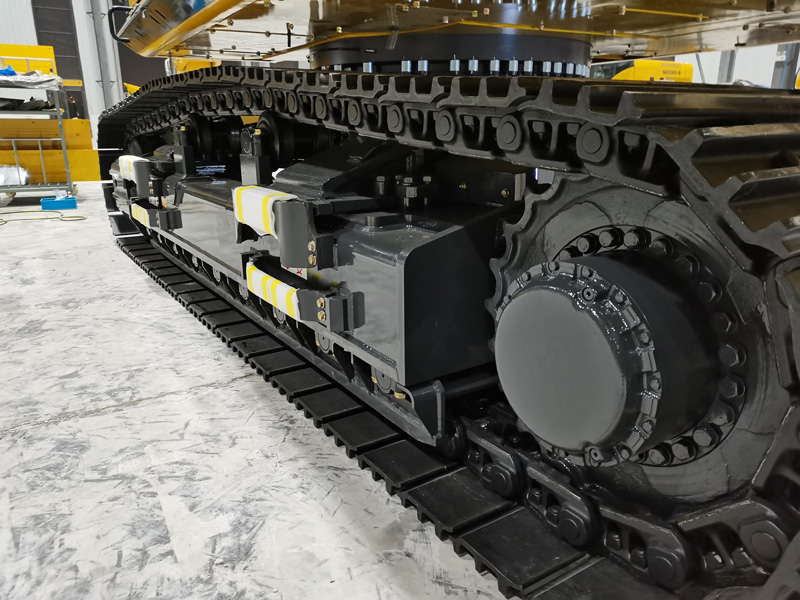

With an operating weight of nearly 50,000kg and a reinforced heavy-duty track system, the SH500 provides exceptional stability. Every structural component, from the heavy-duty boom to the integrated welded chassis, is built to withstand the extreme stresses of hard-rock environments and uneven terrain.
| Specifications | Details |
|---|---|
⚙️ Engine System | |
| Model | Cummins QSM11 |
| Engine Configuration | 6-cylinder In-line, Turbocharged, Intercooled |
| Cylinders × Bore × Stroke (mm) | 6×125×150 |
| Displacement (L) | 11 |
| Rated Power (kW/rpm) | 250/2000 |
⛏️ Bucket Performance | |
| Bucket Capacity (m³) | 2.2 – 2.5 |
💪 Digging Force | |
| Bucket Digging Force (kN) | 290 |
| Arm Digging Force (kN) | 236 |
💧 Hydraulic System | |
| Pump Configuration | 2x Variable Piston Pumps + 1x Gear Pump |
| Max. Operational Flow (L/min) | 2×380 + 27 |
| Travel Circuit Pressure (MPa) | 28.4 |
| Control Circuit Pressure (MPa) | 3.9 |
🛤️ Travel System | |
| Travel Motor | Axial Variable Displacement Piston Motor |
| Track Shoe Count | 2x49 |
| Travel Speed (km/h) | 3.2 / 5.3 |
| Gradeability | 70%（35°） |
| Carrier Rollers | 2×2 |
| Track Rollers | 2×2 |
⚖️ Weight & Ground Pressure | |
| Operating Weight (kg) | 49600 |
| Ground Pressure (MPa) | 81.9 |
🔄 Swing System | |
| Swing Speed (rpm) | 9.3 |
| Brake Type | Pressure-release Mechanical Brake |
🛢️ Fluid Capacities | |
| Fuel Tank Capacity (L) | 650 |
| Coolant System Capacity (L) | 26 |
| Engine Oil Capacity (L) | 37.8 |
| Hydraulic Tank/System Capacity (L) | 350 / 406 |
📏 Outline Dimensions | |
| Overall Machine Length (mm) | 12090 |
| Ground Contact Length in Transport (mm) | 6723 |
| Overall Height to Cab Roof (mm) | 3590 |
| Overall Machine Width (mm) | 3490 |
| Counterweight Ground Clearance (mm) | 1321 |
| Minimum Ground Clearance (mm) | 485 |
| Tail Swing Radius (mm) | 3655 |
| Track Gauge (mm) | 4414 |
| Overall Track Length (mm) | 5460 |
| Track Width (mm) | 3490 |
| Hood Height (mm) | 2815 |
| Swing Platform Width (mm) | 3195 |
| Swing Center to Rear Distance (mm) | 3655 |
🏗️ Working Range | |
| Maximum Digging Height (mm) | 10924 |
| Maximum Dumping Height (mm) | 7615 |
| Maximum Digging Depth (mm) | 7800 |
| Max. Vertical Digging Depth (mm) | 7086 |
| Maximum Digging Radius (mm) | 12016 |
| Max. Digging Radius at Ground Level (mm) | 11814 |
| Min. Front Swing Radius (mm) | 4825 |
