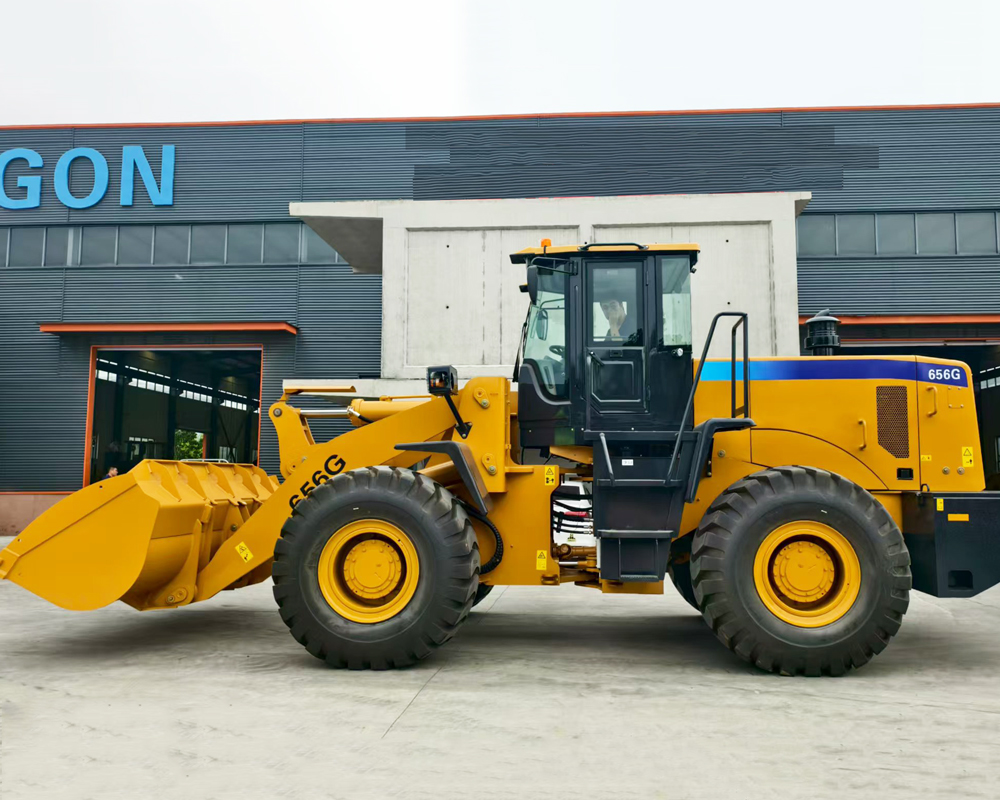

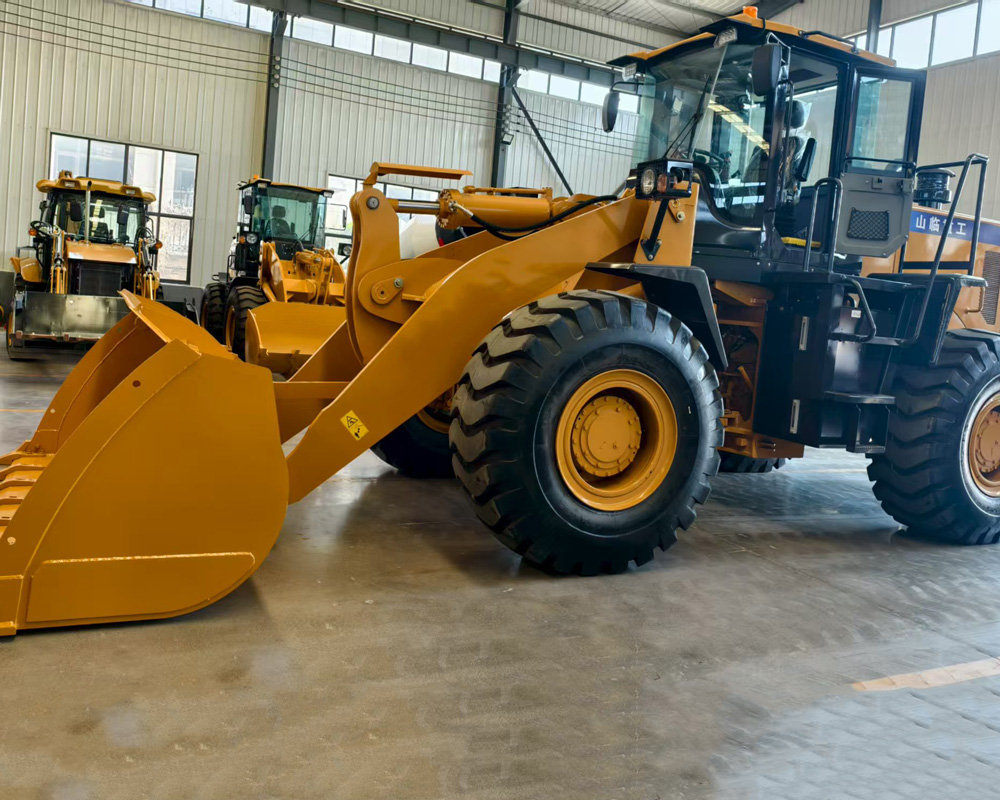

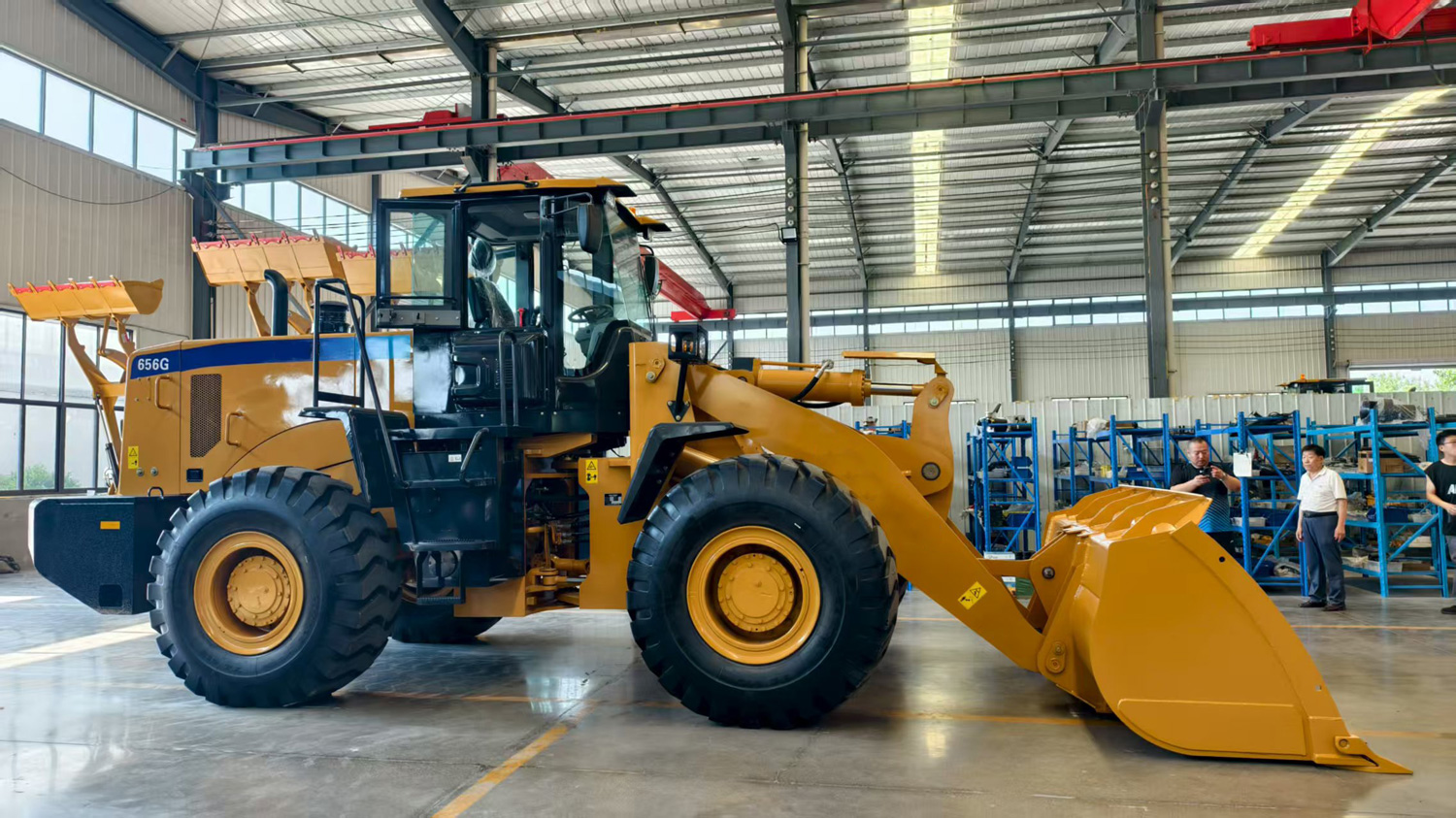

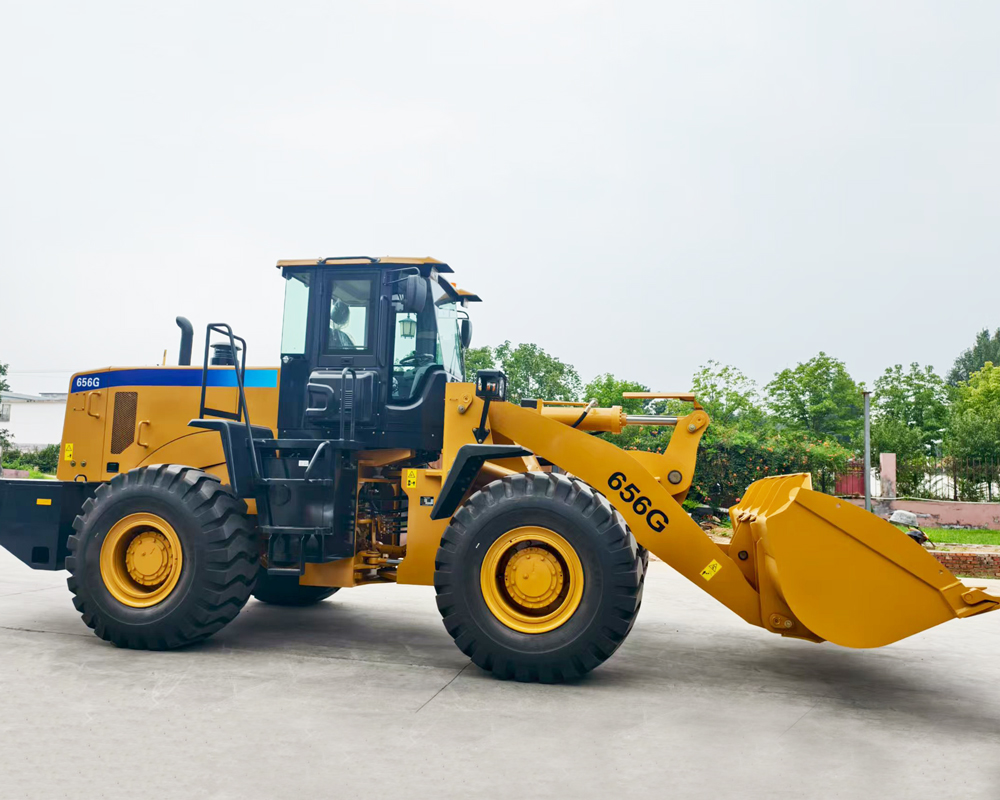

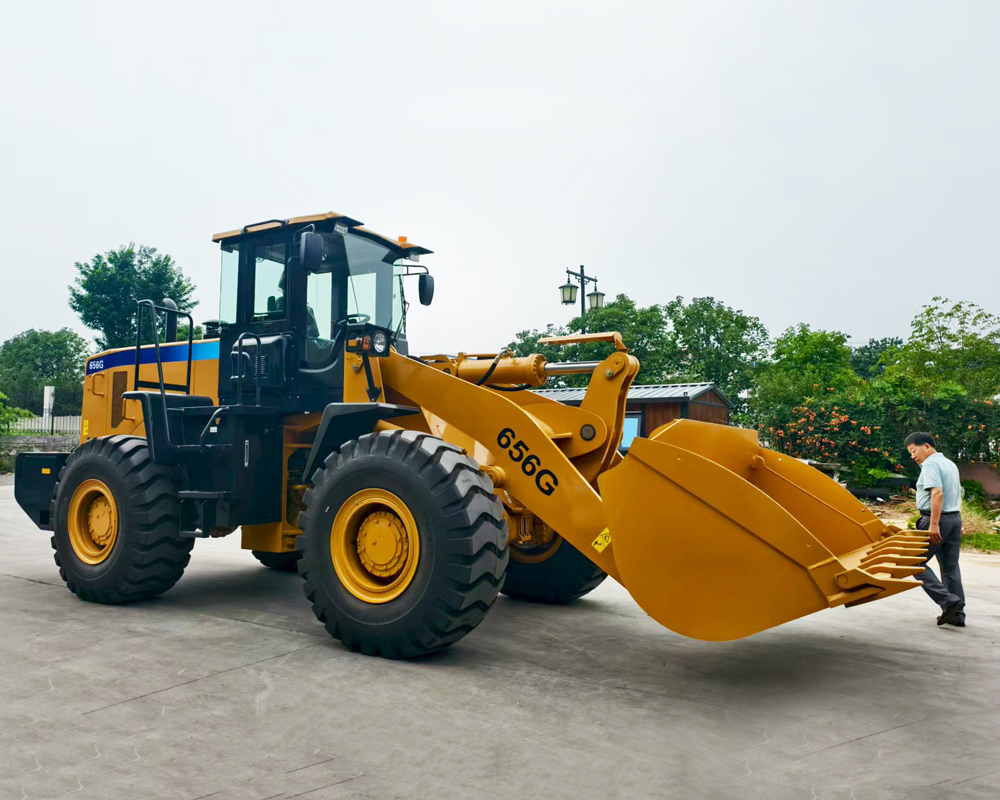

SL656G

Loader Product Advantages & Summary

This loader is equipped with Weichai WP10H National IV engine, integrating multiple core technologies, balancing power, efficiency, durability and comfort, adapting to various working conditions, and providing users with an efficient and reliable operation solution.

💪 Powerful Power & High Energy Efficiency

Equipped with Weichai WP10H National IV engine, adopting a reinforced cylinder block design to further increase in-cylinder explosion pressure, resulting in more complete combustion, stronger power and greater driving force. It is an electronically controlled high-pressure common rail engine, featuring P, S, E (heavy load, medium load, light load) three-level power control mode. You can choose reasonably according to working conditions, which reduces energy consumption and helps improve productivity.

⚡ Flexible & Versatile, High Productivity

The overall wheelbase is moderate, combining digging force and flexibility to achieve multi-purpose use of one machine, avoiding equipment idleness and ensuring high productivity. With a bucket capacity range of 2.4～4.5m³ and a maximum digging force of ≥170kN, it can efficiently complete various loading and digging tasks, and the three-item sum time is ≤9.3s, greatly improving operation efficiency.

🔧 Efficient Hydraulic System, Responsive Operation

Adopting a dual-pump confluence hydraulic system, the flow rate after confluence is large, the rated working pressure is high, the lifting speed is fast. The whole machine operates powerfully, responds quickly and has good directivity, which greatly improves work efficiency. It matches the maximum traction force of 155kN, ensuring stable operation even under complex working conditions.

🛡️ Durable Structure, Long Service Life

The gearbox adopts a magnetic suspension overrunning clutch, with stable magnetism in high temperature and liquid flow environment. Strong magnetism enables the wearing parts in the clutch to work without contact, greatly extending the service life of the clutch. It is equipped with reinforced front and rear frames, with reasonable load distribution, large bearing capacity and good stability; the reinforced bucket has small tooth insertion resistance, and the bucket bottom is equipped with wear-resistant plates, which greatly improves strength and wear resistance.

✅ Reliable Performance & Safe Protection

It has engine limp home function and dual potentiometer accelerator pedal function, realizing fault protection and early diagnosis, safe and reliable. The engine electronic control unit and instrument panel adopt CAN data bus communication technology, with high reliability. The overall cylinder head design, integrated design of fuel primary filter and fine filter, and integrated design of oil filter make the structure more compact and maintenance more convenient.

💺 Comfortable Driving & Convenient Operation

The driving space is comfortable, with a step-by-step instrument panel that is colorful, eye-catching, highly recognizable and easy to understand. The steel structure cab has a large internal space and a wide field of vision, and all control handles are within reach, convenient and comfortable. The hyperboloid and unequal pitch fan runs more quietly, effectively reducing the overall noise of the machine.

🔩 Easy Maintenance & High Universality

Platform-based design: Using CAST design concept, components such as oil cylinders, front and rear frames adopt unified design, with high parts universality, which is convenient for storage and maintenance. The large-opening side cover opened with gas spring assistance and the openable rear hood provide large maintenance space, saving time and effort. The fuel filter and air filter are centrally arranged on the same side of the engine, making daily maintenance more convenient; the urea tank and urea pump are arranged on the right side of the counterweight (bucket direction), which can easily open the cover for urea refueling and maintenance.

Product Summary

This loader integrates powerful performance, high efficiency, durability and comfort, with a total mass of 17000kg and a rated working mass of 5000kg. It is equipped with Weichai WP10H National IV engine and Lingong planetary gearbox with reinforced drive axle, which is easy to operate, mature and reliable. With excellent power system, efficient hydraulic system, durable structure and humanized design, it can efficiently complete loading, digging, transportation and other tasks in various complex working conditions. It has the advantages of energy saving, high efficiency, long service life and convenient maintenance, which is an ideal equipment for engineering construction, mining, logistics and other fields.
