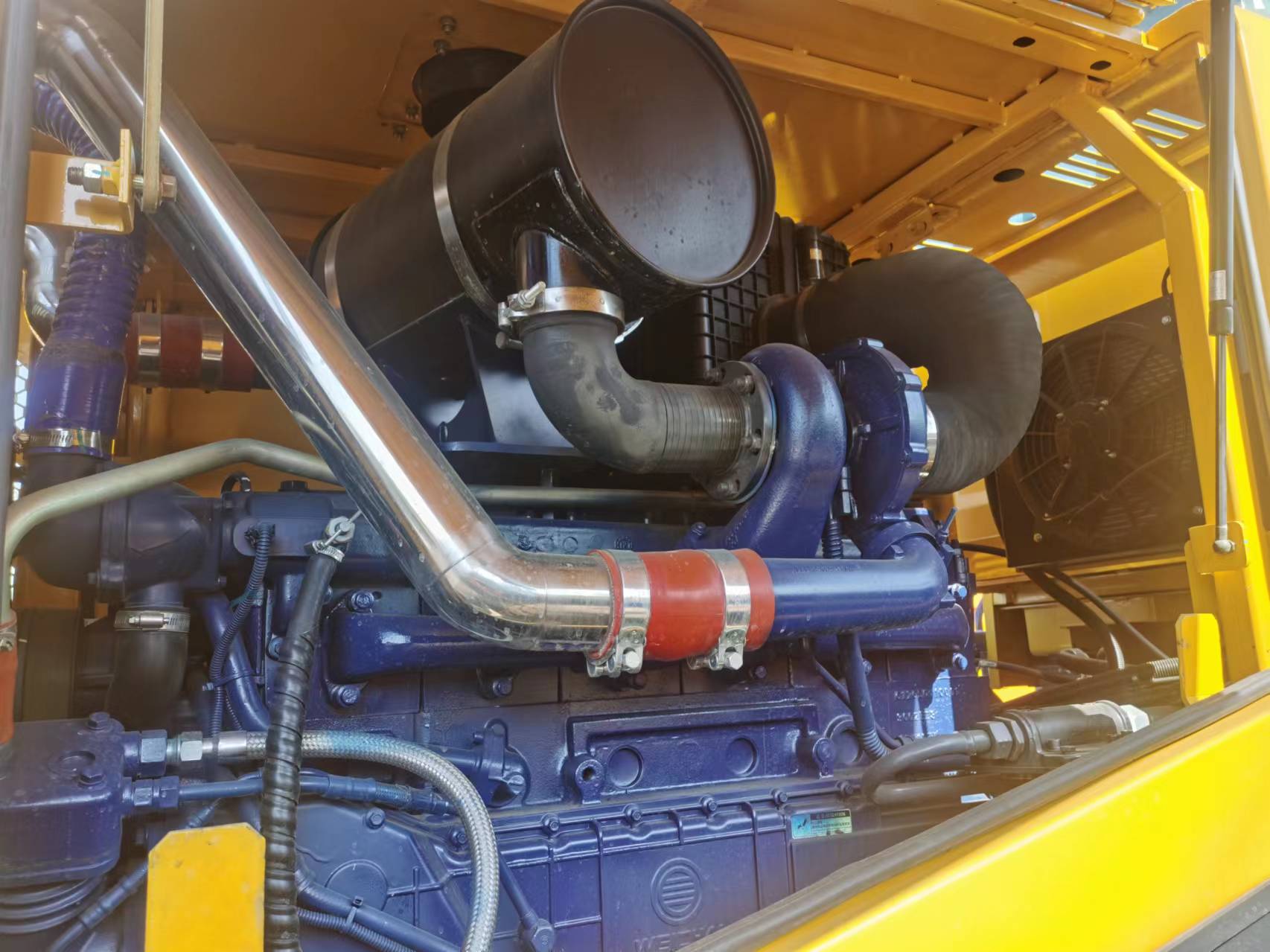

| Engine |
| Make | Weichai |
| Model | WD10G240E21 |
| Emission Regulation | Euro II |
| Rated Power | 175 kW / 2200 rpm |
| Maximum Torque | 900 Nm / 1400 rpm |
| Displacement | 9.726 L |
| Bore × Stroke | 6 × 126 × 130 mm |
| Aspiration | Turbocharged & Intercooled |
| Transmission |
| Torque Converter | Integrated with Transmission |
| Type | Fixed-shaft multi-speed hydraulic |
| Max. Travel Speed (FWD) | 38 km/h |
| Max. Travel Speed (REV) | 17 km/h |
| Gears (F/R) | 4 / 4 |

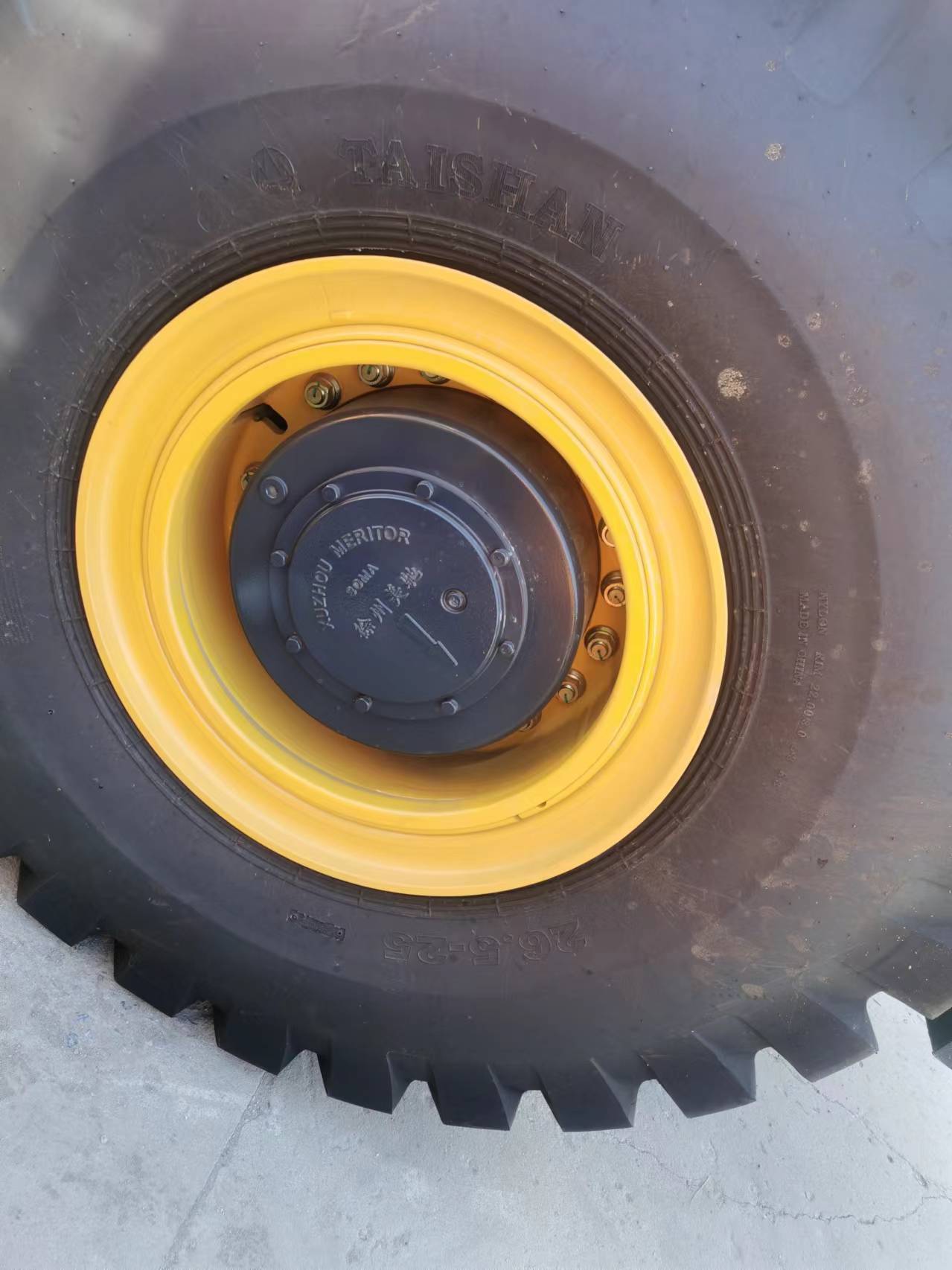

| Axles |
| Drive System | Four-wheel drive |
| Differential Type | Conventional (front & rear) |
| Axle Oscillation | ±12° |
| Gradeability | 30° |
| Max. Traction | 172 kN |
| Braking System |
| Service Brake | Air over oil dual-loop disc brake |
| Parking Brake | Auto air-cut disc brake |
| Steering System |
| Type | Articulated full-hydraulic steering |
| Relief Pressure | 18 MPa |
| Max. Steering Angle | 35° each direction |
| Hydraulic System |
| Main Pump Type | Gear pump |
| Main Relief Pressure | 18 MPa |
| Lifting Time | 5.5 s |
| Cycle Time | 11.8 s |
| Pilot Control | Yes |

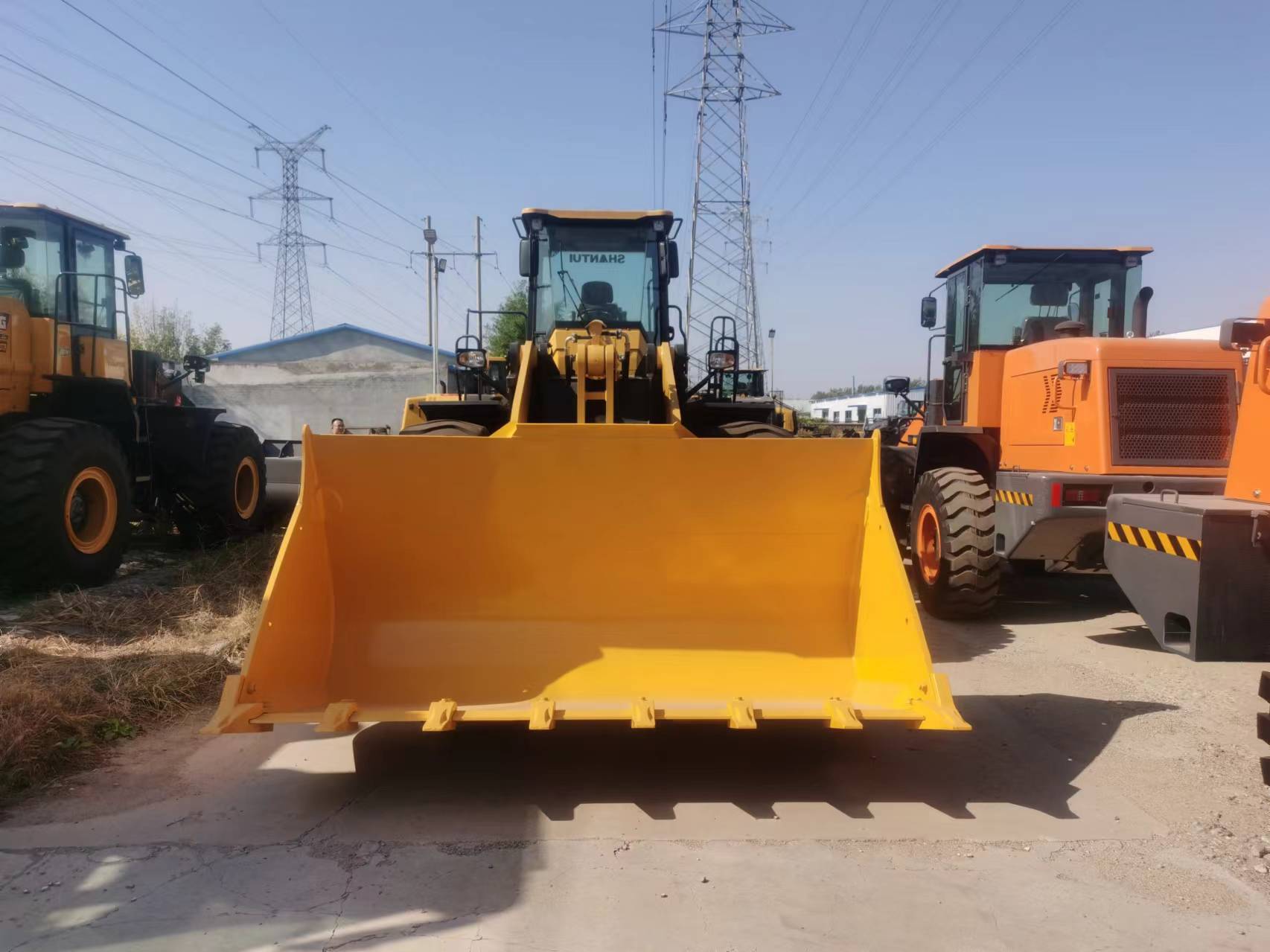

| Bucket |
| Type | Rock / Coal Bucket |
| Capacity | 3.5 m³ / 5 m³ |
| Teeth Number | 7 |
| Loader Performance |
| Rated Loading | 6000 kg |
| Max. Lifting Force | 179 kN |
| Dump Clearance @ Full Height | 3322 mm |
| Dump Reach @ Full Height | 1200 mm |
| Max. Hinge Pin Height | 4490 mm |
| Operating Weight | 21 ton |
| Dimensions |
| Overall Length | 8692 mm |
| Overall Width | 3082 mm |
| Overall Height | 3548 mm |
| Min. Ground Clearance | 430 mm |
| Wheel Base | 3400 mm |
| Wheel Tread | 2250 mm |
| Electrical & Service Capacities |
| Batteries | 2×12 V 120 Ah maintenance-free |
| Starter Motor | 8.1 kW |
| Alternator | 70 A |
| Fuel Tank | 270 L |
| Coolant | 80 L |
| Engine Oil | 28 L |
| Hydraulic Tank | 270 L |
| Transmission & Converter | 40 L |
| Front Axle | 27 L |
| Rear Axle | 27 L |
