Performance
|
|
Model
|
655G
|
|
Rated load
|
5000 kg
|
|
Overall weight
|
15500 kg
|
|
Rated bucket capacity
|
3.0 m³
|
|
Maximum tractive force
|
150 kN
|
|
Maximum breakout force
|
≥160 kN
|
|
Maximum grade ability
|
30°
|
|
Maximum dump height
|
3200 mm
|
|
Maximum dump reach
|
1264 mm
|
|
Overall dimension (L×W×H)
|
7900 × 3024 × 3460 mm
|
|
Minimum turning radius
|
6201 mm
|
|

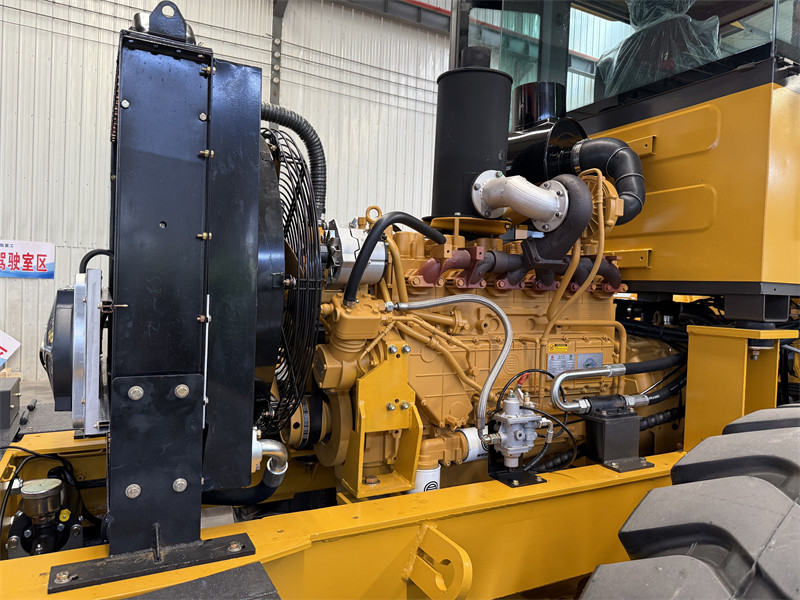

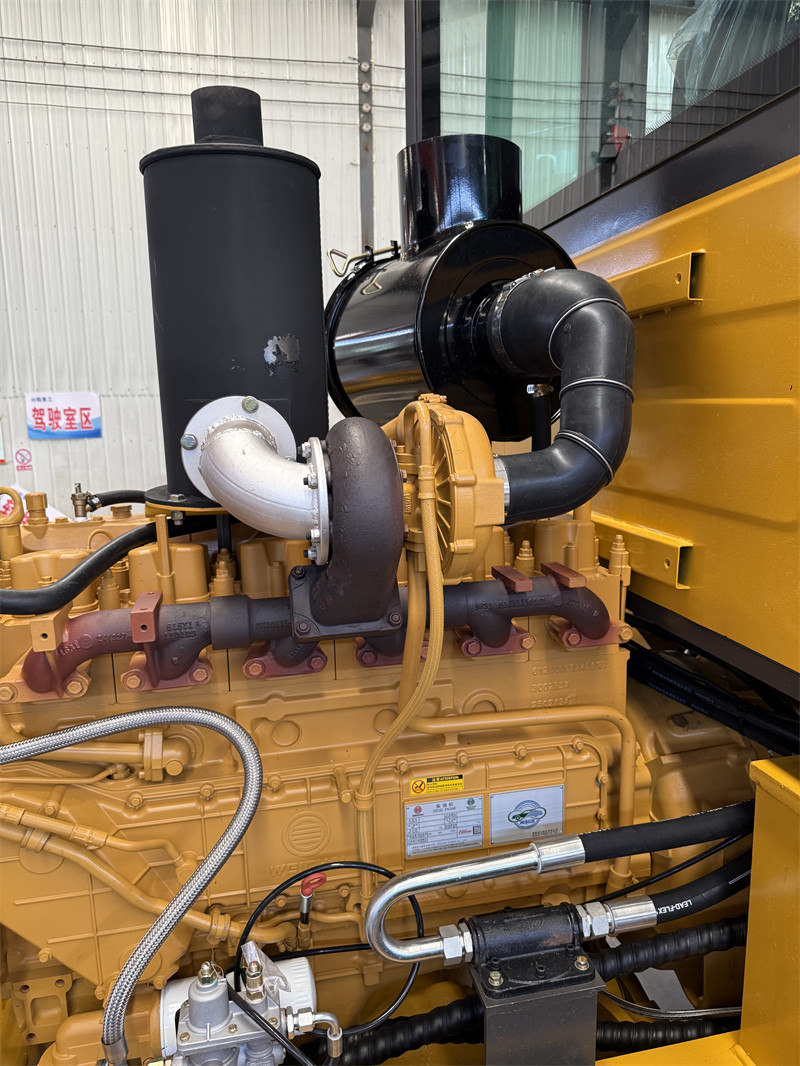

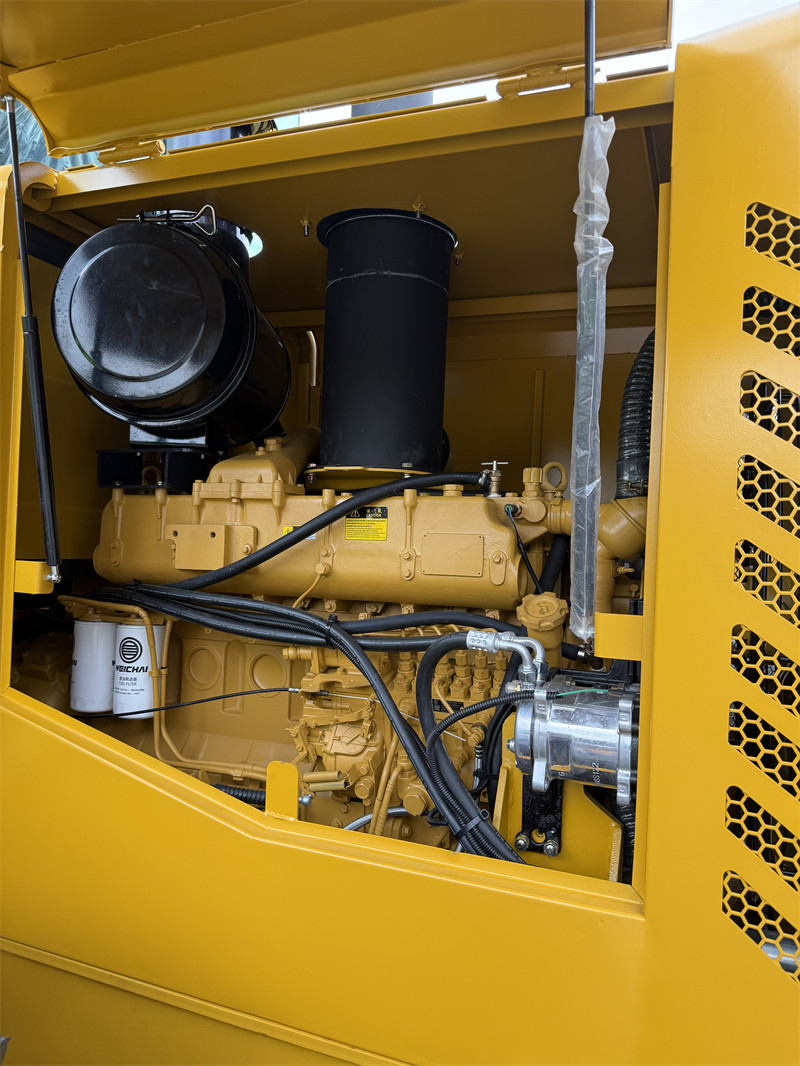

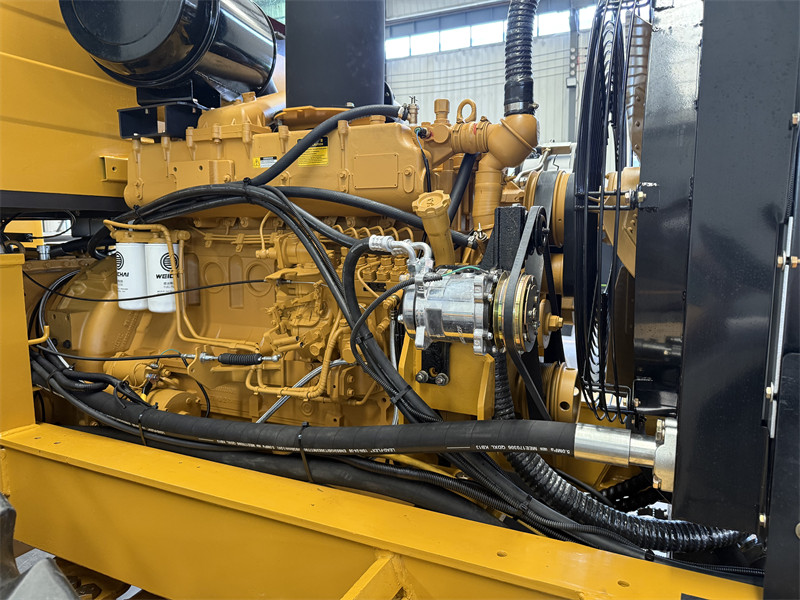

Engine
|
|

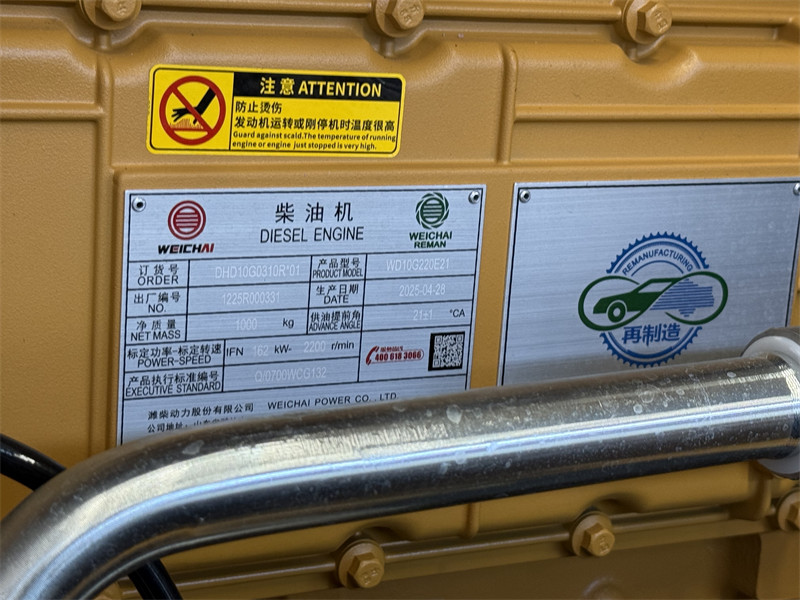

Make / Model
|
Weichai Steyr WD10G220E21
|
|
Type
|
Euro II, In-line 6-cylinder, 4-stroke
|
|
Bore × Stroke
|
126 × 130 mm
|
|
Rated power
|
162 kW / 2400 rpm
|
|
Maximum torque
|
920 N·m
|
|
Min. fuel consumption
|
≤215 g/kW·h
|
|
Transmission System
|
|
Torque converter type
|
Single-stage, four-element, dual-turbine hydraulic converter
|
|
Gearbox mode
|
Planetary power shift
|
|
Gears
|
2 forward / 1 reverse
|
|
Maximum speed
|
38 km/h
|
|
Drive Axles
|
|
Main reduction type
|
Bevel gear single-stage reduction
|
|
Wheel reduction type
|
Planetary single-stage reduction
|
|
Wheel base
|
2920 mm
|
|
Wheel tread
|
2260 mm
|
|
Ground clearance
|
480 mm
|
|

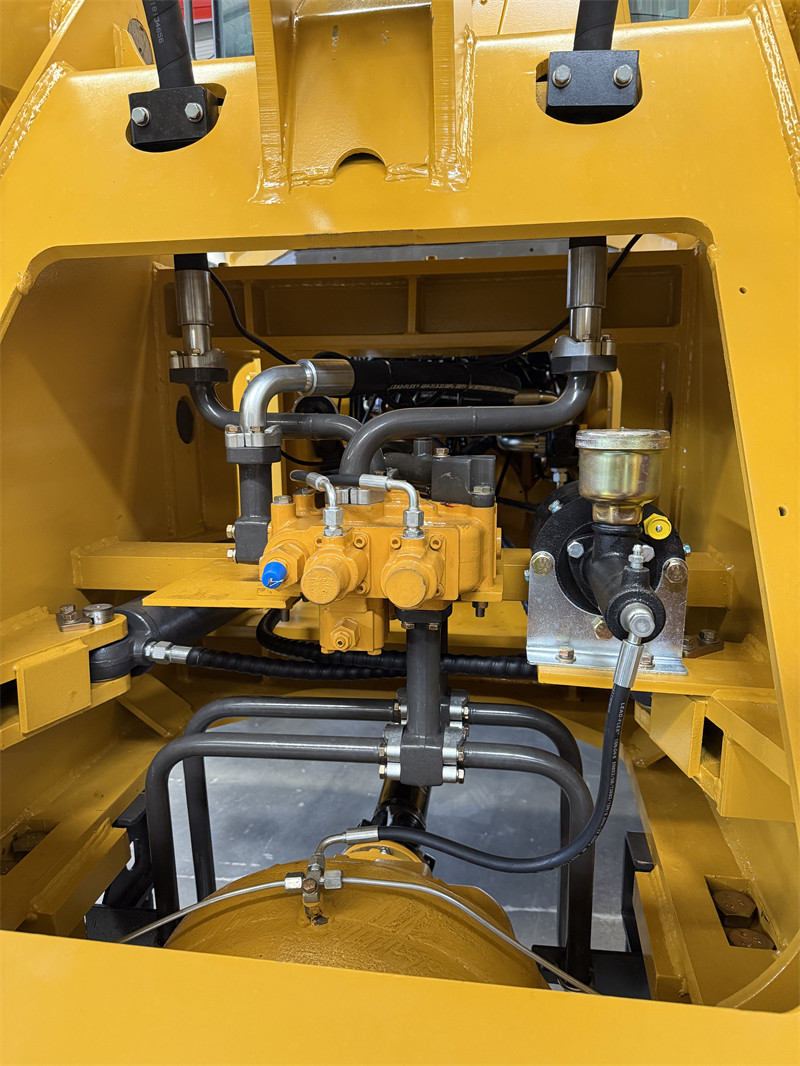

Hydraulic System
|
|
System working pressure
|
18 MPa
|
|
Boom lifting time
|
5.95 ± 0.2 s
|
|
Total cycle time
|
10.95 ± 0.5 s
|
|
Fuel tank capacity
|
265 L
|
|
Automatic bucket leveling
|
Yes
|
|

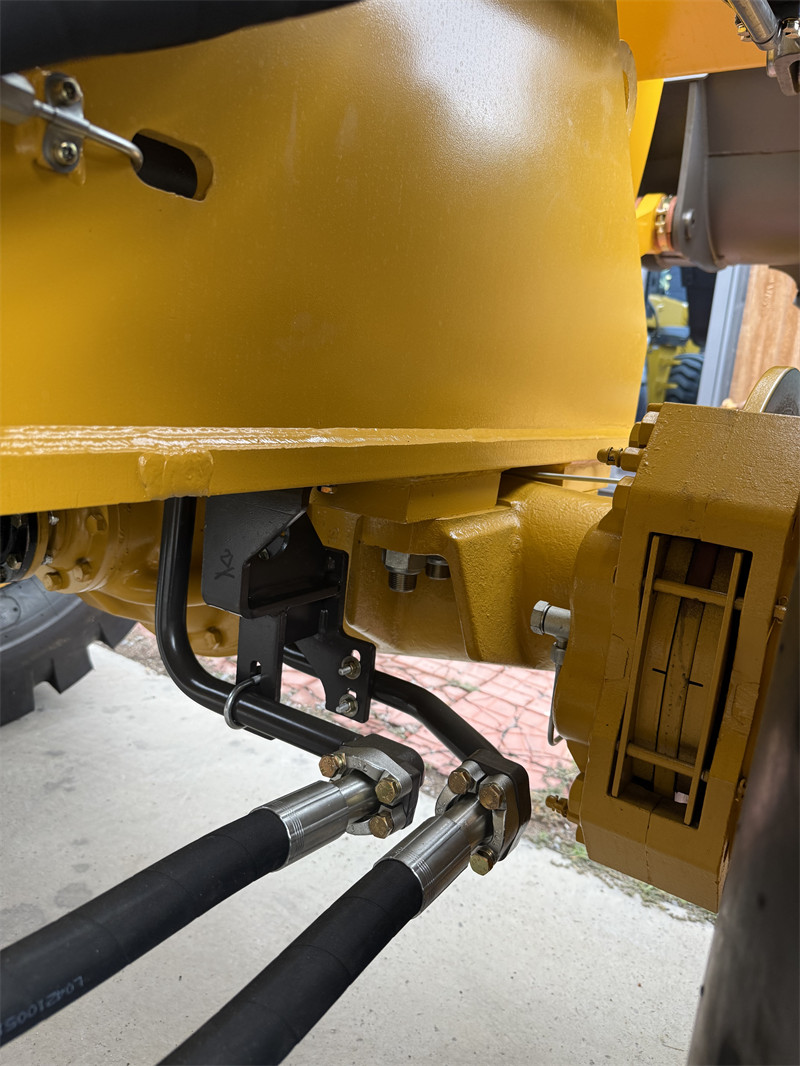

Brake System
|
|
Service brake
|
Air-over-hydraulic disc brake (4 wheels)
|
|
Parking brake
|
Manual disc brake
|
|
Tyre
|
|
Specification
|
23.5-25
|
|
Front tyre pressure
|
0.4 MPa
|
|
Rear tyre pressure
|
0.35 MPa
|
