SH220

Medium Excavator

Download Product Brochure

Total Weight:

21200KG

Bucket Capacity:

1.06m³

Rated Power:

133Kw

  • Overall Dimensions (mm)
    9625 x 2800 x 3075
  • Engine Model
    Cummins6BTAA5.9
  • Rated Speed (rpm)
    2000
  • Digging Power (kN)
    146
  • Ground Clearance (mm)
    468

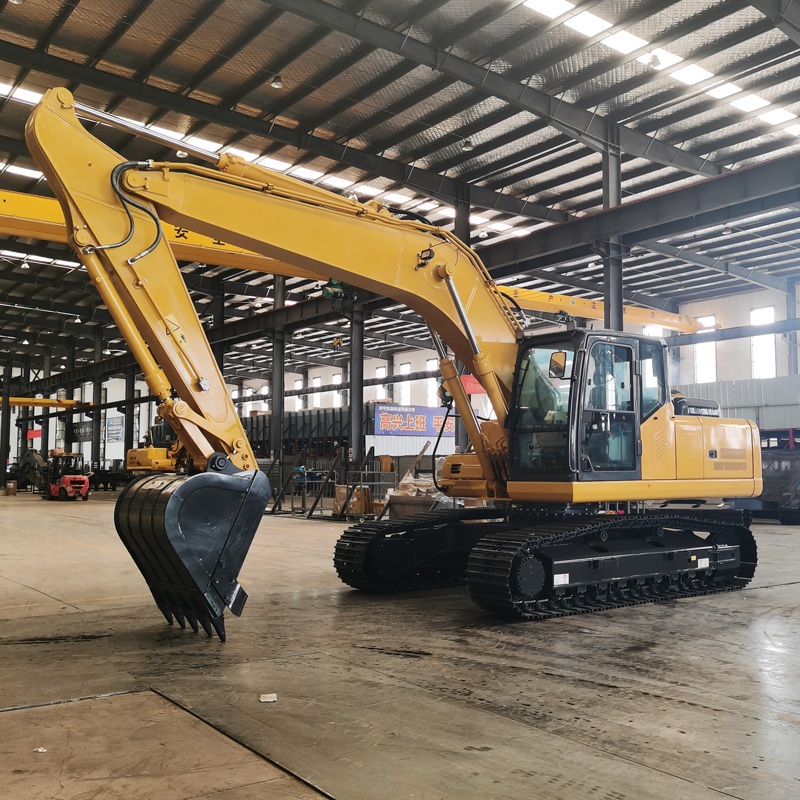

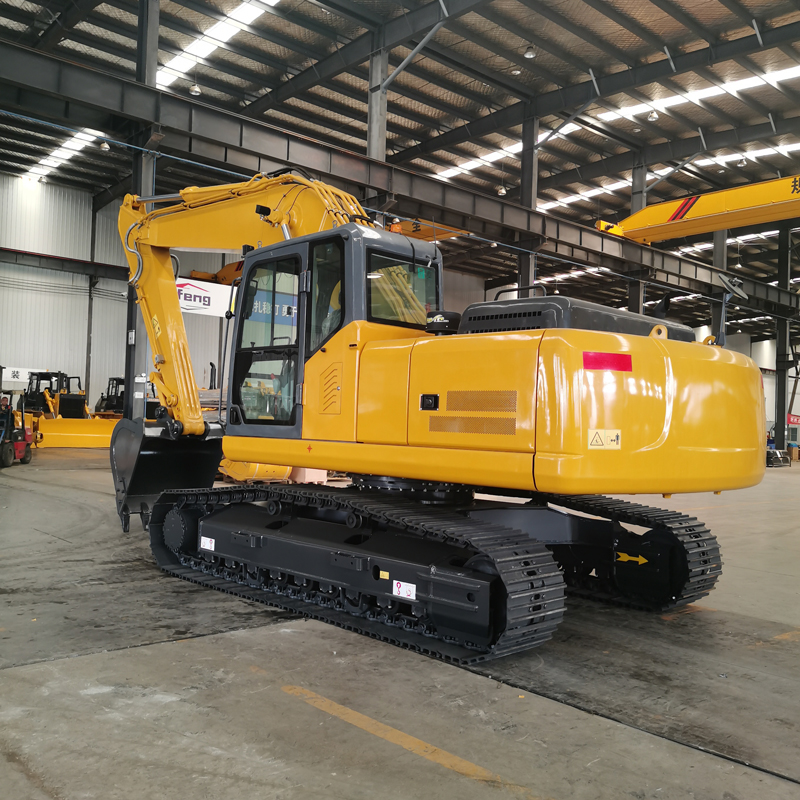

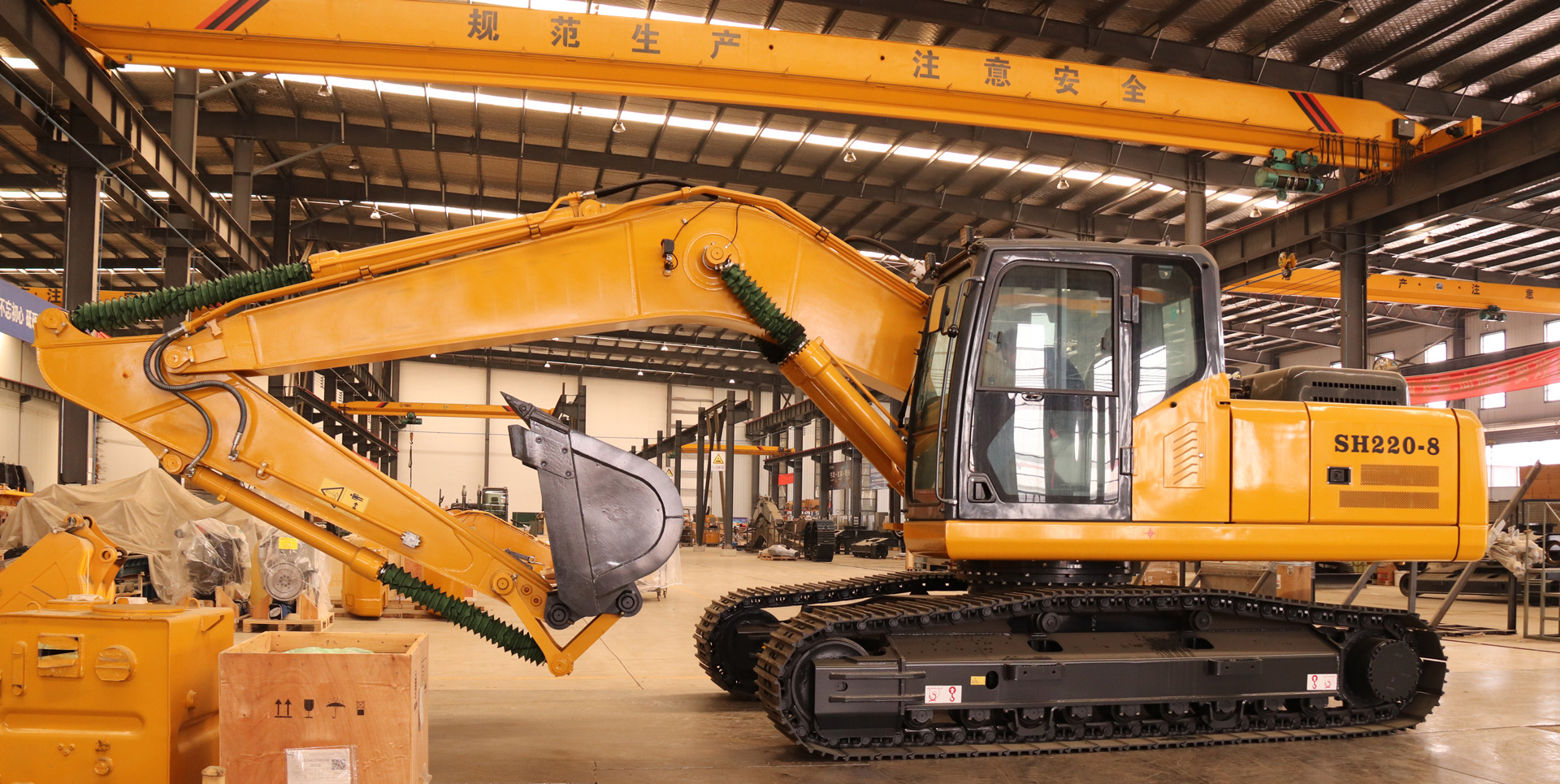

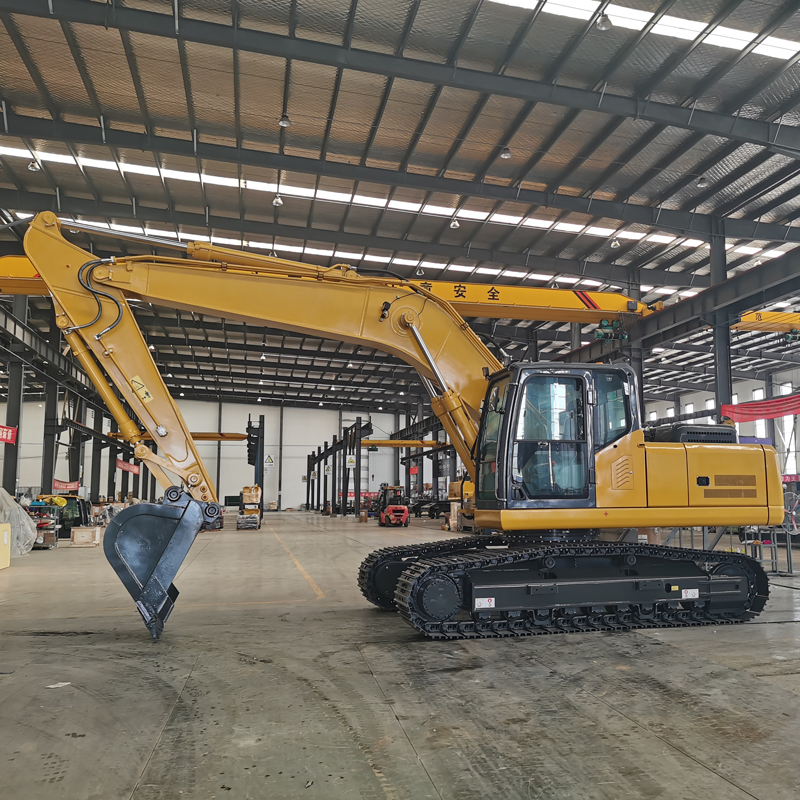

SH220 Medium Excavator
SH220 Medium Excavator

🔍 Details of Model:SH220 Medium Excavator

🚀 Advanced Hydraulics & Enhanced Operational Efficiency

The SH220 excavator is integrated with a premium Linde hydraulic system, representing a significant leap in both aesthetic design and core performance. Equipped with a customized load-sensing system, it maximizes operational productivity and fuel economy while substantially reducing hourly fuel consumption. The machine features three selectable work modes, allowing operators to perfectly match the equipment's output to specific job site conditions for optimal energy savings.

ItemSpecifications
🚜 Arm Configuration
Overall Length (mm)9625
Ground Length in Transport (mm)4915
Overall Height to Top of Boom (mm)3075
Overall Width (mm)2800
Overall Height to Top of Cab (mm)3055
Counterweight Ground Clearance (mm)1055
Min. Ground Clearance (mm)468
Tail Swing Radius (mm)2925
Tumbler Distance (mm)3360
Crawler Length (mm)4260
Track Gauge (mm)2380
Crawler Width (mm)2800
Track Shoe Width (mm)600
Engine Hood Height (mm)2395
Revolving Frame Width (mm)2725
Distance from Swing Center to Rear (mm)2920
⚙️ Engine
ModelCummins 6BTAA5.9
TypeHigh-pressure Common Rail, In-line Turbocharged
Cylinders × Bore × Stroke (mm)6×102×120
Displacement (L)5.9
Rated Power (kW/rpm)133/2000
Max. Torque (N·m/rpm)708/1500
⛏️ Bucket
Bucket Capacity (m³)1.06
Bucket Width (mm)1254
Number of Teeth5
💪 Digging Force
Bucket Digging Force (kN)146
Arm Digging Force (kN)140/390
Arm Length (mm)2925
💧 Hydraulic System
Hydraulic Pump TypeVariable Displacement Double Piston Pump
Max. Flow Rate (L/min)2×224
Travel System Pressure (MPa)34.3
Swing System Pressure (MPa)25.5
Pilot Control Pressure (MPa)3.9
🛤️ Travel System
Travel MotorVariable Displacement Piston Motor
Number of Track Shoes2×46
Travel Speed (km/h)5.1 / 3.1
Tractive Effort (kN)214
Gradeability70% (35°)
Carrier Rollers2×7
Track Rollers2×2
⚖️ Operating Weight & Ground Pressure
Operating Weight (kg)21200
Track Shoe Width (mm)600
Ground Pressure (kPa)49.8
🔄 Swing System
Swing Motor TypeSwash Plate Piston Motor
Swing Speed (r/min)12.4
Brake TypeHydraulic Brake
🛢️ Fluid Capacities
Fuel Tank (L)330
Coolant (L)28
Engine Oil (L)22
Hydraulic Oil Tank/System (L)250 / 400
🏗️ Working Range
Max. Digging Height (mm)10950
Max. Dumping Height (mm)7190
Max. Digging Depth (mm)6490
Max. Vertical Digging Depth (mm)5915
Max. Digging Radius (mm)9860
Max. Digging Radius at Ground Level (mm)9675
Min. Working Radius (mm)2970

```
