930X

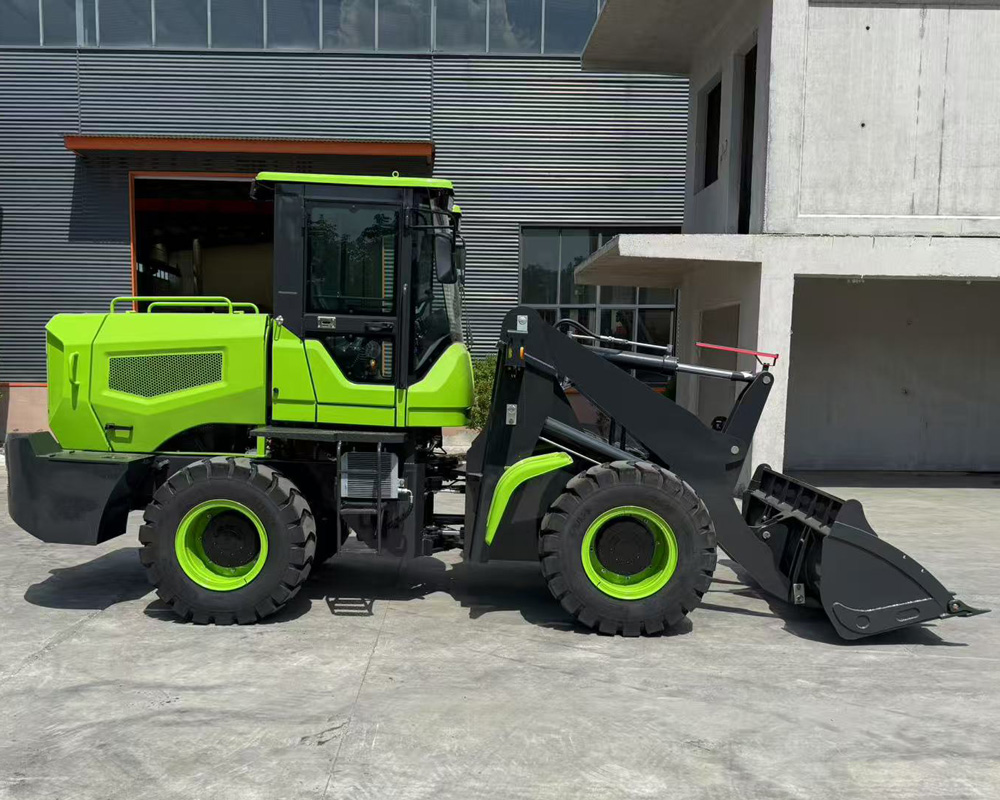

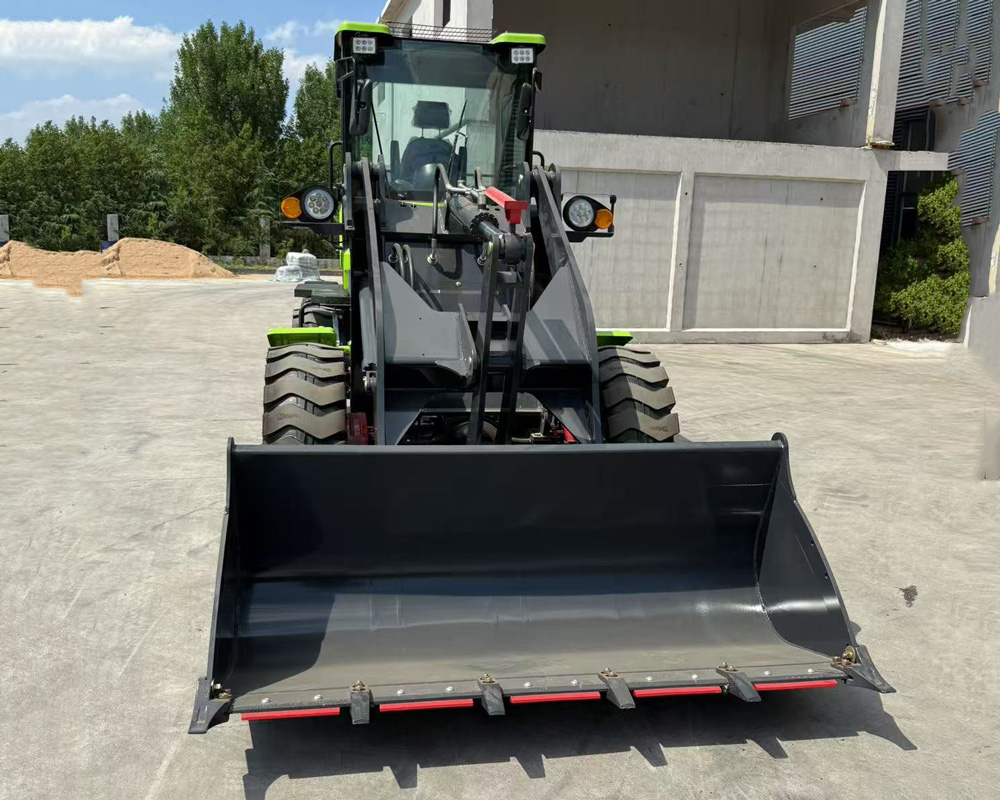

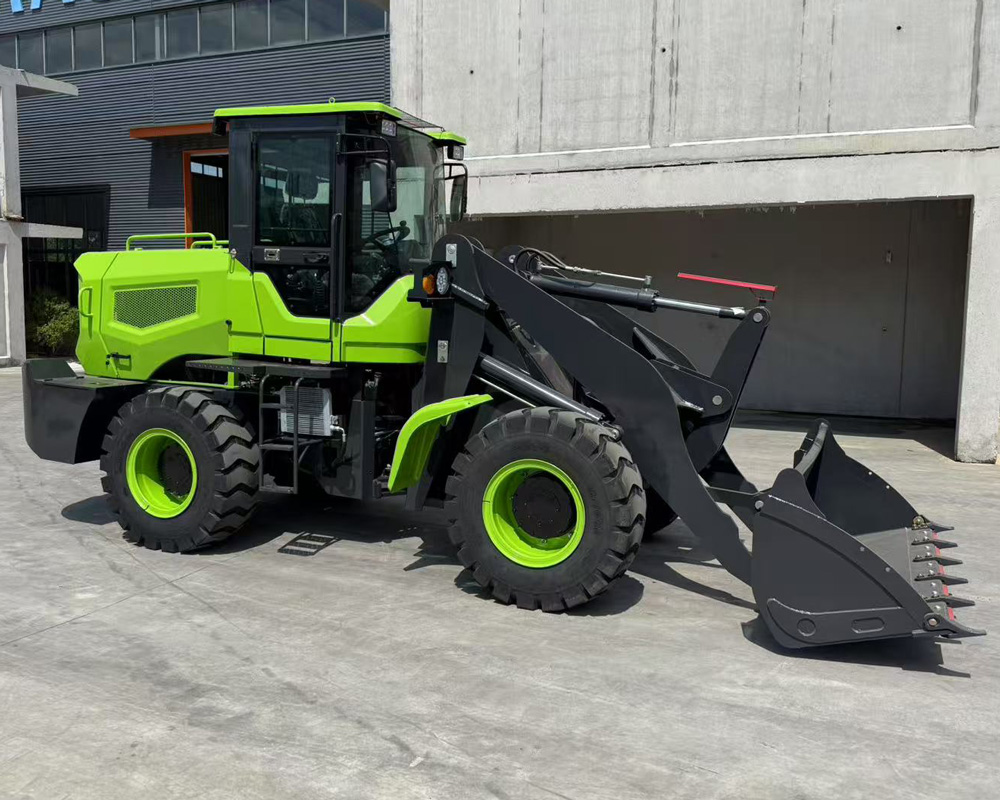

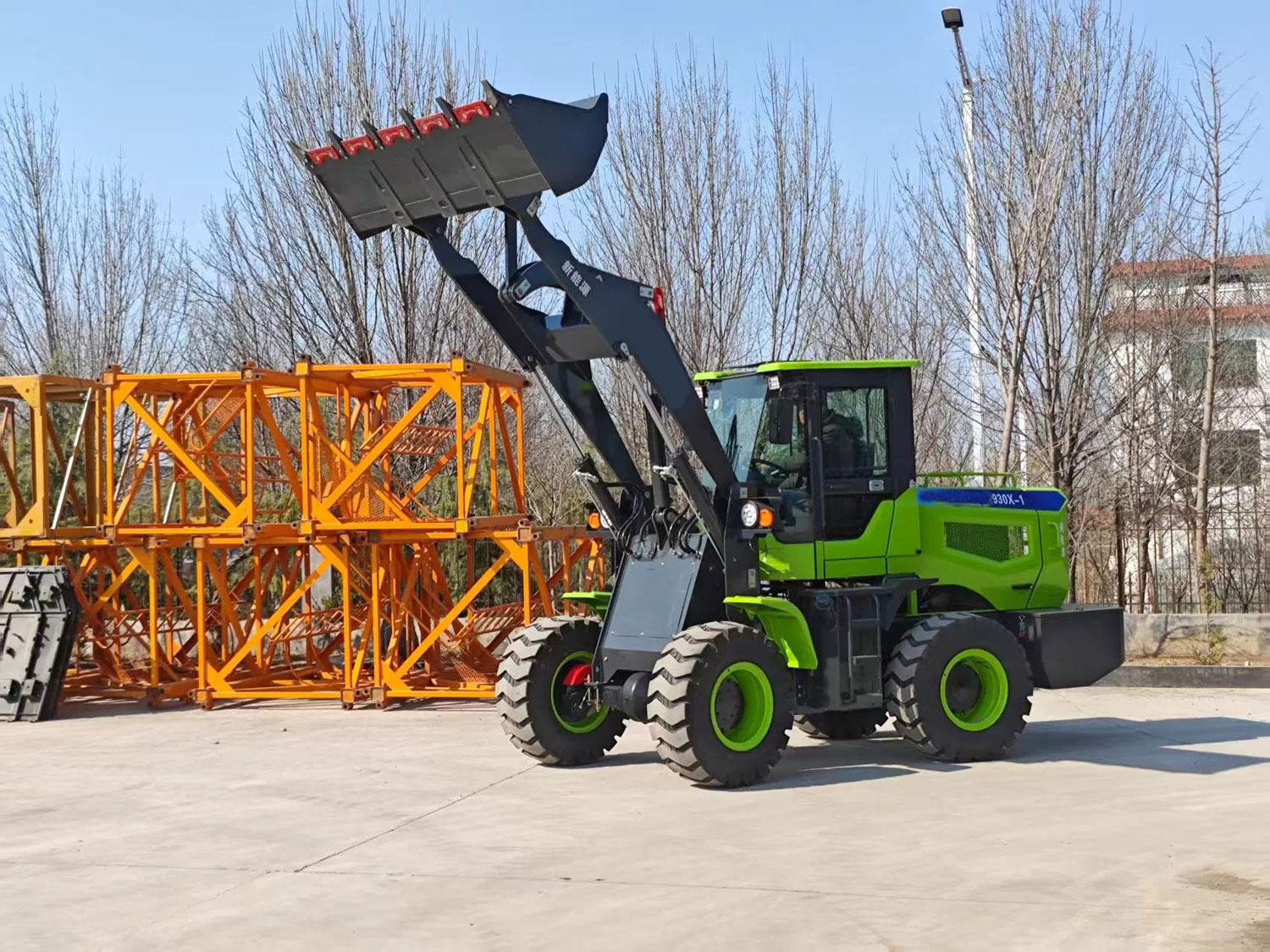

930X-1 Electric Wheel Loader | Advantages & Summary

The 930X-1 Electric Wheel Loader is a high-performance electric-powered loading equipment, integrating efficient power, flexible operation, and humanized design. With excellent performance parameters and reliable component configuration, it is suitable for various light and medium loading scenarios, providing green and efficient operation solutions.

⚡ Efficient Electric Power, Green & Energy-Saving

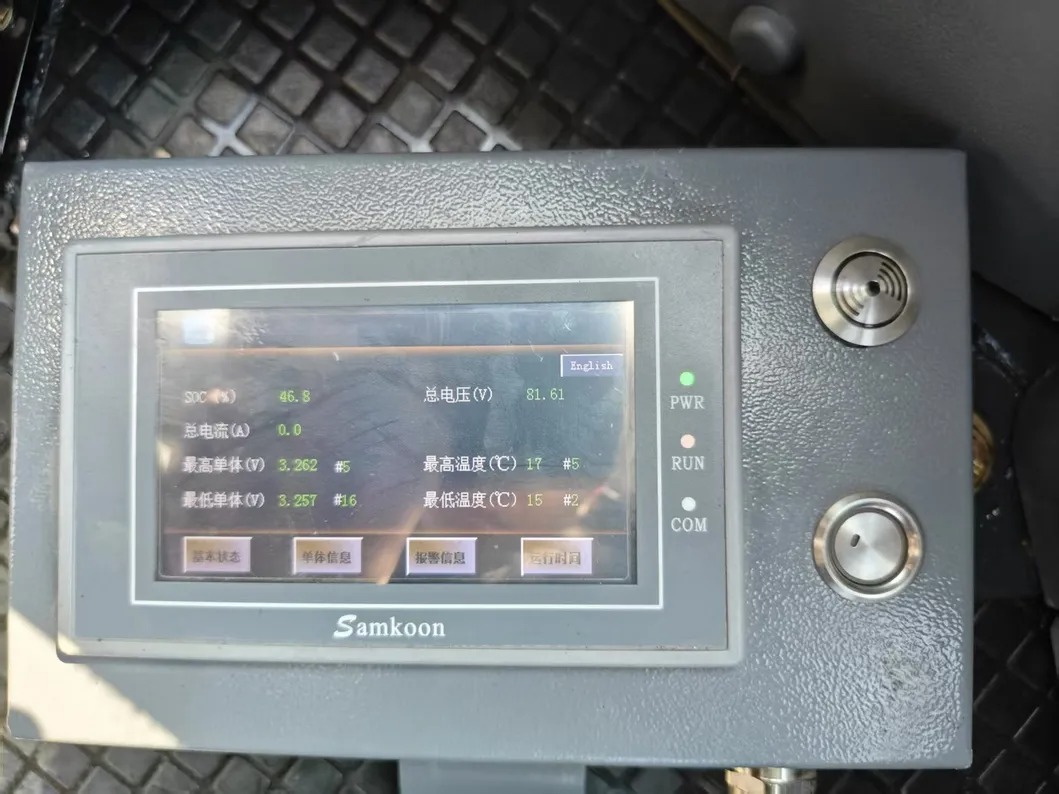

Equipped with a permanent magnet synchronous drive motor, with rated power of 20kW and peak power of 32kW, delivering strong power output while achieving zero emissions. The Heding battery with 76kW/h capacity and 83.2V rated voltage ensures long working hours, and the 15kW portable charger supports convenient charging, adapting to on-site working needs.

💪 Stable Loading Performance, High Efficiency

With a maximum and rated load capacity of 2000kg, and a 0.8m³ bucket capacity, it can efficiently complete loading and unloading tasks. The maximum unloading height of 3600mm and unloading distance of 950mm meet daily operation requirements, while the maximum speed of 38km/h and 30° maximum gradeability ensure smooth operation in different working conditions.

🔧 Reliable Component Configuration, Long Service Life

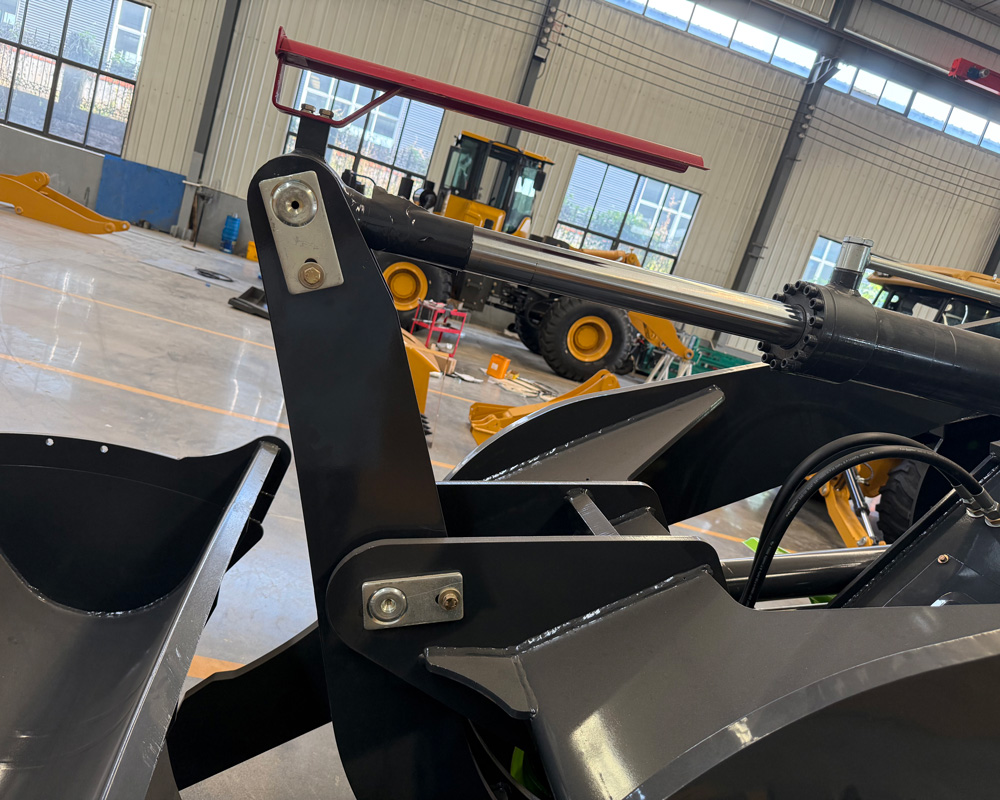

Adopting Qingzhou Weixu drive axle with single-stage planetary reduction, ensuring stable power transmission and strong bearing capacity. The hydraulic system with 16MPa working pressure operates smoothly, and the one-piece stamping hood and counterweight enhance structural strength, effectively extending the service life of the whole machine.

🚗 Flexible Operation, Easy Maneuvering

The overall dimensions of 5800×2080×2900mm and minimum turning radius of 6500mm make it flexible in narrow spaces. The single-lever operation method simplifies operation, reducing the learning cost for operators, and the 2500mm wheelbase and 1800mm tread ensure stable operation during movement.

🛡️ Safe & Reliable Braking System

Equipped with air-over-oil caliper disc four-wheel service brake, providing strong braking force and stable braking performance. The manual caliper disc parking brake ensures safe parking even on slopes, effectively avoiding potential safety hazards during operation and ensuring the safety of operators and equipment.

💺 Comfortable Driving Experience, Humanized Design

Comes with a luxury soft package cab, featuring a spacious internal space and wide field of vision, reducing operator fatigue during long-time work. The reasonable layout of control components makes operation more convenient, and the overall design is humanized, greatly improving the comfort of operation.

🔩 High-Quality Tyres & Easy Maintenance

Equipped with Qingdao Hongchi Tyre of 16/70-20 specification, with strong wear resistance and grip, adapting to various road conditions. The centralized layout of components and reasonable structural design make daily maintenance more convenient, reducing maintenance time and cost, and improving equipment utilization rate.

Product Summary

The 930X-1 Electric Wheel Loader is a cost-effective electric loading equipment with a total machine weight of 5560kg. It integrates efficient electric power, stable performance, flexible operation, and comfortable driving experience. With reliable components such as Heding battery, permanent magnet synchronous motor, and Qingzhou Weixu drive axle, it can efficiently complete loading, unloading, and transportation tasks in construction sites, farms, warehouses, and other scenarios. It has the advantages of green energy saving, high efficiency, reliability, and easy maintenance, which is an ideal choice for users pursuing low-carbon and efficient operation.
