H380

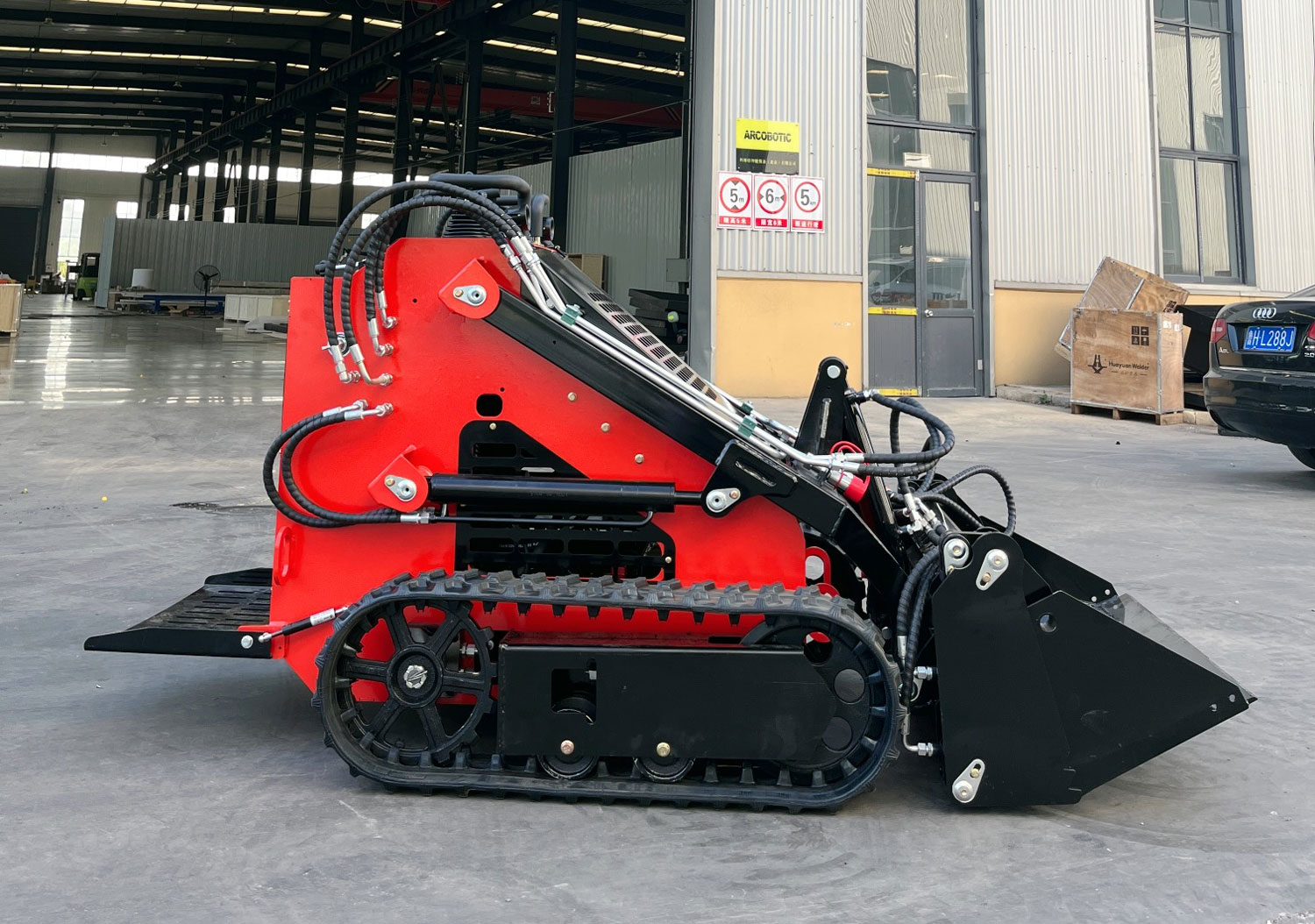

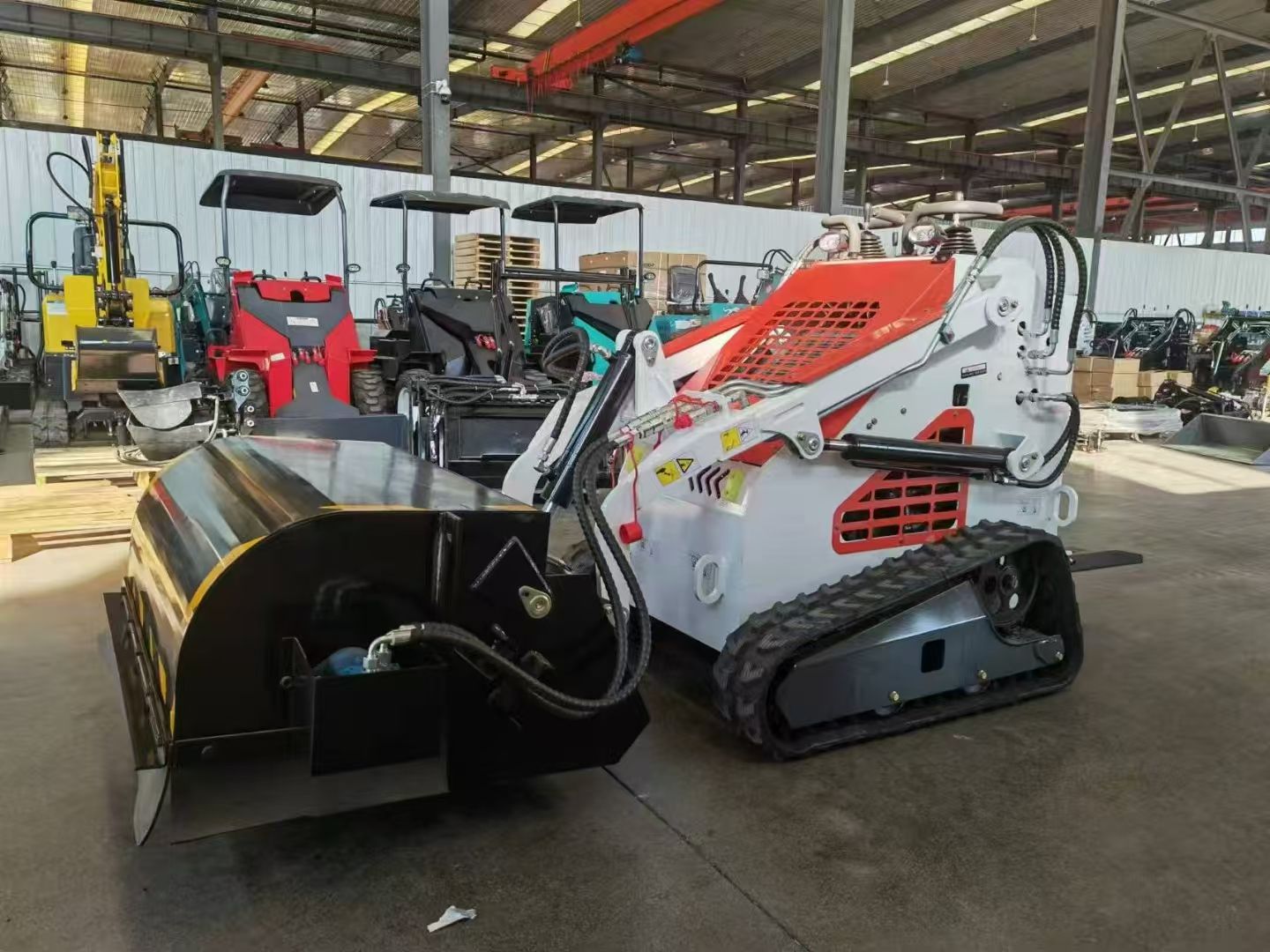

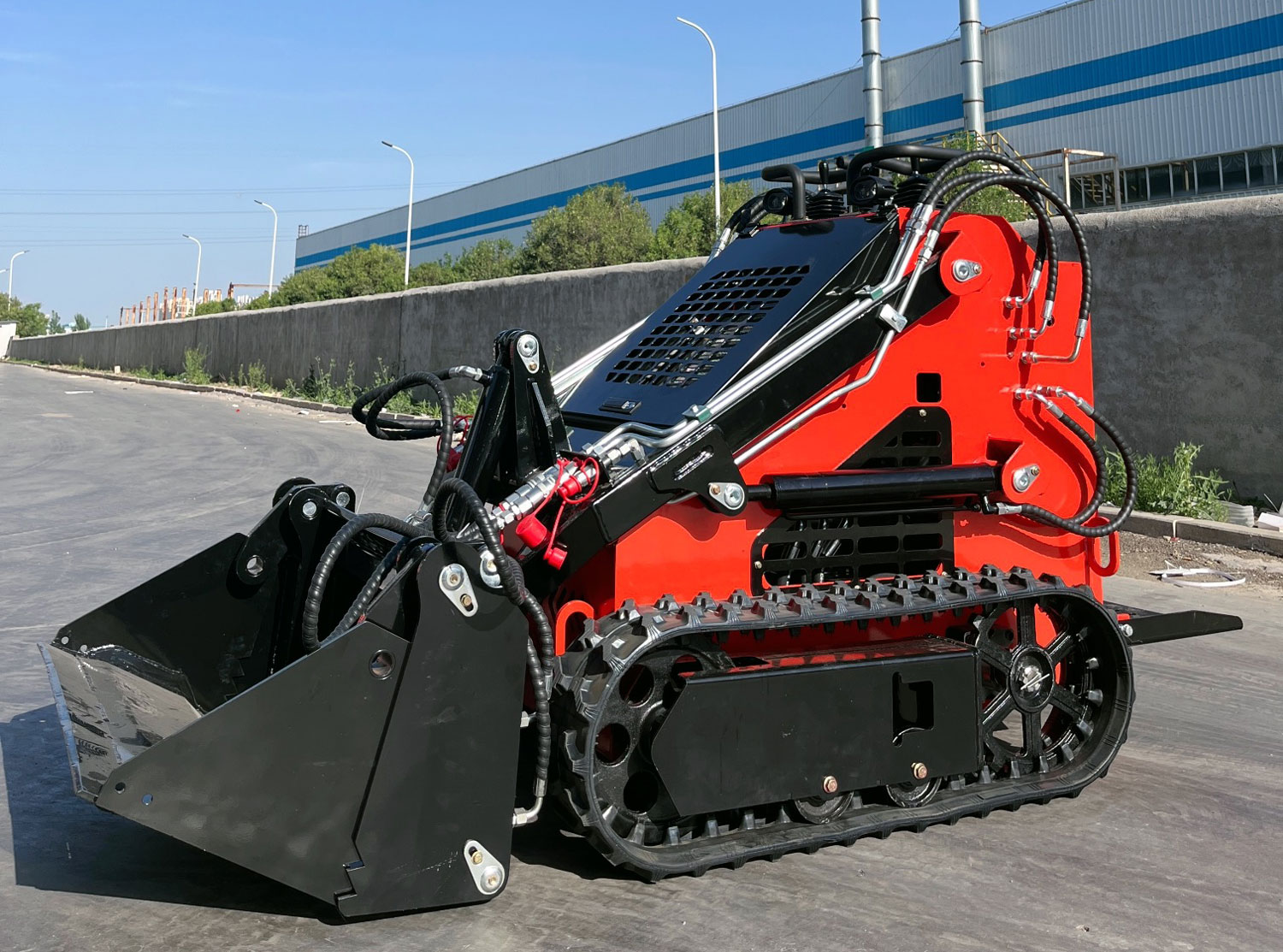

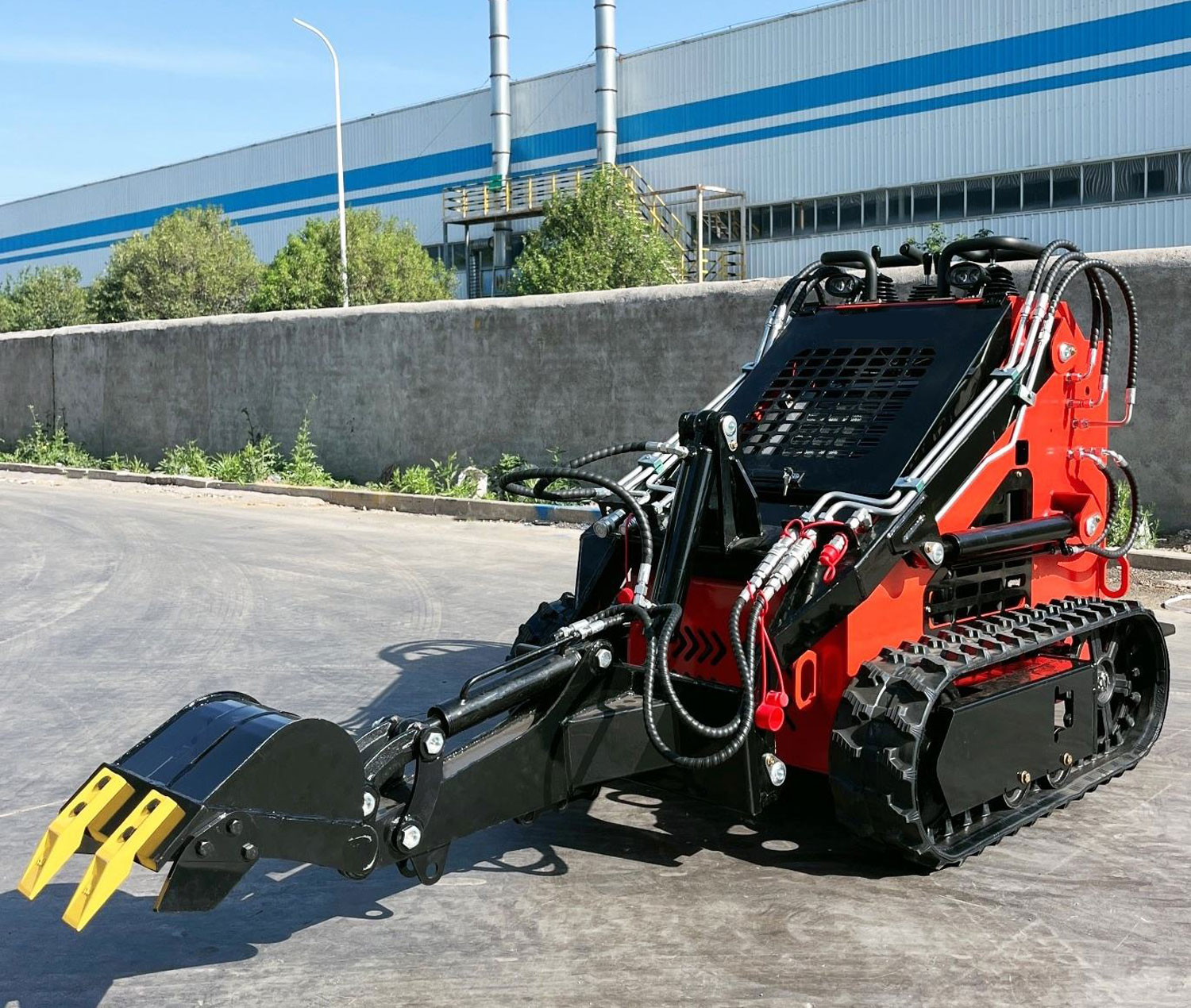

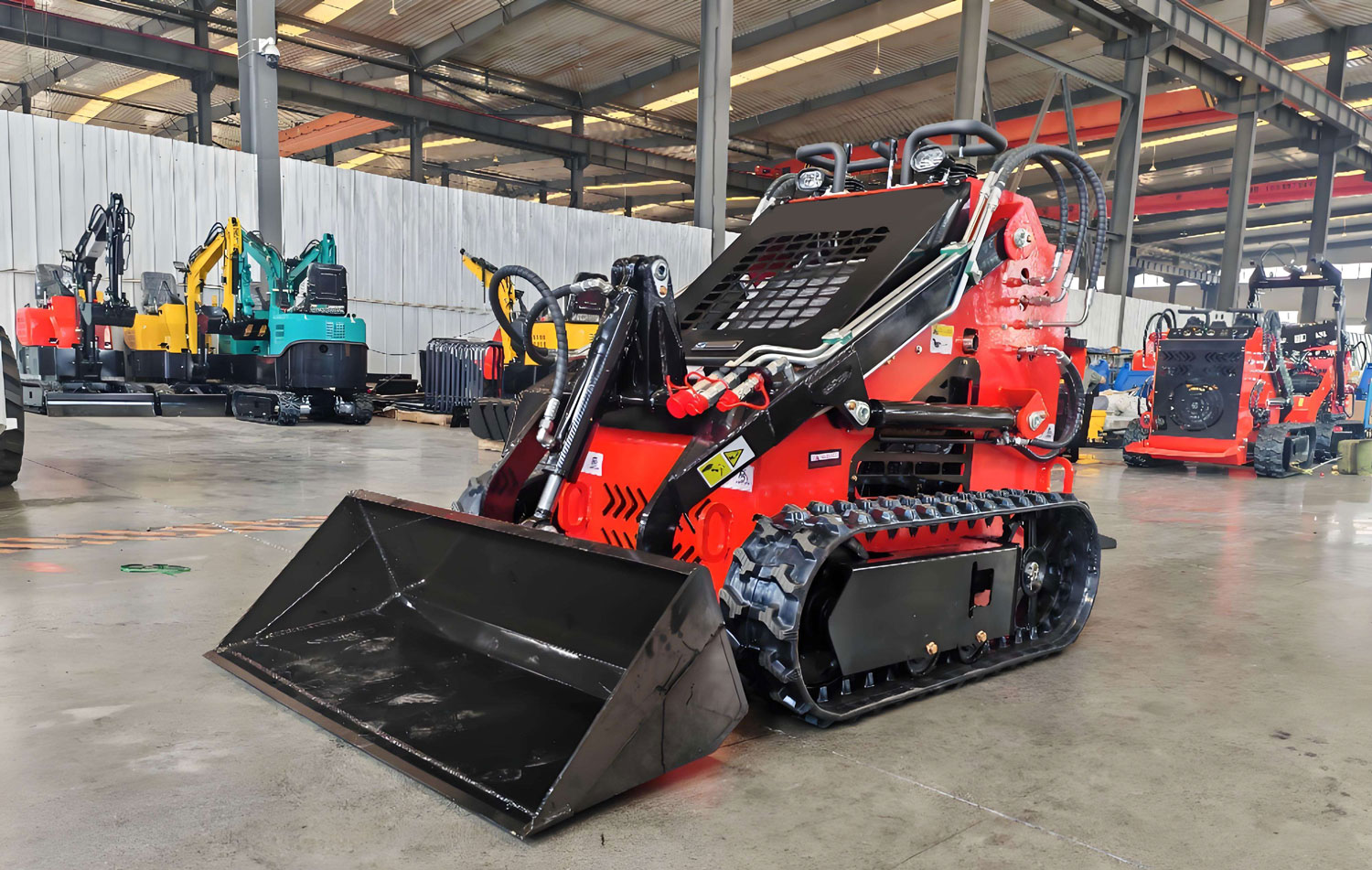

📌 The H380 skid steer loader is a mini compact multi-functional loading equipment with an operating weight of 890kg, powered by Runtong 740 engine with 16.8KW / 24HP output. It supports both tracked and wheeled walking types, equipped with 0.15m³ standard bucket and stable hydraulic system. Ultra-small body size, flexible skid steering and strong climbing performance make it perfect for narrow space work, farm renovation, garden landscaping, indoor demolition and small-scale earthmoving projects.

🔋 Efficient Original Power Engine

The H380 skid steer loader is equipped with reliable Runtong 740 engine, with max power of 16.8KW / 24HP and electric start design for quick and easy startup. With stable power output, low fuel consumption and compact structure, the engine adapts to various complex working environments and long-term frequent operation, ensuring reliable power support for daily loading and handling tasks.

📏 Ultra-Compact Flexible Body Structure

Featuring mini overall dimension of 1750 × 1100 × 1250mm and only 900mm bucket width, this skid steer loader can easily pass through narrow passages, workshops and confined working areas. Reasonable 850mm wheelbase, 280mm high ground clearance and 280mm tail swing design greatly improve site trafficability and flexible turning ability in limited spaces.

💪 Reliable Lifting & Traction Performance

The H380 owns a rated load of 200kg, max lifting force up to 375kg / 3.0kN and 3.5kN maximum traction force. Strong overall bearing capacity and stable structural design meet daily material shoveling, stacking and light earthwork requirements. The reasonable force structure ensures stable loading operation without deformation or shaking under rated working conditions.

🌄 Excellent Off-Road & Climbing Ability

Available in tracked and wheeled optional walking type, matching 6km/h stable travel speed and 30° strong climbing capacity. Whether on muddy roads, rough ground, slopes or uneven farmland, the H380 skid steer loader maintains stable driving performance, bringing superior off-road adaptability for outdoor complex working conditions.

💧 Stable High-Efficiency Hydraulic System

Equipped with mature hydraulic system with 17MPa rated pressure and 17-21bar system pressure range. The whole machine has a short 5s working cycle, with sensitive lifting, dumping and telescopic actions. The optimized hydraulic configuration provides smooth operation, low failure rate and long service life, effectively improving overall working efficiency.

📂 Rich Working Range Parameters

With a maximum operating height of 2450mm and dumping height of 1510mm, it meets conventional loading and unloading needs. The 450mm dumping distance, 27° dumping angle and 114° bucket maximum tilt angle realize efficient material unloading and cleaning. Multiple working dimension advantages ensure diverse operation functions in different scenarios.

⚙️ Diversified Configuration & Strong Adaptability

Dual walking modes of tracked and wheeled can be selected according to working sites. The standard 0.15m³ small bucket is flexible and lightweight, suitable for fine operation and material handling. Simple overall matching and reasonable component layout enable the machine to switch freely in agriculture, landscaping, municipal maintenance and indoor construction.

🛡️ Lightweight Durable & Easy Maintenance

Lightweight whole machine design reduces transportation pressure and transition cost. High-strength welded body and wear-resistant structural parts extend service life. The simple mechanical structure and reasonable component layout make daily inspection, maintenance and parts replacement more convenient, effectively lowering later operation and maintenance costs.
