H50

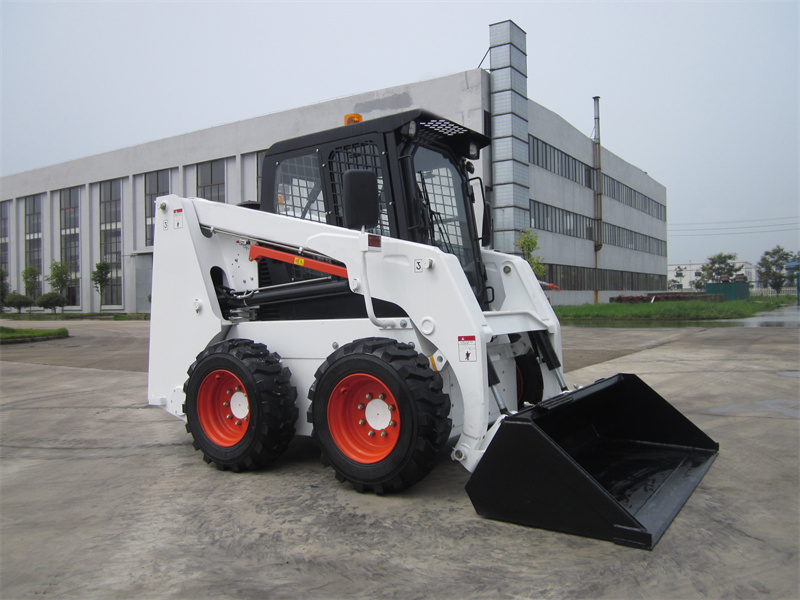

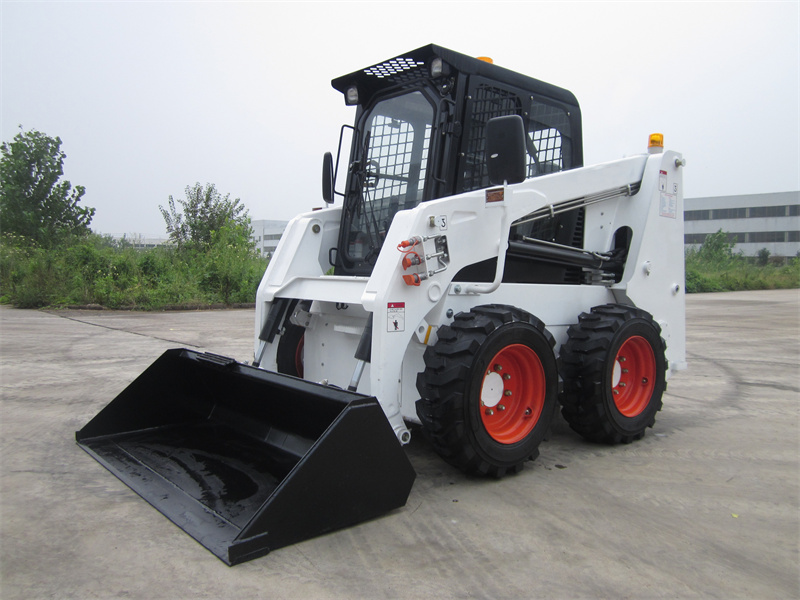

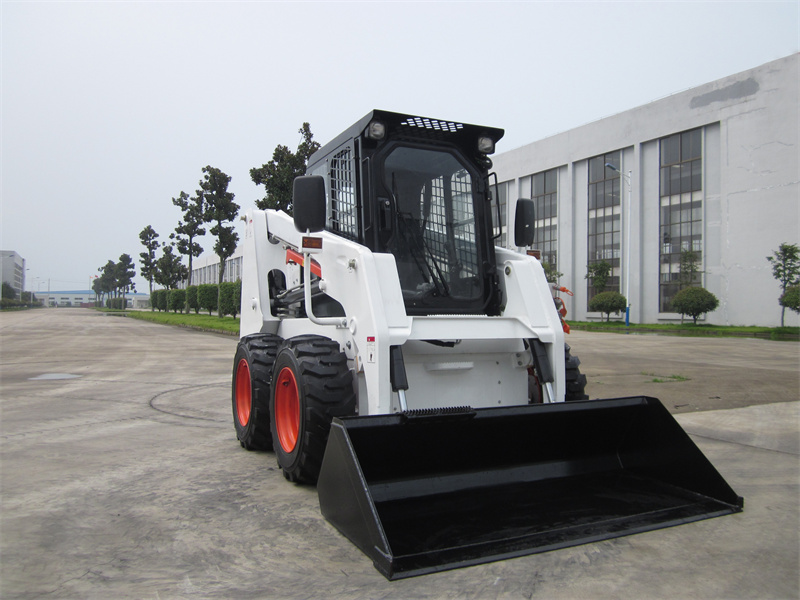

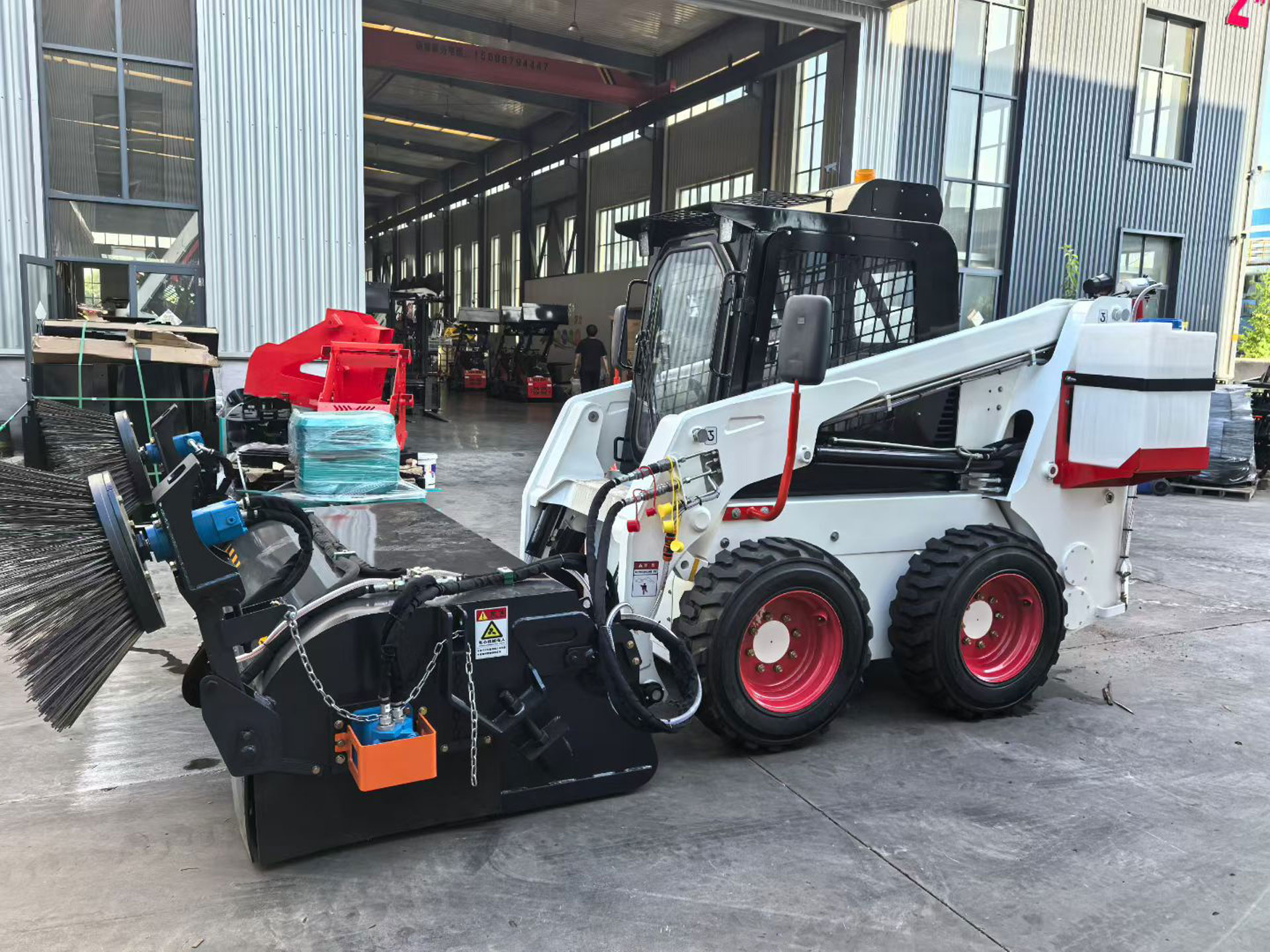

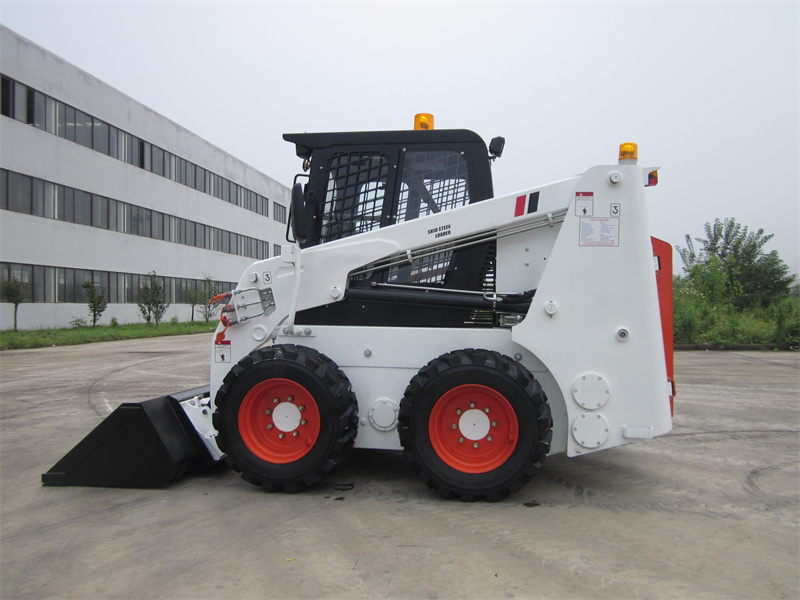

📌 The H50 skid steer loader is a compact and multi-functional engineering equipment with an operating weight of 2950kg and a rated load of 870kg. It adopts a mature 4-cylinder engine, closed-loop hydrostatic drive system and stable mechanical control mode. With compact body size, flexible steering, strong lifting force and diversified working attachments, the H50 skid steer loader is widely used in urban construction, farmland renovation, garden greening, material handling and narrow space operation projects.

🔋 Reliable Power Performance

The H50 skid steer loader is equipped with a high-efficiency 4-cylinder engine, with a rated power of 35.7kW and a maximum torque of 200N·m@1600rpm. The 3.3L displacement design balances power output and fuel economy, adapting to long-time frequent operation. It features stable power output, low failure rate and strong environmental adaptability, meeting daily construction needs under various working conditions.

⚙️ Advanced Hydrostatic Drive Train

Adopting hydrostatic closed-loop circuit transmission, matched with dual-swash-plate axial piston variable travel pump and heavy-duty radial piston motor. The overall travel speed reaches 12km/h, with sensitive power response and stable walking performance. Equipped with 800S-1R-60 standard chain and 10.0-16.5 tires, the chassis structure is solid and durable, suitable for complex road surfaces and frequent start-stop operation.

💪 Strong Loading & Lifting Capacity

Designed with radial lifting structure, the rated lifting force and bucket breakout force both reach 22000N. The tipping load is up to 1740kg, with 0.35m³ standard bucket volume, ensuring efficient shoveling, loading and material stacking. Excellent load-bearing performance enables the machine to easily handle light earthwork, gravel handling and bulk material transportation tasks.

💧 Stable Hydraulic System

The H50 hydraulic system is set with 180bar safety pressure and 66.2L/min rated flow, providing stable and powerful hydraulic output. The optimized hydraulic circuit ensures smooth action of lifting, dumping and walking, with low energy consumption and good synchronization of each working device. Key hydraulic components are durable, effectively reducing later maintenance frequency.

🕹️ Simple Mechanical Control

Adopting classic mechanical control mode, the operation logic is simple and easy to master. The whole machine responds sensitively, with precise micro-operation performance, suitable for novice and skilled operators. The reasonable operating layout reduces operation resistance, effectively relieving work fatigue and improving continuous operation efficiency.

📏 Compact & Flexible Body Design

With ultra-compact overall dimensions, the total width is only 1740mm and the minimum ground clearance is 185mm. It can freely shuttle in narrow construction sites, workshops, alleys and limited working spaces. Flexible skid steering realizes in-situ turning, greatly improving construction flexibility and site adaptability.

📐 Optimized Working Dimension Parameters

The maximum hinge pin height reaches 3265mm, the unloading height is 2551mm, and the unloading distance is reasonable, which is convenient for high-position loading and container feeding. The wheelbase is reasonably matched, the body structure is stable, and the center of gravity is balanced during lifting and unloading, ensuring safe and stable operation in various working postures.

🛡️ Durable Structure & Easy Maintenance

The whole machine adopts high-strength welded body and reinforced load-bearing structure, with strong impact resistance and wear resistance. The 88L large-capacity fuel tank supports long-distance continuous operation. The overall structural layout is reasonable, with exposed maintenance points and easy access for daily inspection, oil replacement and parts maintenance, lowering long-term operation costs.
