S121D

Single-drum vibratory roller

Total Weight:

12000KG

Min. Turning Radius:

6250mm

Rated Power:

97.5Kw

  • Overall Dimensions (mm)
    5940×2275×2800

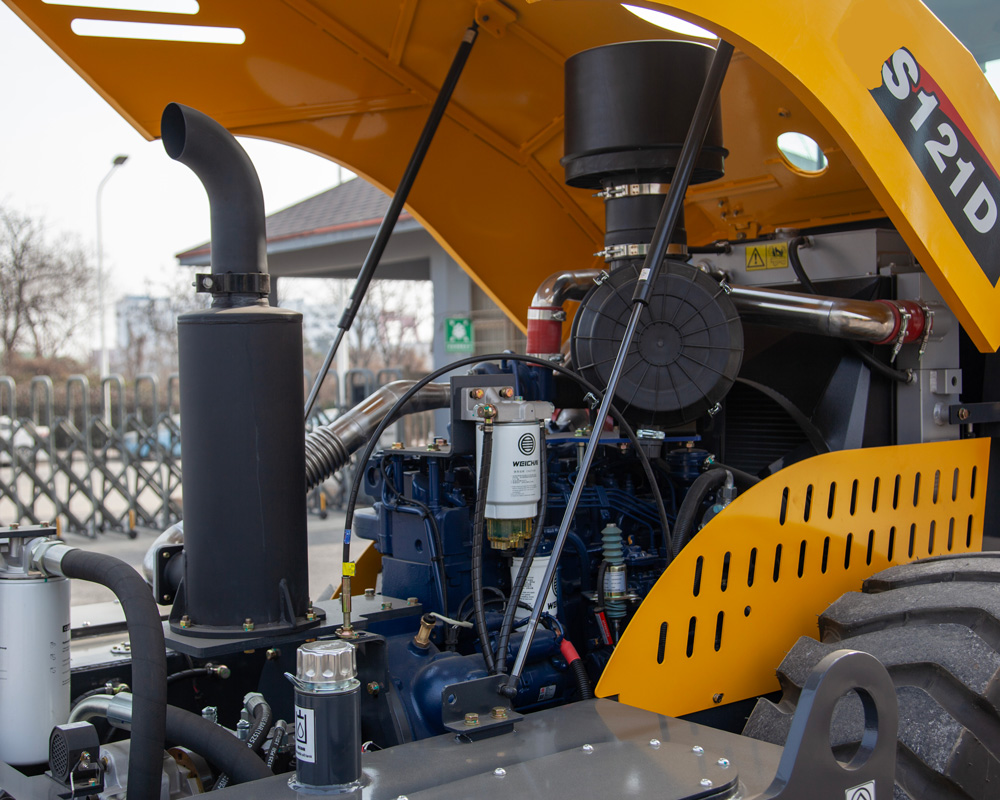

  • Engine Model
    Weichai CHINA-Ⅱ
  • Ground Clearance (mm)
    410

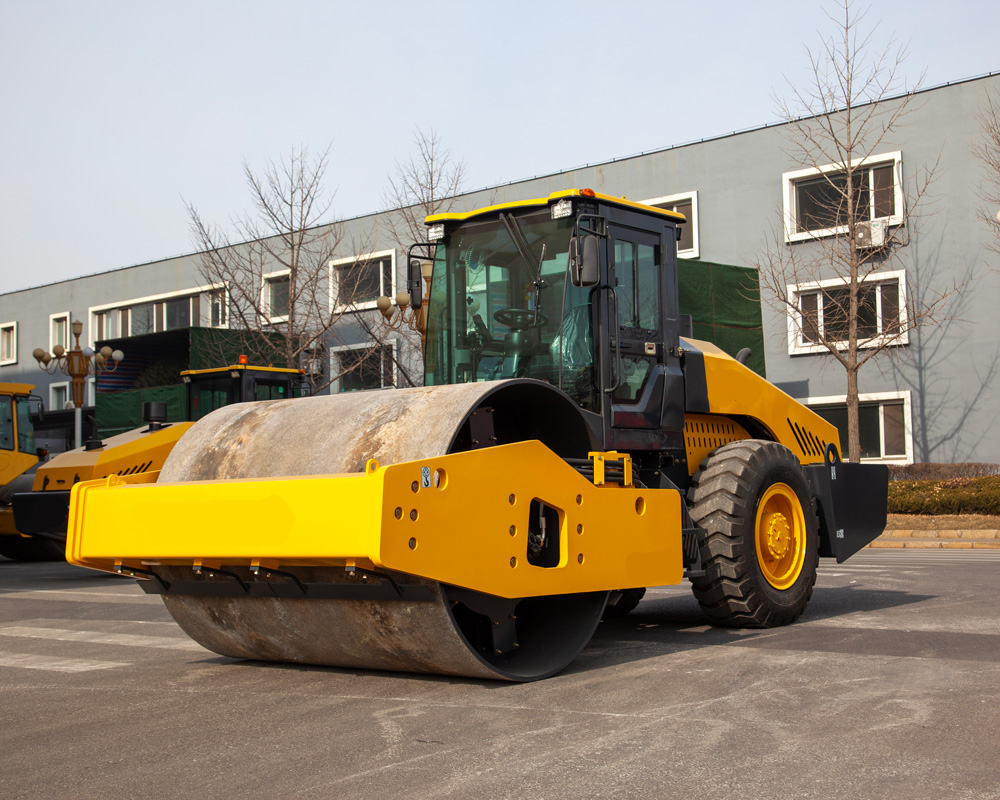

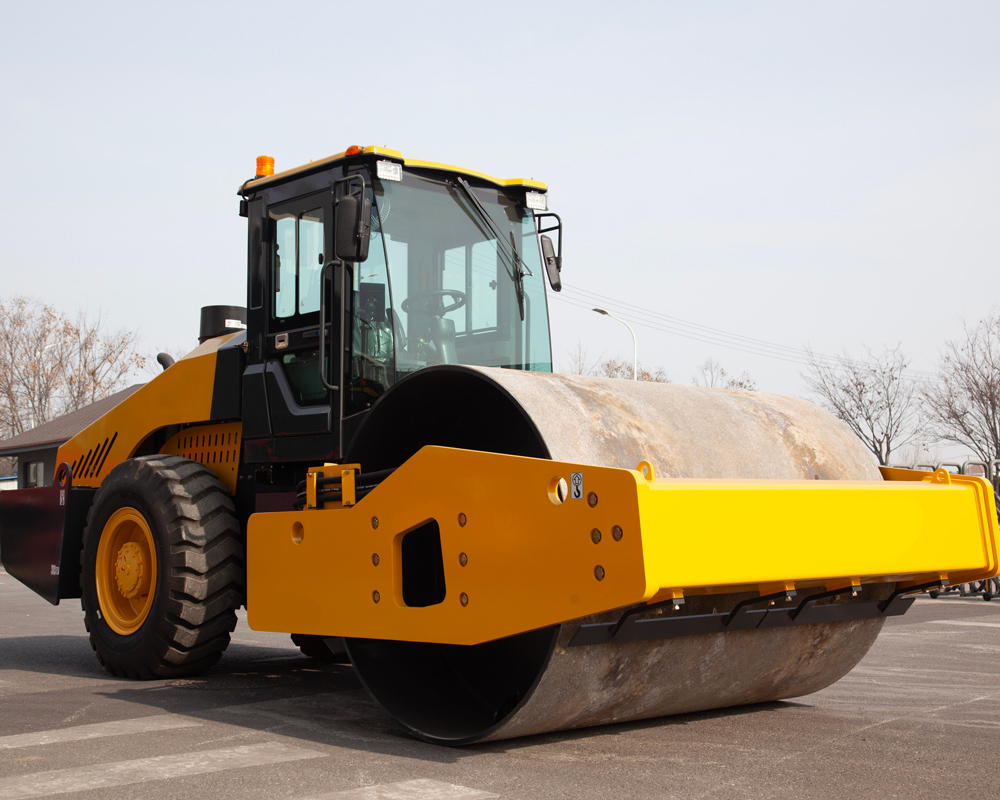

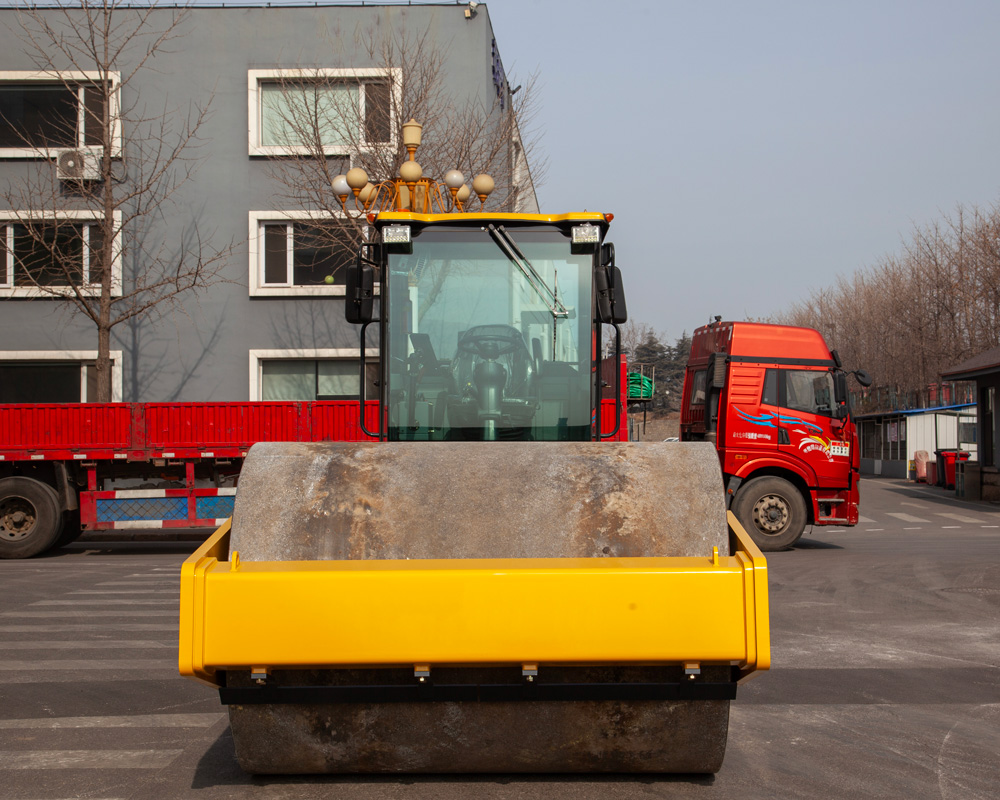

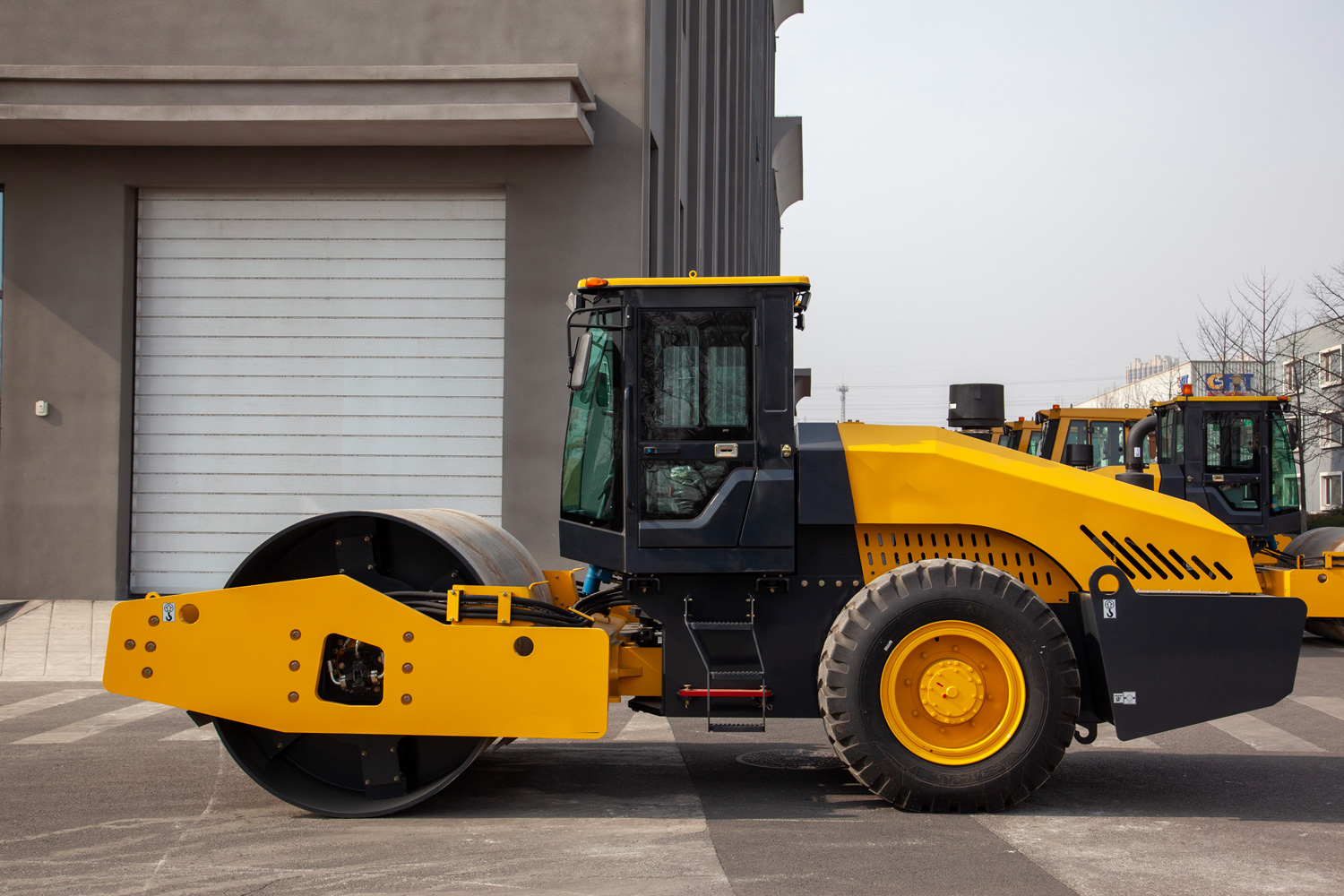

S121D Single-drum vibratory roller
S121D Single-drum vibratory roller

🔍 Details of Model:S121D Single-drum vibratory roller

ItemValue
Basic Information
ModelS121S
Dimensions
Overall length (mm)5940
Overall width (mm)2275
Overall height (mm)2800
Wheelbase (mm)2980
Diameter of vibration drum (mm)1500
Width of vibration drum (mm)2100
Tire diameter (mm)1350
Minimum ground clearance (mm)410
Steel wheel thickness (mm)25
Overall Performance
Operating mass (kg)12000
Static linear load (N/cm)285
Amplitude (mm)1.6
Vibrating frequency (Hz)30
Centrifugal force (kN)170
Speed range (km/h)0-9
Gradeability (%)30
Turning radius (mm)6250
Power Performance
Engine brandWeichai
Emission standardCHINA-II
Engine power (kW)97.5
Drive Axle
Drive axleFenyi
Hydraulic System
Drive motorHytek
Vibration motorTianji
Drive pumpHytek
Vibrate pumpTianji
