S126D

Single-drum vibratory roller

Total Weight:

12000KG

Min. Turning Radius:

6330mm

Rated Power:

105Kw

  • Overall Dimensions (mm)
    5900*2290*3150
  • Engine Model
    Weicha Tier2

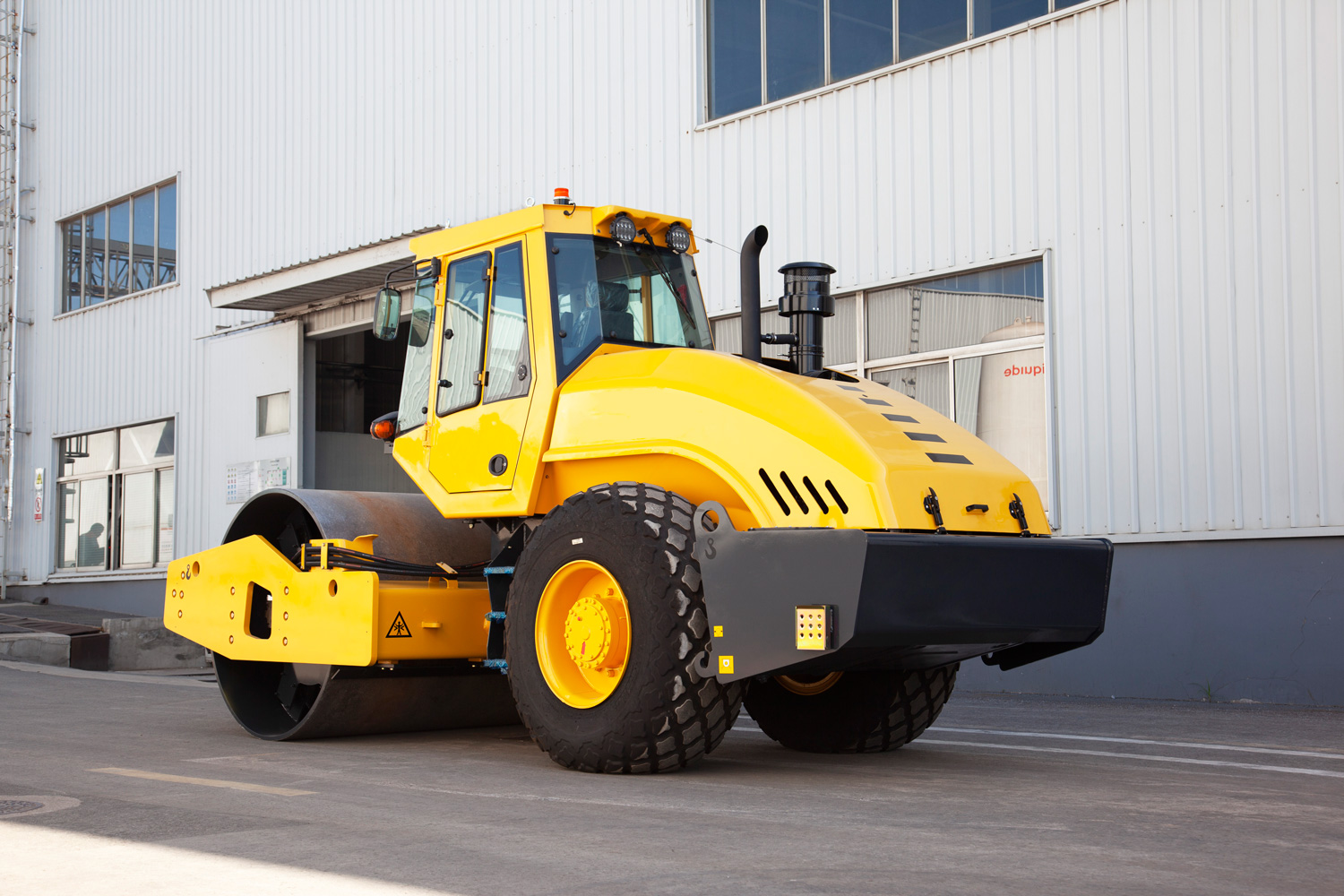

S126D Single-drum vibratory roller
S126D Single-drum vibratory roller

🔍 Details of Model:S126D Single-drum vibratory roller

ItemValue
Basic Information
Dimensions
ModelS126D
Overall length (mm)5900
Overall width (mm)2290
Overall height (mm)3150
Wheelbase (mm)2980
Diameter of vibration drum (mm)1533
Width of vibration drum (mm)2130
Tire diameter (mm)1350
Minimum ground clearance (mm)410
Steel wheel thickness (mm)25
Overall Performance
Operating mass (kg)12000
Static linear load (N/cm)322
Amplitude (mm)1.85 / 0.83
Vibrating frequency (Hz)30 / 34
Centrifugal force (kN)280 / 162
Speed range (km/h)0-9
Gradeability (%)45
Turning radius (mm)6500
Power Performance
Engine brandWeichai
Emission standardCHINA-II / Tier 2
Engine power (kW)105
Drive Axle
Drive axleFenyi
Hydraulic System
Drive motorHytek
Vibration motorTianji
Drive pumpHytek
Vibrate pumpTianji
