S367HD

Single-drum vibratory roller

Total Weight:

36000KG

Min. Turning Radius:

7575mm

Rated Power:

276Kw

  • Overall Dimensions (mm)
    6980*2690*3300
  • Engine Model
    Weicha Tier4

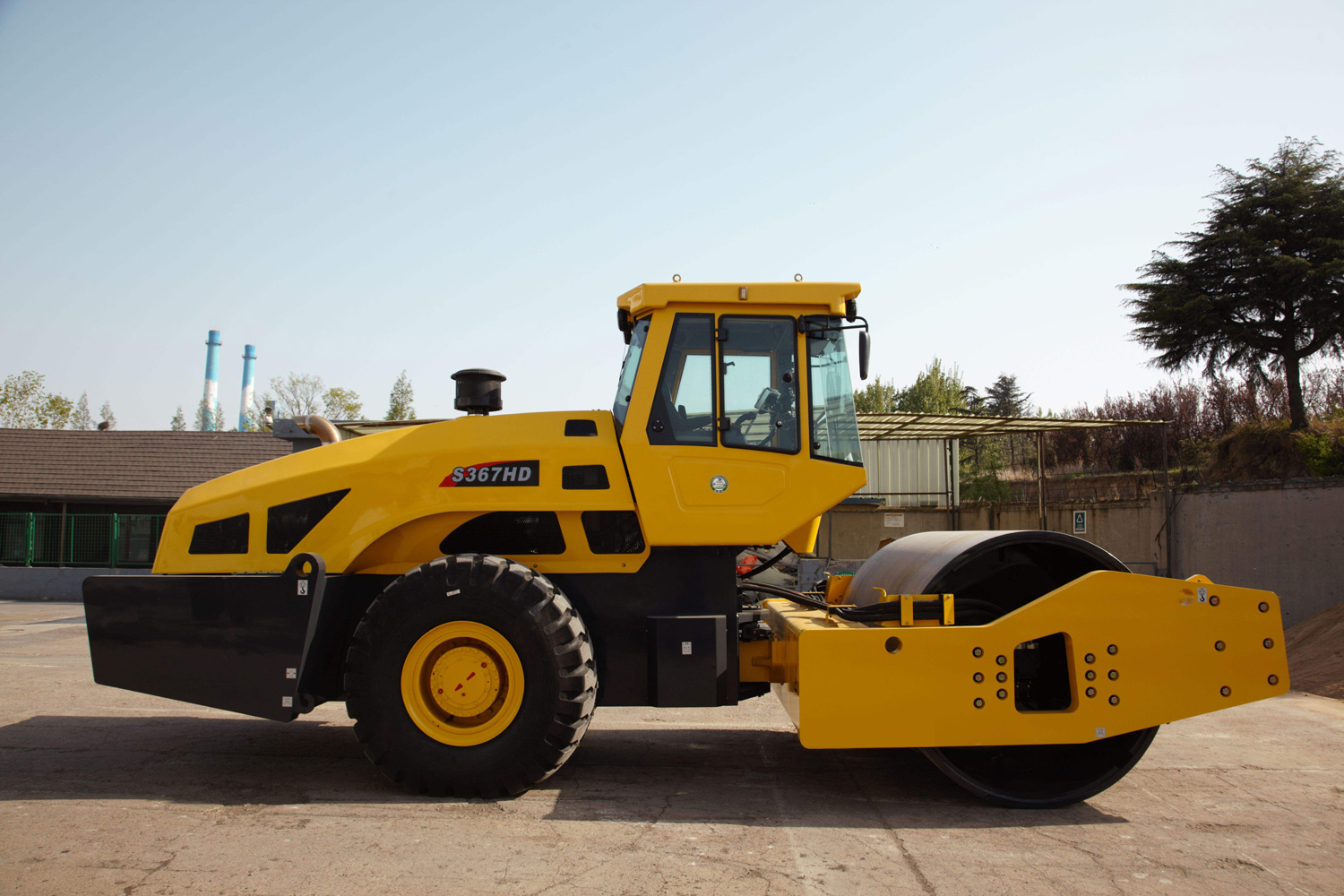

S367HD Single-drum vibratory roller
S367HD Single-drum vibratory roller

🔍 Details of Model:S367HD Single-drum vibratory roller

36-Ton Ultra-Heavy-Duty Flagship Model:

With a massive operating mass of 36,000 kg, the 366HD represents the pinnacle of compaction technology, engineered for the world's most demanding mega-projects including large dams, ports, and mining operations.

Industry-Leading Centrifugal Force:

Generating an extraordinary centrifugal force of up to 805 kN, this machine delivers unparalleled deep penetration and compaction power, effectively handling extreme rock fills and the toughest materials in record time.

Exceptional Static Linear Load:

An industry-best static linear load of 1021 N/cm provides unmatched ground penetration, enabling the roller to crush and compact massive aggregates and rocky materials in minimal passes for maximum efficiency.

Massive Drum for Maximum Coverage:

The 2350 mm ultra-wide drum combined with a 1700 mm large diameter provides exceptional impact force distribution and coverage, ensuring consistent, uniform compaction across the entire working width with every pass.

High-Power Dual-Stage Vibration:

The advanced dual amplitude (1.9 mm / 1.0 mm) and dual frequency (28 Hz / 32 Hz) settings allow operators to customize compaction parameters—from ultra-deep high-impact compaction of thick lifts to finishing applications.

Monumental Power Output:

Powered by a massive 276 kW Weichai engine meeting Tier 3 / China Stage III standards, this powerhouse delivers the tremendous energy required for sustained high-impact compaction in the most challenging conditions.

Heavy-Duty Construction for Extreme Durability:

Built with reinforced heavy-duty components, a massive frame, and the "HD" (Heavy-Duty) designation ensures the 366HD is engineered to withstand the extreme stresses of continuous high-impact compaction in the world's toughest job sites.


The 366HD Single Drum Vibratory Roller is a 36-ton ultra-heavy-duty flagship machine designed for the most demanding mega-projects on earth. It combines a monumental 276 kW Weichai engine with an industry-leading vibration system delivering up to 805 kN of centrifugal force and an exceptional 1021 N/cm static linear load—the highest in its class. Featuring a massive 2350 mm wide drum with 1700 mm diameter, advanced dual-stage vibration settings, and reinforced heavy-duty construction, the 366HD provides the ultimate solution for large dam construction, port development, mining operations, and major infrastructure projects. For contractors seeking maximum compaction power, unparalleled productivity, and uncompromising reliability, the 366HD delivers world-class performance on the most challenging job sites.


Basic Parameters
ModelKS366HD
Operation Weight (kg)36000
Static Linearity (N/cm)1021
Amplitude (mm)1.9 / 1.0
Vibration Frequency (Hz)28 / 32
Centrifugal Force (kN)805 / 550
Drum Width (mm)2350
Drum Diameter (mm)1700
Speed Range (km/h)0-9
Climbing Capability (%)45
Turning Radius (mm)7575
Engine BrandWeichai
Emission StandardTier 3 / China Stage III
Engine Power (kW)276
Dimensions
Overall Dimensions L×W×H (mm)6980 × 2690 × 3300
