D106HF

Tandem roller

Total Weight:

10600KG

Min. Turning Radius:

6000mm

Rated Power:

119Kw

  • Overall Dimensions (mm)
    4920*2250*3200
  • Engine Model
    Cummins QSB4.5
  • Travel Speed (km/h)
    0-11

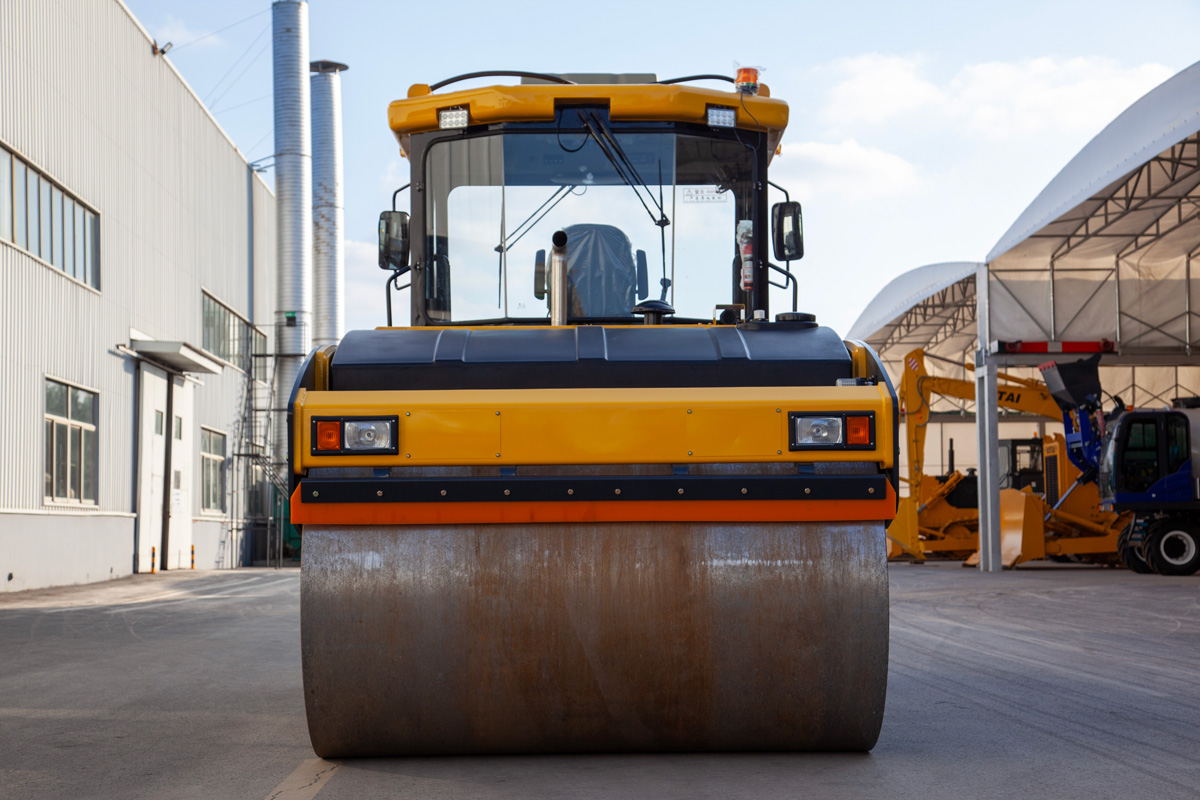

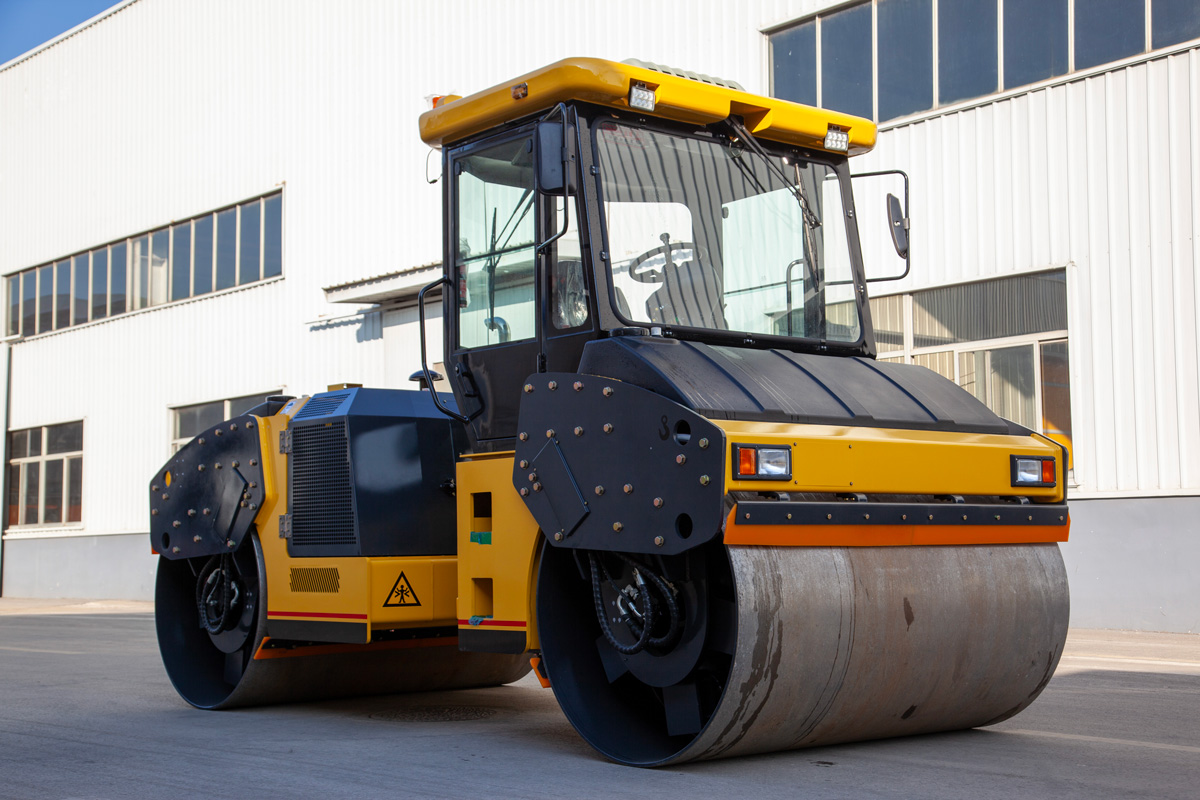

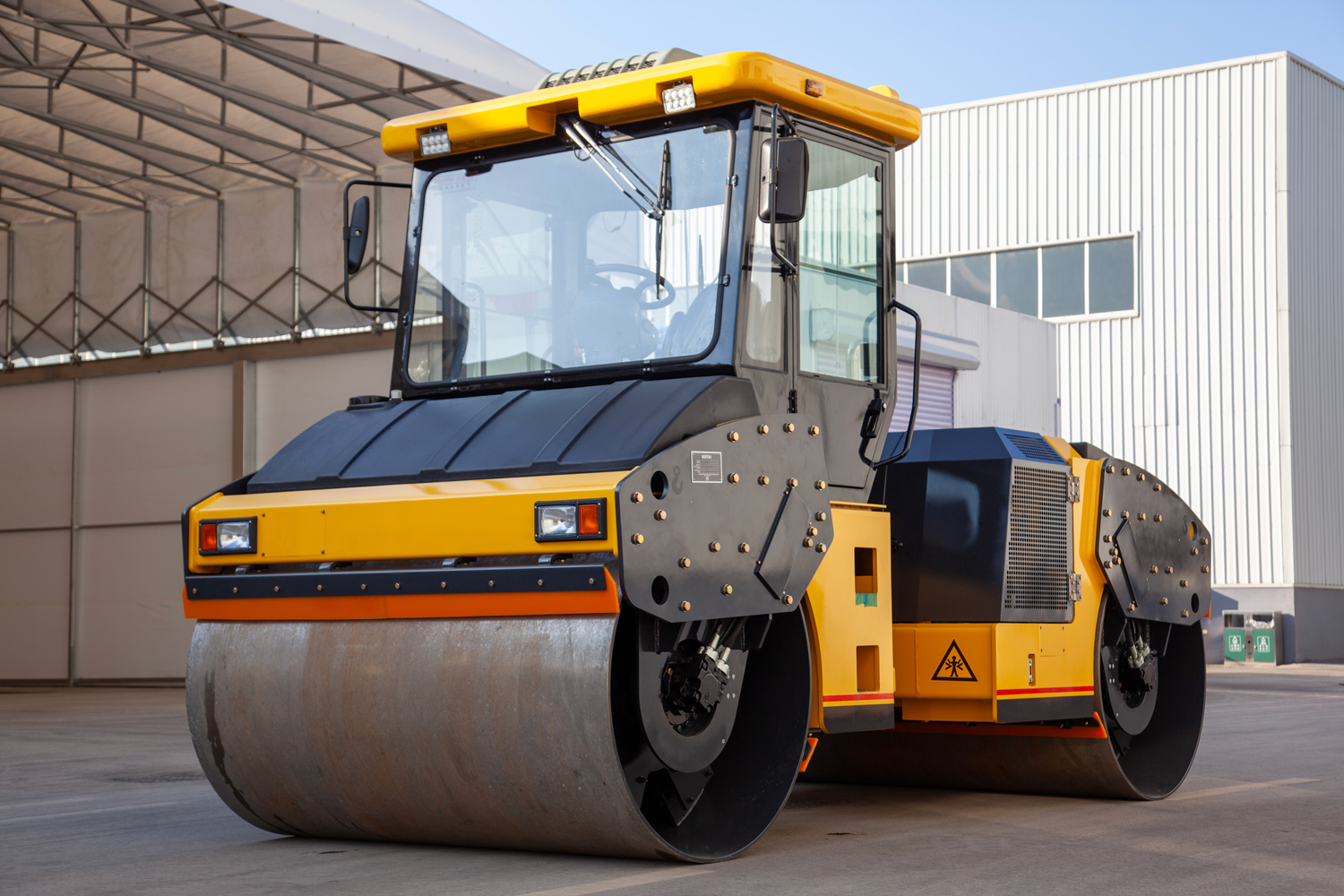

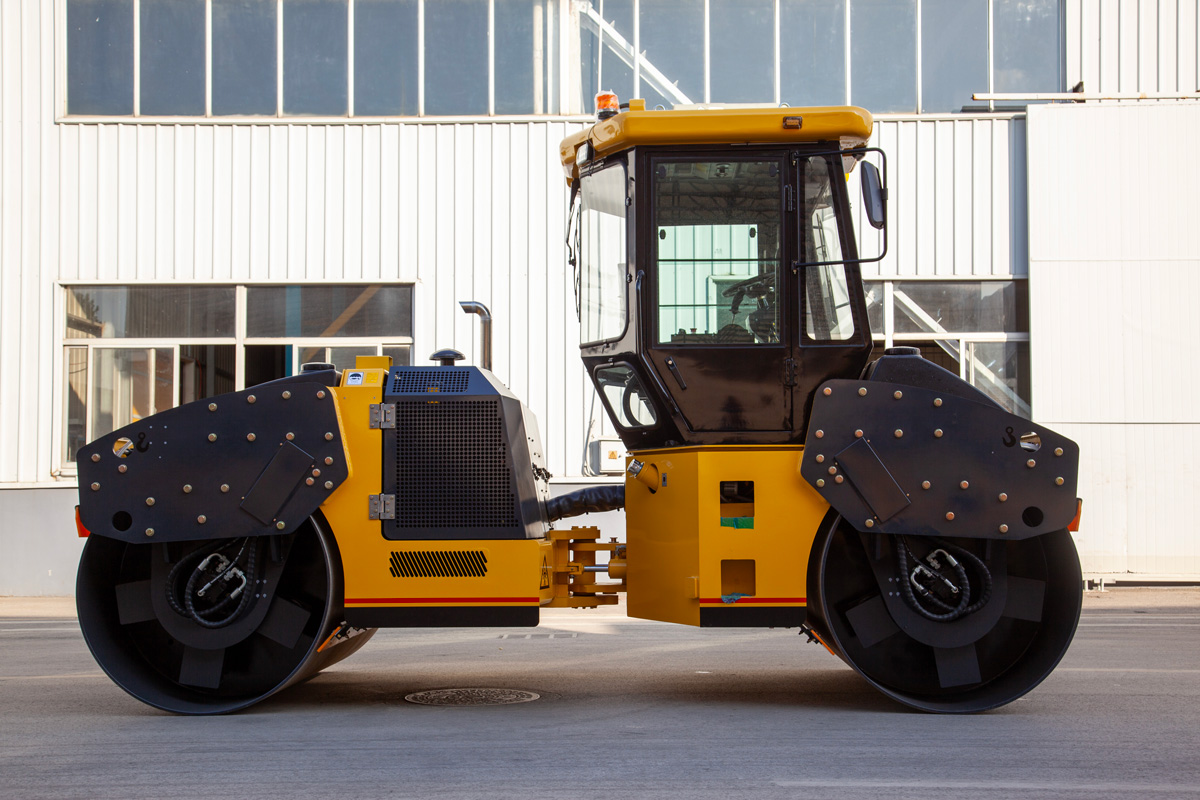

D106HF Tandem roller
D106HF Tandem roller

🔍 Details of Model:D106HF Tandem roller

🚜 D106HF Tandem Vibratory Roller — Professional, High‑Efficiency Compaction Solution

119 kW High‑Power Cummins Engine

Delivers reliable output and long service life, ensuring strong on‑site performance.

Imported Hydraulic Components

Equipped with Danfoss piston pumps and motors for stable, efficient, and low‑failure operation.

Dual Independent Vibration

Separate front and rear vibration control improves compaction uniformity and construction efficiency.

Dual Frequency & Dual Amplitude

Flexible matching for base, subbase, and asphalt layers to meet diverse project requirements.

Strong Climbing Ability

30% grade capability ensures stable operation on ramps and sloped sites.

Large Fuel Capacity

200L fuel tank supports long continuous working hours and reduces refueling frequency.

Articulated Steering with Optional Crab Walk

Excellent maneuverability for tight turns, intersections, and curb work.

High Ground Clearance

440 mm minimum clearance reduces bottom scraping and enhances off‑road capability.

Wide Compaction Width

2080 mm drum width increases single‑pass coverage and boosts construction efficiency.

Compliant Global Safety Design

Full set of safety devices meets international construction machinery standards.

Product Summary

The D106HF tandem vibratory roller integrates a high‑performance Cummins engine, imported hydraulic system, dual independent vibration, and advanced safety features to deliver professional, efficient, and reliable compaction performance; with dual amplitude, dual frequency, excellent maneuverability, and superior operator comfort, it is ideal for highway paving, municipal roads, parking lots, airports, and other infrastructure projects.

Basic Parameters
ModelD106HF
Operation Weight (kg)10600
Static Linearity (Front/Rear) (N/cm)249 / 249
Vibration Frequency (Hz)42 / 50
Amplitude (mm)0.8 / 0.4
Centrifugal Force (kN)120 × 2 / 80 × 2
Drum Width (mm)2080
Walking Speed (km/h)0-11
Climbing Capability (%)30
Ground Clearance (mm)440
Steering Angle (°)±40
Turning Radius (mm)6000
Engine BrandCummins
Rated Power (kW)119
Fuel Tank Capacity (L)200
Dimensions L×W×H (mm)4920 × 2250 × 3200
Main Configuration
ComponentSpecification / Brand
Engine ModelQSB4.5 (Cummins)
Drive Pump90R100 / T90R100 (Danfoss)
Drive Motor90K055 × 2 (Danfoss)
Vibrate PumpMPV046 / MP1P45R (Danfoss)
Vibration MotorMMF035 × 2 (Danfoss)
ReducerCTU2150 × 2 (Brevini)
Vibration Bearings22312 × 8 (FAG)
