P166

Tyred rollers

Total Weight:

16000KG

Rated Power:

105Kw

  • Overall Dimensions (mm)
    5200*2270*3350
  • Engine Model
    Weichai Tier2
  • Travel Speed (km/h)
    0–7
P166 Tyred rollers
P166 Tyred rollers

🔍 Details of Model:P166 Tyred rollers

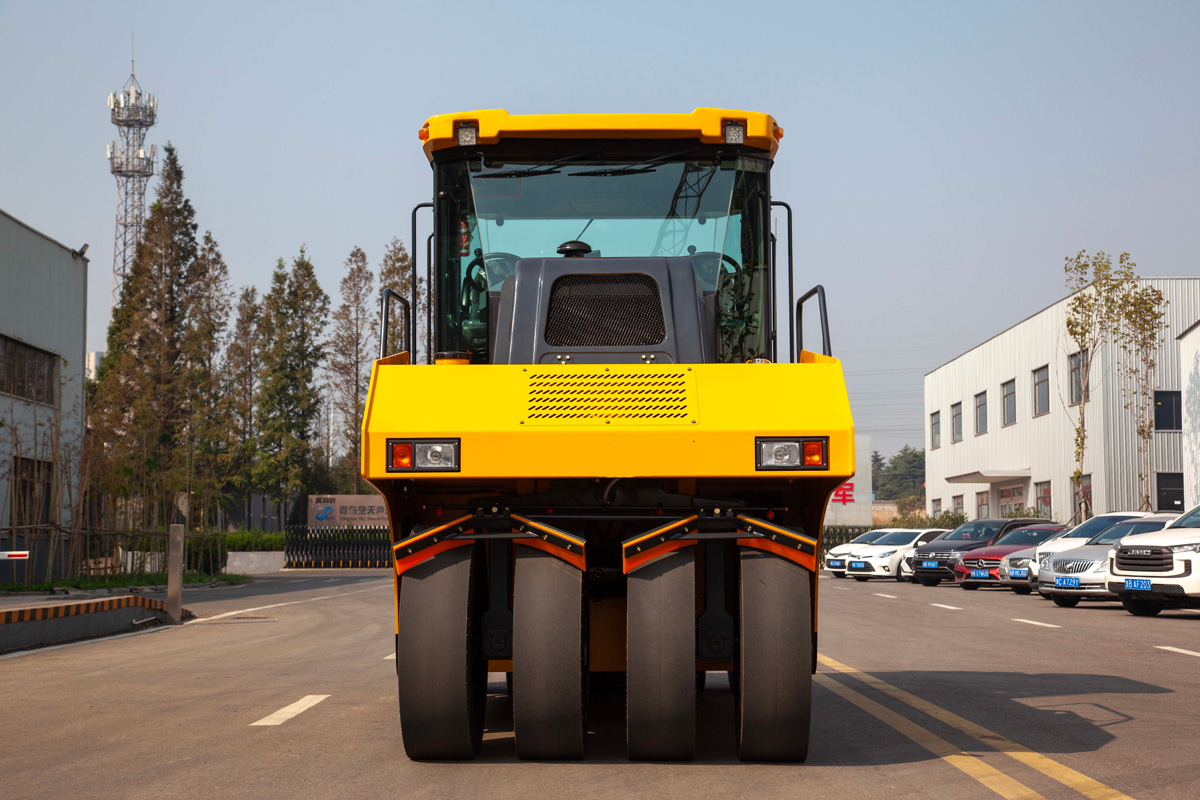

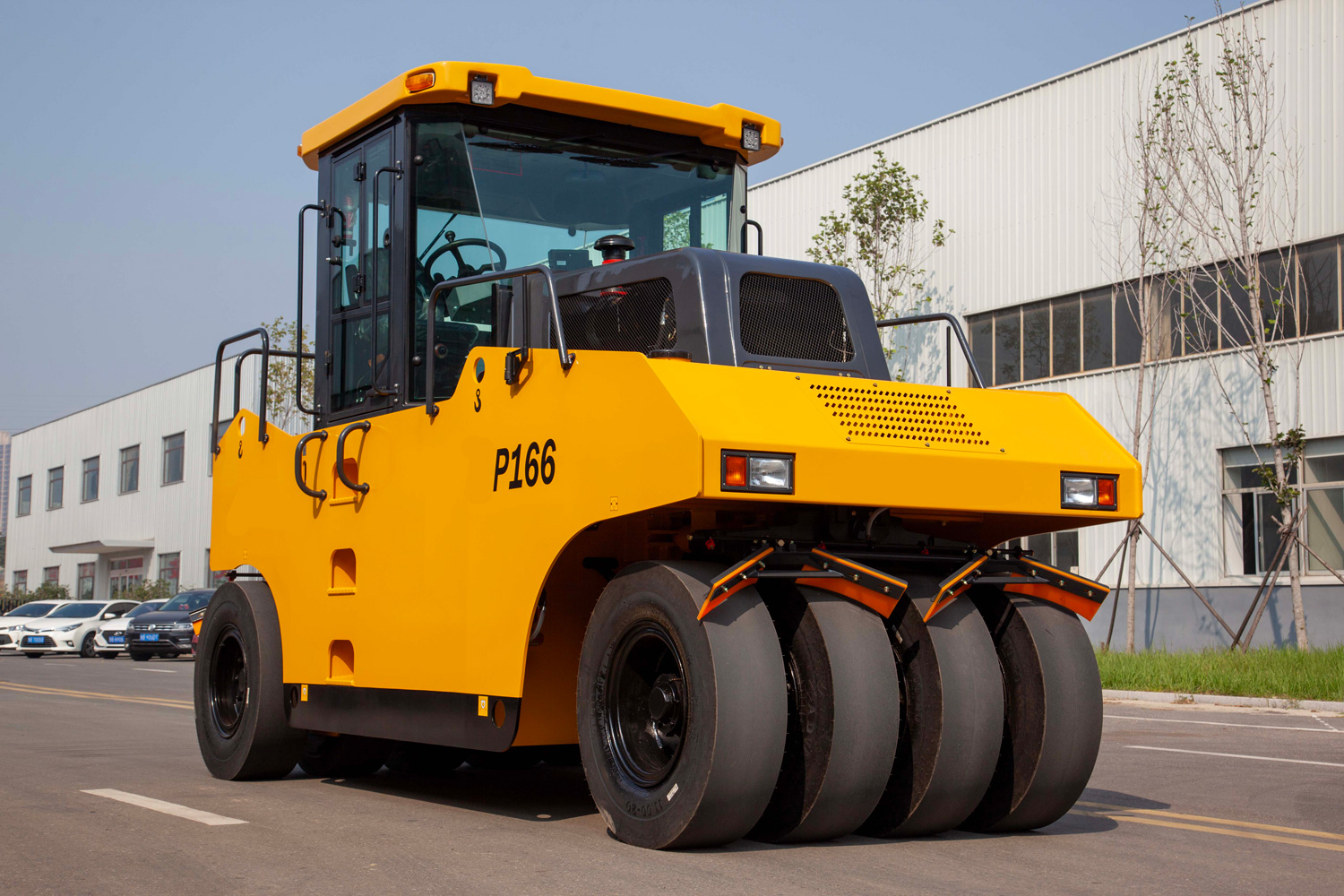

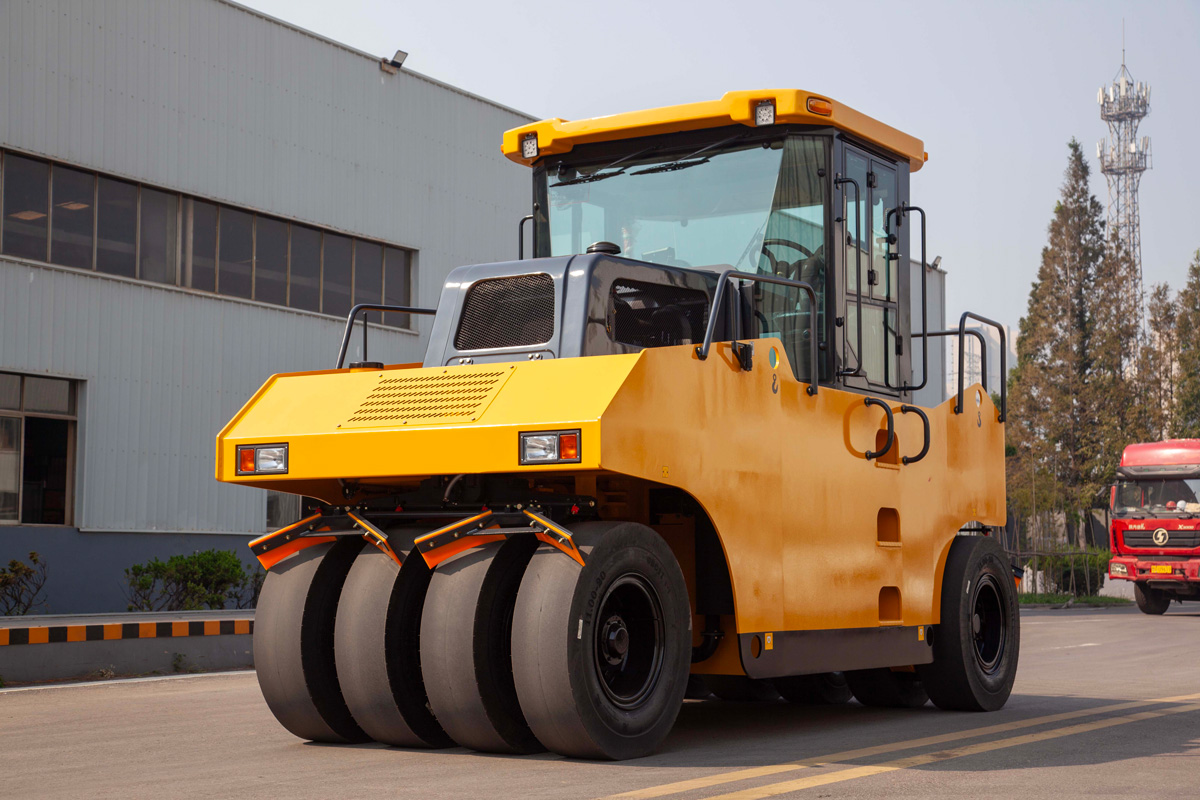

🚜 P166 Fully Hydraulic Pneumatic Tyred Roller — Versatile 16‑Ton Compaction Solution

🎛️ Full Hydraulic Precision Control

Advanced fully hydraulic system provides smooth, responsive handling and infinitely variable speed adjustments, reducing operator effort during long shifts.

⚖️ Wide Range Ground Pressure Adjustment (200–400 Pa)

Field‑adjustable ground pressure adapts the roller for surface sealing on asphalt or deeper compaction of base materials via simple ballasting changes.

🏋️ 16‑Ton Substantial Working Weight

Maximum operating mass of 16,000 kg supplies strong static force and kneading action for high‑density compaction and superior surface closure.

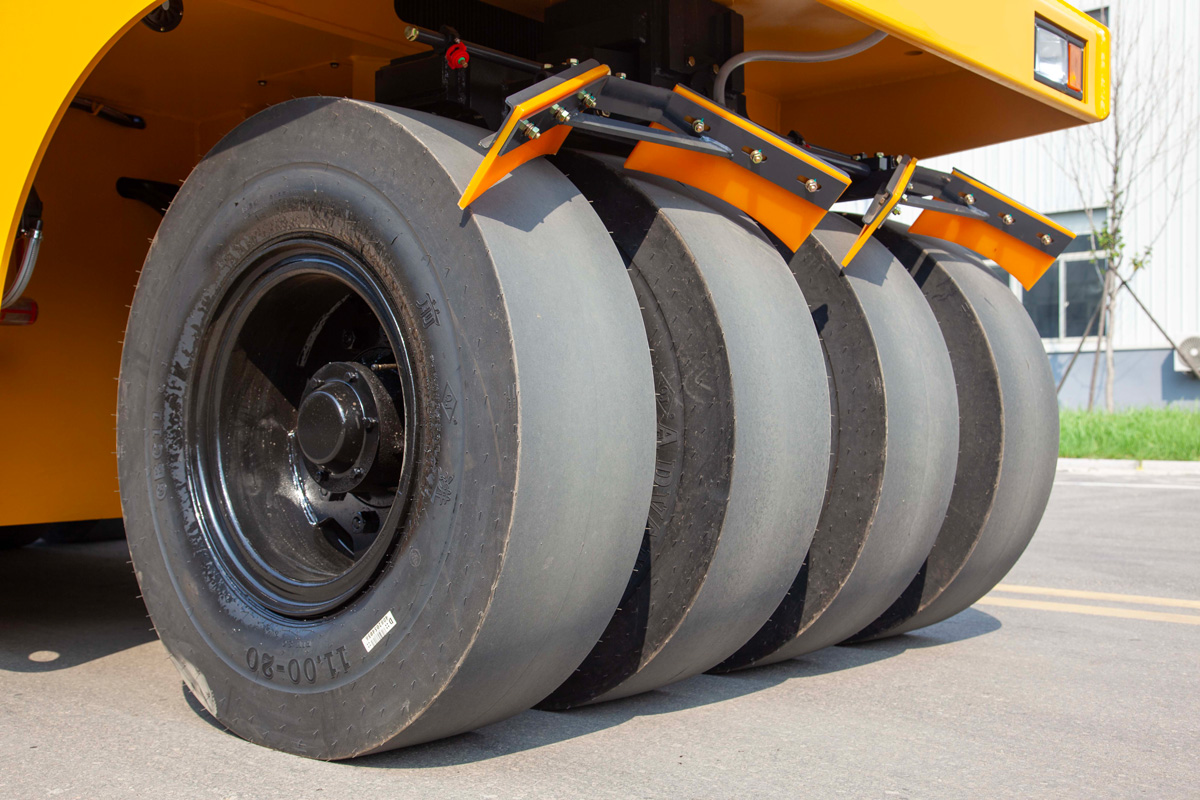

🔧 Optimized 9‑Wheel Configuration (4 Front + 5 Rear)

Specialized wheel arrangement ensures full coverage across the compaction path and generates the kneading effect needed to seal surfaces and boost density.

📏 Even Load Distribution Across 2270 mm Working Width

Multiple pneumatic tires spread pressure uniformly to eliminate weak spots and protect mat integrity during critical asphalt courses.

🛡️ Asphalt‑Friendly Compaction

Pneumatic tires provide gentle yet effective force that minimizes surface marking and aggregate damage, ideal for final finishing passes.

🔁 Variable Compaction Depth via Tire Pressure

Adjustable tire inflation lets operators control compaction depth and energy on‑site without changing equipment.

🌄 Excellent Terrain Adaptability

Flexible pneumatic tires maintain effective compaction on uneven ground, soft bases, and coarse surfaces where rigid drums may struggle.

🎯 Hydraulic Precision Maneuvering

Responsive full hydraulic system grants exceptional control during tight turns and frequent directional changes for accurate compaction patterns.

⚡ Two‑Stage Speed Versatility (0–7 / 0–15 km/h)

Dedicated compaction speed range for quality work and higher transit speed for rapid repositioning between sites.

✅ Complete Pass Coverage (2270 mm)

The 2270 mm compaction width and overlapped wheel patterns ensure consistent density edge‑to‑edge, eliminating transitional weak zones.

🔋 Durable and Efficient Powertrain — 105 kW Weichai Engine

Reliable 105 kW Weichai engine (Tier 2 / China Stage II) offers dependable performance, simple maintenance, and efficient fuel consumption.

Product Summary

The P166 fully hydraulic pneumatic tyred roller combines smooth hydraulic control, adjustable ground pressure, a 4+5 tyre layout, and a robust 16‑ton working weight to deliver uniform, asphalt‑friendly compaction across a 2270 mm width—powered by a dependable 105 kW Weichai engine for durable, high‑quality road construction and surface finishing.

Pneumatic Tyre Roller Parameters
ModelP166
Maximum operation weight (kg)16000
Ground pressure (kPa)200-400
Compaction width (mm)2270
Climbing capability (%)20
I speed (km/h)0-7
II speed (km/h)0-15
Turning radius (mm)7500
Tyre specification (matte)11.00-20
Tyre qty (f/r)4/5
Engine brand潍柴 / Weichai
Emission standard国二 / Tier 2
Engine power (kW)105
Dimensions (mm)5200 × 2270 × 3350
