P206

Tyred rollers

Total Weight:

20000KG

Min. Turning Radius:

7500mm

Rated Power:

105Kw

  • Overall Dimensions (mm)
    5200*2270*3350
  • Engine Model
    Weichai Tier2
  • Travel Speed (km/h)
    0-15

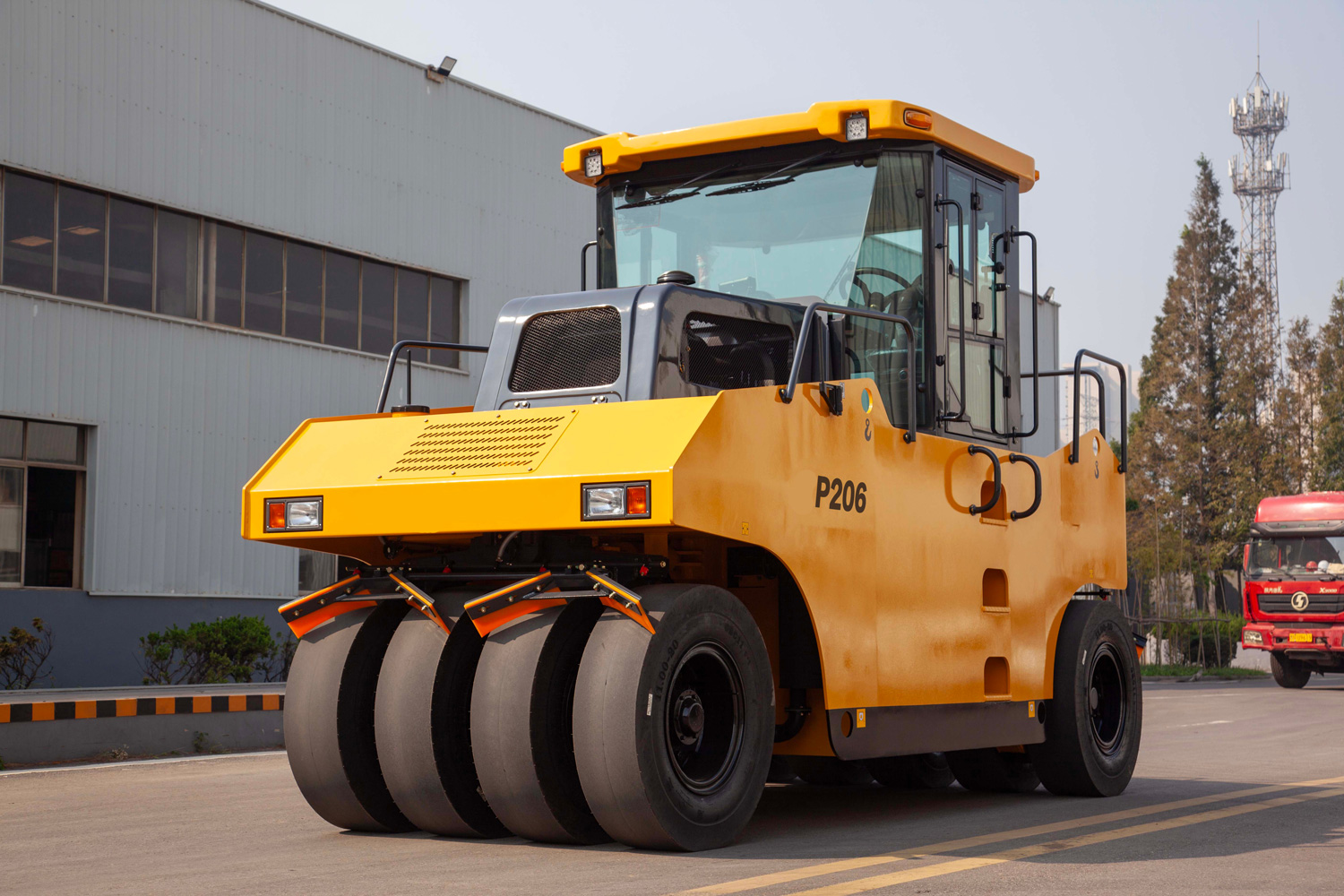

P206 Tyred rollers
P206 Tyred rollers

🔍 Details of Model:P206 Tyred rollers

🚜 P206 Fully Hydraulic Pneumatic Tyred Roller — Reliable Pneumatic Compaction Solution

✅ Stable Compaction Quality

Consistent ground contact and uniform pressure distribution ensure high‑quality, repeatable compaction across the entire working width.

🧱 Excellent Sealing Performance

Pneumatic tire compaction improves surface sealing and density, reducing water penetration and extending pavement service life.

🔇 Low Vibration & Low Impact

Gentle compaction action minimizes vibration impact on adjacent structures and improves operator comfort.

⚡ High Construction Efficiency

Wide compaction width and stable travel performance reduce overlapping passes and boost overall job‑site productivity.

🧗 Outstanding Climbing Performance

Strong power reserve and reliable traction enable stable operation on slopes up to 20%, ensuring safety and continuity on sloped projects.

🛠️ Easy Maintenance & High Durability

Rational structural design and reliable key components reduce daily maintenance workload and extend machine service life.

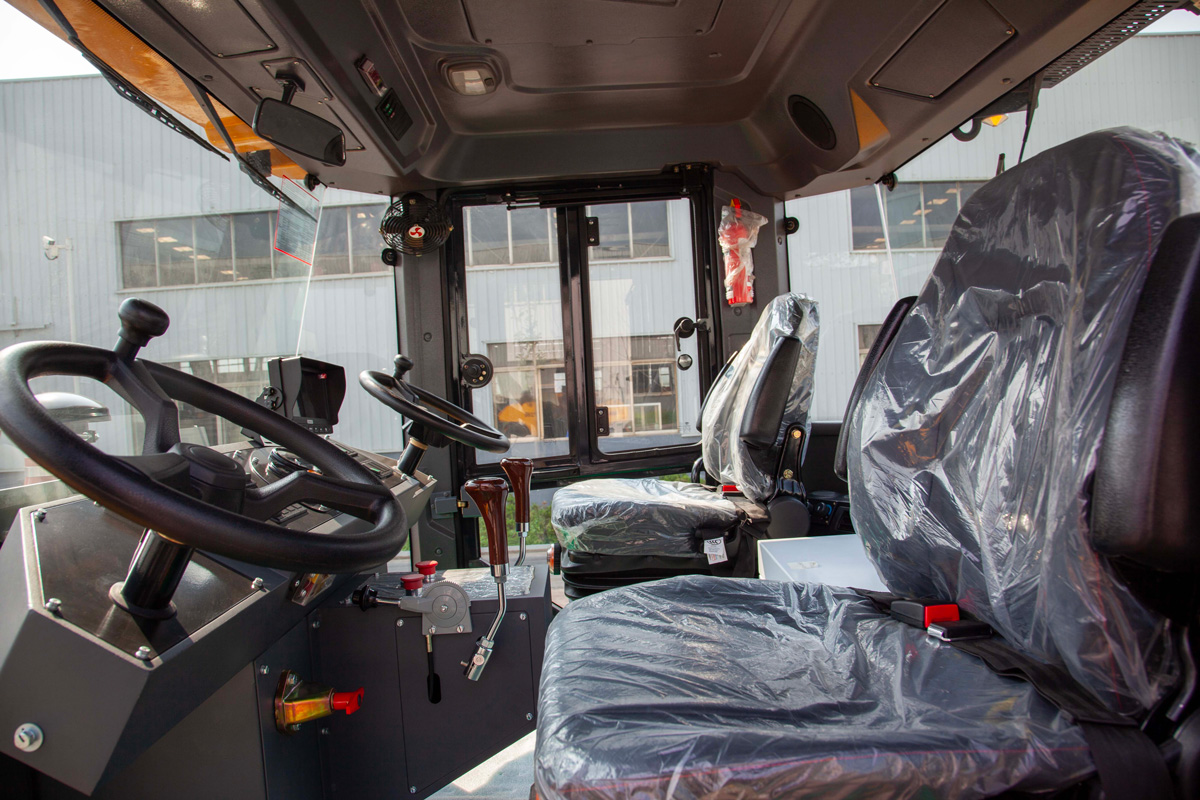

🪑 Comfortable Operating Environment

Ergonomic controls, stable driving performance, and low vibration create a fatigue‑resistant operating experience.

🛡️ Safe & Reliable Operation

Stable chassis, responsive hydraulic control, and reliable braking enhance safety during construction and maneuvering.

🌐 Wide Application Range

Suitable for base courses, subbases, asphalt layers, and landfill compaction—highly versatile for road and municipal projects.

♻️ Energy‑Saving & Environmentally Friendly

Equipped with a low‑consumption Weichai engine meeting Tier 2/China Stage II emissions, delivering strong power with reduced fuel consumption.

Product Summary

The P206 fully hydraulic pneumatic tyred roller combines full hydraulic efficiency with pneumatic tire compaction to deliver uniform, pavement‑friendly results across diverse applications—improving construction quality, extending pavement life, and offering a versatile solution for modern road and infrastructure projects.

Pneumatic Tyre Roller Parameters
ModelP206
Maximum operation weight (kg)20000
Ground pressure (kPa)200-440
Compaction width (mm)2270
Climbing capability (%)20
I speed (km/h)0-7
II speed (km/h)0-15
Turning radius (mm)7500

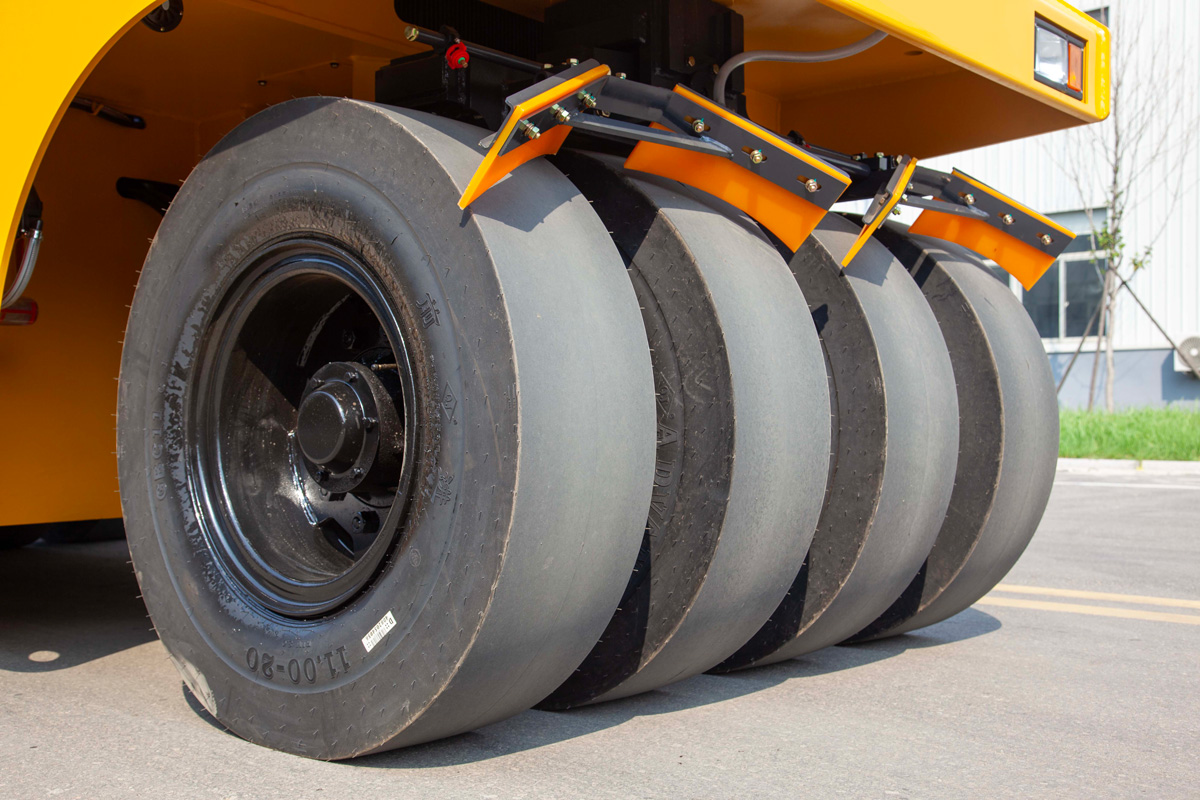

Tyre specification (matte)11.00-20
Tyre qty (f/r)4/5
Engine brand潍柴 / Weichai
Emission standard国二 / Tier 2
Engine power (kW)105
Dimensions (mm)5200 × 2270 × 3550
