P306H-2

Tyred rollers

Total Weight:

30000KG

Min. Turning Radius:

9000mm

Rated Power:

140Kw

  • Overall Dimensions (mm)
    5200*2870*3380
  • Engine Model
    Weichai Tier3

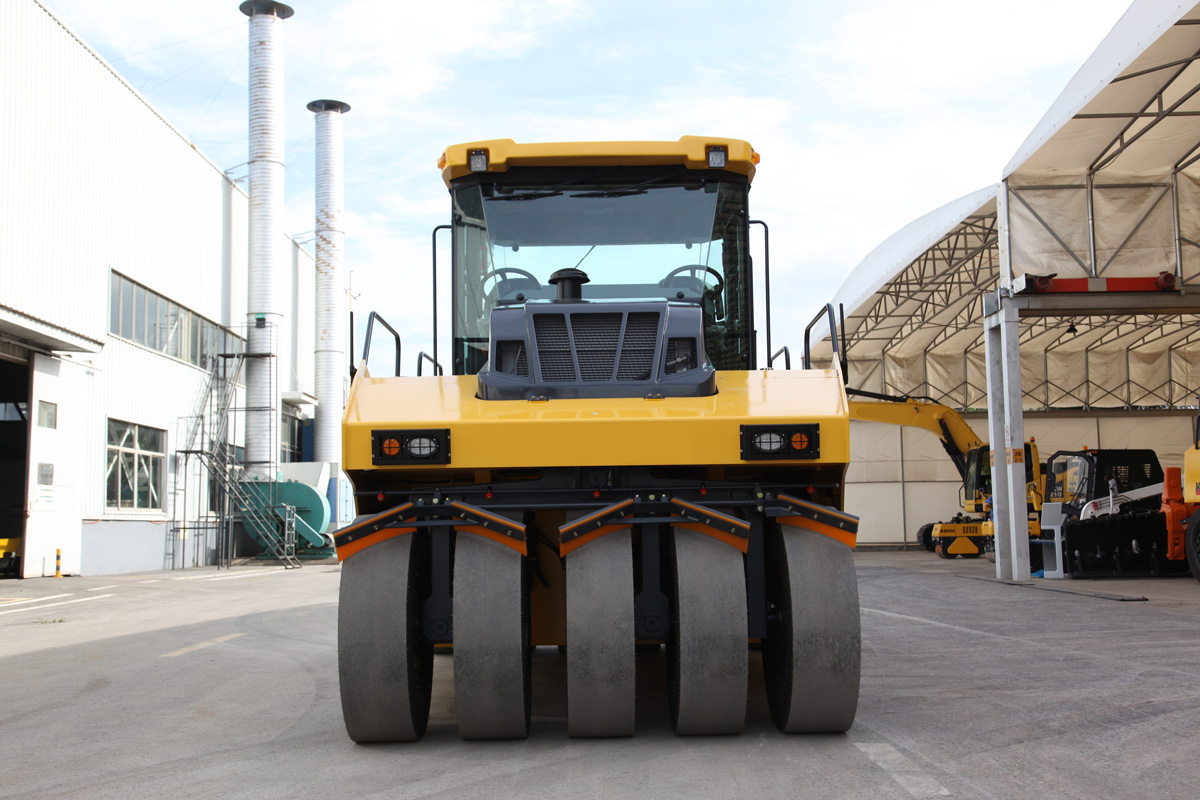

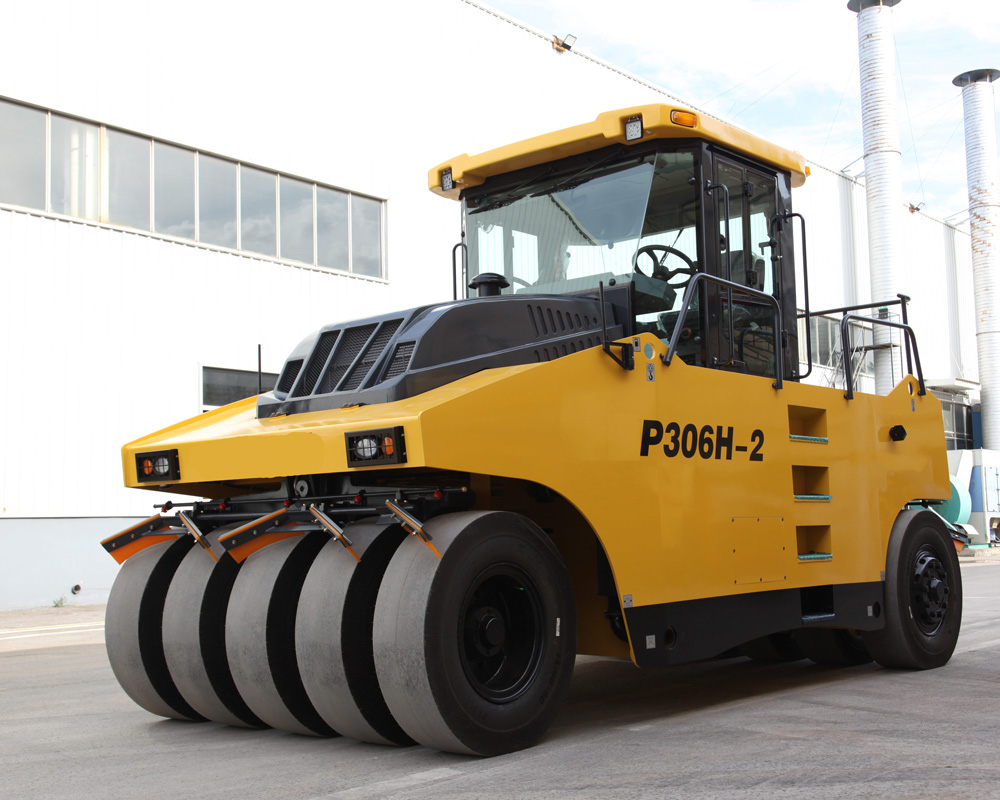

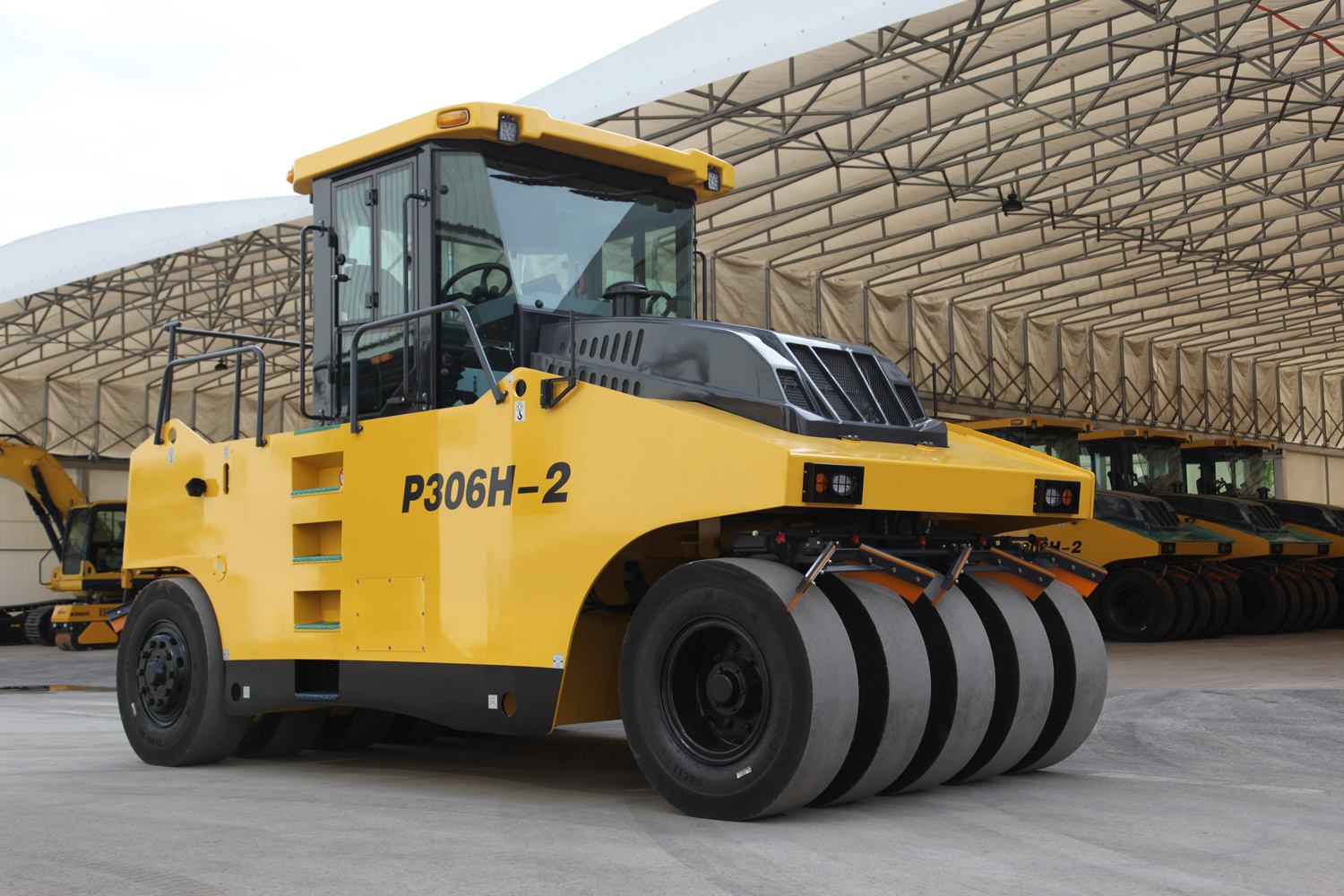

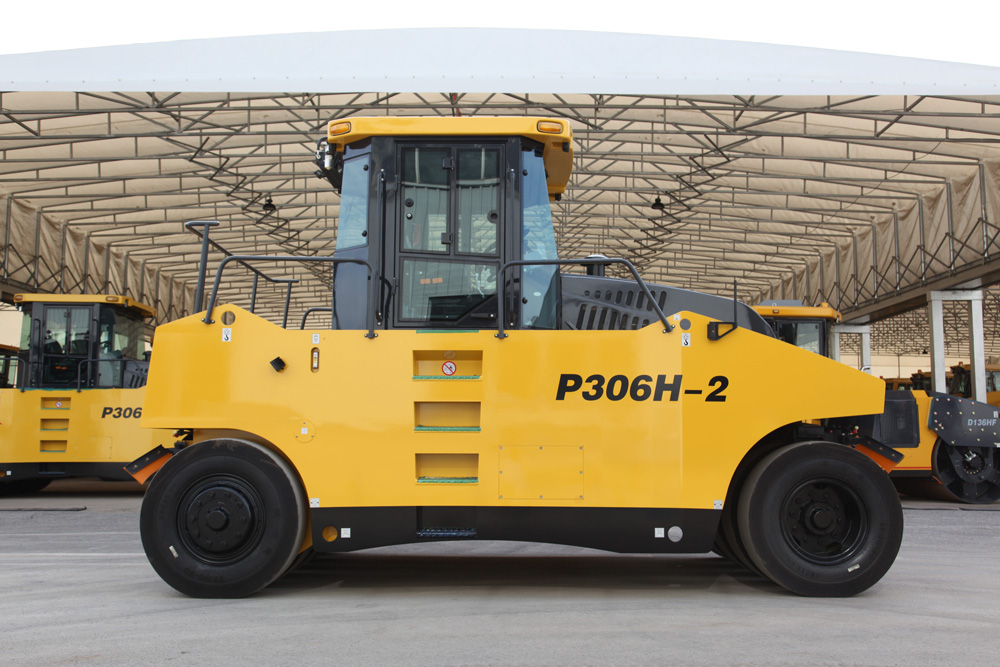

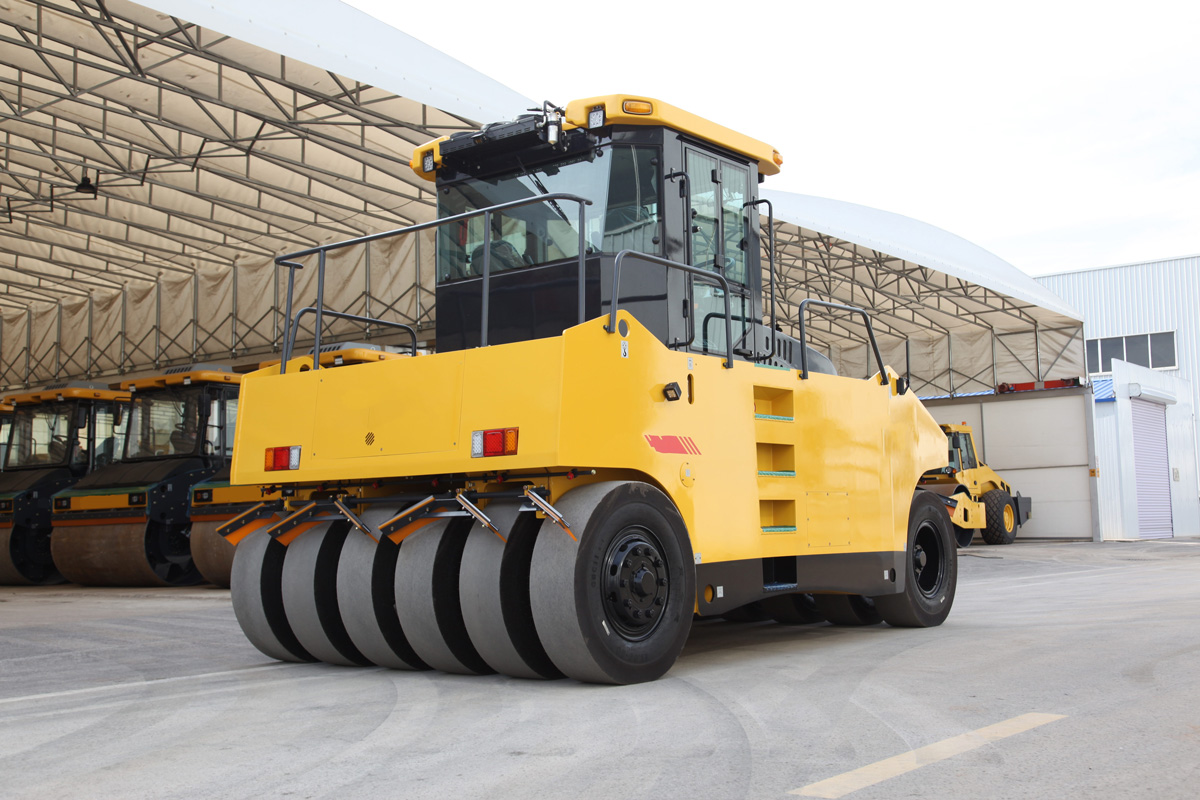

P306H-2 Tyred rollers
P306H-2 Tyred rollers

🔍 Details of Model:P306H-2 Tyred rollers

🚜 P306H‑2 Fully Hydraulic Pneumatic Tyred Roller — 30‑Ton Heavy‑Duty Compaction Solution

🏋️ Higher Operating Weight for Deeper Compaction

30‑ton operating weight achieves greater compaction density and deeper layer compaction for heavy‑duty road projects.

📐 Wider Compaction Width for Higher Efficiency

2750 mm compaction width reduces overlapping passes and significantly improves daily construction output.

🔧 Optimized Tire Layout for Full Coverage

5‑front & 6‑rear tire arrangement ensures full‑width compaction without missing areas or uneven density.

⚡ Stronger Power Reserve — 140 kW Weichai Engine

Provides stable power output under heavy load and tough working conditions.

🌍 Higher‑Grade Emission Compliance (Tier 3 / China Stage III)

Meets stricter emissions standards for environmental suitability in global and urban projects.

🔩 Stable High‑Pressure Compaction (up to 460 kPa)

Adjustable ground pressure ensures strong compacting ability for both base courses and asphalt surfaces.

🛠️ Enhanced Structural Durability

Heavy‑duty frame design and reinforced components improve reliability and extend service life under long‑term heavy use.

🛞 Superior Traction and Stability

Optimized weight distribution and tire configuration deliver stable driving and strong anti‑slip performance.

🎯 Precise Hydraulic Control

Full hydraulic drive enables smooth starting, braking, and steering—reducing operator fatigue and improving accuracy.

🌐 Wide Application for Heavy Projects

Designed for highways, airports, ports, and large‑scale infrastructure where high compaction quality is required.

Product Summary

The P306H‑2 fully hydraulic pneumatic tyred roller combines a 30‑ton heavy‑duty structure, 140 kW Weichai power, and a full hydraulic system to deliver uniform, deep, and pavement‑friendly compaction across a 2750 mm width—ideal for major infrastructure projects requiring high compaction quality and long‑term reliability.

Pneumatic Tyre Roller Parameters
ModelP306H-2
Maximum operation weight (kg)30000
Ground pressure (kPa)250-460
Compaction width (mm)2750
Climbing capability (%)20
I speed (km/h)0-14
II speed (km/h)0-14
Turning radius (mm)9000
Tyre specification (matte)11.00-20
Tyre qty (f/r)5/6
Engine brandWeichai &/ Shangchai
