C300H

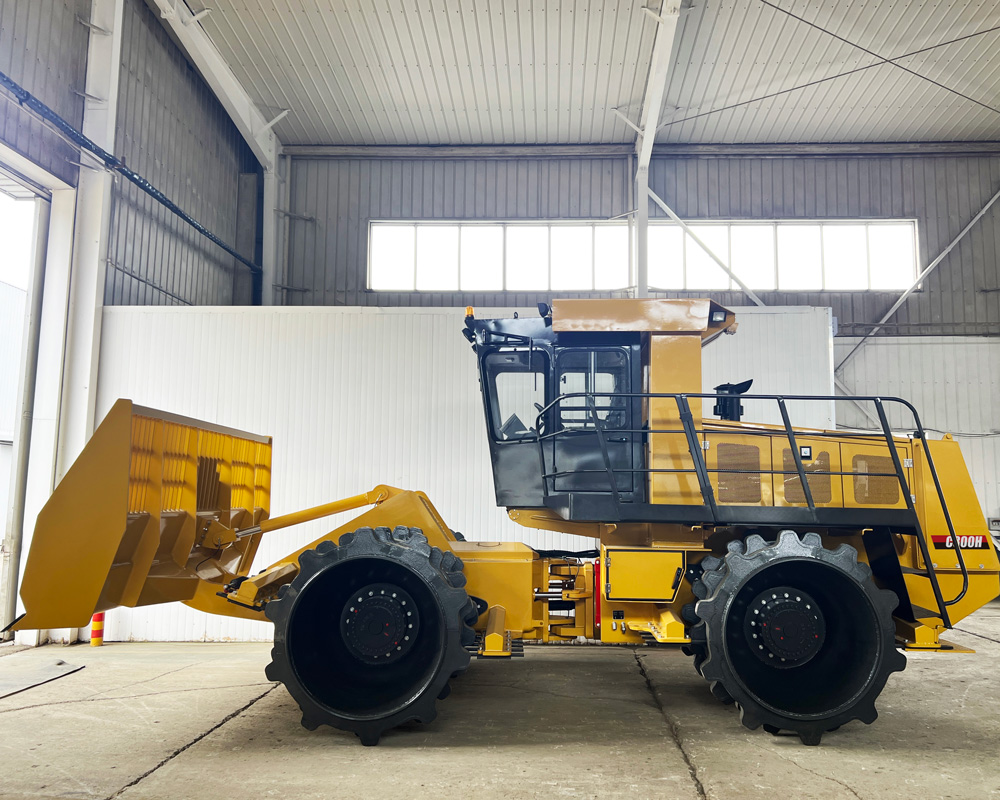

♻️ C300H Garbage Compactor – Heavy-Duty Articulated Four-Roller Landfill Compaction Machine

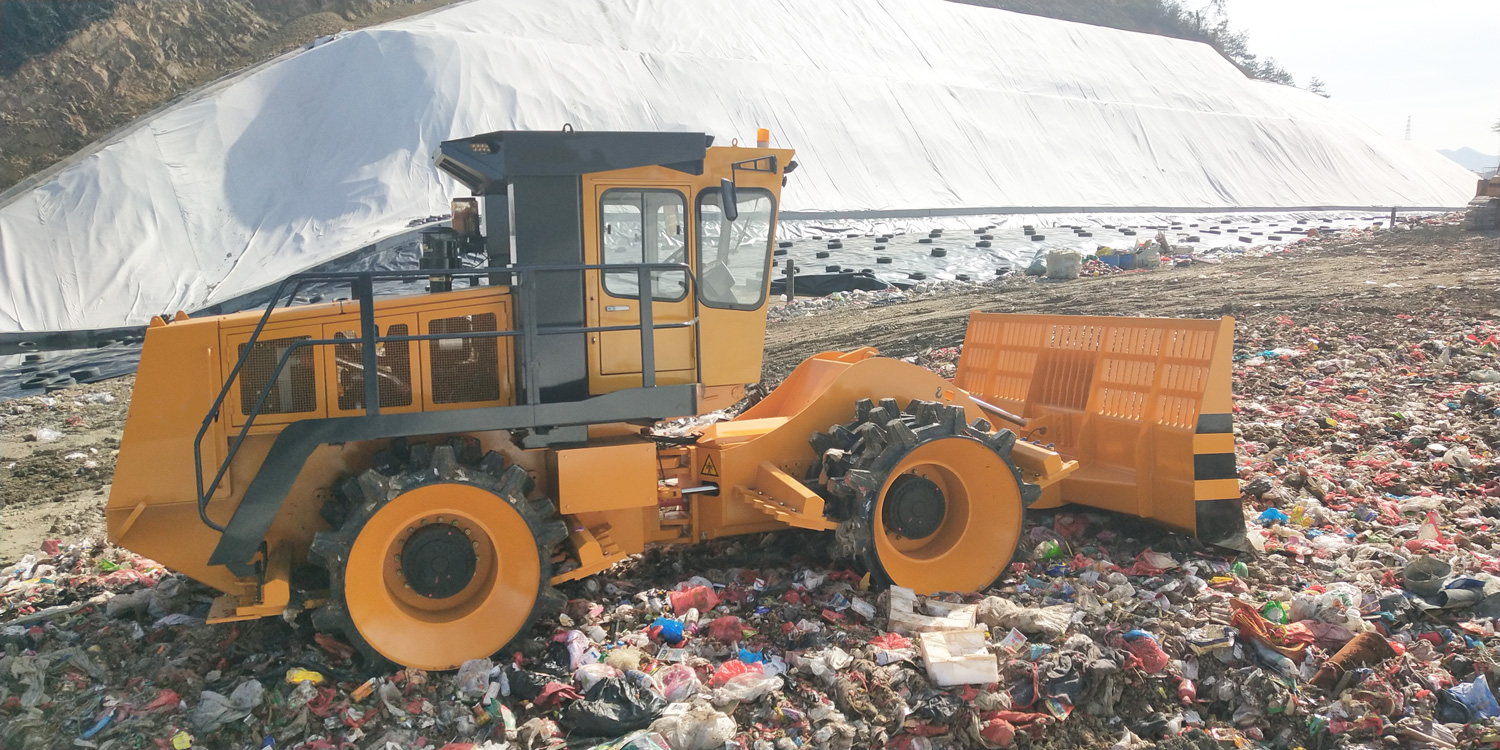

♻️ The C300H is a self-propelled articulated four-roller garbage compactor, belonging to super heavy-duty compaction equipment. It features strong climbing ability, excellent compaction effect and high working efficiency. It is mainly used for pushing, leveling and compacting garbage piles in landfills, and can also be applied to filling and compaction operations of viscous materials in highways, airports, ports, docks, dams and various industrial construction sites.

⚙️ Powerful Shangchai Engine (192kW)

Equipped with a Shangchai China-III water-cooled turbocharged diesel engine with 192kW rated power, the C300H delivers strong power output and excellent climbing performance, ensuring stable and reliable operation even in harsh and complex landfill environments.

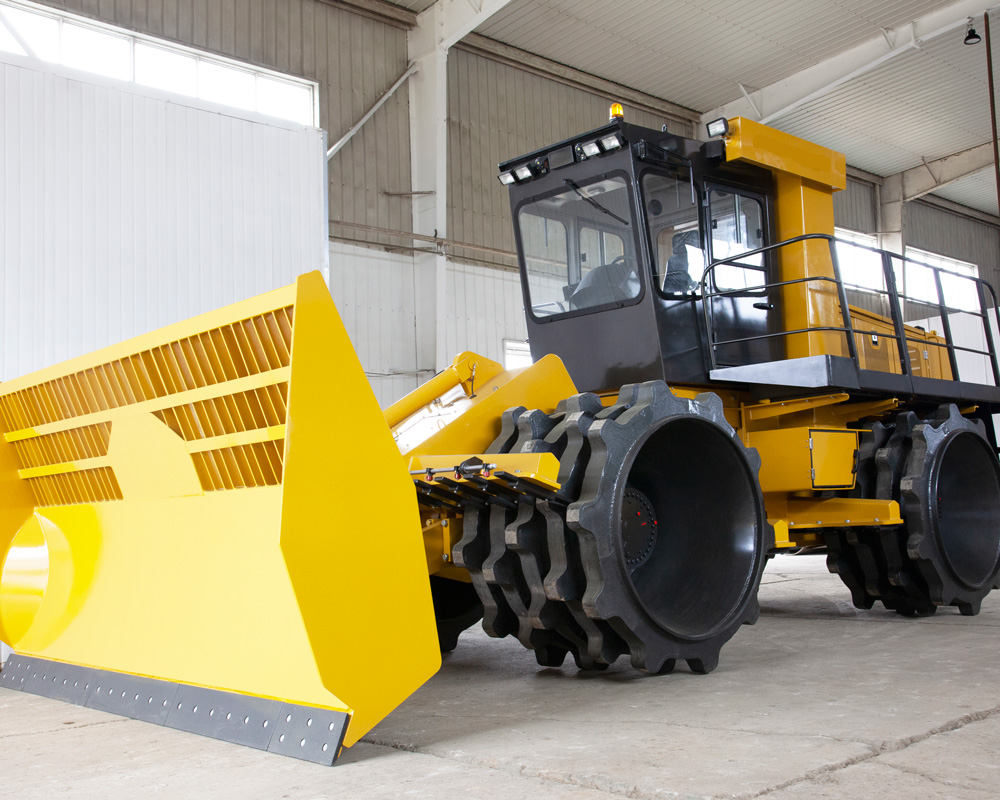

🦷 High-Strength Wear-Resistant Cutting Teeth

Built with high-strength and wear-resistant cutting teeth, the compactor achieves a compaction and paving depth of over 1 meter. It greatly improves working efficiency and increases the density of compacted garbage, realizing high-intensity landfill compaction operations.

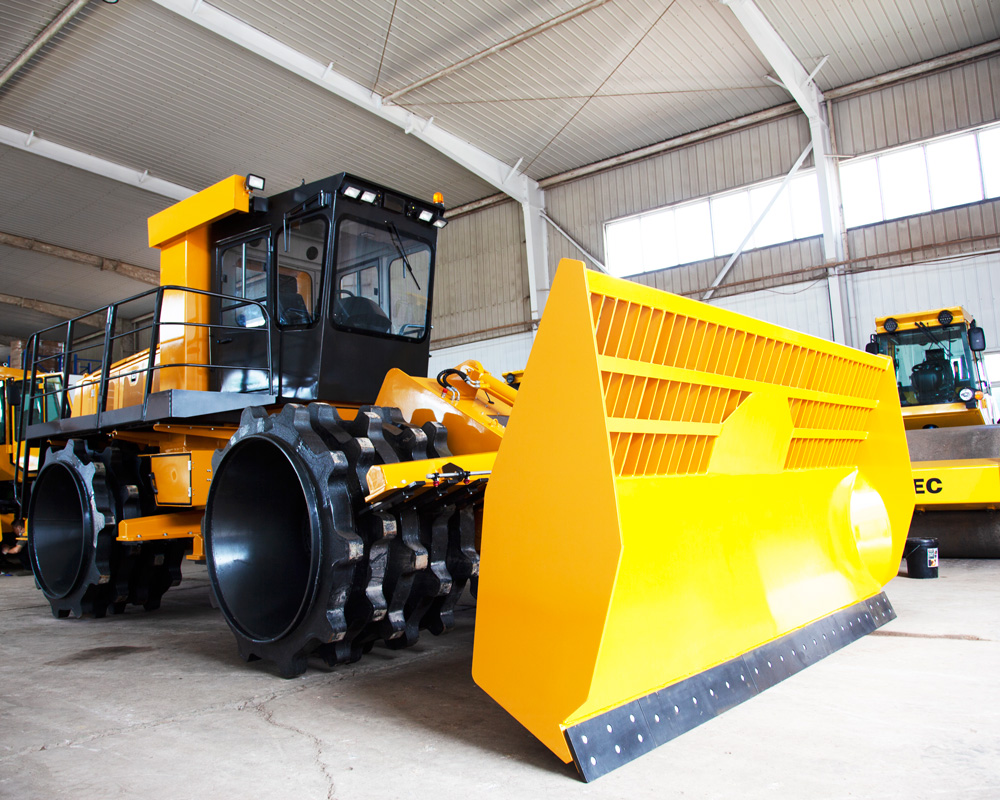

🚜 Ultra-Wide & Ultra-High Dozer Blade

Designed with an ultra-wide and ultra-high dozer blade, it provides a large-capacity pushing effect in a single stroke. This design effectively reduces empty travel times and significantly improves overall garbage pushing and transportation efficiency.

⚡ Reliable WG Hydraulic Transmission System

Adopts a mature WG-type hydraulic torque converter and power-shift gearbox, which feature wide application, stable performance, high reliability and convenient maintenance. The transmission system is widely recognized and trusted by domestic and overseas customers.

🛢️ Automatic Centralized Lubrication System

Equipped with a high-performance centralized lubrication system, the pump unit automatically and regularly lubricates 12 key working points. Operators do not need to enter the cabin for manual lubrication, greatly saving maintenance time and improving energy efficiency.

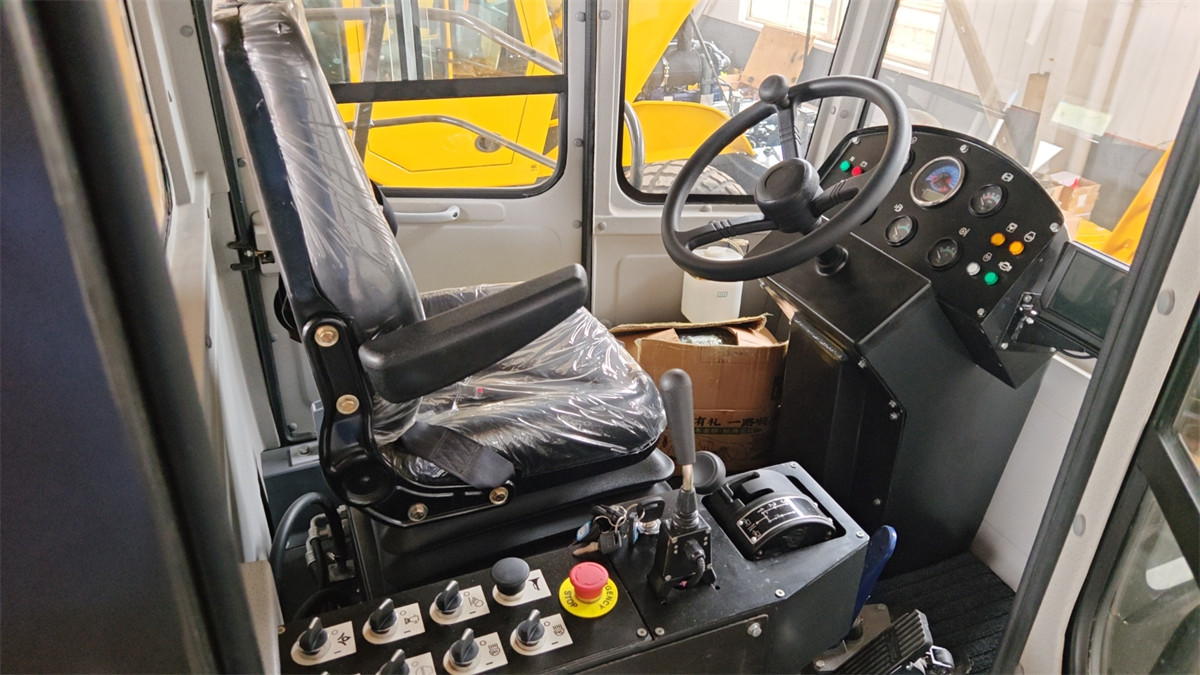

🪟 Ergonomic Sealed Comfort Cab

The C300H uses an ergonomic fully enclosed cab with standard heating and optional air conditioning. It adopts high-altitude air intake with an activated carbon filter device, effectively isolating peculiar smell and dust, protecting the driver’s physical and mental health in harsh landfill environments.

🧼 Stainless Steel Spraying & Sanitary System

Comes with a stainless steel medicine box and power spraying mechanism, which can effectively kill mosquitoes and bacteria in the garbage dump. It provides a hygienic, clean and environmentally friendly operation solution for landfill sites.

🚛 Four-Wheel Drive with Differential Lock

Adopts four-wheel walking drive and a large-tonnage PR75-37 drive axle with rear-wheel proportional differential lock. When one wheel slips, the other side still maintains stable power output, ensuring strong driving force and passability in muddy and soft ground.

💧 Imported Load-Sensing Hydraulic System

Built with an imported pump assembly and load-sensing hydraulic system, it supports priority steering function. The hydraulic system is lightweight, reliable, highly responsive, efficient and energy-saving, ensuring smooth and precise operation.

🔋 Maintenance-Free High-Performance Battery

Equipped with a maintenance-free battery that provides excellent low-temperature working performance and long service life, reducing daily maintenance workload and ensuring stable startup in all weather conditions.

♻️ Two-in-One Multifunctional Operation

The C300H garbage compactor realizes two functions in one machine: pushing garbage and compacting garbage at the same time during landfill operation. It greatly improves construction efficiency and reduces equipment investment costs for users.

🛡️ ROPS Safety Protection Structure

Equipped with a safe and reliable rollover protection structure (ROPS), which can effectively protect the driver’s personal safety in case of accidental rollover or falling objects, fully meeting international safety operation standards.
